AMD AM5 B850 : Specifications, Architecture, Working, Differences & Its Applications

The AM5 B850 chipset was launched by AMD in early 2025, a normal and budget-friendly motherboard chipset that succeeds the B650 chipset. This chipset is part of the Socket AM5 platform announced by vendors like ASUS at CES 2025. It targets mainstream users with the support of Ryzen 7000, 8000, and 9000 series CPUs. This chipset represents the latest section for AMD because they have changed to next-generation technologies through the AM5 socket. Therefore, it provides a balance between performance, price, and future-proofing to users. This article elaborates on AMD AM5 B850, its working, and applications.

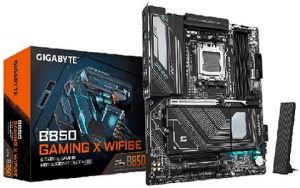

What is the AMD AM5 B850 Chipset?

The AMD AM5 B850 is a standard motherboard chipset designed for the latest AMD Ryzen 7000 series processors. This is a mid-range AM5 platform, designed for gaming PCs by providing different features like DDR5 overclocking with AMD EXPO, PCIe 5.0 for M.2 SSDs, fast connectivity, and robust power delivery. Therefore, it works like a modern one, replacing the older B650 version by targeting crucial high-speed tech without the best price of X-series chipsets.

The B850 provides an accessible entry point into the AM5 ecosystem to make it ideal for enthusiasts and gamers who desire current performance at a low cost. Therefore, it is perfect for users who desire outstanding performance and modern features, but without the need for severe overclocking or high-end components.

How does the AMD AM5 B850 Chipset Work?

The AMD B850 works like a modern foundation for Socket AM5 CPUs by providing the necessary features. Therefore, it connects the CPU, storage, memory, and peripheral components. The B850 is an efficient intermediary that ensures all components to communicate with the central processor effectively while providing modern and robust connectivity for gamers and mainstream users.

The AMD B850 chipset performs as the hub for I/O connectivity by connecting different peripherals via a dedicated PCIe 4.0 x 4 link to the main processor. The CPU itself manages the primary high-speed connections directly for the graphics card & main M.2 NVMe storage.

The AMD B850 chipset on the motherboard functions as a main communication hub by facilitating connections between the memory, CPU, storage & other peripherals in the AM5 platform ecosystem. Therefore, its main function is to handle data supply and expansion abilities for mainstream AMD Ryzen systems.

Specifications

The AMD AM5 B850 chipset specifications include the following.

• This chipset supports different series of processors like AMD Ryzen™ 7000, 8000, and 9000 Series.
• Memory is Dual-Channel DDR5 that supports up to 8000+ MT/s (OC) speed with AMD EXPO™.
• This chipset provides PCIe 5.0 lanes for a single M.2 slot & Gen 4 for others through GPU support, frequently PCIe 4.0 x16.
• It supports various M.2 slots & SATA 6Gb/s ports.
• It features rapid 2.5 GB Ethernet and frequently Wi-Fi 6E or even Wi-Fi 7.
• This connectivity is USB 10Gbps, HDMI, DisplayPort, Audio, and many more.
• It features advanced thermal solutions and simple DIY.
• It frequently includes Wi-Fi 7/6E and 2.5G/5G LAN.
• This chipset supports USB 3.2 Gen2x2 Type-C and Gen2/Gen1 ports.
• It supports both Memory Overclocking and CPU overclocking.
• It features Multiple M.2 slots like PCIe 5.0 and 4.0 & SATA ports.
• This chipset has integrated graphics support from compatible CPUs, like DisplayPort or HDMI.

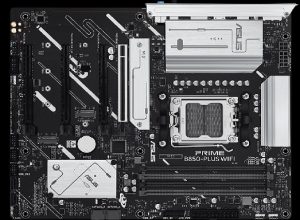

AMD AM5 B850 Architecture

The AMD B850 chipset is a mainstream refresh for Socket AM5 that provides better features than standard B650 chipsets. In addition, it supports the latest Zen 4 and Zen 5 processors of AMD by providing many features like DDR5 memory and PCIe 5.0. It focuses on more PCIe 5.0 M.2 support, better VRMs, DDR5 EXPO, faster USB, and is compatible with Ryzen series CPUs. Therefore, it balances cost with modern gaming or creator requirements. This chipset is designed to provide strong power delivery, better cooling, and accessible features to make it a solid mid-range choice for present & upcoming AMD builds.

The AMD B850 chipset serves as the base for modern AMD Ryzen series desktop processors. Therefore, the key architectural components for a B850-based system mainly focus on providing a balanced performance & value with upcoming connectivity.

Components

The main components that describe the B850 architecture mainly include: CPU socket, chipset & the lanes they offer for connectivity.

AM5 CPU Socket

The AM5 CPU socket is the physical interface or connector of the processor on motherboards, designed as a Land Grid Array socket. In addition, it supports present and upcoming generations of AMD Ryzen CPUs, which provides a future-proof design.

AMD B850 Chipset

The AMD B850 chipset handles a variety of I/O and development options, like enhanced overclocking abilities for CPU and memory. Therefore, the B850 chipset provides the superior features & connectivity for modern desktop platforms of AMD.

CPU & Chipset Connectivity

The CPU and chipset connectivity of the system can be split between lanes provided directly by the CPU and those provided by the B850 chipset:

• Direct Processor PCIe lanes or graphics can provide a main PCIe 4.0 x 16 slot for the graphics card.
• Direct Processor PCIe Lanes or NVMe features committed lanes for high-speed NVMe storage, normally one PCIe 5.0 x 4 M.2 slot.
• The B850 chipset provides extra PCIe 4.0 and 3.0 lanes for M.2 connectors and secondary expansion slots to provide support for SATA ports.

DDR5 Memory Support

The AMD B850 chipset completely supports DDR5 memory for the AM5 platform by providing faster speeds for Ryzen series CPUs. It features AMD EXPO™ or Intel XMP for simple overclocking, dual-channel architecture & enabling features for storage. It is designed for content creation and high-performance gaming.

PCIe 5.0 Support

AMD B850 motherboards completely support PCIe 5.0 by providing dedicated lanes for blazing-quick NVMe SSDs & a PCIe 5.0 x 16 slot for upcoming high-performance graphics cards. Therefore, it is compatible with future hardware on the AM5 platform, mainly for Ryzen series CPUs, to make them modifiable for content creation and demanding gaming. The B850 chipset is a strong foundation for high-end AM5 systems, providing strong PCIe 5.0 connectivity next to DDR5 & current features.

Robust Connectivity

The AMD AM5 B850 motherboard provides next-generation, robust connectivity by commonly adopting key modern standards with specific features. The combination of these features makes the chipset a strong base for present and future high-performance gaming & content creation PCs that demand connectivity and substantial power.

Enhanced Power Delivery

AMD AM5 B850 motherboards are designed with strong power delivery systems to support current & future high-core-count AMD Ryzen series processors with features to improve stability and performance. The B850 motherboards with power delivery enhancements are accessible from manufacturers like Gigabyte and ASUS.

USB Connectivity

The AMD AM5 B850 chipset features wide USB connectivity that supports modern standards like USB 3.2 Gen 2 x 2 (20 Gbps) and USB 4.0/Thunderbolt. Therefore, the number & port type may change between specific MSI, ASUS, and Gigabyte motherboard models. The baseline USB support features a wide range of speeds & port types by allowing high-speed data transmission for modern peripherals.

Networking

The AMD AM5 B850 provides high-speed and robust networking options like 2.5Gb integrated Ethernet, up to Wi-Fi 7 support & high-speed USB connectivity. Here, the exact features may change by model and manufacturer of a motherboard. Generally, networking abilities on B850 motherboards are handled through in-built controllers by the manufacturer instead of being a particular function of the core chipset logic itself.

Display Outputs

The AMD B850 chipset-based motherboards feature various display output options based on the specific CPU installed. Therefore, the common display outputs available on the back I/O panel of B850 motherboards contain HDMI Ports, DisplayPort Ports, USB Type-C Ports, and VGA Ports.

Software

The essential software for the AMD AM5 B850 motherboard is AMD Chipset Drivers, essential for system stability or features, next motherboard manufacturer utilities like Armoury Crate for GIGABYTE and ASUS Control Center. The AMD software, like Adrenalin Edition for graphics, potentially includes RGB control nd power management tools. All these can be handled through the support page of your motherboard.

To download these drivers, need to recognize the model of the motherboard, like Gigabyte B850 AORUS Elite and ASUS TUF Gaming B850-PLUS. Go to Gigabyte, ASUS, ASRock, and many more to discover your model by downloading drivers for your particular Windows 10/11 OS. Get the latest AMD Chipset Drivers version directly from the support page of AMD for B850 chipsets.

Difference between B850 and B650 Chipsets

The difference between B850 and B650 includes the following.

AMD AM5 B850 Chipset Maintenance

The AMD AM5 B850 chipset system maintenance involves physical maintenance and software maintenance. This chipset is a passive component on the motherboard that depends on the overall cooling and software of the system for optimal function.

Physical Maintenance

• The physical maintenance ensures the best thermal performance & system longevity.
• It ensures that all fans are clean and working correctly. Therefore, proper airflow avoids the heat sink of the passive chipset from overheating.
• Clean the interior of your PC case frequently to avoid dust buildup on components & heat-sinks. Here, dust performs as an insulator by delaying heat dissipation.
• The thermal paste of the CPU must be verified & reapplied if required, normally every few years, to maintain efficient heat transmission to the cooler.
• Check all the components occasionally to see whether they are seated strongly in their slots.
• Many modern boards have supportive features like PCIe Q-Release and M.2 Q-Latches for simple and toolless maintenance for these parts.
• If over-clocking problems or false settings cause system boot issues, utilize the physical Clear CMOS button or jumper on the motherboard to bring back default BIOS settings.

Software Maintenance

• Software maintenance mainly targets maintaining drivers & the BIOS updated for consistency and performance.
• Update your AMD chipset drivers regularly through the official AMD website. Therefore, these updates can enhance performance & compatibility.
• Most current B850 boards include BIOS FlashBack or related tools, which allow you to update the BIOS with a power supply and USB drive without requiring the CPU or installed RAM.
• Motherboard utility software like ASRock’s Auto Driver Installer helps to manage other required drivers effortlessly.
• Motherboard manufacturers often release BIOS updates to develop memory compatibility, support new processors & fix bugs. Therefore, the newest version can be downloaded from the official and specific manufacturer’s website, like Gigabyte, MSI, or ASUS.

Advantages

The advantages of AMD AM5 B850 include the following.

• The B850 motherboards can support current and upcoming AMD Ryzen series processors by providing a long upgrade path.
• They completely support DDR5 RAM that provides lower latency and higher bandwidth for better system performance in different applications.
• All B850 motherboards include minimum one PCIe 5.0 M.2 slot for very NVMe SSDs, which severely decreases load & boot times.
• Some best B850E models feature a PCIe 5.0 x 16 slot for future graphics cards.
• Unlike earlier A620 budget chipsets, this chipset allows CPU & memory overclocking, which allows users to drive the performance of their system.
• Generally, B850 boards feature better voltage regulation module designs and strong cooling solutions by ensuring constant power delivery for high-core-count CPUs even in heavy workloads.
• They provide a versatile array of I/O ports, like multiple high-speed USB 10Gbps & 20Gbps Type-C ports. Some models have a Thunderbolt header for faster data transfers.
• Most B850 motherboards can be equipped with high-speed networking options like Wi-Fi 6E, Wi-Fi 7, and 2.5 Gb Ethernet. Therefore, it provides quick and constant wired & wireless connectivity.
• Manufacturers incorporate features like pre-installed I/O shields, BIOS FlashBack buttons, and tool-free M.2 installation to shorten the PC building process.
• Many chip boards can feature AI-enhanced software for fan control, easy overclocking profiles, and performance optimization to help users increase the potential of their system with minimal effort.

Disadvantages

The disadvantages of AMD AM5 B850 include the following.

• Early testing across several manufacturers like Gigabyte, ASUS, ASRock, and MSI indicates that these boards can experience DPC spikes and high latency, especially in CPU or RAM-intensive workloads.
• The built-in Wi-Fi 7 feature was found to aggravate latency issues in wireless operation.
• Some entry-level B850 motherboards feature less robust VRMs as compared to high-end X870 or some best B650 models. Therefore, they can limit stable overclocking potential, mainly with high-end Ryzen 9 CPUs.
• As B850 boards drive the AM5 platform to line up with upcoming standards, like fixed PCIe Gen 5 storage support. So they increase the baseline cost for mainstream motherboards, which potentially ends the period of really budget-friendly AM5 options.
• Many B850 chipsets utilize more basic or older audio codecs as compared to the best options, which may be a drawback for users.
• Implementations of Individual motherboards may have some drawbacks, like a limited number of SATA ports, a lack of a pre-installed I/O shield on some budget models, etc.

Applications

The AMD AM5 B850 applications include the following.

• It manages the most demanding games through high frame rates, particularly with X3D processors.
• It accelerates 4K/8K video editing, 3D modeling & streaming with quick storage, quick connectivity, and sufficient memory support.
• It provides the required power & USB4 and WiFi 7 connectivity for emerging AI applications & local AI processing.
• This chipset delivers CPU overclocking, advanced cooling, and strong VRMs for stable performance in heavy multi-core loads.
• It is used in steamers and gamers for fast load times, smooth gameplay, and future-proofing with top-tier SSDs and GPUs.
• It benefits from ample DDR5 capacity and high-speed storage for demanding tasks.
• It is used in mid-to-high-range systems where robust power, advanced connectivity, and cooling are required.
• The B850 platform can support the demands of the latest AI-focused hardware and applications.
• The B850 motherboards link the gap between the B650 & high-end X670 chipsets. Therefore, it provides quality features for users who desire top-tier performance without requiring the complete flagship connectivity.

In summary, the AMD B850 chipset for AM5 is a very strong mid-range choice. It provides outstanding value by providing key features at a lower price as compared to X870. Therefore, it is perfect for mainstream gamers & creators for next-gen performance without premium cost. The AMD B850 chipset is a highly suggested choice for the latest AM5 builders looking for a performance balance, value, and features. Here is a question for you: What is the AMD B650 chipset?
