AMD X670E Chipset : Specifications, Architecture, Working, Differences & Its Applications

The AMD X670E chipset was launched in September 2022, next to Socket AM5 & Ryzen 7000 chipset series processors, which represent the best platform for the AM5 Socket. The AMD X670E chipset is designed for high-end desktop systems, offering strong overclocking capabilities, extensive PCIe connectivity, and advanced I/O features for gamers, creators, and enthusiasts. The suffix ‘E’ in this chipset indicates the “Extreme” designation that guarantees complete Gen 5 capabilities for graphics and storage. It differentiates it from the typical X670 chipset, which may support Gen 5 only on storage, and B650, which is aimed at a more budget-conscious audience. This article elaborates on the AMD X670E Chipset, its working, and its applications.

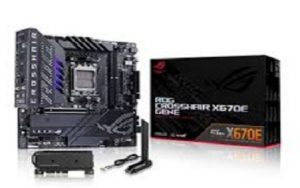

What is the AMD X670E Chipset?

The AMD X670E is the flagship chipset for AMD’s AM5 Socket, designed for maximum overclocking, cutting-edge features, and high-performance computing. This chipset supports Ryzen series processors, PCIe® 5.0, and DDR5 memory for both NVMe storage and graphics by providing wide USB connectivity. In general, the X670E chipset guarantees PCIe 5.0 for both the NVMe storage and graphics slot, whereas the standard X670 chipset guarantees PCIe 5.0 only for storage. But both the chipsets support similar features and overclocking. Therefore, this X670E chipset is designed for users who need the best, most future-proof, and most adaptable motherboard for AMD AM5 processors.

Specifications

The specifications of the AMD X670E chipset include the following.

• The AMD X670E chipset is the enthusiast-level platform on Socket AM5 for AMD Ryzen Series processors.
• This chipset uses a dual-chiplet architecture (Promontory 21).
• It features wide PCIe 5.0 lanes for GPUs and NVMe storage, robust overclocking, and dual-channel DDR5 memory support.
• The AM5 platform provides a total of up to 44 usable PCIe lanes, combining CPU and chipset connectivity for GPUs, NVMe storage, and expansion devices.
• X670E differs from the normal X670 chipset by guaranteeing PCIe 5.0 support on the main graphics slot, as well as the M.2 NVMe slot.
• AMD Socket AM5 supports Ryzen Series processors.
• It uses a dual-chipset design to deliver increased I/O.
• It features Dual-Channel DDR5 support with AMD EXPO™ technology for overclocking profiles.
• This chipset features up to 8x SATA 6 GB/s, 2x USB 20Gbps, and up to 12 USB 10Gbps ports depending on motherboard implementation, with PCIe 5.0 NVMe support.
• In addition, it supports Wi-Fi 6E (6GHz) & 2.5 GB Ethernet networking.

How does the AMD X670E Chipset Work?

The AMD X670E chipset works as the central I/O hub connecting peripherals to the CPU. It is designed especially for HPC, extensive PCIe 5.0 connectivity & enthusiast-level over-clocking. It uses a dual-chiplet design, connected to the CPU to make the available PCIe 4.0 lanes double for peripherals with higher USB & SATA support. This allows the CPU’s PCIe 5.0 lanes to remain dedicated for GPUs and NVMe storage.

This chipset supports Ryzen 7000/8000/9000 processors, over-clocking, and DDR5 memory by allowing the highest bandwidth for current, demanding gaming & productivity workloads. In addition, this chipset works as a bridge by enabling high-end systems to use various Gen 5 devices concurrently without bandwidth blockages.

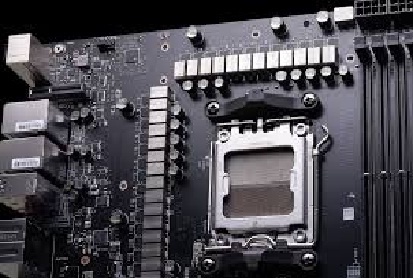

AMD X670E Chipset Architecture

AMD’s X670E chipset uses a high-end AM5 platform architecture. It is designed for Ryzen series CPUs with a dual-chiplet (“Promonotory 21”) design by supporting PCIe 5.0 for both NVMe and GPU slots. In addition, it uses a 4-lane PCIe 4.0 link to the CPU by allowing wide, overclockable I/O options. It supports Ryzen series processors, extensive USB 3.2/4.0 support, superior overclocking, and DDR5 memory capability.

Components

The AMD X670E chipset architecture can be built with different components like Dual-Chipset (Promontory 21 x2), CPU-to-Chipset Link, PCIe 5.0 Support, Memory Architecture, Storage (SATA/NVMe), USB Capabilities, Networking, and Overclocking.

Dual-Chipset (Promontory 21 x2)

The AMD X670E chipset architecture uses a dual-chiplet design with two “Promontory 21” (PROM21) silicon dies. These dies deliver I/O and high-end connectivity capabilities for the AM5 Socket platform. X670E motherboards use two PROM21 chipset dies connected in a daisy-chain configuration. The first chipset connects directly to the CPU through a PCIe 4.0 x4 link, while the second chipset connects to the first, expanding the available I/O lanes. Therefore, the Promontory 21 chip is a high-speed, versatile PCIe hub that allows AMD to balance I/O capabilities without designing various and different chipset dies, which is an efficient design approach for exclusive AM5 motherboards.

CPU-to-Chipset Link

This is a high-speed connection that uses 4 PCIe 4.0 lanes to connect the Ryzen series CPUs to the PROM21 chipset. X670E chipset uses a dual-chiplet design, which provides additional PCIe 4.0/3.0 lanes & SATA ports.

PCIe 5.0 Support

The AMD X670E chipset provides the maximum range of PCIe 5.0 motherboard support within the AM5 platform. It mandates Gen5 lanes for the main graphics slot (x16) & minimum one M.2 NVMe SSD slot. Therefore, PCIe 5.0 provides up to 32 GB/s per direction for x16 links, doubling the bandwidth of PCIe 4.0. When the chipset architecture utilizes PCIe 4.0 for the link between the CPU & the chipset itself, then the main PCIe slots for components use the complete speed of 5.0 by providing twice the bandwidth of PCIe 4.0.

Memory Architecture

This architecture is designed for high-performance computing, which completely supports DDR5 memory within a dual-channel configuration. Thus, it is customized for the Socket AM5 chipset, which allows superior memory overclocking, high-speed data transmission rates & compatibility with AMD’s EXPO technology.

Storage (SATA/NVMe)

The AMD X670E chipset typically uses two Promontory 21 chips to deliver wide storage. Therefore, it provides a combination of fast NVMe slots & sufficient SATA ports, frequently managed using AMD RAID Xpert2.

USB Capabilities

This chipset provides wide high-speed USB support mostly for AM5 motherboards. It features up to 2x 20Gbps (USB 3.2 Gen 2×2) ports, 12x 10Gbps (USB 3.2 Gen 2) ports, and possible support for 40Gbps USB4. In addition, it can also support various USB Type-C connections like front-panel headers by providing native support for quick charging & high-speed data transmission. Typical motherboard implementations like the ASUS TUF Gaming X670E-PLUS can also provide numerous USB 2.0 headers for interior devices.

Networking

Networking on the AMD X670E chipset is designed for high-performance by providing higher, ultra-fast connectivity modified for content creators, workstations, and gamers. Generally, this platform emphasizes Wi-Fi 6E and 2.5 Gb Ethernet, with premium motherboards by supporting 10 Gb Ethernet for the greatest throughput. X670E networking ensures the best experience for creators and competitive gamers by providing the fastest available Wi-Fi and LAN technologies.

Networking in the AMD X670E (Extreme) chipset provides cutting-edge wireless and wired connectivity choices for enthusiast-grade motherboards. Therefore, it focuses on increasing bandwidth for file transfers, content creation, and online gaming, using higher controllers to provide significantly faster speeds as compared to typical Gigabit Ethernet.

Overclocking

Overclocking on this chipset involves driving Ryzen series CPUs & DDR5 RAM beyond stock speeds for higher performance with the strong power delivery of the platform. So, its key methods include AMD EXPO for memory, automated AI tools, and Precision Boost Overdrive (PBO), which can be handled through Ryzen Master or BIOS software.

Software System

The AMD Ryzen Chipset Drivers are the AMD X670E chipset software obtained from AMD’s support website. It is essential that Windows-based packages allow the right communication between your motherboard components and CPU. Therefore, they provide stability, functionality, and best performance for PCIe 5.0, USB4 & storage by supporting Ryzen series processors.

The AMD Ryzen chipset drivers handle the interface between the operating system & hardware by enhancing system stability and responsiveness. Its key components include drivers for GPIO, USB4, PCI Express, and I2C. In addition, it allows RAID 0, 1 & 10 configurations for SATA and NVMe drives. These drivers are necessary for running Ryzen-specific technologies like AMD EXPO™, mainly for DDR5 memory.

Recommended Motherboards using X670E

Example:

• ASUS ROG Crosshair X670E Hero
• MSI MEG X670E Ace
• Gigabyte X670E AORUS Master

Real-World Performance Benefits

Even though PCIe 5.0 is new, it enables extremely fast storage.

Example:

X670E vs X670 vs B650E vs X870E

The difference between X670E, X670, B650E, and X870E includes the following.

Advantages

The advantages of the AMD X670E Chipset include the following.

• The ‘E’ in this chipset gives support for PCIe 5.0 on both the main graphics slot & minimum one M.2 NVMe slot by ensuring top-tier bandwidth for present & future hardware.
• These are designed with better VRMs to manage high-power and high-core-count Ryzen processors by delivering constant power for powerful overclocking.
• They deliver wide high-speed ports like many USB 3.2 Gen 2×2 (20 Gbps) & elective USB4® support, next to several SATA ports.
• It uses two minor chips for enhanced thermal management and decreases the need for signal repeaters. Therefore, it provides a more stable, frequently passively cooled, and high-performance platform.
• Most boards contain high-end features like Wi-Fi 6E/7, 2.5 Gbps/10 Gbps Ethernet, and strong BIOS features for optimization of memory.
• These boards are designed with higher-quality (often 6-8 layers) PCBs to support the better signaling demands of PCIe 5.0 by ensuring durability for upcoming hardware upgrades.
• X670E boards deliver complete I/O options like 2 USB 20Gbps ports and up to 12 USB 10Gbps ports. Generally, they include Wi-Fi 6E/7 and 2.5 Gbps Ethernet.

Disadvantages

The disadvantages of the AMD X670E Chipset include the following.

• X670E chipsets are usually very expensive compared to B650 alternatives.
• The “Extreme” branding guarantees PCIe 5.0 for both NVMe and graphics; however, for several users and gamers, this additional functionality provides no real-world performance advantage over cheaper B650E/ B650 boards.
• Many X670E boards utilize the E-ATX format, which can restrict compatibility with mid-tower or smaller cases.
• Some boards have toasty M.2 SSD temperatures because of the speed of PCIe 5.0 and high power draw.
• In addition, some X670E boards lack Thunderbolt 4 or USB4, with some manufacturers depending on older USB 3.2 standards.
• The latest X870E chipset is mainly a rebranded X670E with fixed USB4, making the X670E chipset feel dated fast while remaining costly.
• Some users have reported problems with Bluetooth connectivity, stability & USB port functionality.
• PCIe 5.0 NVMe drives of this chipset are experiencing boot failures or main speed drops, with evidence pointing to buggy firmware on motherboards.
• Some motherboards need active cooling, which can add noise to the system because of the high heat generation from the PCIe 5.0 lanes and chipset.

Applications

The applications of the AMD X670E Chipset include the following.

• These are designed for extreme gaming with X670E motherboards. Therefore, it supports high-speed PCIe 5.0 for next-gen SSDs and graphics cards, ensuring the highest bandwidth.
• It is perfect for workstations by providing strong power designs for fast storage speeds and multi-core processors.
• These are used in high-end motherboards like AORUS Master, ASUS ROG Crosshair, and MSI Gaming Plus with advanced thermal solutions.
• These are perfect for workstations requiring wide connectivity, several PCIe 5.0 slots, and quick USB4/Type-C ports.
• This chipset is designed for enthusiast-level AM5 desktop platforms. Therefore, it focuses on the highest overclocking, PCIe 5.0 support for both NVMe SSDs & GPUs.
• These are applicable in high-end gaming rigs, future-proof systems with DDR5 memory, and content creation workstations.
• In addition, it supports the highest performance for Ryzen series processors with strong power delivery for overclocking.
• This chipset is perfect for 3D rendering and video editing with PCIe 5.0 for the highest SSD speeds and quick networking.
• It is designed with the best VRMs & BIOS tools for pushing CPU or memory frequencies like Active OC Tuner.

The AMD X670E chipset represents the most advanced AM5 desktop platform, offering full PCIe 5.0 support, DDR5 memory compatibility, and extensive connectivity. It is designed for enthusiasts who want maximum performance, future-proof storage, and strong overclocking capabilities for Ryzen processors. Here is a question for you: What is the AMD X670 chipset?
