NVIDIA GeForce RTX 3050 : Specifications, Architecture, Working, Differences & Its Application

The 8GB NVIDIA GeForce RTX 3050 GPU was launched in January 2022, following its introduction at CES 2022. After that, its 6GB lower-power variant was released in February 2024. NVIDIA launched this GPU to bring AI-powered DLSS, the full RTX platform, and real-time ray tracing to budget-conscious gamers. Therefore, it effectively replaced older GTX cards, such as the NVIDIA 1050 or NVIDIA 1650, for 1080p gaming with current features. It provides improved power efficiency and a significant performance upgrade for mainstream users. This article elaborates on the NVIDIA GeForce RTX 3050 GPU, its working, and its applications.

What is NVIDIA GeForce RTX 3050?

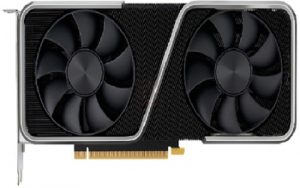

The NVIDIA GeForce RTX 3050 8 GB is a performance-segment graphics card that uses Ampere Architecture and is built on the 8 nm process. This graphics card is based on the GA106 graphics processor. This is an average-sized chip with 276 mm² die area, which supports DirectX 12 Ultimate in its GA106-150-KA-A1 variant. The 8GB desktop variant uses GA106, whereas the 6GB 2024 version uses GA107. In addition, its DirectX 12 Ultimate ability can support variable-rate shading and hardware-raytracing in upcoming video games.

The NVIDIA GeForce RTX 3050 features 80 texture mapping units, 32 ROPs, 20 raytracing acceleration cores, 2560 shading units, and 80 tensor cores, which improve the speed of ML applications. NVIDIA has connected the GeForce RTX 3050 8 GB with 8 GB GDDR6 memory using a 128-bit memory interface. This GPU operating frequency ranges from 1552 MHz to 1777 MHz, where memory runs at 1750 MHz.

The NVIDIA GeForce RTX 3050 8 GB GPU is a dual-slot card that draws power from 1x 8-pin power connector, with 130 W maximum power draw. It features four display outputs, like 3x DisplayPort 1.4a and 1x HDMI 2.1. This GPU is connected to the rest of the system with a PCI-Express 4.0 x 8 interface.

Specifications

The specifications of NVIDIA GeForce RTX 3050 include the following.

• NVIDIA GeForce RTX 3050 is based on the GA106 graphics processor.
• GPU variant is GA106-150-KA-A1.
• It is built with Ampere Architecture.
• Process Size is 8 nm.
• Predecessor is GeForce 20, and Successor is GeForce 40.
• Base CLK is 1552 MHz and Boost CLK is1777 MHz.
• Memory CLK is 1750 MHz.
• Memory size is 8 GB.
• Memory type is GDDR6.
• Memory Bus is 128 bit, and Bandwidth is 224.0 GB/s.
• It features 2560 Shading Units, 32 ROPs, and 80 TMUs.
• It features 20 SM Count, 20 RT Cores, and 80 Tensor Cores.
• L1 Cache is 128 KB and L2 Cache is 2 MB.
• TDP is 130 W, and the suggested PSU is 300 W.
• It features four Outputs like 1x HDMI 2.1 and 3x DisplayPort 1.4a.
• It includes 1x 8-pin power connector.

How does NVIDIA GeForce RTX 3050 Work?

The NVIDIA GeForce RTX 3050 graphics card works with its Ampere architecture, designed to bring AI-driven and real-time ray tracing features to basic-level gaming at 1080p. This GPU works by using specialized and dedicated cores for different graphical tasks by separating AI, traditional rasterization processing, and ray tracing. It features Tensor Cores for AI-powered DLSS to boost frame rates, CUDA cores for general graphics, and dedicated RT Cores for realistic ray tracing. It allows significant performance gains and entry-level ray tracing as compared to its previous graphics cards.

6GB desktop: ~70W TDP 8GB desktop: 130W TDP Laptop variants vary widely Precision improves credibility. This GPU bridges the main gap for mainstream gamers to experience modern RTX features by leveraging AI for performance boosts & providing features like NVIDIA Broadcast for better streaming. In addition, the RTX 3050 GPU brings higher RTX features with an economical price point. So it allows various gamers to experience next-generation graphics cards and performance boosts using dedicated ray tracing and DLSS hardware.

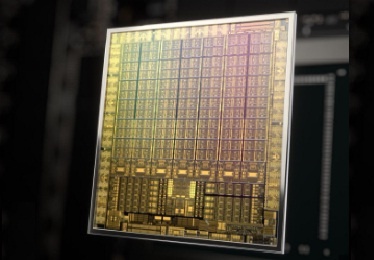

NVIDIA GeForce RTX 3050 Architecture

The NVIDIA RTX 3050 works with the Ampere architecture built on Samsung’s 8nm process. It features 3rd-gen Tensor Cores for AI/DLSS and 2nd-gen RT Cores for ray tracing. This GPU provides solid 1080p performance through PCIe 4.0 support, but some 3050 A laptop variants moved to the latest Ada Lovelace architecture. This GPU is mainly designed for 1080p gaming to provide performance is closer to GTX 1660 Ti, but with modern RTX features.

Components

The required components of this architecture include streaming multiprocessors, 2nd generation RT Cores, 3rd generation tensor cores, memory, GPU dies, connectivity, cooling system, output interfaces, and power requirements.

Streaming Multiprocessors

The Streaming Multiprocessors (SMs) in the NVIDIA GeForce RTX 3050 are the core processing units. These are designed to manage graphics, compute & AI tasks by delivering 2X the FP32 throughput as compared to the earlier generation.

RT Cores

The 2nd Generation RT cores in NVIDIA GeForce RTX 3050 architecture are dedicated hardware used for real-time ray tracing. It provides double the performance of the first Gen RT Cores with simultaneous ray tracing & shading. RT Cores speed up complex shadow, reflection, and light calculations for immersive and realistic visuals in games through ray tracing. Therefore, it makes advanced graphics more accessible on budget-friendly graphics cards by working next to Tensor Cores for AI-powered DLSS upscaling, mainly for smoother frame rates.

Tensor Cores

The 3rd Generation tensor cores in an NVIDIA GeForce RTX 3050 are specialized hardware units that deliver important frame rate boosts and better image quality. These cores accelerate deep learning and AI tasks, mainly powering NVIDIA’s DLSS, which uses AI to cleverly upscale lower-resolution images for better visual quality and higher frame rates. Therefore, it makes demanding games more playable with enabled ray tracing by performing quick matrix multiplications for upscaling and image generation alongside CUDA cores.

Memory

The NVIDIA GeForce RTX 3050 features high-speed GDDR6 memory with varying configurations, connected through different memory bus widths. The NVIDIA GeForce RTX 3050 is normally available with high-speed 8GB of GDDR6 memory to make gaming accessible. However, some of the latest lower-power variants feature 6GB GDDR6, including a narrower memory bus and lower bandwidth. These two versions use the same Ampere architecture for ray tracing and AI.

GPU Dies

The NVIDIA GeForce RTX 3050 uses different GPU dies based on the variant, like GA106 or GA107. So, the GA106 GPU is for early desktop/laptop versions, whereas the GA107 GPU is for the next 6GB desktop model. However, both the GPUs use the Ampere architecture with features like AI (Tensor Cores), shading (CUDA Cores), and different cores for RT Cores to provide accessible 1080p gaming with features like DLSS and ray tracing.

Connectivity

The NVIDIA GeForce RTX 3050 supports connectivity like DisplayPort 1.4a & HDMI 2.1 ports by supporting high 4K or 8K resolutions & usually 3 to 4 multiple monitors while connecting to the PC through a PCIe 4.0 x 8 interface. In addition, it needs no extra power cables or a single 8-pin connector for flexible and efficient display output.

Cooling System

NVIDIA GeForce RTX 3050 features a cooling system with a dual or multiple fan design with Scythe blades or Axial-tech for better airflow. In addition, it incorporates metal backplates & robust components like dual ball bearings for strength and efficient heat dissipation. Custom partner cards like MSI and ASUS offer better cooling than reference designs. Therefore, it focuses on improved thermal performance for sustained high-performance gaming or compact builds.

Output Interfaces

Both the 6GB & 8GB desktop variants of NVIDIA GeForce RTX 3050 GPU normally feature a normal set of digital output interfaces, designed for new, high-resolution displays. The output configuration based on commonly available models like MSI, ASUS, and ZOTAC mainly includes: DisplayPort (1.4a), DVI-D (Dual-Link), and HDMI (2.1).

Power Requirement

The power used by the NVIDIA GeForce RTX 3050 GPU varies based on model. The 8GB model uses 130W TGP with a 1x 8-pin connector, whereas the 6GB model uses 70W TGP via the PCIe slot.

Software System

The NVIDIA GeForce RTX 3050 software system mainly depends on core NVIDIA drivers for Linux or Windows managed by GeForce Experience. It provides features like Reflex, AI-powered Broadcast, Studio tools, and DLSS. All these can be built on NVIDIA’s CUDA platform for creative apps, gaming, and streaming by using DirectX 12 Ultimate for new graphics.

The NVIDIA GeForce RTX 3050 GPU uses primary software like the NVIDIA App to ensure the best performance, game compatibility & features. The NVIDIA App replaces: GeForce Experience But NVIDIA Control Panel still exists. Therefore, it offers driver updates, in-game overlays, and game setting optimization.

NVIDIA GeForce RTX 3050 vs AMD Radeon RX 6600

The difference between NVIDIA GeForce RTX 3050 vs AMD Radeon RX 6600 includes the following.

Feature	NVIDIA GeForce RTX 3050	AMD Radeon RX 6600
Architecture	Ampere	RDNA 2
Manufacturing Process	Samsung 8 nm	TSMC 7 nm
Compute Units / SMs	20 SMs	28 Compute Units
Core Units	2560 CUDA Cores	1792 Stream Processors
Ray Tracing Hardware	20 RT Cores	28 Ray Accelerators
AI Hardware	80 Tensor Cores	No dedicated AI cores
Memory	8GB GDDR6	8GB GDDR6
Memory Bus	128-bit	128-bit
Memory Bandwidth	224 GB/s	224 GB/s + 32MB Infinity Cache
Typical Board Power	130W	132W
Upscaling Technology	DLSS	FSR
PCIe Interface	PCIe 4.0 x8	PCIe 4.0 x8

Gaming Performance Comparison (1080p)

In real gaming scenarios, the RX 6600 usually delivers higher raw FPS, while the RTX 3050 benefits from DLSS and better ray tracing ecosystem support. Approximate performance at 1080p High settings:

Game	RTX 3050	RX 6600
Cyberpunk 2077 (No RT)	45–55 FPS	60–70 FPS
Shadow of the Tomb Raider	70–80 FPS	95–110 FPS
Assassin’s Creed Valhalla	50–60 FPS	70–80 FPS
Call of Duty Warzone	65–75 FPS	85–100 FPS
GTA V	90–110 FPS	110–130 FPS

Overall, the RX 6600 delivers around 20–30% higher rasterization performance than the RTX 3050 in most modern games.

Which GPU Should You Choose?

Both the NVIDIA GeForce RTX 3050 and AMD Radeon RX 6600 target 1080p gaming, but they are optimized for different priorities. Choosing the right GPU depends on whether you prefer AI features and ray tracing or higher raw gaming performance.

Choose NVIDIA GeForce RTX 3050 if you want:

• Better ray tracing support
• Access to DLSS AI upscaling
• Strong NVENC hardware encoding for streaming
• Compatibility with CUDA-accelerated applications
• NVIDIA ecosystem features like Reflex and Broadcast
• Entry-level RTX experience at lower power requirements

The RTX 3050 is especially suitable for students, beginner creators, and casual gamers who want to experience modern RTX technologies without investing in higher-end GPUs.

Choose AMD Radeon RX 6600 if you want:

• Higher raw gaming FPS
• Better performance in rasterized games
• Strong 1080p high-refresh-rate gaming
• Good power efficiency with RDNA 2 architecture
• Competitive pricing for pure gaming performance

The RX 6600 is ideal for gamers who prioritize maximum frame rates rather than AI features.

Quick Decision Table

If Your Priority Is	Recommended GPU
Highest FPS in games	RX 6600
Ray tracing support	RTX 3050
DLSS AI upscaling	RTX 3050
Streaming / NVENC	RTX 3050
Competitive esports gaming	RX 6600
CUDA-based software	RTX 3050

Maintenance

There are different steps involved in NVIDIA GeForce RTX 3050 maintenance, like keeping it cool through regular dust cleaning, driver updates for best performance, ensuring constant power, monitoring temperatures, and using HWiNFO tools to avoid issues. Therefore, proper maintenance focuses on physical cleanliness, advanced software & healthy operating conditions to manage creative tasks and demanding games. By following all these maintenance steps, the RTX 3050 GPU runs very smoothly, extending its useful life for gaming & creative work.

Hardware Maintenance

• Clean the heatsink fins & fans twice a year to maintain cooling.
• Confirm your PSU or power supply unit delivers stable power. Therefore, the 6GB RTX 3050 is very efficient and frequently needs the PCIe slot only.
• Use HWiNFO to verify temperatures and power draw throughout gaming to make sure they stay within secure limits.

Software Maintenance

• Download and install the latest GeForce drivers regularly from NVIDIA for bug fixes and performance improvements.
• Use HWiNFO tools to log temperatures, usage, and clock speeds, particularly if you experience crashes, by identifying problems.
• Check frequently for Crashes to diagnose hardware or driver issues.

Performance & Durability Tips

• Be careful with overclocking, because it increases power draw and heat, which potentially decreases lifespan if not carefully done.
• NVIDIA’s features must be used to achieve better performance & make sure your settings match the capabilities of your graphics card.

Advantages

The advantages of NVIDIA GeForce RTX 3050 include the following.

• It is built on NVIDIA’s efficient Ampere architecture with 3rd Gen Tensor Cores and 2nd Gen RT Cores.
• This GPU provides excellent performance while maintaining quite low power consumption.
• The RTX 3050 GPU democratizes higher features to make them available for budget-conscious gamers to increase the RTX platform to get an immersive 1080p experience.
• It decreases system latency for better aim and quick reactions within competitive games by providing a competitive edge.
• It enhances frame rates extensively with AI by allowing for higher resolutions and settings without giving up quality.
• This GPU delivers high-FPS gameplay and smoothness in several modern titles at 1080p with demanding settings.
• It is optimized for creative apps by accelerating workflows within video editing, 3D rendering, and design.
• It provides ongoing feature updates and performance for creative software and games.

Disadvantages

The disadvantages of NVIDIA GeForce RTX 3050 include the following.

• It struggles with frame rates within unoptimized, new AAA titles and is very demanding with low settings.
• It uses 8 PCIe lanes & a 128-bit memory bus, only by limiting bandwidth as compared to earlier generation cards, similar to the GTX 1660 Super.
• It struggles to provide high frame rates in newer AAA titles, even at 1080p, often requiring lowered settings.
• It uses 8 PCIe lanes only, which creates a bottleneck as compared to typical 16-lane cards, particularly on older PCIe 3.0 systems.
• Its ray tracing performance is weak and frequently unplayable within demanding games.
• Lower-end variants have even low VRAM & memory bandwidth, which extensively delays performance within current titles.

Applications

The applications of NVIDIA GeForce RTX 3050 include the following.

• It is Excellent in playing most new games at 1080p resolution, including high settings, by providing a significant upgrade over previous-generation cards.
• This GPU supports hardware-accelerated ray tracing mainly for more practical lighting.
• It uses AI to improve frame rates, particularly when ray tracing is allowed to deliver smoother gameplay.
• This GPU decreases system latency within competitive games by enhancing responsiveness.
• It accelerates rendering & editing within DaVinci Resolve applications even for 4K video.
• It accelerates tasks in Illustrator, Creative Cloud apps, and Adobe Photoshop.
• This GPU manages large models & scenes with better fluidity because of RTX technology.
• Tensor cores help in accelerating AI-powered tasks & deep learning applications.
• AI-powered tools for virtual backgrounds, camera effects, and noise removal.
• It ensures stability and the best performance for creative apps and games.

FAQs

Is the RTX 3050 good for 1080p gaming?

Yes. The RTX 3050 is designed primarily for 1080p gaming. Most modern titles run at medium to high settings between 60–100 FPS (without ray tracing). Esports titles like Valorant, CS2, and Fortnite easily exceed 120 FPS.

Does RTX 3050 support ray tracing?

Yes. The RTX 3050 includes 2nd-generation RT Cores, enabling hardware-based ray tracing. However, ray tracing performance is entry-level and often requires DLSS to maintain smooth frame rates.

Does RTX 3050 support DLSS?

Yes. It features 3rd-generation Tensor Cores, allowing DLSS (Deep Learning Super Sampling). DLSS significantly improves frame rates by AI upscaling lower-resolution images.

Is RTX 3050 better than GTX 1650?

Yes, significantly. The RTX 3050 offers:

• Much higher CUDA core count
• Ray tracing support
• DLSS support
• Better memory bandwidth

It is a major upgrade over the GTX 1650 for modern gaming.

RTX 3050 vs RX 6600 – Which is better?

• RX 6600 performs better in pure rasterization (higher FPS in most non-ray-traced games).
• RTX 3050 offers better AI features, DLSS, and NVENC encoding support.
• RX 6600 lacks DLSS but supports FSR.

For raw gaming FPS → RX 6600 For ray tracing + DLSS → RTX 3050

What is the power requirement for RTX 3050?

• 8GB desktop version: 130W TDP, requires 1x 8-pin connector.
• 6GB desktop version: 70W TDP, often powered directly via PCIe slot.
• Recommended PSU: 300W–450W, depending on system configuration.

Is RTX 3050 good for video editing and creative work?

Yes, for entry-level creators. It supports:

• NVENC hardware encoding
• CUDA acceleration
• NVIDIA Studio Drivers
• Adobe Premiere Pro GPU acceleration.

However, professionals working with heavy 4K workloads may need higher-tier GPUs.

How long will RTX 3050 remain relevant?

For 1080p gaming, it should remain usable for 2–3 more years at medium settings. However, newer AAA titles with heavy ray tracing demands may push its limits.

Is RTX 3050 still worth buying in 2026?

It depends on the price. If available at a competitive price, it remains a solid budget option for:

• 1080p gaming
• Esports
• Entry-level content creation
• Systems with limited PSU capacity. However, if priced close to RX 6600 or RTX 3060, better alternatives may exist.

What architecture does RTX 3050 use?

The RTX 3050 uses NVIDIA’s Ampere architecture, built on Samsung’s 8nm process. It includes:

• Streaming Multiprocessors (SMs)
• CUDA Cores
• 2nd Gen RT Cores
• 3rd Gen Tensor Cores

Does RTX 3050 support PCIe 4.0?

Yes. It uses a PCIe 4.0 x8 interface, which works on both PCIe 3.0 and PCIe 4.0 motherboards.

What type of memory does RTX 3050 use?

It uses GDDR6 memory with a 128-bit interface (8GB model) and up to 224 GB/s memory bandwidth.

Can RTX 3050 run 4K games?

It can run 4K resolution, but not at high settings in modern games. It is optimized for 1080p gaming, not 4K AAA performance.

Is RTX 3050 suitable for AI and machine learning?

For basic CUDA-based learning and small ML workloads, yes. However, its 8GB VRAM and limited compute performance restrict large deep learning model training.

In summary, the NVIDIA GeForce RTX 3050 is a successful, solid entry-level GPU card. It is a great choice for 1080p gaming, which provides modern features like ray tracing and DLSS. This GPU is a strong upgrade from older GTX cards, particularly the 8GB version for enhanced future-proofing. It modernized the entry-level segment previously dominated by the GTX 1650. Therefore, its value proposition is frequently faced by better-performing struggle like the AMD Radeon RX 6600, mainly in its 8GB, 6GB, and succeeding VRAM-variant forms.  The 6GB model is selected if you have a budget PC because it is simpler to install and more power-efficient. The 8GB model is chosen when somewhat better performance is required within standard gaming builds with stronger power supplies. Here is a question for you: What is the AMD Radeon RX 6600 GPU?
