Manual Transmission : Design, Working, Types, Maintenance, Symptoms & Its Applications

Have you ever wondered how drivers control speed and torque so precisely in some cars?. The reason is the power of a manual transmission. Unlike automatics, a manual gearbox gives the driver full control of the gear selection, offering a more engaging driving experience. In this article, we’ll break down what a manual transmission is, how it works, its components, types, benefits, common issues, and maintenance tips.

What is a Manual Transmission?

A manual transmission, also known as a stick shift or manual gearbox, is a type of vehicle transmission in which the driver selects gears manually using a clutch or gear stick. It requires the driver to engage and disengage the clutch pedal to change gears, thereby providing more physical control over the power delivery of the vehicle. Its construction and operation are quite simple compared to other transmissions. This is the most common type of gearbox that allows manual gearbox operation in a vehicle, so used in most Indian cars.

How Does a Manual Transmission Work?

A manual transmission works with a clutch and gear stick to engage and disengage gears manually by allowing the driver to control the output power & speed of an engine. The car driver utilizes the clutch pedal to separate the engine for a moment. After that, the gear stick is used to choose the preferred gear, and then the clutch is used to re-engage the engine with the transmission.

Manual transmission allows the vehicle driver to control the torque and speed of the wheels manually by modifying the gear ratios. So this can be achieved through the communication of the gear lever, clutch & internal transmission gearing.

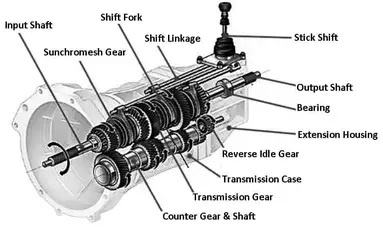

Manual Transmission Design

Manual transmission design can be done with different components. So these parts can mutually work to allow gear changes and transfer power within vehicles.

Clutch Pedal

The clutch pedal is a hydraulically controlled component in a manual transmission system that is used to disengage the clutch whenever you slow down. So this action allows for the engine separation from the transmission by changing gears and preventing the transmission from continuously being connected to the output of an engine.

Clutch

The clutch is a complex system used to transmit the torque of an engine to the transmission. This system includes fundamental elements like the pressure plate, clutch disc, diaphragm spring, smaller components, and throw-out bearing. The clutch disc and a friction pad at its core can be sandwiched between the pressure plate and flywheel, which serves as a critical interface to transmit power from the engine to the transmission.

Flywheel

The flywheel is essential in a manual transmission, which delivers engine torque to the clutch disc. So this rounded mass possesses a level surface that communicates through the clutch disc. The flywheel ensures constant power transmission from the car engine to the transmission by simply keeping this connection.

Selector Fork

The selector fork is in a manual transmission and is an essential component for shifting gears. Once it is operated through the gear shift lever, then it moves the collars with the output shaft to choose different gears by allowing the car driver to connect the preferred gear.

Collars

Collars are used for choosing different gears within the transmission. So they can slide between the gears and engage with them. When the gears turn with the lay shaft, the collar can be lagged to the output shaft. The engine torque can be effectively transmitted to the output shaft from the lay shaft by locking the collar with a preferred gear.

Synchronizers

These are arranged between the collar and gears, which allows the collar to connect with the gear, even when there is a speed variation between the two main components. So this synchronization mechanism eases smoother gear engagement by matching the rotating gear & the collar speed.

Shafts

A manual transmission normally includes three key shafts, and each type is used for a specific purpose. The main shaft or the output shaft includes the gear lever, which houses gears & meshing devices like synchromesh mechanisms and dog clutches.

The countershaft or lay shaft works like a mediator between the main shaft and clutch shaft, which facilitates power transmission from the car engine. The clutch shaft carries the rotating output of the engine to the transmission by engaging & disengaging the output throughout the clutch mechanism.

Gears

Gears are available in various sizes within a manual transmission, which accommodates different performance and wheel speed characteristics. Larger gears enhance torque but limit the highest speeds, whereas smaller gears with fewer teeth offer low torque but allow high-speed travel.

Gears are commonly used within manual gearboxes; helical gears through angular-cut teeth, spur gears through straight-cut teeth, bevel gears through conical cross-sections and angular-cut teeth, & idler gears are frequently used for the reverse gear purpose. Each gear type plays a key role in the operation of the transmission.

Types of Manual Transmission

Manual transmission is available in different types, which are explained below.

Sliding Mesh Transmission

The sliding mesh transmission, or crash box, is the oldest type of manual transmission, mostly found in older cars. It uses gears that slide with a shaft to connect different gear ratios, whereas the gears include dog teeth that mesh to connect. This transmission needs the driver to manage the engine speed cautiously and the clutch to keep away from gear clashing. So it is a robust and very simple transmission, however, less refined as compared to later designs.

Constant Mesh Transmission

A constant mesh gearbox is a modern type of manual transmission where all the gears are always in mesh with each other. This transmission uses a countershaft to allow various gear ratios. The gear is connected or disconnected by a clutch, and the driver chooses the preferred gear with a shift lever. This design can lead to smoother transitions & overall better performance, particularly in motorcycles.

Synchromesh Transmission

A synchromesh transmission in modern vehicles uses a mechanism to match the rotating gears’ speeds before they connect by allowing for easy and smooth gear changes. This can be achieved with hubs and synchronizer rings, which efficiently bring the shaft and gear to a similar speed before engagement by avoiding grinding & clashing. So it decreases the requirement of double-clutching, which is usually considered more reliable and driver-friendly.

Sequential Manual Transmission

A sequential manual transmission or a sequential gearbox is a type of manual transmission where gears are moved in a sequential order. So this transmission allows the car driver to move up or down in a particular order throughout the gears.

This is different as compared to fixed manual transmissions, where you can shift any gear in the “H” pattern. It uses a paddle shifter or push-pull lever in place of a fixed H-pattern gear selector. These transmissions are frequently used in race cars and motorcycles because of their quick shift times.

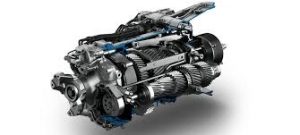

Automated Manual Transmission

An automated manual transmission merges the manual transmission’s efficiency with the ease of an automatic. These are fundamentally manual gearboxes that are automated through actuators & sensors. This transmission automates the gear-shifting and clutch engagement processes by allowing car drivers to control the gears without operating the clutch pedal manually.

Symptoms

A bad manual transmission can be visible in several ways, which are discussed below.

• The gear stick may feel stuck or unresponsive when attempting to move into a gear.
• A grinding noise can indicate issues while moving gears with the synchronizers or clutch.
• A rattling or clunking sound while shifting gears or within neutral can indicate transmission problems.
• The car may shift suddenly into neutral while driving.
• A burning smell, particularly in shifting, can indicate a slipping clutch.
• Vibrations in driving, mainly during shifts, can be an indication of transmission trouble.
• If the clutch pedal sticks, it could indicate a difficulty with the clutch release mechanism.
• Any strange feel to the clutch pedal must be investigated, like sticking or fading.
• Noises while in neutral may specify low transmission fluid levels, like clanging or bumping.
• If the vehicle refuses to shift gears or fights to do so, then it could be an indication of a transmission issue.
• Any fluid leaks must be addressed, particularly from the transmission.
• A check engine light, in some cases, can be associated with transmission problems.

Manual Transmission Maintenance

The steps involved in manual transmission maintenance include the following. So by following these tips & also the recommendations of the manufacturer, you can run your manual transmission very smoothly & last for a long time.

• Frequently check the fluid level of the transmission and make sure it’s in the correct range.
• Change the transmission fluid based on the recommendations of the manufacturer, generally every 60k to 100k miles.
• Make sure the clutch condition is good or not, and avoid riding the clutch & smoothly engage it.
• Keep away from sudden shifting.
• The engine cooling system must be serviced regularly because the transmission can be changed by engine heat.
• Transmission must be inspected yearly for leaks & various potential problems.
• Different factors can affect how frequently you need to modify the transmission fluid, like towing, extreme weather, or frequent stop-and-go traffic.
• Connect the clutch easily and gradually to extend its life.
• Consider periodic transmission flushes to keep the system clean and avoid wear.
• The specific type of transmission fluid must be used, which is suggested by the manufacturer because different types can contain different properties.
• If the fluid emerges murky, it loses its sweet smell, and then it must be replaced.

How to Drive a Car with a Manual Transmission?

A manual transmission car driving involves different steps, which are explained below.

• Before changing gears, confirm the engine is working and push the clutch pedal completely to the floor.
• Shift the gear shifter into primary gear while maintaining the clutch pedal pushed toward the floor.
• The car moves forward when you release the clutch pedal. Make sure to discharge the clutch pedal gradually to keep away from the engine stalling.
• Once the car starts moving then you can speed up and change into higher gears when required.
• To change gears, push the clutch pedal and shift the gear shifter to the preferred gear, then release the clutch pedal gradually by pushing the accelerator pedal.
• When you need to slow down, you must downshift in place of relying exclusively on the brakes.
• Press the clutch pedal to move to a lower gear to downshift. So it allows the car engine to slow down the car and decreases the corrosion on your car brakes.
• Press the clutch pedal & the brake pedal at the same time to stop the car. Maintain the clutch pedal pushed down until the car comes to a stop.

Advantages and Disadvantages

The advantages of manual transmission include the following.

• Manual transmission can fit easily into your budget with fewer moving parts, so it is not expensive to purchase.
• These are simple to maintain due to being less complicated.
• You can move your car into neutral whenever you go down a hill, so less fuel will be burned to achieve better gas mileage.
• This transmission can have fewer moving parts and lower repair costs.
• It wears out easily with engine oil and doesn’t need to be adjusted regularly.
• Driving at higher speeds is possible with this transmission.
• Drivers have total control over the selection of gears.
• This transmission provides better fuel economy as compared to automatics, particularly in sporty models.
• This transmission is well known for its strength and is more reliable in rough conditions.
• Manual transmission-based vehicles can have a higher resale value.

The disadvantages of manual transmission include the following.

• Manual transmission is available rarely in the market because of the extensive utilization of automatic vehicles.
• Driving a vehicle with this transmission can be a challenging task.
• The clutch with a manual transmission can wear out, thus it needs a higher repair cost to change it.
• Driving up hill stations can be dangerous.
• Driving in heavy-traffic conditions is difficult due to manually changing gears.
• Manual transmission with the coordination of the clutch pedal, gear stick, and accelerator can be difficult for new drivers.
• Driving with a manual transmission requires more attention than driving.

Applications

Manual transmission is used in a wide range of vehicles where fuel efficiency, a more engaging driving experience, and precise control are desired, like cars, passenger cars, vehicles, etc. So, the applications of manual transmission are discussed below.

• Manual transmission is used in passenger vehicles like entry-level cars & trucks.
• These are highly used in sports cars due to their direct control over power shifting and delivery by improving the driving experience.
• These are used in buses and trucks for their stability and capability in handling heavy loads.
• This transmission is used in utility and off-road vehicles for superior torque control.
• Many motorcycles use manual transmissions for exact gear selection.
• This transmission can also be found in particular applications where sequential manual transmissions are utilized for quick shift times, like racing cars.

This is an overview of manual transmission working and its applications. A manual transmission offers an unmatched driving experience for enthusiasts who love precision, control, and engagement. Do you know why Formula 1 uses manual transmission instead of automatic transmission ?. Despite being less common today, its benefits in performance, cost, and fuel efficiency make it a worthy choice for many drivers. Question for you: Want to know how an automatic transmission works and how it compares in
detail? Read our complete guide to automatic transmissions.
