NVIDIA RTX A6000 : Features, Specifications, Architecture, Working, Differences & Its Applications

Nvidia RTX is a specialized visual computing platform created by Nvidia. It is designed for use in standard PCs for gaming and also in workstations to create complex, large-scale models within architecture & product design, energy exploration, scientific visualization, and film & video production. RTX simplifies a new development within computer graphics to generate interactive images that respond to shadows, reflections, and lighting. RTX runs on Nvidia Ampere-, Turing-, Volta-, Ada Lovelace-, & Blackwell-based GPUs, particularly with the Tensor cores on the architectures mainly for ray-tracing acceleration. Thus, Nvidia announced the first Ampere-architecture-based graphics card, like the Nvidia RTX A6000, in October 2020. It is used in professional workstations of the Nvidia RTX product line by replacing the previous Quadro product line of specialized graphics cards.

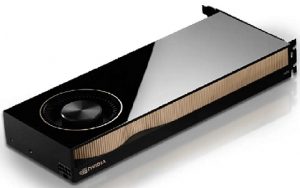

What is NVIDIA RTX A6000?

The NVIDIA RTX A6000 is a professional and high-performance graphics card. It is designed on the Ampere architecture based on the 8 nm processes to provide a combination of Tensor Cores, CUDA cores, RT Cores, and GDDR6 memory for outstanding performance in demanding applications like AI, compute, engineering, and rendering applications. The NVIDIA RTX A6000 uses the large GA102 graphics processor, which supports DirectX 12 Ultimate.

This processor can also have shading units – 10752, texture mapping units – 336, ray tracing acceleration cores – 84, tensor cores – 336, ROPs – 112, and 4 DisplayPort 1.4a display outputs. In addition, this processor can also connect with GDDR6 memory – 48 GB through a 384-bit memory interface. Its operating frequency ranges from 1410 MHz to 1800 MHz. The NVIDIA RTX A6000 is a dual-slot card that draws power from an 8-pin EPS power connector, with a maximum power draw rated at 300 W.

How does the NVIDIA RTX A6000 GPU Work?

The RTX A6000 GPU is designed with the Ampere GA102 GPU architecture to bring significant improvements in efficiency and performance over earlier Volta and Turing generations. This architecture has key components like: 10,752 – CUDA Cores, 3rd Gen RT Cores, 4th Gen Tensor Cores, and 48 GB – GDDR6 ECC memory.

The internal working of the NVIDIA RTX A6000 GPU follows as;

The CUDA cores execute hundreds of threads in parallel, perfect for tasks that can be divided into various smaller jobs. It handles normal GPU tasks like compute, rendering, image processing, and many more.

RT cores speed up the calculation of real-time ray tracing to mold how light communicates with surfaces like reflections, shadows, refractions, etc. It is much faster than software-based ray tracing. Tensor cores speed up AI workloads like deep learning inference or training by performing matrix operations efficiently. It is helpful for denoising rendered images, upscaling, and machine learning.

It has High-Bandwidth GDDR6 memory – 48 GB with ECC to allow large datasets to be processed completely on GPU memory. Thus, it is best for scientific computing, professional content creation, and simulations.

Features

The features of NVIDIA RTX A6000 include the following.

• NVIDIA RTX A6000 is a professional-grade GPU.
• It supports NVLink with bidirectional 112.5 GB/s bandwidth.
• This VR Ready GPU indicates that a GPU meets the minimum performance requirements to bring a smooth virtual reality experience whenever connected with a well-matched VR headset.
• It supports vGPU software like vPC/vApps, RTX virtual workstation, and virtual compute server.
• It has ECC (Error Correcting Code) on the graphics memory.
• This processor’s DisplayPort supports various resolutions & refresh rates like four 5120 x 2880 @ 60 Hz, two 7680 x 4320 @ 60 Hz, and four 4096 x 2160 @ 120 Hz.
• PCIe Gen 4 doubles the bandwidth of PCIe Gen 3 by enhancing data transmission speeds.

Specifications

The specifications of NVIDIA RTX A6000 include the following.

• This GPU has a 300W power consumption, dual-slot, and full-height form factor.
• It uses Ampere GPU Architecture.
• GPU memory is 48 GB GDDR6 through ECC
• It has 10,752 CUDA Cores, 84 RT Cores, and 336 Tensor Cores.
• Memory Interface is 384-bit
• Memory BW is 768 GB/s.
• Its single-precision performance is 38.7 TFLOPS
• Its RT core performance is 75.6 TFLOPS.
• Tensor performance is 309.7 TFLOPS
• System interface is PCI Express 4.0 x16.
• Power consumption is 300W.
• It has four DisplayPort 1.4a display connectors.
• It has an active thermal solution.

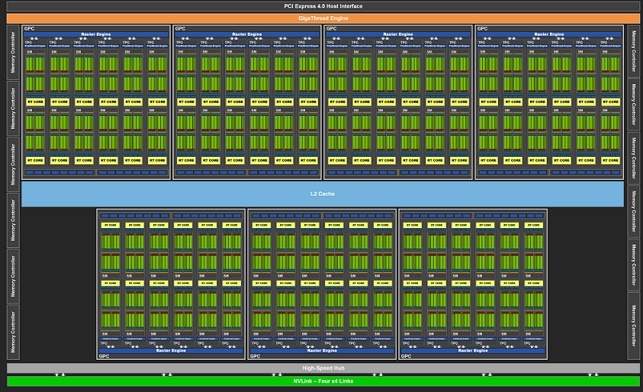

NVIDIA RTX A6000 GPU Architecture

The NVIDIA RTX A6000 uses Ampere architecture, which is designed for high-performance visual computing by providing a combination of very powerful CUDA cores, RT Cores (second-generation), and Tensor Cores (third-generation). This architecture includes CUDA cores -10,752, RT Cores – 84, and Tensor Cores – 336, along with GDDR6 memory – 48 GB. Thus, this processor allows for major performance improvements in different tasks like AI-accelerated computing, professional graphics rendering, and real-time ray tracing.

NVIDIA RTX A6000 GPU Components

The NVIDIA RTX A6000 GPU has a powerful combination of components designed for professional compute and visualization workloads. The components of this architecture mainly include Tensor cores, RT cores, CUDA cores, GDDR6 memory, PCIe Gen 4, DisplayPort 1.4a connectors, etc. So these components’ detailed breakdown is discussed below.

CUDA Cores

The NVIDIA RTX A6000 GPU has a high number of CUDA cores – 10,752. Thus, it contributes to the strong performance of cards in parallel processing tasks. These are essential for applications like 3D rendering, scientific simulations, and deep learning.

Tensor Cores

This GPU contains specialized hardware units like 336 Tensor Cores, which accelerate deep learning and AI workloads. They perform accumulation and matrix multiplication operations, which are essential to deep learning training & inference. These Tensor Cores allow significant performance enhancements in AI-related tasks as compared to earlier GPUs without Tensor Cores.

RT Cores

This GPU has second-generation 84 RT Cores designed to speed up ray tracing calculations, a method used for realistic rendering in visual computing and graphics. These RT Cores offer double throughput as compared to earlier generations, which perform ray tracing concurrently with denoising or shading operations. This allows for quicker rendering of architectural designs, product prototypes, photorealistic images, and quicker ray-traced motion blur.

GPU Memory

This GPU includes 48GB of large GDDR6 memory, which is a key feature particularly for demanding professional applications like advanced rendering, deep learning, and AI. This memory is particularly designed for high-performance graphics & compute tasks, which have ECC (Error Correction Code) for data integrity. The 384-bit memory interface provides 768 GB/s of memory bandwidth. Thus, this large capacity of memory allows the GPU to manage demanding workloads like complex simulations, complex 3D models, large datasets, etc.

PCIe Interface

The NVIDIA RTX A6000 uses a PCIe 4.0 x 16 lanes interface, which connects to the computer’s motherboard to provide a high-bandwidth connection. Thus, this configuration allows for a maximum 31.5 GB/s theoretical bandwidth in every direction. The PCIe 4.0 interface provides double the bandwidth for quick data transfer between the CPU and the GPU as compared to the earlier PCIe 3.0 standard.

Display Outputs

This GPU supports up to 4 instantaneous display outputs through its four DisplayPort 1.4a connectors. Here, each connector port drives a single display with a maximum 7680 x 4320 resolution at 60Hz through HDR support. In addition, it can also support MST (Multi-Stream Transport) from a single DisplayPort for daisy-chaining multiple monitors.

Power Consumption

This GPU has 300 watts of maximum power consumption in full load. This is the TGP or Total Graphics Power, which represents the peak power that is drawn throughout intensive tasks like 3D rendering, complex simulations, and deep learning. The power consumption in heavy workloads normally ranges from 250Watts to 300Watts; however, it can be much lower when inactive.

Thermal Solution

An active thermal solution of the NVIDIA RTX A6000 manages heat dissipation. So this normally uses a heat sink and a blower-style fan to cool the GPU & other components actively. This dual-slot card draws power using a single 8-pin connector, where its maximum power consumption will be 300W.

Active Cooling

The GPU uses active cooling, particularly a blower-style fan, which exhausts hot air out from the GPU system. Thus, this solution maintains the best operating temperatures. This design is suitable in multi-GPU setups and restricted airflow environments like data centers & workstations. The blower fan pushes hot air from the chassis actively by avoiding heat buildup & ensuring the GPU works in the best temperature ranges.

Form Factor

This GPU has a dual-slot form factor with a 4.4 H x 10.5 L. Thus, it occupies two extension slots on the motherboard. The dual slot designation specifies it’s wider as compared to a single-slot card, which potentially requires more space in a computer case.

NVLink

The NVIDIA RTX A6000 GPU uses an NVLink, which is a high-speed interconnect that permits two GPUs to communicate and transmit data at a much faster speed than fixed PCIe connections. Thus, it allows performance scaling & memory pooling within multi-GPU configurations, which significantly enhances the efficiency and speed of memory-intensive workloads.

Software Ecosystem

NVIDIA RTX A6000 Software ecosystem normally has numerous key tools & drivers, which make the hardware of the GPU suitable for professional workflows. So the tools & drivers of this GPU include: NVIDIA drivers, CUDA toolkit. AI & deep learning frameworks, Omniverse, Quadro View, control panel, and vGPU, which are explained below.

NVIDIA Drivers

The A6000 GPU can be supported by professional drivers which are optimized for performance and stability in professional softwares like Maya, AutoCAD, Houdini, etc.

CUDA Toolkit

The CUDA Toolkit of NVIDIA is a must for developers who work on GPU-accelerated applications. This toolkit allows developers to write software that can use the parallel processing power of a GPU to make it perfect for computational tasks like scientific computing and AI.

AI & Deep Learning Frameworks

This GPU is optimized for famous deep learning libraries like PyTorch, TensorFlow, CUDA-X cuDNN, and AI.

NVIDIA Omniverse

This platform in 3D design & simulation is for real-time collaboration, which is extremely optimized for GPUs. This is a powerful tool, used by professionals who work in industries like automotive design, gaming, and architecture.

Quadro View & NVIDIA Control Panel

This software is used to arrange the display settings, mainly of the GPU, which manages multi-monitor setups for specialized workstations.

NVIDIA vGPU

NVIDIA vGPU software allows users in virtualized environments to split the GPU across various virtual machines. Thus, it provides access to GPU acceleration within workstations or virtual desktops.

NVIDIA RTX A6000 Vs NVIDIA RTX 6000 Ada

The difference between NVIDIA RTX A6000 Vs NVIDIA RTX 6000 Ada includes the following.

Advantages

The advantages of the NVIDIA RTX A6000 GPU include the following.

• It has 48GB GDDR6 with ECC, large memory capacity, and high memory bandwidth.
• This GPU uses the Ampere architecture for performance gains in Tensor cores, RT cores, and CUDA cores, which are essential for a variety of professional tasks.
• Third-Generation tensor cores speed up mixed-precision calculations in AI model training & inference.
• Its RT cores improve ray tracing performance by allowing more detailed and realistic visuals within rendering applications.
• AI & Deep Learning offer the required performance for training & deploying AI models.
• Scientific computing speeds up data analysis, simulations & other computationally intensive scientific tasks.
• Virtual production allows real-time ray tracing & rendering for on-air graphics and virtual sets.
• Design & Engineering supports complex design workflows like real-time ray tracing and BIM for design review.
• High-resolution display walls drive large multi-display setups for visualization & control rooms.

Disadvantages

The disadvantages of the NVIDIA RTX A6000 GPU include the following.

• The NVIDIA RTX A6000 lacks MIG (Multi-Instance GPU) support, which provides less FP64 performance as compared to other data center GPUs.
• This processor has some limitations within large-scale AI training because of NVLink constraints & memory bandwidth.
• In addition, its 300W TDP can lead to thermal throttling in continuous high loads, and it may not be perfect for applications that need very high precision.
• It can be more expensive than gaming GPUs.
• They have limited availability.
• Memory bandwidth is less compared to data center GPUs like the H100 or A100, which can impact training speed mainly for large models.
• The lack of NVLink affects the efficiency of multi-GPU scaling within large-scale training setups.

Applications

The applications of the NVIDIA RTX A6000 GPU include the following.

• This powerful workstation GPU is designed for a wide range of professional applications like machine learning, AI, CAD/CAM, DCC professional visualization, high-performance computing, and virtual reality.
• In addition, it is a powerful tool for professionals who require top-tier performance with its features for their computational workloads and demanding visual computing.
• This GPU is excellent for training minor AI models, quick prototyping, and working with better datasets because of its large memory & Tensor/ CUDA Cores.
• This processor is used in a variety of applications like video analytics, industrial quality inspection, and autonomous vehicle perception.
• The combination of compute performance, energy efficiency, and high memory capacity makes it a flexible choice for deep learning tasks.
• The real-time ray tracing abilities of this processor are helpful in virtual production, interactive design, and simulation by allowing for photorealistic visuals with less latency.
• It is well-suited for VFX, video editing, broadcast solutions, and 3D animation by providing performance benefits over the A100 in instantaneous video processing.
• This GPU can create synchronized and large display systems and develop realistic simulation environments for a variety of industries.
• It is well-suited for computationally intensive tasks in different fields like engineering, financial modeling, scientific visualization, etc.
• This processor can be used for complex simulations like robotic simulations, vehicle simulations, and flight simulations by allowing virtual testing & development.
• It is a powerful tool for CAE and CAD workflows by allowing real-time visualization and interactive design.
• This processor is used in medical imaging for image analysis & visualization.

Conclusion:

Thus, this is an overview of the NVIDIA RTX A6000 GPU, which is a top-end and highly capable professional GPU. It is perfect for demanding workloads like high-end graphics rendering, scientific simulations, and AI training. Its combination of outstanding processing power, superior AI capabilities, and massive memory makes it a favorite choice for those in need of heavy computational resources. This is a powerhouse GPU mainly designed for professionals in different fields like data science, AI, simulation, rendering, and other demanding computational tasks. Here is a question for you: What is a GPU?
