AMD Ryzen 5 7400 : Specifications, Architecture, Working, Differences & Its Applications

The AMD Ryzen 5 7400 is an entry-level six-core desktop processor in the AMD Ryzen 7000 family. The processor represents AMD’s transition from the AM4 platform to the AM5 platform and from Zen 3 to Zen 4. It basically serves as a more affordable entry point into the modern AM5 ecosystem of AMD. This processor focuses on mainstream desktop users who need good gaming and general-purpose performance without moving up to the expensive Ryzen 5 7600 or 7600X class. This article provides an overview of the AMD Ryzen 5 7400, its operation, and its applications.

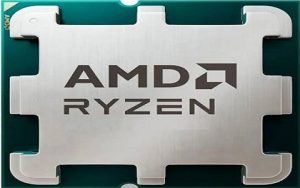

What is AMD Ryzen 5 7400?

The AMD Ryzen 5 7400 is a desktop processor, built on the Zen 4 (Raphael) architecture using Socket AM5. AMD built this Ryzen 5 7400 processor. This processor features 16 MB of L3 cache, Radeon Graphics, and has a 3.3 GHz base clock and a boost clock of up to 4.3 GHz based on the workload.

The Ryzen 5 7400 processor has a default TDP of 65 W for a modern PC. AMD’s processor supports DDR5 memory with a dual-channel interface. The maximum officially supported memory speed is 5200 MT/s in a dual-channel configuration. Higher memory speeds may be achievable through memory overclocking/EXPO, depending on the configuration. The processor supports ECC memory when enabled by the motherboard and platform. Processor-level ECC support does not necessarily mean every AM5 motherboard supports ECC functionality.

DDR5 memory up to 5200 MT/s (or up to 5600 MT/s depending on specific platform testing/specs) in a dual-channel configuration, with a maximum capacity of 128GB

Ryzen 5 7400 processor uses a PCI Express Gen 5 connection for communication with other components within the system. Hardware virtualization on the Ryzen 5 7400 processor is available, which greatly enhances virtual machine performance. Programs with Advanced Vector Extensions will run on this processor, boosting performance for calculation-heavy applications. AMD supports the latest AVX2 and AVX-512 instructions.

Specifications

The specifications of the AMD Ryzen 5 7400 processor include the following.

• It features 6 Cores and 12 Threads:
• Base clock is 3.3 GHz, and Max Boost clock is up to 4.3 GHz.
• L1 Cache is 384 KB, L2 Cache is 6 MB, and L3 Cache is 16 MB.
• Default TDP is 65W.
• Maximum Operating Temperature (Tjmax) is 95°C.
• It features an AM5-type socket.
• Process Technology is TSMC 5nm FinFET, TSMC 6nm FinFET (I/O die).
• Memory type is DDR5 (Dual-channel, up to 128 GB, speeds up to 5200 MT/s).
• PCI Express version is PCIe 5.0 with 28 total lanes (24 usable lanes).
• It supports different chipsets like; A620, B650E, B650, X670, X870, X670E, X870E, B840 and B850.

How does the AMD Ryzen 5 7400 Processor Work?

The AMD Ryzen 5 7400 desktop processor processes instructions using six Zen 4 computing cores and 12 threads with a chiplet design, built on TSMC’s 5nm process. Thus, it executes computer tasks and runs games on the AM5 platform. This processor executes instructions generated by software and quickly processes them with six physical processing cores in the architecture. It fetches, decodes, executes, and stores instructions while managing data between the CPU, RAM, cache, and other components of the computer.

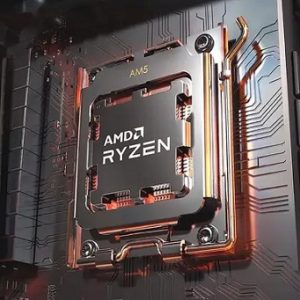

AMD Ryzen 5 7400 Architecture

The AMD Ryzen 5 7400 processor is built on the Zen 4 (Raphael) core architecture with TSMC’s 5nm FinFET process using the AM5 platform. This processor is designed for users who are looking for a reliable processor. This processor features integrated AMD Radeon Graphics that allows designing a system without a dedicated graphics card. This is mostly practical for multimedia stations or office PCs where severe graphics requirements are not present. The AMD Ryzen 5 7400 processor provides full support for PCIe 5.0 for future connectivity expansions.

Architecture Components

The basic building blocks of the AMD Ryzen 5 7400 architecture include: Cores and Threads, Compute Die (CCD), I/O Die (IOD), Socket Type, memory, Integrated Graphics, PCI Express, Thermal Design Power, clock, memory controller, Instruction Sets, Compatible Chipsets, and software system.

Cores and Threads

The AMD Ryzen 5 7400 features 6 cores and 12 threads. A core is an independent physical hardware unit in the processor. Each core reads and executes program instructions on its own. A 6-core processor features 6 separate physical processing units. Threads in this processor are virtual paths used for software instructions. SMT allows each physical core to execute two hardware threads concurrently. AMD uses SMT (Simultaneous Multithreading) to divide every physical core into two threads

Compute Die or CCD

The CCD (Core Compute Die) in the AMD Ryzen 5 7400 architecture is the physical silicon chiplet that features the actual processing cores, a shared L3 cache, and their individual L2 caches. AMD uses chiplet architecture in place of designing a single, large part of silicon. The processor uses a chiplet-based design consisting of a CPU Compute Die (CCD) and an I/O Die (IOD).

I/O Die (IOD)

The I/O Die in the AMD Ryzen 5 7400 processor is a separate 122 mm² silicon chip, designed on a TSMC 6nm process. It handles system I/O operations, peripheral connections, and memory control. The I/O Die (IOD) acts as a central hub for memory and I/O connectivity. The I/O die manages key functions such as memory connectivity and PCIe/I/O interfaces between the processor and the rest of the system. Built on a TSMC 6nm manufacturing node, this I/O Die is physically divided from the 5nm CPU Compute Die that features the 6 Zen 4 cores.

Socket Type

The AMD Ryzen 5 7400 processor uses Socket AM5. This is the physical & electrical interface on the motherboard that connects the processor to the motherboard, allowing high-speed data and power delivery communication.

Memory

This processor supports a dual-channel DDR5 memory architecture that provides the CPU cores with high-speed access to system memory. It uses exclusively modern DDR5 memory on the AM5 platform by supporting up to 5200 MT/s data rates in standard dual-module setups.

This processor features a dual-channel bus to double the data path width. It supports total system memory up to 128 GB. It supports ECC memory on compatible platforms, which can help detect and correct certain memory errors. This processor supports AMD EXPO technology for simple memory overclocking profiles.

Integrated Graphics

The AMD Ryzen 5 7400 processor features integrated graphics that provide basic display output and daily visual processing without requiring a separate graphics card. The integrated GPU is primarily suitable for display output, multimedia, and very light graphics workloads, rather than implying meaningful gaming performance.

PCI Express

The AMD Ryzen 5 7400 processor supports PCI Express 5.0, which acts as the high-speed data highway. It connects the processor to current graphics cards, the motherboard chipset, and fast storage drives. PCIe 5.0 provides high-bandwidth connectivity for supported devices such as NVMe storage.

Thermal Design Power

The Thermal Design Power of the AMD Ryzen 5 7400 processor is 65W. TDP (Thermal Design Power) is a processor thermal-design specification used to indicate the expected heat output that the cooling solution is designed to handle under specified conditions. It gives a baseline to you and manufacturers for how much electrical power the chip is rated to produce as heat within standard operating limits.

Clock

The clock of the AMD Ryzen 5 7400 is the electronic timing pulse that dictates how quickly this processor processes data & executes instructions. The base clock speed of this processor is 3.3 GHz, and a maximum boost clock speed is up to 4.3 GHz. The base clock is the guaranteed/reference frequency under specified operating conditions; actual clock speeds vary dynamically with workload, temperature, power, and other factors. The boost clock is the highest speed the processor can automatically attain when managing demanding or heavy workload applications.

Memory Controller

A memory controller in this processor is a hardware circuit that handles the data flow between a computer’s processor & its system memory. This controller acts as a traffic manager for data. It handles all traffic and data communication between the processor core & the DDR5 RAM of the system.

Instruction Sets

The AMD Ryzen 5 7400 processor uses the 64-bit x86-64 instruction set architecture. This processor can support a wide range of standard and higher instruction extensions to manage cryptography, heavy calculations, and virtualization.

• It supports vector & math extensions like AVX, AVX2, and AVX-512. These are advanced vector extensions, used for machine learning, heavy data processing, and scientific calculations and tasks.
• FMA3 is Fused Multiply-Add, used for faster floating-point calculations.
• MMX-plus is a legacy & enhanced media instruction set.
• It supports streaming SIMD Extensions like SSE, SSE2, SSSE3, SSE3, SSE4.1, SSE4A, and SSE4.2.
• It supports security and virtualization like AES, SHA, and AMD-V.

Compatible Chipsets

AMD Ryzen 5 7400 is compatible with AM5 socket motherboards like 600-series & 800-series chipsets. The 600-series chipsets are; X670E, B650E, X670, A620 and B650. The 800-Series chipsets are: X870E, B850, B840, and X870.

Software System

AMD Ryzen 5 7400 processor supports 64-bit Windows 10 & Windows 11 operating systems. It uses AMD Software: Adrenalin Edition can provide drivers and software features for supported Radeon graphics. The software system works as the bridge between your OS, the physical hardware, and applications of the processor.

AMD Ryzen 5 7400 vs AMD Ryzen 5 7400F

The difference between AMD Ryzen 5 7400 and AMD Ryzen 5 7400F includes the following.

Advantages

The advantages of the AMD Ryzen 5 7400 processor include the following.

• It works with the flexible AMD AM5 socket that gives you an advanced path for coming generations of processors.
• It features high-speed DDR5 RAM for quick data transfer rates and better system responsiveness..
• It features built-in AMD Radeon Graphics, so you can run a display setup without requiring a separate, expensive dedicated graphics card.
• This processor delivers solid multi-threading performance for everyday office tasks, light productivity, and multitasking.
• It includes an AMD Wraith Stealth cooler that saves you extra money on necessary cooling.
• It operates at a standard 65W TDP by keeping basic cooling and power consumption requirements low.

Disadvantages

The disadvantages of the AMD Ryzen 5 7400 processor include the following.

• This processor uses the AM5 socket that does not fit into previous AM4 motherboards.
• The AM5 platform only works with DDR5 RAM, and it costs more than previous DDR4 memory.
• The standard Ryzen 5 7400 processor reaches 4.3 GHz maximum boost speed, whereas other 7400F chips reach up to 4.7 GHz.
• This processor features 16MB of L3 cache, which can reduce latency in data-heavy and gaming tasks.
• It features basic Radeon graphics compute units with only 2 cores. This is sufficient for a basic display, but it is very slow for current gaming.
• The 7400F does not include integrated graphics, whereas the standard 7400 does, if confirmed.
• It uses thermal paste (conventional thermal grease) directly underneath its Integrated Heat Spreader (IHS) instead of soldered STIM (Solder Thermal Interface Material). Thus, this design selection leads to warmer operating temperatures & potential thermal limits under heavy loads.

Applications

The applications of the AMD Ryzen 5 7400 processor include the following.

• This processor is integrated with AMD Radeon Graphics to run entry-level setups or basic games without a separate graphics card.
• It is suitable for everyday tasks like web browsing, running office productivity suites and word processing with many open tabs, video conferencing, and spreadsheets.
• This processor manages 1080p video editing, light video editing, media streaming, graphic design, and light-to-moderate photo editing tasks with its cores and threads.
• It supports hardware virtualization, making it suitable for virtual machines and development/test environments.” “Smoothly” depends on RAM, storage, VM workload, and configuration.
• This processor can fit into 65W energy-efficient desktop systems with fast DDR5 memory and the AM5 platform.
• It supports light video editing, media streaming, and basic photo editing.
• Hardware virtualization support can allow users to run VMs smoothly for development or testing environments.
• Its instruction sets boost performance for scientific and demanding data processing applications.

The AMD Ryzen 5 7400 processor features 6 cores and 12 threads, based on the Zen 4 (Raphael) core architecture with the AM5 Socket platform. These signify price, performance, integrated graphics, cache, power consumption, etc., because of lower clock speeds & cost-cutting measures compared to higher-tier Zen 4 chips. It provides a balanced and energy-efficient 6-core setup with integrated graphics, though it falls behind higher-tier chips in cache size and raw speed.
