AMD Ryzen 5 7600X3D : Specifications, Architecture, Working & Its Applications

AMD announced the Ryzen 5 7600X3D processor in late Aug 2024 and officially released it on Sep 5, 2024. Initially, it was released as a regional and retail exclusive through Micro Center in the US. Its initial retail strategy was similar to that of the Ryzen 5 5600X3D. Following its initial US launch, the processor became available through selected retailers in other markets, including accessibility in Europe and through JD.com platforms in China. The AMD Ryzen 5 7600X3D processor was launched to deliver an affordable gaming processor featuring AMD 3D V-Cache technology. This article elaborates on the AMD Ryzen 5 7600X3D processor, its working, and its applications.

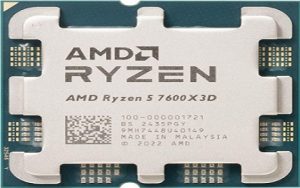

What is AMD Ryzen 5 7600X3D?

The AMD Ryzen 5 7600X3D is an economical, 6-core, 12-thread desktop processor. It is a part of the Ryzen 5 lineup, built on the Zen 4 (Raphael) architecture using Socket AM5. It is designed mainly for gaming on the AM5 platform using AMD’s 3D V-Cache technology.

This processor features 96 MB of L3 cache; the processor has a 4.1 GHz base clock and a maximum boost clock of up to 4.7 GHz. based on the workload. AMD designed this processor on a 5 nm production node with 11,270 million transistors. The multiplier on this processor is locked, which controls its overclocking potential.

The Ryzen 5 7600X3D features Radeon Graphics integrated graphics and has a default thermal design power (TDP) of 65 W. AMD’s processor can support DDR5 memory through a dual-channel interface. The official memory speed depends on the DIMM configuration; supported memory overclocking may allow higher speeds. This processor supports ECC memory, which is a significant capability used for mission-critical systems to prevent data corrcuption.

Ryzen 5 7600X3D processor uses a PCI Express Gen 5 connection for communication with other components within the computer. Hardware virtualization on this processor greatly improves VM performance. Programs with Advanced Vector Extensions can run on this processor to boost performance for calculation-heavy applications. AMD has added support beyond AVX for the latest AVX2 & AVX-512 instructions.

Specifications

The specifications of the AMD Ryzen 5 7600X3D processor include the following.

• It is based on Zen 4 (Raphael) Architecture.
• This processor features 6 cores / 12 threads.
• Base Clock is 4.1 GHz and Boost Clock is up to 4.7 GHz.
• L1 Cache is 384 KB, L2 Cache is 6 MB, and L3 Cache is 96 MB.
• Default TDP is 65W.
• It uses an AM5-type socket.
• It features TSMC 6 nm for the I/O die and TSMC 5 nm FinFET for CPU cores.
• Memory Type is DDR5 (Dual-channel).
• DDR5-5200 is the official maximum for supported two-DIMM configurations; supported speed can be lower with four DIMMs.
• Max memory capacity is 128 GB
• It supports ECC.
• PCI Express Version is PCIe 5.0.
• It is compatible with different chipsets like X670, X670E, B650, B650E, and A620.
• It features AMD Radeon Graphics.
• Graphics Core Count is 2.
• Graphics Frequency is 2200 MHz.

How does AMD Ryzen 5 7600X3D Work?

The AMD Ryzen 5 7600X3D processor works with AMD 3D V-Cache Technology to stack an additional 64 MB of stacked SRAM (3D V-Cache) layers vertically on top of the processor die. It delivers a massive 96 MB of total L3 cache to the CPU for significantly reduced memory access times in gaming. The processor uses six Zen 4 cores and 96 MB of L3 cache, including 64 MB of stacked 3D V-Cache, to reduce some memory accesses in cache-sensitive workloads.

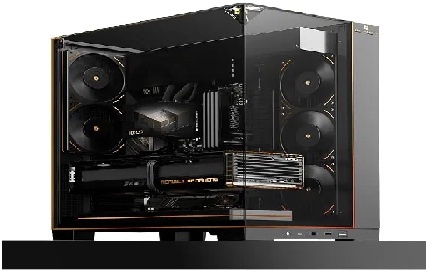

AMD Ryzen 5 7600X3D Architecture

The AMD Ryzen 5 7600X3D mid-range desktop processor is built on the Zen 4 microarchitecture. It features cores, threads, and a stacked L3 cache, enhanced with AMD 3D V-Cache technology.

Architecture Components

The main architectural components include the CPU cores, Clock Speeds, Cache, Memory, Socket, Integrated Graphics, Connectivity, CPU Compute Die,3D V-Cache Chip, PCI Express, Thermal Design Power, and Software System.

Cores

AMD Ryzen 5 7600X3D processor architecture features 6 physical CPU cores & 12 processing threads. Generally, a CPU core is an independent, small processing unit within the architecture where each CPU core executes instructions and processes tasks assigned by the operating system.

The cores in this processor can perform six major tasks at the same time. AMD uses SMT, which allows each physical core to divide into two Simultaneous multithreading (SMT) allows each physical core to handle two hardware threads. So this helps the processor to run more programs easily.

Clock

AMD Ryzen 5 7600X3D features a 4.1 GHz base clock speed and up to 4.7 GHz of maximum boost clock speed. Here, the base CLK speed is the standard and default operating speed while handling basic tasks. Boost CLK speed is the maximum speed the processor can achieve automatically for demanding workloads.

Cache

AMD Ryzen 5 7600X3D features 102.38 MB of massive total cache like L1 cache of 384 KB, an L2 cache of 6 MB, and a  96 MB, built with AMD’s 3D V-Cache technology.

• The L1 Cache is small, very fast local memory that is closest to every individual core.
• L2 Cache is a dedicated mid-level storage that provides a balance of high speed & larger capacity.
• The L3 cache consists of 32 MB of on-die cache and 64 MB of stacked 3D V-Cache. These are vertically bonded on top with3D stacking technology.

Memory

This architecture supports dual-channel DDR5 system memory up to 128 GB. It is natively clocked at up to 5200 MT/s, with a massive onboard cache hierarchy adding up to 102.38 MB. This processor heavily depends on its massive L3 cache to decrease how frequently the CPU requires waiting for slower system RAM.

Socket

The Ryzen 5 7600X3D uses AMD’s AM5 socket, which has an LGA1718 contact layout. This socket features 1,718 pin contacts, located on the motherboard socket instead of on the bottom of the processor, which helps to defend the CPU from bent pins during installation.

It is a Land Grid Array (LGA) socket with 1,718 pins located on the motherboard rather than on the processor. This socket completely supports current DDR5 system memory. It gives support for PCIe 5.0 for fast NVMe solid-state drives and upcoming graphics cards. This processor is connected to AM5 motherboards by supporting chipsets like A620, B840, B650, B850, X870, or X670.

Integrated Graphics

This architecture features basic integrated graphics, designed into its 6nm I/O die. It primarily works for system setup, display output, and troubleshooting instead of heavy gaming.

These integrated graphics provide” or, more naturally, “The integrated GPU provides basic display output, system troubleshooting, and hardware media decoding without requiring a dedicated graphics card. Unlike AMD’s specialized G-series Accelerated Processing Units, the integrated graphics solution performs as a utility engine on the Ryzen 5 7600X3D processor instead of a primary gaming processor.

Connectivity

Connectivity in this architecture refers to the set of input/output controllers & physical data pathways. These are built into the I/O die of the processor, which allows it to communicate with exterior hardware like graphics cards, peripheral devices, and memory. Its major role is to link the high-speed computing core with the other system components without creating data bottlenecks.

CPU Compute Die

The CPU Compute Die (CCD) is the silicon die that contains the processor’s core complex and associated cache. It is a silicon chiplet that includes the CPU processor cores with associated shared L3 cache. In this processor, an additional 3D V-Cache is directly stacked on top of the CCD. It houses the actual processing cores & baseline cache of an AMD processor. The compute die in this processor plays a significant role in performing instructions and serves as the base for stacked memory technology of AMD.

3D V-Cache Chip

The 3D V-Cache chip in this architecture is an additional static random-access memory layer. It is stacked vertically directly onto the processor’s compute die. Thus, it massively expands cache capacity without expanding the physical footprint of the chip.

PCI Express

PCI Express is a high-speed serial interface standard, used to connect internal computer components directly to a computer’s motherboard & processor, like graphics cards & storage drives. It serves as the fundamental data highway connecting the CPU to the other components of the system.

Thermal Design Power

TDP is the highest amount of heat that a CPU’s cooling system must be able to dissipate in normal operation. This specification is measured in Watts (W). This processor has a default Thermal Design Power of 65W, with a maximum package power limit of 88W.

Software System

The software system for this processor runs on standard 64-bit operating systems like Microsoft Windows 10, Microsoft Windows 11, Ubuntu & Red Hat Enterprise Linux. It needs basic system drivers to handle its unified Zen 4 architecture. A software system is the blend of low-level firmware like BIOS or UEFI & AGESA, motherboard chipset drivers for this processor, and the operating system that manages hardware operations.

AMD Ryzen 5 7600X3D vs. AMD Ryzen 7 7800X3D

The difference between AMD Ryzen 5 7600X3D and AMD Ryzen 7 7800X3D includes the following.

AMD Ryzen 5 7600X3D Gaming Performance

The AMD Ryzen 5 7600X3D is designed primarily for desktop gaming, with its Zen 4 architecture and AMD 3D V-Cache technology helping improve performance in games that benefit from a large processor cache. It features six CPU cores, 12 threads, and 96 MB of L3 cache, including an additional 64 MB of stacked cache. This large cache can reduce the need to access system memory frequently, potentially improving frame rates and reducing performance fluctuations in cache-sensitive games.

The processor is suitable for modern gaming PCs, including systems designed for esports titles and high-refresh-rate gaming. However, actual gaming performance depends on several factors, including the game engine, graphics card, screen resolution, memory configuration, and graphics settings. Games that rely heavily on CPU performance may benefit more from the additional cache than titles that are primarily limited by the graphics card.

At lower resolutions, such as 1080p, the processor can have a greater influence on frame rates when paired with a sufficiently powerful graphics card. At higher resolutions, such as 1440p and 4K, performance often depends more heavily on the GPU, although the extent of this effect varies by game and settings. Therefore, choosing a balanced graphics card is important to achieve the best overall gaming experience.

Although the Ryzen 5 7600X3D offers gaming-focused features, it is not necessarily the fastest option for every game or workload. Buyers should compare independent gaming benchmarks, average frames per second (FPS), and 1% low frame rates against competing processors before making a purchase. These measurements provide a more useful understanding of real-world gaming performance than specifications alone.

Compatible Motherboards, RAM, and Cooling Requirements

The AMD Ryzen 5 7600X3D uses the Socket AM5 platform, which supports DDR5 system memory and PCIe connectivity. When selecting a motherboard, users should verify that the specific model supports the Ryzen 5 7600X3D and has a compatible BIOS version. Although AM5 motherboards may share the same socket, processor support can vary by motherboard model and firmware version.

This processor supports dual-channel DDR5 memory, with officially supported memory speeds depending on the number and configuration of installed memory modules. Users can consider a matched memory kit to simplify configuration and maintain balanced memory operation. AMD EXPO-compatible memory can make it easier to apply supported memory profiles, although the achievable speed depends on the processor, motherboard, memory kit, and system configuration.

The processor also supports PCIe 5.0, allowing compatible motherboards to provide high-speed connectivity for supported storage devices and other components. However, the number of PCIe lanes and the availability of PCIe 5.0 for individual expansion slots and M.2 connectors depend on the motherboard’s design. Buyers should review the motherboard specifications to ensure that it meets their graphics card, storage, and expansion requirements.

The Ryzen 5 7600X3D has a default thermal design power (TDP) of 65 W and a maximum operating temperature of 89°C. A suitable CPU cooler and adequate case airflow are important for maintaining stable operation under sustained workloads. The processor does not include a CPU cooler in the box, so users must purchase a compatible cooling solution separately. The required cooling capacity depends on the system configuration, ambient temperature, workload, and desired noise levels.

Before assembling a system, users should check the motherboard’s CPU support list, BIOS requirements, memory compatibility information, and cooler compatibility. These checks help avoid installation problems and ensure that the processor operates correctly within the chosen PC configuration.

AMD Ryzen 5 7600X3D: Is It Worth Buying?

The AMD Ryzen 5 7600X3D is worth considering for users who prioritize gaming performance and want to build a desktop PC around AMD’s AM5 platform. Its six cores, 12 threads, and 96 MB of L3 cache make it an interesting option for games that benefit from AMD’s 3D V-Cache technology. Its 65 W TDP is also attractive for users planning a gaming system with moderate power and cooling requirements.

However, whether this processor offers good value depends on its current price and availability in the buyer’s region. The Ryzen 5 7600X3D may be an appealing option when it costs substantially less than higher-tier X3D processors while delivering suitable gaming performance. If the price difference is small, buyers should compare it with the Ryzen 7 7800X3D, which has eight cores and 16 threads and may provide better performance in some games and heavily threaded applications.

Users should also consider the Ryzen 5 7600X when evaluating their options. The Ryzen 5 7600X uses the same general AM5 platform but does not include the additional 3D V-Cache found in the 7600X3D. Depending on current pricing and the applications being used, the conventional Ryzen 5 7600X may offer better value for users who divide their time between gaming and general productivity.

For gaming-focused builds, the Ryzen 5 7600X3D is best evaluated alongside the cost of the motherboard, DDR5 memory, CPU cooler, and graphics card. A processor that offers excellent performance in isolation may not provide the best overall system value if its price limits the budget available for other components.

Overall, the AMD Ryzen 5 7600X3D is a promising choice for gamers who want a cache-focused processor on the AM5 platform. Before purchasing, compare current local prices, independent gaming benchmarks, motherboard compatibility, and alternative processors. This approach will help determine whether the Ryzen 5 7600X3D is the right fit for your gaming requirements and budget.

Advantages

The advantages of the AMD Ryzen 5 7600X3D processor include the following.

• It features 96 MB of total L3 cache with AMD 3D V-Cache technology. It drastically decreases memory latency and improves frame rates in games by maintaining critical data right on the die.
• It provides near high-end gaming performance at a lower price point than top-tier X3D chips. Thus, it is an unbeatable alternative for economical gamers.
• It draws low power and runs cooler than the standard 105W Ryzen 5 7600X processor.
• It needs a modest cooling solution instead of expensive liquid cooling setups.
• It is designed on the current Socket AM5 infrastructure, providing a stable upgrade lane and support for quick AMD EXPO overclocking and DDR5 memory.

Disadvantages

The disadvantages of the AMD Ryzen 5 7600X3D processor include the following.

• The processor lags behind normal chips in non-gaming tasks.
• It has lower single-threaded performance than some competing processors for daily creative or office work.
• Its boost clock is lower than the standard 7600X processor, which can decrease performance in tasks that depend on raw frequency instead of large cache.
• The additional 3D V-Cache helps in games, although the lower frequency limits performance in apps that do not utilize the cache.
• AMD frequently sells this chip as a retailer or regional exclusive to make it very hard to purchase for most people.
• You may face stock issues or inflated prices if you do not live close to a participating store.
• The box contains only the CPU, so you should buy a separate CPU cooler to run the system securely.

Applications

The applications of the AMD Ryzen 5 7600X3D processor include the following.

• The massive 96 MB of L3 cache boosts frame rates significantly in current video games.
• It decreases stutter and manages open-world games or fast-paced esports smoothly.
• It operates at a low 65-watt TDP, runs cool, and saves energy while providing top-tier gaming results.
• It simply handles streaming media, office, and web browsing applications.
• The cores and threads support basic video editing, photo adjustments, and casual content creation.
• It features fixed AMD Radeon graphics for necessary video output without immediately requiring a dedicated graphics card for basic display output.
• This processor delivers smooth performance and high frame rates in modern video games with a massive L3 cache powered by AMD 3D V-Cache technology.
• Its cores and threads handle schoolwork, office, and web browsing tasks easily.
• It supports basic photo editing, video editing & light 3D rendering in heavy multi-threaded workloads.

The AMD Ryzen 5 7600X3D is an efficient 6-core gaming processor on the AM5 platform. This processor delivers near-high-end frame rates at a more reasonable price than flagship X3D choices. This is a perfect choice for a mid-range gaming PC that saves money on both the chip & power delivery while providing fantastic gaming capability on the socket.
