Microchip SAMA7G54 : Specifications, Architecture, Working, Differences & Its Applications

Microchip Technology launched the SAMA7G54 high-performance embedded microprocessor on May 24, 2022. The SAMA7G54 is an industrial-grade, single-core microprocessor based on the Arm Cortex-A7. It is integrated with a MIPI® CSI-2 camera interface and advanced audio features. It is based on a single-core Arm® Cortex®-A7 architecture that runs at up to 1 GHz. This processor integrates complete imaging and audio subsystems through 12-bit parallel and MIPI-CSI2 camera interfaces. It is designed for edge artificial intelligence and Linux-based applications to deliver high-speed imaging and audio capabilities. This article provides an overview of the Microchip SAMA7G54 microprocessor, its operation, and its applications.

Microchip SAMA7G54 Specifications

The specifications of the Microchip SAMA7G54 microprocessor include the following.

Microchip SAMA7G54	Specifications
CPU	Single-core ARM Cortex-A7
Clock Speed	Up to 1 GHz
Cache	256 KB L2 cache
Package	TFBGA343 (14 mm × 14 mm, 0.65 mm pitch).
Data Bus Width and External Memories	It features a 16-bit external memory data bus width for its DRAM interface. It supports  memory  types like 16-bit DDR2, DDR3, DDR3L, LPDDR2, and LPDDR3 (up to 533 MHz DDR3L)
Boot Options	Octal/Quad SPI, SD/eMMC, and 8-bit SLC/MLC NAND Flash
Camera Interfaces	12-bit parallel and/or MIPI-CSI2 (2-lane up to 1.5 Gbps each)
Resolution/Frame Rate	Up to 8 Mpixels and 720p at 60 fps
Audio Interfaces	Up to four I2S / PDM channels, S/PDIF transmitter and receiver, plus a 4-stereo channel audio sample rate converter (ASRC).
Ethernet	Dual Ethernet MAC (1× Gigabit Ethernet 10/100/1000 and 1× 10/100 Ethernet).
CAN Bus	Six CAN-FD interfaces
USB	Three high-speed USB PHYs
Serial/Flex	Up to 12× FLEXCOMs (SPI, I2C, USART)
SD/MMC	Up to three SD/eMMC ports
Boot Security	Secure Boot support
Hardware Cryptography	Accelerators for AES, TDES, SHA, RSA, and ECC.

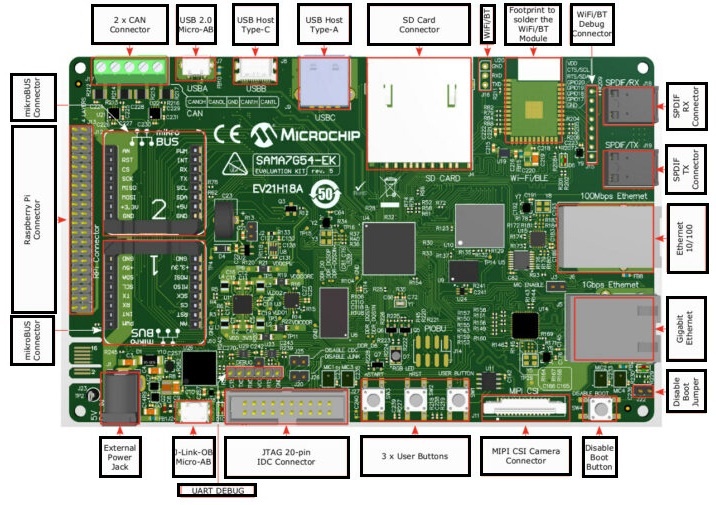

Microchip SAMA7G54 Architecture

The Microchip SAMA7G54 embedded microprocessor is built on the Arm Cortex-A7 architecture. It runs at speeds of up to 1 GHz, efficiently managing power consumption compared to multi-core MPUs, while fully capable of processing AI/ML and Linux algorithms at the edge. This processor is designed for cost-effective, low-power edge-based AI, audio, and imaging applications.

Architecture Components

The main components of the evaluation kit include; CAN Connector, USB 2.0 Micro AB, USB Host Type-C, USB Host Type-A,  WiFi/BT debug connector, SPD1F TX connector, SPD1F RX connector, Ethernet 10/100, Disable Boot Jumper, Disable Boot Button, MIPI CSI Camera Connector, User buttons, UART debug, USB Micro-AB & J-Link-OB, External power jack, microbus connector and Raspberry Pi Connector.

SAMA7G54 Evaluation Kit Components

The on-chip features from the physical components available on the SAMA7G54 Evaluation Kit include; SD card connector, Wi-Fi/BT module, JTAG 20-pin IDC connector, and User Buttons.

SD Card Connector

This is a physical memory card slot on the Microchip SAMA7G54 Evaluation Kit, designated as J4. This connector works as the primary hardware gateway between the MPU’s internal SDMMC controllers and removable flash storage.

Wi-Fi/BT Module

The Wi-Fi/Bluetooth module combines Wi-Fi and Bluetooth connectivity. Thus, it allows devices to connect to the internet or local networks through Wi-Fi while handling device pairing or short-range peripheral communication through Bluetooth.

JTAG 20-pin IDC connector

It is a standardized 20-pin contact interface, used for hardware programming, boundary-scan testing, and debugging of system-on-chip boards and microcontrollers. This connector provides a hardware interface for emulators and external debug probes to perform real-time debugging, boundary scanning, and software development on the processor.

User Buttons

The Microchip SAMA7G54 features onboard user pushbuttons for user communication and system control. In custom applications, demos, or to trigger actions like capturing images in ML demos, a general-purpose user push button, SW1, connects to PIO_PA12. Meanwhile, the hardware reset push button, nReset or SW2, serves to reinitialize or reboot the microprocessor, activating the SAM-BA monitor or ROM bootloader. The evaluation kit includes four pushbuttons and an RGB LED for user input and status indication.

CAN Connector

The CAN connector in the Microchip SAMA7G54 microprocessor architecture is the physical interface. It connects the internal digital communication logic of the chip and the external physical differential CAN bus through an external industrial or automotive network. CAN communication in the Microchip SAMA7G54 architecture is handled through incorporated hardware peripherals. It needs specific physical connectors and external transceivers to connect the physical CAN bus with a microprocessor.

USB 2.0 Micro AB

The USB 2.0 Micro-AB physical port in the Microchip SAMA7G54 architecture delivers dual-role Device and Host functionality. It works as an essential component for flashing, debugging, and flexible peripheral interaction.

USB Host Type-C

This microprocessor is integrated with a USB Type-C connector in its high-speed USB interface architecture. The connector supports the applicable USB operating roles, subject to the board’s hardware configuration.

USB Host Type-A

The USB Host Type-A in this processor is a classic, rectangular, and flat USB-A port arranged on a controlling device. It works as the host to handle data transmission and power supply to connected peripherals.

WiFi/BT Debug Connector

The Wi-Fi/BT debug connector is an interface or unpopulated pad footprint on the SAMA7G54 Evaluation Kit. It supports testing, troubleshooting, and tracing for the possible Microchip Wi-Fi & BLE wireless module.

S/PDIF TX Connector

The S/PDIF TX connector is an optical digital audio transmit interface. It is designated as J19 on the Evaluation Kit and is used to transmit digital audio signals. This interface uses a TOSLINK connection to output audio data from the MPU to external audio extenders or receivers.

S/PDIF RX Connector

The S/PDIF RX connector is an optical digital audio receiver interface. It is designated as J18 on the Evaluation Kit, used to receive digital audio signals. This interface uses two types of physical connections based on whether the signal is electrical (RCA Coaxial) or optical (TOSLINK).

Ethernet 10/100

The Ethernet 10/100 is a secondary, dedicated 10/100 Mbps Ethernet MAC interface in the Microchip SAMA7G54 microprocessor. It supports Media Independent Interface (MII) and Reduced Media Independent Interface (RMII) modes.

Disable Boot Jumper

The Disable Boot Jumper (J22) is a hardware jumper on the SAMA7G54 Evaluation Kit. It controls whether the MPU boots from onboard non-volatile memories like NOR/QSPI flash and NAND or drops into the ROM monitor program.

Disable Boot Button

The Disable Boot button controls the board’s boot behavior as specified in the evaluation-kit documentation from its onboard non-volatile memories like NAND, NOR/QSPI flash, or e.MMC. It can be activated either by holding or pressing the physical Disable Boot button, such as SW4, or by shorting the parallel Disable Boot jumper, such as J22.

MIPI CSI Camera Connector

The MIPI CSI camera connector is a physical interface port on the Microchip SAMA7G54. It directly connects camera sensors to the internal MIPI CSI-2 peripheral of the microprocessor. This camera interface supports sensors up to 8 megapixels & 720p at 60 fps.

UART debug

The UART debug port on the Microchip SAMA7G54 Microprocessor is a dedicated serial communication interface. It is also known as the Target Console, DEBUG port, or Device Console. It provides a serial console for boot logs, system monitoring, and software debugging.

USB Micro-AB & J-Link-OB

The USB Micro-AB and J-Link OB components on the SAMA7G54-EK serve different roles for serial communication, power supply, and debugging. USB Micro-AB Connector is dedicated to the integrated J-Link-OB and CDC serial interface. It is connected to your PC via J24 to access the virtual COM port and J-Link debugger. J-Link-OB on the microprocessor provides an on-board Communication Device Class virtual COM port and debugging for serial console output.

External Power Jack

This is a physical DC connector, designated as J1 on the SAMA7G54 Evaluation Kit. It accepts an AC-to-DC wall adapter and a +5 VDC external power supply. It supplies 5 V DC power to the board and its components.

Microbus Connector

The mikroBUS connector is a standardized 8-pin socket interface on the Microchip SAMA7G54 Evaluation Kit. This connector allows the board to connect to over 450 different MIKROE Click add-on boards for displays, communication modules, and sensors without custom wiring.

The SAMA7G54 features two physical mikroBUS sockets, mikroBUS 1 & mikroBUS 2. Every socket exposes common embedded communication and control lines like power pins, SPI, UART, I²C, PWM, INT, AN, CS & RST. It supports software libraries in Linux frameworks and MPLAB Harmony v3 to quickly prototype features like environmental sensing, motor control, or wireless.

Embedded Linux and Development Resources

Microchip’s development resources describe available Linux development workflows, boot software, and related tools. Use them to substantiate operating-system and software-framework claims – Read the SAMA7G54-EK development overview.

Raspberry Pi Connector

The Raspberry Pi connector is a 40-pin GPIO (General Purpose Input/Output) expansion header on the Microchip SAMA7G54 Evaluation Kit. It is compatible with hats and standard Raspberry Pi add-on boards. Thus, it features a dedicated Raspberry Pi CSI (Camera Serial Interface) connector for well-matched camera modules.

How does Microchip SAMA7G54 Work?

The microchip SAMA7G54 works as a high-performance, single-core, ultra-low-power embedded microprocessor. It is specifically designed for edge-based artificial intelligence, audio, and imaging applications. This processor operates at up to 1 GHz, and its internal framework handles processing with optimized energy efficiency to avoid the power and thermal drains in multi-core systems. This microprocessor achieves high efficiency through its architecture, optimized specifically for edge-based AI, audio-centric processing, and machine vision. It uses a highly centralized data-flow architecture that links an efficient processing pipeline with application-specific multimedia subsystems.

SAMA7G54 Hardware Design Considerations — AN4598

Provides hardware design guidance that is useful when discussing memory interfaces, PCB implementation, and external circuit requirements. Find AN4598 in the product documentation

SAMA7G54-EK Evaluation Kit User Guide

Explains the board layout, connector functions, power options, debugging interfaces, and expansion connectors. Use this guide when describing physical board components – View the evaluation kit and user guide.

SAMA7G54 Product Page

Provides the device overview, major features, product status, datasheet access, and related development resources. – Visit the official Microchip product page

Internal Working Principle of the Microchip SAMA7G54

The Microchip SAMA7G54 is a single-core embedded microprocessor based on the Arm Cortex-A7 architecture, operating at up to 1 GHz. It is designed to run embedded operating systems such as Linux and handle applications involving image processing, audio processing, industrial communication, and edge computing. Its operation depends on the interaction between the CPU, external memory, integrated peripherals, and software running on the processor.

CPU and instruction processing

The Arm Cortex-A7 CPU acts as the central processing unit of the SAMA7G54. It executes program instructions, processes application data, and manages communication between software and the processor’s peripherals. When an application runs, the CPU retrieves instructions and data from memory, performs the required operations, and sends commands to the relevant hardware interfaces.

For example, in an industrial monitoring system, the processor may receive sensor data, execute application logic, analyze the readings, and transmit the results to a remote monitoring system through Ethernet. The CPU coordinates these operations according to the software running on the device.

External Memory and Data Storage

The processor uses external memory to store and access application data and operating-system resources. Its memory interface supports compatible DDR and LPDDR memory types, subject to the specifications and operating limits defined in the datasheet.

External RAM is important when running Linux applications, processing camera data, or handling audio buffers. The amount of memory required depends on the operating system, application complexity, data-processing workload, and the number of peripherals being used simultaneously.

Non-volatile storage, such as compatible flash memory or an SD card, can hold boot software, the operating system, application files, and configuration data. The processor can use supported boot sources to load the appropriate software during startup.

Camera and Image Processing

The SAMA7G54 provides a 12-bit parallel camera interface and a MIPI CSI-2 camera interface. These interfaces allow compatible camera sensors to transfer image data to the processor.

In a smart-camera application, the camera captures an image and sends the data to the processor. The application software can then perform operations such as image filtering, object detection, visual inspection, or image-based monitoring, depending on the available software and processing resources.

The achievable resolution and frame rate depend on the camera sensor, interface configuration, memory bandwidth, and processing workload. Therefore, the presence of a camera interface does not automatically guarantee a particular image-processing or artificial-intelligence performance level.

Audio Processing

The processor includes audio-related interfaces and hardware capabilities such as I²S, PDM, S/PDIF, and an audio sample-rate converter. These features can be used in systems that capture microphone input, process digital audio, or transmit audio to external equipment.

For example, a voice-enabled terminal may receive microphone data, process it using suitable audio software, and send the resulting digital audio to an external amplifier or communication interface. The hardware audio features help support such applications, although the final functionality depends on the selected audio components and software implementation.

Connectivity and Peripheral Communication

The SAMA7G54 integrates communication peripherals for interfaces such as Ethernet, USB, CAN-FD, SPI, I²C, and USART. These interfaces allow the processor to communicate with external sensors, storage devices, industrial equipment, and networked systems.

In an industrial gateway, for instance, the processor can collect information from connected equipment, process the readings locally, and forward selected data over Ethernet. CAN-FD may be used for communication with compatible industrial or automotive subsystems, provided the necessary external transceivers and supporting circuitry are included.

Overall, the SAMA7G54 combines general-purpose processing with dedicated peripheral interfaces. This integration makes it suitable for embedded systems that require operating-system support, multimedia connectivity, and local data processing within a single processor-based platform.

Practical Applications and Use Cases of the SAMA7G54

The Microchip SAMA7G54 is intended for embedded applications that need a combination of processing capability, multimedia interfaces, and industrial connectivity. Its single-core Arm Cortex-A7 architecture, camera interfaces, audio peripherals, and networking features make it a potential choice for products that need to collect data, process it locally, and communicate with other systems. The suitability of the processor depends on the application’s performance, memory, power, and software requirements.

Smart Cameras and Machine Vision

Smart cameras are used in applications such as industrial inspection, object monitoring, access control, and automated equipment. The SAMA7G54 provides parallel and MIPI CSI-2 camera interfaces that can connect compatible image sensors to the processor.

For example, a camera-based inspection system can capture images of products moving along a production line. Software running on the processor can analyze the captured images to identify visible defects, check product alignment, or monitor changes in the production environment. The resulting information can be stored locally or transmitted to another system for further analysis.

The processor can support lightweight image-processing or machine-learning applications when suitable software and optimized models are available. However, developers should evaluate processing speed, memory usage, and camera throughput before selecting the device for demanding real-time vision applications.

Audio and Voice-enabled Systems

Audio processing is another potential application area for the SAMA7G54. Its I²S, PDM, S/PDIF, and audio sample-rate conversion capabilities can be used in systems that capture, process, or transmit digital audio.

For instance, a voice-enabled intercom may use digital microphones to capture speech, process the incoming audio, and transmit it to another device. A digital audio system may also use the processor to manage audio streams and communicate with external audio hardware.

These capabilities make the processor worth considering for voice terminals, smart audio equipment, conferencing systems, and network-connected intercoms. The number of supported microphones, audio channels, and simultaneous streams depends on the selected interfaces, hardware design, and software implementation.

Industrial Automation and Equipment Monitoring

Industrial equipment often needs to communicate with sensors, controllers, and monitoring systems. The SAMA7G54 provides communication peripherals such as Ethernet and CAN-FD, which can help connect an embedded device to an industrial network.

For example, an equipment-monitoring gateway could collect operational readings from connected machinery, process the data locally, and forward important measurements to a supervisory computer. The system could also record faults or send notifications when sensor readings exceed predefined limits.

CAN-FD and Ethernet are useful in different network designs, but their presence alone does not guarantee compatibility with every industrial protocol. Developers must select suitable transceivers, network components, drivers, and application software.

Edge Computing and Local Data Processing

Edge computing involves processing data near the point where it is collected rather than sending every raw measurement to a remote server. This approach can reduce communication overhead and allow a device to respond locally to certain events.

The SAMA7G54 can run Linux-based applications that collect sensor information, perform data processing, manage peripherals, and communicate with remote systems. A connected monitoring device, for example, could analyze incoming measurements, retain selected records, and send summaries to a central server.

For lightweight machine-learning workloads, developers can evaluate frameworks such as Edge Impulse and determine whether the selected model can run within the processor’s compute and memory limits. Performance should be measured using the intended application rather than assumed from processor compatibility alone.

Network-connected Embedded Systems

The SAMA7G54’s Ethernet, USB, and serial interfaces support the development of connected embedded products. Depending on the system design, these interfaces can be used for data exchange, peripheral control, configuration, diagnostics, and software updates.

Examples include industrial gateways, connected control panels, monitoring terminals, and embedded Linux devices that need multiple communication interfaces. The availability of suitable drivers and software libraries is an important consideration when designing such products.

Application Suitability at a Glance

Application	Relevant features	Example implementation
Smart cameras	Parallel camera and MIPI CSI-2 interfaces	Visual inspection or remote monitoring
Voice-enabled devices	I²S, PDM, S/PDIF, and audio conversion	Intercoms and voice terminals
Industrial automation	Ethernet and CAN-FD	Equipment monitoring gateway
Edge computing	Cortex-A7 CPU and Linux support	Local sensor-data analysis
Connected embedded devices	Ethernet, USB, and serial interfaces	Networked control or monitoring terminal

Overall, the SAMA7G54 is worth considering when an application needs embedded Linux, camera or audio integration, and multiple communication interfaces. More demanding workloads should be evaluated using realistic prototypes and measured performance.

Detailed Comparison of the SAMA7G54 and STM32MP1

The Microchip SAMA7G54 and STMicroelectronics STM32MP1 family are designed for embedded systems that require more processing capability than a typical microcontroller. However, their architectures and peripheral combinations differ, so the best choice depends on the application’s requirements.

The SAMA7G54 uses a single-core Arm Cortex-A7 operating at up to 1 GHz and includes camera and audio capabilities. The STM32MP1 family contains different processor configurations, including devices with Cortex-A7 application cores and, in certain models, a Cortex-M4 core for real-time tasks. Therefore, a fair comparison must identify the exact STM32MP1 part number instead of treating the entire family as one configuration.

Key Architectural Differences

The SAMA7G54 may be a good candidate for applications that prioritize camera connectivity, audio functionality, and industrial communication interfaces in a single-core embedded Linux design. Its camera interfaces and integrated audio subsystem can reduce the need for separate interface controllers in appropriately designed systems.

Selected STM32MP1 devices, by contrast, combine Cortex-A7 application processing with a Cortex-M4 real-time processing core. This can be beneficial when a design needs to separate Linux-based application processing from time-sensitive control tasks. The actual benefits depend on the selected model, software architecture, and peripheral requirements.

Comparison Table

Feature	Microchip SAMA7G54	STM32MP1 family
Application processor	Single-core Arm Cortex-A7	One or two Cortex-A7 cores, depending on model
Maximum CPU frequency	Up to 1 GHz	Depends on the specific model
Real-time processing core	No separate Cortex-M4 application companion core	Cortex-M4 available in applicable models
Camera interfaces	12-bit parallel and MIPI CSI-2	Camera interface availability varies by model; verify the exact device
Display support	Check the specific device and board documentation for the required display path	Display interfaces vary by model
External memory	Supports specified DDR2, DDR3, DDR3L, LPDDR2, and LPDDR3 configurations	Supported memory types and bus configurations vary by model
Audio	Integrated audio-related interfaces and sample-rate conversion	Audio interface capabilities vary by model
Ethernet	Two Ethernet MACs, including Gigabit and 10/100 Mbps capabilities	Depends on the selected model and implementation
Graphics acceleration	Do not assume a dedicated 3D GPU; verify the exact device specifications	GPU availability depends on the model
Security	Secure boot, secure key storage, and hardware cryptographic features	Security capabilities depend on the selected device
Development environment	Embedded Linux and MPLAB Harmony 3 development options	STM32Cube tools and supported Linux development workflows, depending on the model
Suitable design priorities	Camera, audio, and connectivity-oriented embedded systems	Systems that may benefit from application processing plus a separate real-time core

The table provides a family-level overview, not a complete part-to-part benchmark. The exact STM32MP1 device must be selected before making final statements about clock frequency, graphics, memory, and interfaces.

Which Processor Should You Choose?

The SAMA7G54 is worth evaluating when the design needs camera and audio connectivity, embedded Linux, and multiple industrial communication interfaces without a separate Cortex-M4 companion core.
An STM32MP1 device with a Cortex-M4 core may be more suitable when the application benefits from dividing real-time control tasks and higher-level operating-system workloads between separate cores.
Neither processor is universally better. Developers should compare the total bill of materials, memory requirements, power consumption, peripheral support, software maintenance, development tools, and measured performance under the intended workload before making a selection.

Limitations and Design Considerations of the SAMA7G54

Although the Microchip SAMA7G54 provides a useful combination of processing and peripheral capabilities, developers should consider several factors before using it in a product. Evaluating these limitations early can help avoid unexpected performance, hardware, and software challenges during development.

Single-core Processing Capability

The SAMA7G54 uses a single Arm Cortex-A7 core operating at up to 1 GHz. This is suitable for many embedded Linux applications, but applications with substantial parallel workloads may benefit from a processor with multiple application cores.

For example, a device that manages sensor readings, network communication, and a user interface may run these tasks successfully using a suitable operating system and software architecture. However, demanding image-processing workloads or multiple computationally intensive tasks may compete for the same CPU resources.

Developers should profile the intended application to determine whether the processor can meet its throughput and response-time requirements. The fact that an application runs Linux does not automatically mean that it can handle every workload efficiently.

Memory Capacity and Bandwidth

The SAMA7G54 uses external memory, so the selected memory device and its configuration have an important effect on overall system performance. Applications that process camera images, maintain large data buffers, or run multiple Linux services may require more memory bandwidth and capacity than simpler embedded applications.

For example, a camera application may need memory for image buffers, application data, and operating-system processes at the same time. If the memory subsystem becomes a bottleneck, the system may fail to sustain the required image rate even when the camera interface itself supports the desired resolution.
Designers should calculate expected RAM usage, confirm supported memory configurations, and consider the data-transfer requirements of the intended workload. The maximum supported memory configuration should be taken from the datasheet rather than inferred from the memory types alone.

External Hardware Requirements

The SAMA7G54 integrates many peripherals, but a complete embedded product may still require external components. Depending on the design, these may include DDR memory, flash storage, Ethernet PHYs, CAN transceivers, camera sensors, audio converters, and power-management circuitry.

These components affect board size, power consumption, cost, and design complexity. High-speed interfaces also require careful PCB layout, signal-integrity analysis, power sequencing, and appropriate decoupling.

Before finalizing the hardware design, developers should review the reference schematics and hardware design guidance for the selected device and evaluation platform. Microchip provides a dedicated hardware design application note for the SAMA7G54.

Power Consumption and Thermal Management

The processor’s power consumption depends on its operating frequency, workload, peripheral activity, external memory, and power configuration. A single-core architecture does not guarantee that every implementation will consume less power than a multicore alternative.

For a battery-powered or thermally constrained product, developers should measure power during startup, idle operation, normal processing, and peak workload. They should also evaluate the thermal behavior of the complete board, including memory and other components.

Appropriate clock configuration, power-management settings, and workload optimization can help meet the product’s power budget. However, the final results should be based on measurements from the intended hardware.

Software Compatibility and Maintenance

Embedded Linux applications depend on boot software, kernel support, device drivers, libraries, and application frameworks. The availability and maintenance status of these components can influence development time and long-term product support.

Developers should confirm that the required peripherals are supported by the selected software release and that the necessary drivers are available. They should also establish a plan for security updates, kernel maintenance, software testing, and production deployment.

If a project depends on a particular camera sensor, wireless module, or industrial protocol, its software compatibility should be verified early rather than assumed from the processor’s hardware capabilities.
Security and product-level implementation

The SAMA7G54 provides hardware security features, including secure boot and cryptographic capabilities. However, using a processor with security features does not automatically make the complete product secure.

A secure implementation also requires appropriate key management, authenticated software updates, access control, protected debug interfaces, and a maintained software stack. Developers should determine which security functions are enabled in their design and test the complete security process before deployment.

Summary of Design Considerations

Design Consideration	What Developers Should Evaluate
CPU performance	Processing time, concurrency, and workload headroom
Memory	RAM capacity, memory bandwidth, and storage requirements
External components	Required PHYs, transceivers, memory, sensors, and power circuitry
Power and thermal behavior	Measured consumption and temperature under realistic workloads
Software support	Drivers, Linux configuration, updates, and long-term maintenance
Security	Boot configuration, key management, software updates, and debug access

Considering these factors helps developers determine whether the SAMA7G54 is appropriate for the intended application and whether the complete hardware and software design can meet its requirements.

Advantages

The main advantages of the SAMA7G54 are as follows;

• Microchip SAMA7G54 provides sufficient computing power to run Linux while avoiding the higher power draw of multi-core processors.
• It works effortlessly with the MCP16502 IC by delivering flexible low-power modes plus frequency scaling and dynamic voltage.
• The system interfaces with 16-bit DDR2, DDR3L, DDR3, LPDDR3, and LPDDR2 memory, and it offers various boot options including SD, NAND/SPI flash, and eMMC.
• It features both a 12-bit parallel camera interface and a MIPI-CSI2 interface, supporting 720p video at 60 fps and up to 8-megapixel sensors. These interfaces nxs support depth-sensing and stereo-vision applications with oswjuhldiv cameras and software.
• Includes an onboard 4-channel stereo audio sample rate converter, an S/PDIF transmitter & receiver, and up to four I2S channels, suited for audio-centric or voice edge devices.
• It supports the Edge Impulse platform to allow lightweight ML models to run directly at the edge.
• It integrates three high-speed USB ports.

Disadvantages

The disadvantages of Microchip SAMA7G54 include the following.

• The Microchip SAMA7G54 comes with distinct limitations in architecture, multitasking capacity, and performance compared to modern 64-bit or multi-core alternatives.
• It features a single Arm Cortex-A7 core only running at up to 1 GHz, complex modern operating system loads, heavy multi-threaded performance, and heavily restricts raw compute throughput.
• It lacks native 64-bit address-space benefits and faces a slowly shrinking long-term software and Linux ecosystem as the industry moves past 32-bit embedded frameworks.
• Designed around narrower external memory interfaces (such as DDR2, DDR3, or LPDDR2/3), it cannot easily scale to large multi-gigabyte memory configurations common on higher-end application processors.
• Early silicon revisions documented bugs can affect peripherals like ADC end-of-conversion spurious interrupts, open-drain management limitations, and XDMAC AXI transactions.

SAMA7G5 Series Silicon Errata — DS80001016

Documents known silicon issues and datasheet clarifications. Consult the applicable revision when discussing peripheral limitations or workarounds – Find the errata under product documentation

Applications

The applications of Microchip SAMA7G54 include the following.

• It runs neural network models and lightweight computer vision through Edge Impulse platforms for remote monitoring and visual inspection.
• This processor supports up to 8-megapixel parallel & MIPI-CSI2 camera interfaces for stereo vision depth-sensing and low-frame-rate smart camera applications.
• It integrates up to I2S ports, an 8-microphone array interface, an S/PDIF transceiver, and a 4-channel stereo sample rate converter.
• It is perfect for smart speakers, voice conferencing units, mid-range digital audio amplifiers, and intercoms without requiring power-hungry multi-core processors.
• This processor uses Arm TrustZone, secure boot through immutable key storage, and hardware crypto accelerators for tamper-resistant data transmission like AES, SHA, RSA, & ECC.
• It features 6 CAN-FD interfaces, three high-speed USB ports, and dual Ethernet (one Gigabit and one 10/100) for fleet tracking, loading bay surveillance, and factory floors.

FAQs

1. What is the Microchip SAMA7G54?

The Microchip SAMA7G54 is an embedded microprocessor based on a single-core Arm Cortex-A7 CPU operating at up to 1 GHz. It combines application processing with camera, audio, networking, and other peripheral interfaces, making it suitable for embedded Linux systems and industrial applications.

2. Which operating systems and software frameworks can run on the SAMA7G54?

The SAMA7G54 supports embedded Linux development, and Microchip provides development resources for Linux and MPLAB Harmony 3. The availability of particular kernels, drivers, and frameworks depends on the software release and target hardware configuration. Developers should consult the official documentation to confirm support for their required peripherals and software components.

3. What types of external memory does the SAMA7G54 support?

The processor supports 16-bit DDR2, DDR3, DDR3L, LPDDR2, and LPDDR3 memory configurations, subject to the device specifications. The SAMA7G54-EK documentation also describes support for external flash and e.MMC storage options. The maximum supported capacity and operating conditions should be checked against the datasheet and the selected board design.

4. Does the SAMA7G54 support camera connectivity?

Yes. The processor provides a 12-bit parallel camera interface and a MIPI CSI-2 interface. These interfaces can connect compatible camera sensors for imaging and vision applications. Actual resolution and frame-rate performance depend on the sensor, interface configuration, memory bandwidth, and software workload.

5. What audio features are available on the SAMA7G54?

The SAMA7G54 includes I²S and PDM-related audio interfaces, an S/PDIF transmitter and receiver, and a four-stereo-channel audio sample-rate converter. These features can support voice terminals, digital audio equipment, and other embedded audio applications when paired with suitable external hardware and software.

6. What connectivity interfaces does the SAMA7G54 provide?

The processor offers Ethernet, USB, CAN-FD, and serial communication capabilities, along with interfaces such as SPI and I²C. The exact physical connectors and external components available depend on the evaluation board or custom hardware design.

7. Does the SAMA7G54 support edge artificial intelligence?

The processor can be used for lightweight edge-AI applications when the selected model and software fit within its processing and memory limits. Developers should evaluate the intended inference workload and measure execution time, memory consumption, and power use before selecting it for an AI-enabled product.

8. What are the main limitations of the SAMA7G54?

The processor uses a single 32-bit Cortex-A7 application core, which may limit performance in heavily parallel or computationally demanding applications. It also requires appropriate external memory and supporting hardware. Developers should assess workload requirements, power consumption, thermal behavior, and software support before committing to a design.

9. What is the difference between the SAMA7G54 and the STM32MP1?

The SAMA7G54 combines a single Cortex-A7 core with integrated imaging, audio, and connectivity features. Certain STM32MP1 models combine Cortex-A7 application cores with a Cortex-M4 core for real-time processing. The better option depends on the exact device model, required peripherals, workload, power budget, and development environment.

10. Which development board can be used to evaluate the SAMA7G54?

The SAMA7G54-EK evaluation kit is designed for prototyping and evaluating the processor. It provides access to interfaces and expansion connectors for development, debugging, and testing. Developers can use the board to investigate peripheral functionality and validate application requirements before designing custom hardware.

SAMA7G5 Series Datasheet — DS60001765

The primary reference for CPU architecture, memory support, peripheral capabilities, electrical characteristics, and device operating limits – Access the datasheet through the product page.

Conclusion

The Microchip SAMA7G54 is an embedded microprocessor designed for applications that require operating-system support, multimedia connectivity, and industrial communication capabilities. Its single-core Arm Cortex-A7 CPU, camera interfaces, audio subsystem, Ethernet, USB, and CAN-FD peripherals make it a candidate for smart cameras, voice-enabled devices, industrial gateways, and connected embedded systems.

However, selecting the processor requires more than comparing its clock speed and peripheral count. Developers must also consider memory requirements, workload complexity, power consumption, thermal constraints, external hardware, and software maintenance. Applications involving demanding image processing or extensive parallel computation should be evaluated carefully to determine whether a single-core processor can meet the required performance targets.

The SAMA7G54-EK evaluation kit provides a practical starting point for testing hardware interfaces and developing software before moving to a custom board. By combining verified specifications with realistic application testing, developers can determine whether the SAMA7G54 is a suitable solution for their embedded design.
