AMD Ryzen 9 PRO 9955 : Specifications, Architecture, Working, Differences & Its Applications

The AMD Ryzen 9 PRO 9955 is an advanced desktop workstation processor launched by AMD on June 30, 2026. It is built on the Zen 4 architecture, designed to provide efficient, 12-core enterprise desktop and workstation computing through commercial-grade and higher power headroom features. It was globally launched for desktop workstations that need enterprise-grade safety and management through AMD PRO technologies. This article explores on the AMD Ryzen 9 PRO 9955 processor, its operation, and its applications.

What is AMD Ryzen 9 PRO 9955?

The AMD Ryzen 9 PRO 9955 is a high-performance desktop and workstation processor. It is part of the Ryzen 9 lineup based on the Zen 5 (Granite Ridge) architecture using Socket AM5. The CPU cores use TSMC 4 nm FinFET, and the I/O die uses TSMC 6 nm FinFET. This processor features 64 MB of L3 cache, an integrated AMD Radeon Graphics card, and It has a 3.4 GHz base clock and a maximum boost clock of up to 5.4 GHz, depending on workload conditions. The processor is not unlocked for conventional CPU overclocking.

The processor has a default TDP of 120 W; actual power consumption varies with workload and system configuration, and it requires good cooling. This processor supports DDR5 memory through a dual-channel interface with 5600 MT/s of memory speed. ECC support requires a compatible motherboard and supported memory configuration. ECC can detect and correct certain memory errors.

Ryzen 9 PRO 9955 processor uses a PCI Express Gen 5 connection for communication with other components within the computer. Hardware virtualization on this processor is available, which greatly enhances virtual machine performance. Programs will run on this processor with Advanced Vector Extensions, which boosts performance for calculation-heavy applications. AMD can also support the latest AVX2 and AVX-512 instructions.

Specifications

The specifications of the AMD Ryzen 9 PRO 9955 processor include the following.

• This processor is based on Zen 5 (4 nm) Architecture.
• It features 12 cores and 24 threads.
• It uses the TSMC 4 nm process node.
• The base clock is 3.4 GHz.
• The maximum boost clock is up to 5.4 GHz.
• Thermal Design Power (TDP) is 120W.
• Maximum Operating Temperature (Tjmax) is 95°C.
• System Memory Type is DDR5.
• L3 Cache is 64 MB.
• It features 2 (dual-channel) memory channels.
• Maximum memory support is up to 256 GB.
• Maximum Memory Speed is up to 5,600 MHz.
• It is integrated with AMD Radeon Graphics.
• This processor uses PCIe 5.0.
• Native USB Support is 4x USB 3.2 Gen 2 (10Gbps).
• It is compatible with different chipsets such as B650, X670, etc.

How does the AMD Ryzen 9 PRO 9955 Processor Work?

The AMD Ryzen 9 PRO 9955 executes instructions using 12 Zen 5 CPU cores and 24 threads fabricated using TSMC’s 4 nm process technology. It is based on advanced Zen 5 architecture that executes heavy professional workloads, safety, and complex multi-threaded computing tasks.

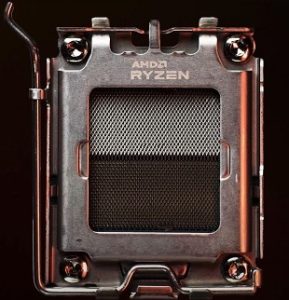

AMD Ryzen 9 PRO 9955 Architecture

The advanced Zen 5 architecture and 4 nm manufacturing process drive the performance and efficiency of the AMD Ryzen™ 9 PRO 9955, a high-end desktop processor in the Ryzen PRO 9000 series. The processor uses the Zen 5 architecture, which is designed to improve instructions per cycle (IPC).

Architecture Components

The basic building blocks of the AMD Ryzen 9 PRO 9955 Architecture include Cores and Threads, Clock Speeds, Process Technology, Cache, Memory, Instruction Set, CPU Socket, PCI Express, Integrated Graphics, and Power (TDP).

Cores and Threads

The AMD Ryzen 9 PRO 9955 architecture features 12 physical CPU cores and 24 threads. Cores are independent hardware processing units on the chip. Threads are enabled by AMD Simultaneous Multithreading (SMT) and allow every core to handle two instruction streams at once.

Clock Speeds

This processor has a 3.4 GHz base clock, and the maximum boost clock speed is up to 5.4 GHz. Clock speed indicates the number of CPU cycles performed per second and is one factor that influences processing performance.

Process Technology

The AMD Ryzen 9 PRO 9955 processor is built with a 4 nm FinFET process technology fabricated at TSMC. It plays a key role in balancing power efficiency and high core counts for workstation performance.

Cache

The AMD Ryzen™ 9 PRO 9955 architecture features 76.96 MB of total cache (80 KB L1 cache per core, a 1024 KB L2 cache per core and a shared 64 MB L3 cache.

• L1 cache is a small, low-latency memory located close to the CPU execution units.
• L1 cache is a small, low-latency memory located close to the CPU execution units.
• L3 Cache is accessible across the cores to decrease reliance on slower system RAM.

Memory

This processor supports a DDR5 memory system using a dual-channel interface with a maximum official speed of 5600 MT/s and error-correcting code memory compatibility.

Instruction Set

This processor supports the x86-64 instruction set with a complete set of SIMD, virtualization, and cryptographic extensions.

CPU Socket

The AMD Ryzen 9 PRO 9955 desktop processor uses the AM5 (LGA 1718) CPU socket. In addition, it is compatible with a wide range of AM5 platform chipsets, including 600-series like A620, B650, B650E, X670 and X670E and 800-series like B840, B850, X870 and X870E.

PCI Express 5.0

This processor supports a PCI Express 5.0 (PCIe 5.0) interface with 28 native PCIe lanes in total, where 24 lanes are usable from the CPU. It is a high-speed computer expansion bus standard that connects internal hardware components to a motherboard like solid-state drives, graphics cards, and network cards.

Integrated Graphics Card

The integrated AMD Radeon Graphics acts as a basic on-chip display and management engine in this architecture instead of a heavy-duty gaming or rendering GPU. This architecture provides fundamental video output and system display functions without requiring a separate, dedicated graphics card.

Power

This desktop processor uses a default TDP (Thermal Design Power) of 120 watts. It needs a robust cooling solution because of its energy output in heavy workloads.

Software System

The software system of the AMD Ryzen™ 9 PRO 9955 processor supports current 64-bit operating systems with hardware-based security features and built-in enterprise management tools. This processor is compatible with Windows 10 (64-bit) and Windows 11 (64-bit) operating systems. It supports enterprise Linux distributions like Ubuntu x86 64-bit and RHEL (Red Hat Enterprise Linux). Thus, the latest chipset drivers, utilities, and management packages can be directly downloaded through the AMD Support Hub.

AMD Ryzen 9 PRO 9955 vs AMD Ryzen 9 5900XT

The differences between AMD Ryzen 9 PRO 9955 and AMD Ryzen 9 5900XT processors include the following.

AMD Ryzen 9 PRO 9955	AMD Ryzen 9 5900XT
It is a professional desktop and workstation processor.	It is a desktop processor.
It features 12 Cores and  24 Threads	It features 16 cores and 32 threads.
Base Clock is 3.4 GHz, and Maximum Boost Clock is up to 5.4 GHz.	Base Clock is 3.3 GHz, and Maximum Boost Clock is Up to 4.8 GHz.
Total Cache is 76.96 MB.	Total Cache is 72 MB.
Thermal Design Power (TDP) is 120W	Thermal Design Power (TDP) is 105W
It uses TSMC 4 nm (I/O die at 6 nm) Process Node/	It uses 7nm (TSMC N7) process node.
It uses the AM5 Socket.	It uses an AM4 Socket
It supports Dual-channel DDR5 memory	It supports dual-channel DDR4 memory
Maximum Memory Speed is up to DDR5-5600 MT/s	Maximum Memory Speed is up to 3200 MT/s (DDR4-3200)
It supports PCIe 5.0.	It supports PCIe 4.0.
It includes basic integrated graphics.	It requires a discrete graphics card.

Why AMD Ryzen 9 PRO 9955 Matters?

AMD Ryzen™ 9 PRO 9955 processor matters because it brings high-performance Zen 5 desktop computing through advanced security, ECC memory support, and enterprise-grade manageability to professional workstation environments.

• This processor supports Error Correction Code memory to avoid data corruption within mission-critical professional tasks.
• It integrates enterprise-grade safety and manageability features adapted for corporate IT deployment.
• It enhances IOMMU performance and hardware virtualization for running strong virtual machines directly on host hardware.
• This processor uses the AM5 platform through fast DDR5 memory compatibility and PCIe Gen 5 support.

AMD Ryzen 9 PRO 9955 Performance and Suitable Workloads

The AMD Ryzen 9 PRO 9955 is a desktop processor designed for business systems and professional workstations that require multi-threaded processing, hardware security, and enterprise manageability. Its 12 Zen 5 CPU cores and 24 threads allow it to handle workloads that can benefit from parallel processing, including software development, multitasking, virtualization, and certain professional computing applications.

The processor supports AVX, AVX2, and AVX-512 instruction extensions, which can accelerate supported computational workloads. However, the actual performance improvement depends on the software being used, how effectively it utilizes multiple cores, and whether it takes advantage of these instruction sets. Independent application benchmarks are necessary to quantify its performance against competing processors.

For virtualization environments, AMD-V and IOMMU support provide hardware capabilities for running virtual machines and managing device access. These features can be useful for software testing, development environments, and enterprise systems that host multiple virtual machines. The processor’s ECC memory support can also be beneficial for systems that require additional protection against certain memory errors, provided the motherboard and memory configuration support ECC operation.

In addition to computing performance, the Ryzen 9 PRO 9955 offers enterprise-oriented security and manageability features. These include AMD Memory Guard, AMD Secure Processor, and DASH support. Depending on the system configuration and deployed management software, these capabilities can help IT teams protect sensitive information, monitor hardware, and manage supported business computers remotely.

Although the processor is suitable for many professional workloads, it is not automatically the best choice for every workstation. Applications that rely heavily on GPU acceleration may require a dedicated graphics card, while workloads that scale across more CPU cores may benefit from a processor with a higher core count. Buyers should compare application-specific benchmarks, platform costs, and required enterprise features before choosing a processor.

AMD Ryzen 9 PRO 9955 Motherboard, Memory, and Cooling Requirements

The AMD Ryzen 9 PRO 9955 uses the Socket AM5 platform and requires a compatible AM5 motherboard. AMD lists support for chipsets including A620, B650, B650E, X670, X670E, B840, B850, X870, and X870E. However, chipset compatibility alone does not guarantee that every motherboard will support the processor out of the box. Users should check the motherboard manufacturer’s CPU support list and BIOS requirements before purchasing or installing the processor.

The processor supports dual-channel DDR5 memory, with an official maximum memory capacity of 256 GB. Its maximum officially supported memory speed depends on the installed DIMM configuration. DDR5-5600 is supported with specified two-DIMM configurations, whereas four-DIMM configurations have lower official maximum speeds. Users should consult the processor and motherboard documentation when selecting memory modules and planning a memory upgrade.

ECC memory is supported when the motherboard and memory configuration provide the necessary compatibility. This feature can be valuable for professional workloads that benefit from detecting and correcting certain memory errors. However, ECC support should be verified at the complete-system level rather than assumed from the processor specification alone.

The Ryzen 9 PRO 9955 has a default thermal design power (TDP) of 120 W and a maximum operating temperature of 95°C. It does not include a CPU cooler, so a compatible cooling solution must be purchased separately. The appropriate cooler depends on the workload, case airflow, ambient temperature, and acceptable noise levels. Good airflow and correct cooler installation are important for stable operation during sustained workloads.

For connectivity, the processor supports PCIe 5.0 and provides 28 native PCIe lanes, of which 24 are usable from the CPU. The actual allocation of these lanes to graphics cards, storage devices, and other expansion components depends on the motherboard design. Users should review the motherboard’s expansion-slot and M.2 specifications to ensure that the system meets their requirements.

Before building a workstation, verify CPU and BIOS compatibility, memory configuration, cooling requirements, expansion connectivity, and the availability of the management features required by your organization. These checks help ensure that the AMD Ryzen 9 PRO 9955 is suitable for the intended professional or enterprise environment.

Advantages

The advantages of the AMD Ryzen 9 PRO 9955 Processor include the following.

• It handles heavy professional tasks.
• It is integrated with AMD Radeon Graphics, so you do not require a separate graphics card for basic video output.
• It supports AMD Memory Guard for real-time memory encryption.
• It uses firmware-based TPM (Trusted Platform Module) tools to block illegal software.
• This processor features advanced virtualization-based safety to separate critical workloads and user data.
• ECC memory can detect and correct certain memory errors when supported by the motherboard and memory configuration.
• It delivers built-in safety features to defend sensitive company data.
• The processor supports PCIe 5.0 connectivity for compatible storage devices and graphics cards.
• It is compatible with supported AM5 motherboards, subject to the motherboard manufacturer’s CPU support and BIOS requirements.
• It supports up to 5600 MT/s of fast memory speeds for quick data transmission.

Disadvantages

The disadvantages of the AMD Ryzen 9 PRO 9955 Processor include the following.

• The processor consumes a high amount of energy (120W TDP) under load.
• This chip generates significant heat and needs a high-end CPU cooler to avoid thermal throttling.
• It is compatible with supported AM5 motherboards, subject to the motherboard manufacturer’s CPU support and BIOS requirements.
• The processor can achieve high operating temperatures up to 95 °C in heavy workloads.

Applications

The AMD Ryzen 9 PRO 9955 Processor supports the following applications.

• It accelerates scientific simulations and calculation-heavy workloads with 12 Zen 5 cores and AVX-512 instruction support.
• It supports Error-Correcting Code memory to avoid data corruption in constant and heavy operations.
• This processor uses DASH support, hardware inventory tracking, and remote power-off for enterprise networks.
• It protects sensitive corporate data with AMD PRO Technologies such as Platform Secure Boot and AMD Memory Guard.
• This processor powers heavy business systems that manage complex data calculations, CAD (computer-aided design) & software development.
• This processor runs various efficient virtual machines on a single host system with hardware virtualization and PCI pass-through.
• It uses Desktop and Mobile Architecture for System Hardware (DASH) support to allow IT administrators to perform hardware inventories, secure disk wiping, and remote maintenance.
• It supports Error-Correcting Code memory to automatically detect and correct data corruption by ensuring system stability.

FAQs

Does it feature integrated graphics?

Yes, AMD Radeon graphics are integrated into the system, eliminating the need for a separate discrete graphics card for basic video output.

Is the AMD Ryzen 9 PRO 9955 processor unlocked for overclocking?

No, it is not unlocked for overclocking and does not support technologies like Precision Boost Overdrive or AMD EXPO.

What memory is supported?

It supports up to DDR5-5600 dual-channel DDR5 memory and Error-Correcting Code (ECC) memory.

Does it include security and management features?

Security and manageability features include AMD Memory Guard, AMD Secure Processor, and DASH support for enterprise administration.

conclusion:

The AMD Ryzen 9 PRO 9955 is more than a high-performance desktop processor—it is a compelling choice for businesses and professionals who need computing power, modern platform capabilities, and enterprise-focused security in one package. Powered by AMD’s Zen 5 architecture, its 12 cores and 24 threads deliver the foundation for demanding multitasking, software development, content creation, and data-intensive professional workloads. Support for DDR5 memory, PCIe 5.0, and AMD PRO technologies further strengthens its appeal for modern business desktops and professional workstations.

However, the real value of the Ryzen 9 PRO 9955 depends on how well it matches your workload, budget, and infrastructure. Motherboard compatibility, memory configuration, cooling, and the cost of transitioning to the AM5 platform should all factor into the buying decision. For organizations planning a capable, secure, and forward-looking desktop system, the Ryzen 9 PRO 9955 deserves serious consideration. If your priority is combining robust processing performance with business-ready manageability and security, this processor offers a strong foundation for a modern professional PC.
