NVIDIA NVLink 6 Switch : Specifications, Architecture, Working, Differences & Its Applications

The NVLink 6 Switch is NVIDIA’s sixth-generation scale-up network fabric, announced on January 5, 2026. This is part of the upcoming NVIDIA Vera Rubin platform announced at CES in January 2026. Full production for this switch began in mid-2026. The NVLink 5 Switch is the direct predecessor to the sixth-generation NVIDIA NVLink 6 Switch. This sixth-generation NVLink Switch overcomes the bandwidth bottlenecks and GPU-to-GPU communication bottlenecks that limit large-scale AI training and inference on standard PCIe architectures. This article elaborates on the NVIDIA NVLink 6 Switch, its operation, and its applications.

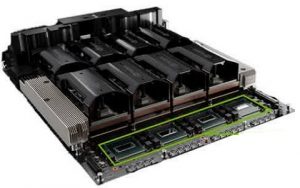

What is NVIDIA NVLink 6 Switch?

NVIDIA NVLink 6 Switch is NVIDIA’s sixth-generation proprietary high-speed interconnect technology. It allows direct, low-latency communication and high bandwidth between GPUs. Thus, it is designed for high-performance computing and large-scale AI systems by allowing several GPUs to work efficiently as a single, integrated computing platform.

NVIDIA NVLink 6 delivers significantly higher GPU-to-GPU bandwidth and better scalability than the earlier generation. So it is suitable for large distributed AI workloads and rack-scale AI architectures wherever fast data exchange is critical between GPUs. This switch delivers up to 3.6 TB/s of aggregate bidirectional NVLink bandwidth per GPU. The fabric uses 400 Gbps SerDes technology to support high-bandwidth communication across the 72-GPU NVL72 domain within an all-to-all rack topology.

Specifications

The key specifications of NVIDIA NVLink 6 Switch include;

• It is a sixth-generation scale-up network fabric.
• It is designed to support larger-scale configurations beyond a single 72-GPU rack, subject to the supported system architecture and the NVIDIA Rubin platform.
• GPU-to-GPU Bandwidth is 3.6 TB/s per GPU.
• Aggregate rack-scale bidirectional bandwidth: up to 260 TB/s for the Vera Rubin NVL72 domain.
• SerDes signaling rate: 400 Gbps, as specified for the relevant interface.
• Each switch tray features four NVLink 6 switch ASICs and drives 28.8 TB/s of tray bandwidth and 14.4 TFLOPS.
• It features NVIDIA Scalable Hierarchical Aggregation and Reduction Protocol (SHARP)™.
• It supports 4 NVLink 6 switch ASICs for each switch tray
• Total tray bandwidth is 28.8 TB/s per tray.
• It supports different platforms like NVIDIA Blackwell, custom accelerators, and Vera Rubin architectures, and NVIDIA NVLink Fusion.
• This NVLink 6 Switch supports non-blocking all-to-all connectivity across 72 GPUs through a roadmap balancing up to 1,152 nodes.

How does the NVIDIA NVLink 6 Switch Work?

The sixth-generation NVIDIA NVLink Switch is a high-bandwidth switch fabric designed to provide non-blocking GPU connectivity in supported configurations. It works by delivering a massive 3.6 TB/s of bidirectional bandwidth per GPU with industry-first 400 Gbps SerDes technology. A single switch tray design features four NVLink 6 switch chips, which drive rack-level scale-up domains like the Blackwell NVL72 or Rubin with total bandwidth up to 260 TB/s. This switch uses high speed 400 Gbps SerDes to enable dozens of GPUs in a rack to communicate with one another concurrently at a massive 3.6 TB/s of bidirectional bandwidth per GPU. This allows GPUs in the rack to operate as a tightly integrated computing domain while retaining the memory architecture of the individual accelerators.

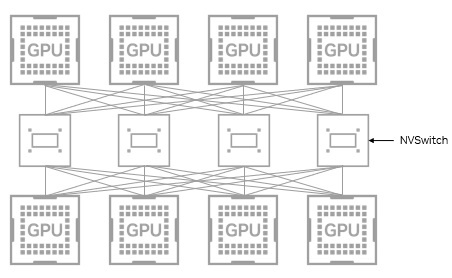

NVIDIA NVLink 6 Switch Architecture

NVIDIA NVLink 6 Switch is designed for integration into NVIDIA Vera Rubin rack-scale systems, which is a fast, rack-scale interconnect fabric designed for AI supercomputers. This architecture features ultra-fast 400 Gbps SerDes and delivers 3.6 TB/s of bidirectional bandwidth for each GPU, and total bandwidth in a 72-GPU domain is up to 260 TB/s. Thus, it allows seamless all-to-all communication.

Components

The basic building blocks of the NVIDIA NVLink 6 switch architecture feature NVLink 6 Switch Chips, NVLink Switch Trays, SHARP In-Network Computing Engines, Spine and Copper, Optical Cabling, All-to-All Topology Fabric, Co-Packaged Optics (CPO), Resiliency and Management Subsystem, and Software System.

NVLink 6 Switch Chips

NVLink 6 Switch Chips are the sixth-generation high-speed ASIC switches that power the NVLink Switch Architecture. These switch chips perform high-speed physical routing and serve as serve as the fabric’s high-speed routing and in-network computing components. They use industry-leading 400 Gbps SerDes technology to provide 3.6 TB/s per GPU of bidirectional scale-up bandwidth. It allows massive GPU clusters like the Vera Rubin NVL72 to work as a tightly integrated multi-GPU computing system.

NVIDIA’s NVLink 6 Switch Trays

These are physical modular units in NVIDIA rack architectures like Vera Rubin NVL72 that feature sixth-generation NVLink 6 switch chips. They act as the central spine of the scale-up network, using high-speed copper or optical cabling to create a non-blocking, all-to-all GPU communication fabric.

These switch trays can form the high-speed scale-up network backbone for upcoming AI factories. Each tray features four NVLink 6 switch ASICs with ultra-fast 400G SerDes. It provides 28.8 TB/s of aggregate tray bandwidth and supports in-network compute acceleration.

SHARP In-Network Computing Engines

This architecture features hardware-based SHARP engines directly in the fabric. They perform in-network collective operations like all-reduce, all-gather, and reduce-scatter in the switch silicon instead of forcing data to travel back and forth through individual GPUs.

Spine and Copper

The spine and copper in NVIDIA’s NVLink 6 architecture work as a massive internal electrical backplane. It connects all 72 GPUs in a single rack with impedance-matched coaxial cables. Thus, it delivers up to 260 TB/s of all-to-all bandwidth. The rack-scale copper interconnect reduces the need for optical transceivers within the relevant scale-up fabric.3.6 TB/s per-GPU bandwidth limits.

Optical Cabling

In the NVIDIA NVLink 6 architecture, optical cabling, which uses fiber-optic links to transmit data, is introduced through CPO (Co-Packaged Optics) variants to scale beyond single-rack limits. Thus, it is used along with or incorporated into the switch trays. It extends or replaces traditional copper wires to manage extreme 400G-per-lane SerDes speeds and the bandwidth requirements of high-performance GPU interconnects; optical links can extend connectivity over longer distances, subject to link-budget and system-design constraints. When single-rack NVL72 setups depend on all-electrical copper midplanes, larger pod configurations like NVL576 use CPO switch trays using micro-ring modulators and remote lasers to route signals instead of fiber optic links.

All-to-All Topology Fabric

All-to-All Topology Fabric is a rack-scale interconnect used to connect GPUs through a switching fabric that supports all-to-all communication with a non-blocking switch network. It connects 72 GPUs in the Vera Rubin platform with 260 TB/s of total aggregate bidirectional bandwidth.

This interconnect eliminates hierarchical blockages by ensuring any GPU can communicate with any other GPU through identical low latency and high throughput. It delivers 3.6 TB/s for each GPU with 400G SerDes technology by doubling the speed of earlier generations.

Co-Packaged Optics

The Co-Packaged Optics in this architecture integrates silicon photonics engines integrates optical engines with the switch package, if that accurately describes the cited implementation. This removes traditional pluggable transceivers and cuts down the electrical trace length to mere millimeters. Thus, it allows high-speed NVLink signals to be converted into optical signals through significantly extended multi-rack reach.

Resiliency & Management Subsystem

The Resiliency & Management Subsystem is an integrated set of hardware and software features in this architecture. These are advanced data center features, designed to increase uptime, serviceability, and fault isolation in high-density AI data centers. Thus, it ensures that individual component failures or maintenance actions do not disturb overall rack-scale workloads.

Software System

The software system in this architecture works as the intelligent control, orchestration, and management layer. It works with the hardware fabric to change from multi-accelerator domains like the Vera Rubin NVL72 into a single combined, flexible & high-performance compute engine. It transforms distinct hardware components into a combined, high-bandwidth scale-up fabric. Thus, it delivers up to 260 TB/s of total rack bandwidth. This software stack manages real-time telemetry, dynamic link configuration, in-network computing control, and routing.

NVIDIA NVLink 5 Switch Vs NVIDIA NVLink 6 Switch

NVIDIA NVLink 5 and NVLink 6 are switch technologies that differ mainly in generation, SerDes speed, and bandwidth capacity. The difference between NVIDIA NVLink 5 Switch and NVIDIA NVLink 6 Switch includes the following.

NVIDIA NVLink 5 Switch	NVIDIA NVLink 6 Switch
It is a fifth-generation hardware chip.	It is a sixth-generation, powerful scale-up network fabric.
This switch is built on the NVIDIA Blackwell architecture.	This switch is designed for integration into NVIDIA Vera Rubin rack-scale systems.
It provides 1.8 TB/s of bandwidth per GPU.	It provides 3.6 TB/s of bandwidth per GPU.
It runs on 100 GB/s links,	It uses industry-leading 400 Gbps SerDes technology in its switch chips.
It depends on earlier-generation high-speed signaling tracks.	It implements industry-leading 400G SerDes architecture.
This switch features 144 ports for each switch tray that supports massive domains.	It maintains a similar 72-port structural layout for each ASIC or tray configuration while doubling line rates to run two times as fast.
It is optimized for completely populated uniform high-density racks.	It includes control-plane resilience throughout staged deployments.

Factors to Consider When Choosing NVIDIA NVLink 6 Switch

Selecting an interconnect for an AI infrastructure requires evaluating workload requirements, system compatibility, scalability, and long-term operating costs. Although NVIDIA NVLink 6 Switch is designed for high-performance GPU communication, its suitability depends on the computing environment and the performance objectives of the organization.

Workload Communication Requirements

Before selecting an interconnect, organizations should evaluate how frequently their applications exchange data between processors and accelerators. Workloads with substantial synchronization and communication requirements may benefit from a tightly integrated GPU interconnect. Applications that primarily perform independent computations may experience smaller improvements from investing in a more advanced interconnect.

Hardware and Software Compatibility

Organizations must verify compatibility between the selected GPUs, server architecture, system firmware, drivers, and software frameworks. They should also evaluate support for the required parallel computing libraries, communication APIs, and workload orchestration tools. Compatibility must be confirmed for the specific system configuration rather than assumed from the interconnect generation alone.

Scalability and Future Expansion

AI infrastructure should accommodate anticipated increases in model size, dataset volume, and computational demand. System designers must determine whether a proposed configuration supports the required number of accelerators and whether additional compute nodes can be integrated without introducing significant communication bottlenecks. Expansion plans should account for both the scale-up domain and the networking required to connect a larger cluster.

Total Cost of Ownership

The cost of an AI computing system extends beyond its initial hardware purchase. Organizations should account for infrastructure upgrades, electricity consumption, cooling, software licensing where applicable, maintenance, and the resources required to operate the system. Comparing these expenses with the expected improvement in workload performance helps determine whether an NVLink-based configuration is economically justified.

Performance Validation

Before deploying a system at scale, organizations should evaluate representative workloads through benchmarking and application profiling. Measurements should include end-to-end execution time, accelerator utilization, communication overhead, power consumption, and performance under realistic operating conditions. These results provide a more reliable basis for system selection than theoretical interconnect bandwidth alone.

Future Outlook of NVIDIA NVLink 6 Switch in AI Infrastructure

The development of high-performance interconnects reflects the growing importance of communication efficiency in modern AI systems. As models become more computationally demanding and distributed computing becomes increasingly common, the ability to transfer data efficiently between accelerators remains an important factor in overall system performance.

Supporting Larger AI Models

As AI models increase in parameter count and computational complexity, their training and inference processes may require multiple accelerators to cooperate. High-bandwidth interconnect technologies can help reduce communication overhead in workloads that frequently exchange intermediate results, synchronize model updates, or distribute computations across GPUs.

Increasing Importance of Memory and Communication Efficiency

Improving processor performance alone does not guarantee faster AI execution. Data movement, memory capacity, synchronization, and communication overhead can limit how effectively accelerators use their available computing resources. Future AI infrastructure will therefore continue to emphasize coordination between compute performance, memory systems, and interconnect technologies.

Evolution of Rack-Scale Computing

Rack-scale architectures integrate computing, networking, power delivery, cooling, and system management into a coordinated platform. This approach can simplify the deployment of large accelerator configurations while creating new engineering requirements for thermal management, physical integration, reliability, and serviceability. Future systems will need to balance higher performance with efficient resource utilization and manageable operating costs.

Interconnects Within Heterogeneous AI Systems

AI infrastructure increasingly combines different types of processors, accelerators, memory technologies, and networking solutions. The ability to integrate these components effectively will remain important as organizations develop specialized computing systems for training, inference, simulation, and other demanding workloads. Technologies such as NVLink and NVIDIA NVLink Fusion form part of this broader ecosystem, with supported capabilities depending on the specific implementation.

The long-term value of NVLink 6 will depend not only on its bandwidth capabilities but also on how effectively it integrates with software frameworks, system architectures, and the evolving requirements of large-scale AI workloads.

Advantages

The advantages of NVIDIA NVLink 6 Switch include the following.

• NVIDIA NVLink 6 Switch delivers up to 3.6 TB/s per GPU of massive scale-up networking bandwidth with industry-leading 400 Gbps SerDes.
• This NVLink switch allows high-bandwidth, non-blocking GPU-to-GPU communication across 72-accelerator racks. Thus, it dramatically accelerates complex AI training and inference.
• It allows each GPU within a massive cluster to communicate concurrently with each other GPU without contention for network resources or network congestion.
• It uses NVIDIA Scalable Hierarchical Aggregation & Reduction Protocol through FP8 support.
• It is designed to effortlessly move tokens across mixture-of-experts (MoE) models or expert-parallel workloads required by larger language models.

Disadvantages

The disadvantages of NVIDIA NVLink 6 Switch include the following.

• NVLink 6 switch trays with specialized high-density cabling significantly enhance whole data center & cluster hardware build costs.
• Third-party hardware integration needs specific NVIDIA licensing & management through the NVIDIA AI enterprise fabric manager tools.
• Scaling up dense configurations needs precise physical wire routing & precise co-design through rack layouts.
• Performance may be affected when workloads communicate beyond the NVLink scale-up domain and rely on the system’s scale-out network.
• NVLink 6 stays heavily locked into the ecosystem of NVIDIA, limiting open hardware integrations & forcing a competitive push to UALink open standards.
• NVLink 6 switches with high-end infrastructure & specialized rack co-designs severely inflate data center deployment funds.
• Pushing 3.6 TB/s for each GPU across dense switch trays forms massive thermal management challenges in the rack.

Applications

The applications of NVIDIA NVLink 6 Switch include the following.

• It eliminates communication blockages by allowing each accelerator to communicate with each other accelerator simultaneously. Thus, it accelerates massive mixture-of-experts & LLM training.
• It facilitates quick token generation & expert parallelism by shifting data effortlessly across huge, multi-node memory pools.
• It powers complex reasoning tasks that need continuous, low-latency, whole-communication between many high-performance cores.
• This switch offloads and speeds up collective operations with SHARP FP8 support, decreasing overhead on the compute processors.
• It is deployed through NVIDIA NVLink fusion to integrate non-NVIDIA custom silicon, accelerators, and CPUs into high-speed unified fabrics.

FAQs

What platform does NVLink 6 use?

It is designed for the NVIDIA Rubin platform and Vera Rubin NVL72 rack-scale architectures, which connect up to 72 GPUs in a single topology.

How much bandwidth does the NVLink 6 switch deliver?

This switch delivers 3.6 TB/s of bidirectional bandwidth for each GPU, which doubles the throughput of the earlier generation.

What is the whole rack bandwidth?

At rack scale provides 260 TB/s of total aggregate scale-up bandwidth across all interconnected elements.

What are the internal SerDes in NVLink 6?

NVLink 6 switch chips use advanced 400 Gbps SerDes technology that represents the best high-speed signaling design of its type for data center fabrics.

Does NVLink 6 switch introduce new management & resiliency features?

• Control plane resilience through software-defined routing & management controller fallback.
• Partial rack operation allows system functionality even with partly populated racks.
• Dynamic traffic rerouting maintains uptime during maintenance.
• Fine-grained link telemetry features are used for in-service software updates, fault attribution, and real-time monitoring.

Conclusion

The NVIDIA NVLink 6 Switch is a next-generation GPU interconnect designed to support high-performance AI computing and rack-scale accelerator systems. With up to 3.6 TB/s of bidirectional bandwidth per GPU and up to 260 TB/s of aggregate bandwidth in the NVIDIA Vera Rubin NVL72 configuration, it enables high-speed communication among GPUs for demanding AI training and inference workloads. Its role in scale-up networking makes it particularly relevant to large language models, distributed computing, and other applications that require frequent data exchange between accelerators.
However, the overall performance of an NVLink 6-based system depends on more than interconnect bandwidth. Hardware compatibility, software optimization, power consumption, cooling, and integration with scale-out networking also influence system efficiency and deployment costs. As AI models and computing infrastructure continue to evolve, NVLink 6 highlights the growing importance of high-speed interconnects in building scalable and efficient AI systems.
