AMD Ryzen 7 7700X3D : Specifications, Architecture, Working, Differences & Its Applications

AMD officially launched the Ryzen 7 7700X3D globally on July 16, 2026. AMD officially announced it on May 31, 2026, at Computex. The AMD Ryzen 7 7700X3D is available to purchase on July 16, 2026. This processor was designed to make high-performance 3D V-Cache gaming reasonable on the AM5 platform. The Ryzen 7 7700X3D sits alongside the Ryzen 7 7800X3D in AMD’s Ryzen 7000 X3D family, offering the same Zen 4 architecture and 8-core/16-thread configuration at a lower launch price. This article elaborates on the AMD Ryzen 7 7700X3D processor, working, and its applications.

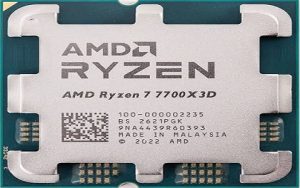

What is the AMD Ryzen 7 7700X3D Processor?

The AMD Ryzen 7 7700X3D is a desktop processor with 8 cores and 16 threads. It is based on AMD’s Zen 4 architecture, with CPU cores manufactured using TSMC’s 5nm FinFET process and a 6nm I/O die. It is a part of the Ryzen 7 lineup, designed to deliver affordable high-performance gaming using AMD’s 3D V-Cache technology on the AM5 platform.

Ryzen 7 7700X3D processor features Radeon integrated graphics, 96 MB of L3 cache. It has a 4.0 GHz base clock and can reach boost clocks of up to 4.5 GHz. This processor supports DDR5 memory through a dual-channel interface, but the maximum supported memory speed is officially 5200 MT/s. It can go even higher with overclocking. The processor supports ECC memory, although ECC functionality requires motherboard support. ECC can help detect and correct certain memory errors and is useful in workloads where memory reliability is important.

Ryzen 7 7700X3D processor uses a PCI Express Gen 5 connection for communication with other components within the system. The processor has a default TDP of 120 W. Actual power consumption varies according to workload, motherboard settings, and boost behavior.

The processor supports AMD-V hardware virtualization, allowing compatible operating systems and hypervisors to run virtual machines using hardware-assisted virtualization. The processor supports AVX, AVX2, and AVX-512 instruction extensions. Applications compiled to use these instructions can benefit from vectorized operations for suitable workloads such as scientific computing, media processing, and numerical calculations.

Specifications

The AMD Ryzen 7 7700X3D Processor specifications include the following.

• AMD Ryzen 7 7700X3D uses Zen 4 (Raphael) Architecture.
• It features 8 cores and 16 threads.
• Base Clock is 4.0 GHz, and Max Boost Clock is Up to 4.5 GHz
• Its Thermal Design Power, or TDP, is 120W
• CPU Socket is AM5
• Total Cache is 104 MB (L1 Cache is 512 KB, L2 Cache is 8 MB, and L3 Cache is 96 MB).
• It supports DDR5 ECC.
• It is integrated with AMD Radeon Graphics.
• PCI Express Version is PCIe 5.0
• It supports different Chipsets like A620, B650, X670, B650E, X670E, B840, X870, B850
  & X870E.
• The processor supports AMD EXPO memory overclocking, Precision Boost Overdrive (PBO), Curve Optimizer voltage offsets, and AMD Ryzen Master.

How does the AMD Ryzen 7 7700X3D Processor Work?

The AMD Ryzen 7 7700X3D processor works by merging 8 high-efficiency Zen 4 computing cores using a stacked 3D V-Cache. AMD 3D V-Cache increases the processor’s L3 cache capacity by stacking additional SRAM cache vertically on the CPU die. The larger cache can keep more frequently accessed game data close to the CPU cores, potentially reducing accesses to system memory in cache-sensitive workloads. This processor depends on vertical 3D V-Cache to increase the processor’s L3 cache capacity and decrease data-fetching latency, especially for gaming.

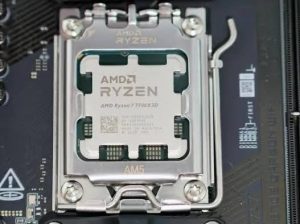

AMD Ryzen 7 7700X3D Processor Architecture

AMD Ryzen 7 7700X3D is a high-performance desktop processor, built on AMD’s Zen 4 “Raphael” architecture with AMD’s 3D V-Cache technology using TSMC’s 5nm process node.

Architecture Components

The basic building blocks of the AMD Ryzen 7 7700X3D processor include cores, threads, Clock, cache, Process Node, TDP, AM5 socket, Chipsets, integrated AMD Radeon Graphics, and software system.

Chiplet Design

CPU Compute Die / CCD

A CPU Compute Die, or CCD, is the physical silicon chiplet that houses the actual processing cores and on-board cache of a processor. It serves as the core engine for every computing task and forms the base for AMD’s particular gaming technology.

I/O Die / IOD

The I/O Die (IOD) is a separate silicon chiplet in the processor that handles all communication between the cores and the rest of the processing system. The I/O Die works next to the 5nm CPU Compute Die, which houses the Zen 4 processing cores & 3D V-Cache

5nm CPU Cores

The processor features 8 high-performance CPU cores, built on the Zen 4 architecture & manufactured with TSMC’s 5nm FinFET process node

6nm I/O die

6nm I/O die is a separate silicon chiplet in the AMD Ryzen 7 7700X3D processor built on TSMC’s 6nm process. It handles input/output operations, basic system features, and communication for the processor.

How does 3D V-Cache Relate to the Compute Die?

3D V-Cache relates to the compute die by directly sitting on top of it as an additional L3 layer of memory.

Cores & Threads

This architecture features 8 cores and 16 threads, which delivers excellent multitasking performance while managing current games with ease.

Cores are independent hardware units in the processor where each core handles separate tasks on its own. The processor has eight physical CPU cores. With simultaneous multithreading (SMT), each core can expose two logical threads to the operating system, resulting in 16 threads. The processor has eight physical CPU cores. With simultaneous multithreading (SMT), each core can expose two logical threads to the operating system, resulting in 16 threads.

Every physical core divides into two threads by enabling a single core to handle two instruction streams immediately. Thus, this brings the total to sixteen threads for better multitasking and hardware efficiency.

Clock

This processor runs at a 4.0 GHz base clock and up to 4.5 GHz boost clock. The base clock is the nominal minimum operating frequency specified for the processor under defined conditions; actual clock speeds dynamically vary with workload, temperature, power, and boost behavior. The boost clock is the maximum speed it can automatically reach for gaming and heavy workloads. Thus, it ensures smooth gameplay, fast responsiveness, and consistent performance for daily computing and demanding workloads.

Cache

This architecture features 104MB of total cache (512 KB L1, 8 MB L2, and 96 MB L3). This processor provides easy data access, decreasing latency and improving overall system speed for content creation and gaming. L2 Cache is small and fast capacity memory, used for handling quick data close to the cores. The shared L3 Cache is built with 32 MB of standard on-die cache and an additional 64 MB directly stacked on top.

Thermal Design Power

This architecture features a 120W TDP, delivering an outstanding balance of high performance & power efficiency. Thus, it makes a perfect choice for creators, PC enthusiasts, and gamers seeking consistent, energy-efficient processing power.

AM5 Socket

It is the physical & electrical interface on the motherboard, used to connect the processor to the remaining components of the system. AM5 uses a Land Grid Array (LGA) socket with 1,718 contacts on the motherboard. AMD has committed to supporting the AM5 platform through 2029, enabling upcoming CPU upgrade paths without requiring the latest motherboard.

AMD Chipsets

The AMD Ryzen 7 7700X3D processor supports a wide range of 600-Series and 800-Series AMD chipsets like A620, B650E, B650, X670E, X670, B850, B840, X870E and X870. Thus, it provides flexibility for users while designing or upgrading their desktop systems. Although AMD lists these chipsets as supported, users should check the motherboard manufacturer’s CPU-support list and BIOS requirements before purchasing.

Integrated AMD Radeon Graphics

It includes integrated AMD Radeon graphics with 2 graphics cores and a 2200 MHz graphics frequency. It serves as a basic in- built display engine for daily desktop use for basic graphics, system troubleshooting, and display output capabilities without needing a dedicated graphics card.

Operating System and Platform Support

The AMD Ryzen 7 7700X3D processor supports 64-bit operating systems like Windows 10, Windows 11, Ubuntu, and RHEL. In general, a software system is a set of programs, an OS, drivers, and motherboard BIOS that work together to manage computer hardware & run various applications. The software system in this processor works as the bridge to securely control how the processor utilizes its cores, threads, and massive L3 3D V-Cache.

AMD Ryzen 7 7700X3D vs AMD Ryzen 7 7800X3D

The differences between AMD Ryzen 7 7700X3D and AMD Ryzen 7 7800X3D include the following.

Advantages

The advantages of the AMD Ryzen 7 7700X3D processor include the following.

• Its massive 96MB of L3 cache significantly boosts frame rates via AMD’s 3D V-Cache technology.
• It is cheaper than the Ryzen 7 7800X3D processor.
• This processor supports modern standards like PCIe 5.0 and DDR5 memory to provide a clear upgrade path on accessible motherboards.
• It delivers strong gaming output at a default 120W TDP while maintaining better power and thermal efficiency than core-heavy competitor alternatives.
• It depends on 8 cores & 16 threads, preventing background compatibility quirks or potential software scheduling.
• It immensely improves 1% low and normal frame rates in cache-sensitive games & simulations compared to standard non-X3D alternatives.
• This processor is compatible with new AM5 motherboards, ensuring an obvious future upgrade path.
• It delivers 3D V-Cache gaming capabilities at top-tier pricing to make high-end gaming hardware more economical based on the region.

Disadvantages

The disadvantages of the AMD Ryzen 7 7700X3D processor include the following.

• Its maximum boost clock is about 500 MHz slower compared to the Ryzen 7 7800X3D.
• It trails higher-clocked and latest-generation chips in single-core & multi-core productivity tasks due to the reduced frequencies.
• It delivers approximately 4% to 10% lower average frame rates in games than the 7800X3D processor, based on the label and settings.
• Productivity & multi-threaded task performance lag behind competitors and non-3D alternatives in its price class.
• It needs a high-quality CPU cooler due to high power draw.

Applications

The applications of the AMD Ryzen 7 7700X3D processor include the following.

• It works as a cost-effective gateway for users designing or improving on the AM5 Socket platform to acquire 3D V-Cache gaming performance.
• Its L3 cache enables games to access data easily with less dependence on system RAM by providing high frame rates and smooth 1% lows in Cyberpunk 2077 & simulation racing titles.
• It handles daily computing, content creation & application responsiveness easily with cores and threads.
• This processor supports hardware virtualization for virtual machines & runs Advanced Vector Extensions to speed up heavy math & data calculations.
• This desktop processor is designed mainly for high-performance gaming & mainstream desktop computing on the AM5 platform.
• It accelerates frame rates and reduces stutter within modern PC games.
• It handles daily office tasks, application loading, and web multitasking efficiently.
• It supports light-to-moderate video editing, photo manipulation, and 3D rendering; thus, it is more heavily optimized for gaming over pure multi-threaded workstation workloads.
• The 16 threads of this processor allow users to play demanding games while running background tasks without major performance hits.

FAQs

Does the AMD Ryzen 7 7700X3D processor come with a CPU cooler?

A CPU cooler is not included. AMD recommends a liquid cooler for optimal performance. A capable air cooler may also be suitable depending on the case, ambient temperature, workload, and performance target.

Is it compatible with other motherboards?

It is compatible with different motherboards like A620, B650E, B650, X670, X670E, X870, X870E,  B850 and B840.

Does this processor feature integrated graphics?

Yes, this processor features integrated AMD Radeon Graphics with a 2200 MHz base frequency. It is helpful for basic display output and troubleshooting without a dedicated graphics card.

What kind of memory does this processor support?

This processor can support dual-channel DDR5 memory with AMD EXPO technology for memory overclocking.

In summary, the AMD Ryzen 7 7700X3D is an 8-core, 16-thread gaming processor that provides AM5 platform longevity and great gaming efficiency. This processor is designed to bring its efficient 3D V-Cache gaming technology at an affordable cost on the AM5 platform. Here is a question for you: What is the AMD Ryzen 7 7800X3D?
