AMD Ryzen 7 PRO 7745 : Specifications, Architecture, Working, Differences & Its Applications

The AMD Ryzen 7 PRO 7745 is a Ryzen PRO 7000 Series desktop processor introduced in June 2023 for business and commercial systems. It combines 8 Zen 4 CPU cores with AMD PRO security and manageability technologies for business-oriented desktop systems. It features enterprise-grade security and manageability capabilities. This article explains the AMD Ryzen 7 PRO 7745, including its specifications, architecture, features, applications, and limitations.

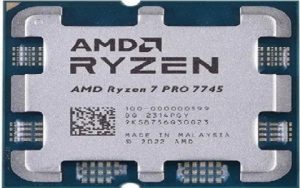

What is the AMD Ryzen 7 PRO 7745 Processor?

The AMD Ryzen 7 PRO 7745 is a server/workstation processor. It is based on AMD’s Zen 4 architecture (codename Raphael), uses the AM5 socket, and combines a 5nm CPU compute die with a 6nm I/O die transistors. It features 8 cores, 16 threads, 32 MB of L3 cache, a 3.8 GHz base clock, and up to a 5.3 GHz boost clock based on the workload.

The processor is not unlocked for CPU overclocking, and AMD lists Precision Boost Overdrive and AMD EXPO memory overclocking as unsupported. The processor has a default TDP of 65 W. and supports DDR5 memory through a dual-channel interface.

The Ryzen 7 PRO 7745 officially supports DDR5 memory at speeds up to DDR5-5200 under supported configurations, and ECC memory can detect and correct certain memory errors, improving data integrity. Also state that ECC requires motherboard support. It uses a PCI Express Gen 5 connection for communication with other components within the computer.

The processor supports AMD-V hardware virtualization, which enables efficient virtualization and virtual-machine workloads. Applications optimized for supported vector instruction sets such as AVX2 and AVX-512 can accelerate suitable compute-intensive workloads for calculation-heavy applications. The processor supports AVX, AVX2 and AVX-512 instruction extensions.” AMD confirms these extensions.

Specifications

The specifications of the AMD Ryzen 7 PRO 7745 processor include the following.

How does the AMD Ryzen 7 PRO 7745 Processor Work?

The AMD Ryzen 7 PRO 7745 processor executes digital instructions and processes data through its cores and threads using a continuous fetch-decode-execute cycle, supported by the AM5 platform. It receives instructions from software, then processes them through its CPU cores, and delivers the necessary results. It uses a modular chiplet design built on advanced semiconductor manufacturing nodes. This architecture’s 8 physical cores and 16 threads can run various tasks all together. It also uses various levels of cache memory to deliver frequently required data and instructions very quickly. AMD specifically states that the processor has no overclocking, no EXPO memory overclocking and no Precision Boost Overdrive support.

AMD Ryzen 7 PRO 7745 Architecture

The AMD Ryzen 7 PRO 7745 processor is built on the AMD Zen 4 Architecture with an advanced 5nm manufacturing process from TSMC. It integrates enterprise-grade safety features, data protection mechanisms, and manageability tools tailored for business deployments. This processor is designed for high-performance business desktops & workstations.

Architecture Components

The basic building blocks that make up the AMD Ryzen 7 PRO 7745 Architecture include CPU cores & threads, clock speeds, cache hierarchy, integrated graphics, memory controller, PCI Express interface, thermal design power, socket infrastructure, security & enterprise features, and software system.

CPU Cores & Threads

AMD Ryzen 7 PRO 7745 processor features 8 physical CPU cores & 16 threads powered by the Zen 4 (Raphael) architecture. The CPU cores are independent hardware processing units that perform different tasks simultaneously.

Each physical core handles two instruction streams or threads at the same time using AMD Simultaneous Multithreading technology. This doubles the processing efficiency for multi-threaded workloads.

Clock Speeds

AMD Ryzen 7 PRO 7745 processor features a 3.8 GHz base clock and up to 5.3 GHz maximum boost clock. The base clock is the standard operating speed in daily or normal business tasks. It keeps power utilization and heat low. The maximum boost clock is up to 5.3 GHz under suitable workload, power and thermal conditions. The clock speed directly states how fast its processing cores implement instructions and manage demanding enterprise workloads

Cache Hierarchy

It is a multi-layered system of tiny, ultra-fast memory units situated inside or directly next to a CPU core of a computer. Its main function is to bridge the massive speed gap between quick processor cores and slower main system memory. Therefore, it stores recently or frequently used data nearer to the processor. This processor has 40.5 MB of total cache, where L1 is 512 KB, L2 is 8 MB & L3 is 32 MB.

Integrated Graphics

The AMD Ryzen 7 PRO 7745 architecture is built-in with integrated graphics. It serves as an essential, low-power display & video engine to provide multi-monitor desktop output without needing a separate graphics card. It is designed for office work, display output, and system troubleshooting instead of heavy gaming.

Memory Controller

The memory controller is an integrated digital circuit in the architecture that is built into the I/O die of the processor that handles data supply from and to the system memory. This processor officially supports DDR5-5200 memory in supported configurations.

PCI Express Interface

The AMD Ryzen 7 PRO 7745 processor features a PCIe 5.0 or PCI Express 5.0 interface that provides 28 native PCIe 5.0 lanes, of which 24 are listed as usable by AMD. This interface acts as the high-speed communication backbone in the architecture. It connects the processor core to discrete graphics cards, motherboard expansion slots, and fast NVMe solid-state drives. The PCIe interface works natively in the dedicated 6nm I/O Die instead of the 5nm Core Complex Die.

Thermal Design Power

The default Thermal Design Power for the AMD Ryzen 7 PRO 7745 processor is 65 Watts. The processor  has a default TDP of 65 W in standard operating workloads at base frequencies, while staying in secure thermal limits described by AMD.

Socket Infrastructure

The AMD Ryzen 7 PRO 7745 processor uses the Socket AM5 (LGA 1718) infrastructure. Socket AM5 is the physical and electrical interface on the motherboard where the processor plugs in. This socket features 1718 small metal pins, which can touch the contact pads on the base of the processor. AM5 uses an LGA1718 design, with the electrical contacts located in the motherboard socket rather than traditional pins on the CPU.

Security & Enterprise Features

The Security and Enterprise roles are performed in the architecture via a set of hardware, firmware & software features together known as AMD PRO Technologies. The AMD Ryzen 7 PRO 7745 processor incorporates AMD PRO technologies into the high-performance Zen 4 architecture to provide multi-layered, hardware-enforced security & simplified enterprise management.

Software and Platform Support

The software system in this architecture performs as a safe layer between enterprise management tools, the operating system (Windows & Linux), and the hardware-level security features of the processor. This layer enables enterprise security and manageability features, remote management & hardware optimization.

AMD Ryzen 7 Pro 7745 vs AMD Ryzen 7 9800X3D

The AMD Ryzen 7 PRO 7745 and AMD Ryzen 7 9800X3D are both 8-core, 16-thread desktop processors, but they target different types of users. The Ryzen 7 PRO 7745 is based on the Zen 4 architecture and focuses on business desktops, professional workloads, security, manageability, and platform stability. It uses the newer Zen 5 architecture with AMD 3D V-Cache technology and is primarily designed for high-end gaming and enthusiast desktop workloads.

The Ryzen 7 PRO 7745 is better suited to organizations and professional users who need AMD PRO security and manageability features, ECC support, and a 65 W processor designed for business systems. In contrast, the Ryzen 7 9800X3D is aimed primarily at enthusiasts and gamers who want the benefits of Zen 5 and AMD 3D V-Cache technology.

The processors therefore serve different purposes. The choice between them should depend on the intended workload, platform requirements, security and management needs, and whether the system is primarily intended for business applications or gaming.

Advantages

The advantages of the AMD Ryzen 7 PRO 7745 processor include the following.

• AMD Ryzen 7 PRO 7745 processor runs on advanced 5nm technology for quick, responsive processing.
• It features 8 MB of L2 cache and 32 MB of L3 cache for quick access to frequent data.
• It operates at a default TDP of 65W by maintaining heat and power consumption lower than high-wattage chips.
• It supports fast DDR5 memory and PCIe Gen 5 for storage connectivity and high-speed graphics.
• This processor supports ECC (Error Correction Code) memory to detect and correct data corruption. It is significant for constant and mission-critical systems.
• It delivers built-in enterprise features for better system security, long-term reliability, and remote management.
• It features hardware virtualization and an integrated security processor to protect sensitive corporate data & run safe virtual machines.
• Its built-in AMD Radeon Graphics can support up to four displays without requiring a separate discrete graphics card.

Disadvantages

The disadvantages of the AMD Ryzen 7 PRO 7745 processor include the following.

• This processor features a locked multiplier that limits overclocking and tuning flexibility.
• This chip prioritizes enterprise-grade hardware safety and manageability. These additional safety features add complexity and cost that average gamers and home users do not require.
• Replace with a documented explanation of AMD PRO’s security, manageability and business features.
• It features basic integrated Radeon graphics” or specify the 2-CU Radeon Graphics configuration. AMD lists 2 graphics cores and up to 2.2 GHz.
• AMD specifies a maximum operating temperature (Tjmax) of 95°C, the highest operating temperature under heavy loads, which requires a reliable cooling solution.

Applications

The applications of the AMD Ryzen 7 PRO 7745 processor include the following.

• It powers business-oriented 65 W workstation/desktop processor with AMD PRO security and manageability features.
• This processor handles various virtual machines efficiently.
• It supports Error Correction Code memory to improve memory reliability and data integrity in suitable systems.
• This processor handles demanding data analytics, concurrent professional apps, and heavy database loads with 16 processing threads.
• It runs engineering software and heavy data processing efficiently because of its clock speeds.

FAQs

Why is the PRO version different from the standard Ryzen 7 7700?

Because it adds AMD PRO Technologies, providing enterprise-grade hardware security and manageability features for business workstations.

What is the manufacturing process node used for the Ryzen 7 PRO 7745 processor?

The Ryzen 7 PRO 7745 processor uses a 5 nm manufacturing process node for its CPU compute dies.

Does it support motherboard sockets & chipsets?

Yes, it supports Socket AM5 and is compatible with AMD 600-series chipsets like A620, X670, X670E, B650, and B650E.

Does this processor support ECC memory?

Yes, it supports dual-channel DDR5 ECC memory for better data integrity in business or professional environments.

Can you overclock the Ryzen 7 PRO 7745 processor?

No, this processor features a locked multiplier and does not support overclocking, Curve Optimizer, or Precision Boost Overdrive.

Does it include security and management features?

It features built-in AMD PRO technologies that deliver enterprise-grade safety processors & remote management capabilities adapted for business workstations.

The AMD Ryzen 7 PRO 7745 is an 8-core, 16-thread Zen 4 processor designed for business desktops and professional systems. With a 3.8 GHz base clock, boost speeds of up to 5.3 GHz, a 65 W default TDP, DDR5 memory support, PCIe 5.0 connectivity, integrated Radeon Graphics, and ECC memory support on compatible motherboards, it provides a balanced platform for demanding professional workloads.

Its main differentiator is AMD PRO technology. The processor combines Zen 4 performance with enterprise-focused security and manageability features, making it particularly relevant for organizations that need manageable and secure business PCs and workstations. Its support for virtualization and professional multitasking also makes it suitable for software development, engineering applications, data analysis, and other productivity-focused workloads.

The Ryzen 7 PRO 7745 is not designed as an unlocked enthusiast processor, and it does not offer the overclocking capabilities associated with some consumer Ryzen models. Users primarily interested in high-end gaming or enthusiast performance may therefore want to consider consumer Ryzen processors such as the Ryzen 7 9800X3D instead.

Overall, the Ryzen 7 PRO 7745 is best understood as a business-focused AM5 processor that combines efficient Zen 4 performance with AMD PRO security and manageability capabilities. When selecting a system based on this processor, buyers should also consider the motherboard, ECC implementation, memory configuration, cooling solution, OEM features, and the specific requirements of their workloads.
