AMD Ryzen 9 PRO 7945 : Specifications, Architecture, Working, Differences & Its Applications

AMD launched the Ryzen 9 PRO 7945 high-end desktop processor on June 13, 2023. This processor delivers high performance, manageability, and 12-core Zen 4 processing with enterprise-grade security features for qualified desktop and workplace environments. This processor matters because it brings great 12-core Zen 4 performance to industry desktops while using a modest 65-watt power limit. This article elaborates on the AMD Ryzen 9 PRO 7945 processor, its operation, and its applications.

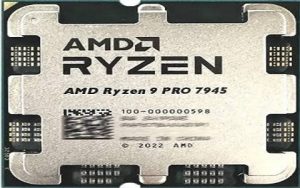

What is AMD Ryzen 9 PRO 7945?

AMD Ryzen 9 PRO 7945 is a 12-core, 24-thread high-performance desktop processor. It is a part of the Ryzen 9 lineup, built on the advanced 5nm Zen 4 architecture with Socket AM5. This processor is designed for professional and business workstations. Ryzen 9 PRO 7945 features integrated Radeon graphics, 64 MB of L3 cache, a base clock of 3.7 GHz, and can boost up to 5.4 GHz based on the workload. AMD makes the Ryzen 9 PRO 7945 processor on a 5 nm production node with 13,140 million transistors.

The silicon die of the chip is not fabricated at AMD but manufactured at the foundry of TSMC. The multiplier is locked on Ryzen 9 PRO 7945, which limits its overclocking potential. The processor has a default TDP of 65 W, making it suitable for power-conscious desktop systems. This processor supports DDR5 memory through a dual-channel interface. The maximum supported memory speed officially is 5200 MT/s.

It supports ECC memory for mission-critical systems to prevent data corruption. Ryzen 9 PRO 7945 processor uses a PCI-Express Gen 5 connection for communication with other components within the machine.

Hardware virtualization on this Ryzen 9 PRO 7945 processor is available, which greatly enhances virtual machine performance. Programs with Advanced Vector Extensions can run on this processor, which boosts performance for calculation-heavy applications. The processor supports AVX, AVX2, and AVX-512 instruction extensions.

Specifications

The specifications of the AMD Ryzen 9 PRO 7945 processor include the following.

• It is built on Zen 4 (Raphael) Architecture.
• It features 12 CPU Cores
• It features 24 Threads.
• Base Clock is 3.7 GHz
• Maximum Boost CLK is up to 5.4 GHz
• Default TDP or Thermal Design Power is 65W
• It features an AM5 Socket.
• Process node is TSMC 5nm FinFET (CPU cores) & TSMC 6nm FinFET (I/O die)
• Maximum Memory Support is up to 128 GB.
• System memory type is DDR5 (Dual-channel, up to 5200 MT/s)
• PCI Express Version is PCIe 5.0
• It features 28 usable/native PCIe lanes based on motherboard configuration.
• It is integrated with AMD Radeon Graphics
• It features 2 graphics cores
• Graphics frequency is 2200 MHz.
• AMD PRO Technologies are allowed for enterprise-grade security, stability, and manageability.

How does AMD Ryzen 9 PRO 7945 Processor Work?

The AMD Ryzen 9 PRO 7945 processor works by processing digital instructions with 12 high-performance Zen 4 cores. It is built on a higher 5nm semiconductor manufacturing node. This processor takes instructions from software to process them with several CPU cores. After that, it quickly moves data between its caches and system memory. It divides its processing tasks across a modular chiplet design through its cores to provide high-speed performance mainly for business desktop computers.

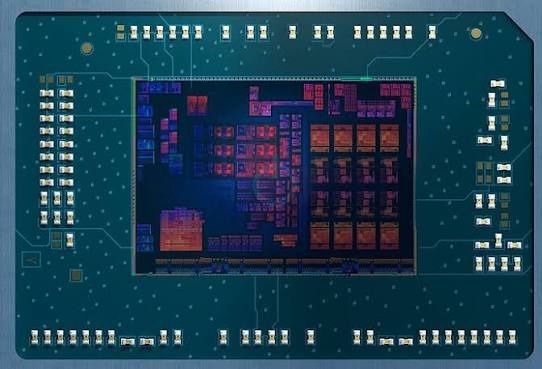

AMD Ryzen 9 PRO 7945 Architecture

The AMD Ryzen 9 PRO 7945 is a high-end desktop & workstation processor, built on the advanced Zen 4 Microarchitecture. It is built on TSMC’s advanced 5 nm FinFET process for CPU compute dies, providing higher IPC (instructions-per-clock) and power efficiency over earlier generations. This processor uses a modular multi-die approach featuring CPU Compute Dies, built on 5 nm & a separate I/O Die designed on a 6 nm FinFET process.

Architecture Components

The basic building blocks of AMD Ryzen 9 PRO 7945 Architecture include: CPU Cores and Threads, Compute Dies (CCD), I/O Die (IOD), Socket, System Memory, Cache, Integrated GPU, PCI Express, Thermal Design Power, Instruction Sets.

Cores & Threads

The AMD Ryzen 9 PRO 7945 processor features 12 physical CPU cores & 24 threads based on the Zen 4 architecture. These cores and threads run heavy professional programs and manage several tasks concurrently.

Compute Dies

The processor includes compute dies, which are the physical silicon chips that feature the actual CPU processing cores. These chips house the processing cores along with their local cache memory. The Ryzen 9 PRO 7945 utilizes the Zen 4 architecture, and TSMC fabricates each compute die using a 5 nm FinFET process. Each compute die measures 71 mm² in surface area.

I/O Die (IOD)

The I/O Die is a separate silicon chip in the processor, built on a 6nm TSMC FinFET process. It manages communication between the external system components and CPU cores. This processor performs as the central traffic controller & connection hub mainly for the separate CPU compute blocks. These dies enable AMD to divide basic I/O functions from the main computing cores, enhancing manufacturing efficiency.

Socket AM5

This processor features the AM5 Socket, which serves as the physical & electrical connection. This socket houses AMD’s modern desktop processors with a Land Grid Array design using 1,718 pins. This socket bridges the 5nm Zen 4 processor to current system components by allowing high-bandwidth PCIe 5.0 pathways and dual-channel DDR5 RAM support. The AM5 ensures stable power delivery & temperature regulation for workstation and professional business tasks.

System Memory

System memory is the fast and temporary workspace that is used to hold data that the processor requires right now. This memory plays a significant role in unlocking its total potential. System memory performs as the high-speed pipeline that delivers active programs, working system files & project assets to the CPU cores without causing bottlenecks in performance.

Cache

AMD Ryzen™ 9 PRO 7945 processor features 76.75 MB of total hierarchical cache memory (L1 Cache is 768 KB, L2 Cache is 12 MB, and L3 Cache is 64 MB). It accelerates data access and decreases processing delays for its cores.

• L1 cache is the smallest & fastest memory that stores data and instructions that the CPU requires immediately.
• L2 Cache is a larger secondary pool shared across the processor. Thus, it is used to provide data to the L1 cache with low latency.
• L3 Cache is a massive shared pool that includes large chunks of working data for all cores.

Integrated GPU

The AMD Ryzen 9 PRO 7945 processor features an integrated GPU that provides basic display output & system boot capabilities without requiring a separate graphics card. This GPU serves as a basic on-chip video output solution. Thus, it allows system operation, office productivity, and multi-display setups without requiring a discrete graphics card.

PCI Express

The AMD Ryzen 9 PRO 7945 desktop processor supports a high-speed standard interface like PCIe 5.0. The AMD Ryzen 9 PRO 7945 processor utilizes 28 native PCI Express lanes, with the CPU itself using 24 of those lanes. This interface efficiently connects the CPU to essential internal components, such as storage drives, network adapters, and graphics cards.

Thermal Design Power

The processor’s Thermal Design Power (TDP) is officially rated at 65 watts. This is the highest amount of heat in watts that a cooling system should be able to disperse from a processor in regular and non-boosted base operation. TDP measures the thermal output of a chip in a maximum theoretical workload.

Instruction Sets

An instruction set works as the fundamental vocabulary or dictionary of a processor. Thus, it defines the particular commands the processor can directly execute on hardware. This processor supports the x86-64 instruction set with various specialized extension sets for processing, security, and virtualization based on its Zen 4 architecture. This is a foundational 64-bit computing instruction set that enables the processor to address huge amounts of memory & run current 64-bit operating systems with software.

Software System

The AMD Ryzen 9 PRO 7945 processor supports software and operating systems like 64-bit editions of Windows 10, Windows 11, and Linux with enterprise management tools.

• Windows 11 (64-Bit) is optimized completely for the Zen 4 architecture & thread scheduling.
• Windows 10 (64-Bit) is Legacy support for enterprise environments.
• It is compatible with current Linux kernel distributions by supporting 64-bit AMD architecture & hardware virtualization.

Performance and Power Efficiency of AMD Ryzen 9 PRO 7945

The AMD Ryzen 9 PRO 7945 processor combines 12 Zen 4 CPU cores and 24 threads to handle demanding professional workloads while maintaining a default thermal design power (TDP) of 65 W. Its base clock of 3.7 GHz and maximum boost clock of up to 5.4 GHz allow it to handle both lightly threaded applications and multithreaded tasks. This combination makes the processor suitable for business desktops that require responsive performance and efficient power usage.

The processor’s 64 MB of L3 cache helps reduce the need to access system memory frequently, improving data access for workloads that benefit from cached information. Its dual-channel DDR5 memory interface also supports applications involving large datasets, software development, content creation, and complex calculations.

Power efficiency is another important characteristic of this processor. Its 65 W TDP makes it a lower-TDP option compared with many high-performance desktop processors rated at 120 W or more. However, actual power consumption depends on the workload, motherboard settings, cooling solution, and system configuration. Therefore, the TDP should not be treated as a measurement of maximum power consumption.

For professional environments, the Ryzen 9 PRO 7945 can provide a useful balance between processing capability and power requirements. Its actual performance advantage over other processors depends on the application, memory configuration, cooling system, and workload characteristics.

AMD PRO Security and Enterprise Manageability Features

The AMD Ryzen 9 PRO 7945 processor is designed for professional desktop environments wheresecurity, system stability, and IT management are important considerations. AMD PRO technologies provide a collection of security and manageability capabilities intended to support business computing requirements.

Security is particularly important for organizations handling confidential business information, financial records, customer data, and intellectual property. AMD PRO security features are designed to help protect systems against certain hardware-level threats and support a more secure computing environment. Their effectiveness depends on the specific feature, system configuration, firmware, operating system, and security policies implemented by the organization.

Enterprise manageability is another important consideration. Business IT departments often need to deploy, configure, monitor, maintain, and troubleshoot large numbers of desktop computers. AMD PRO platform capabilities can help organizations establish consistent hardware configurations and support their broader device-management strategies. The availability of specific management features depends on the processor platform, motherboard, firmware, and OEM system implementation.

The Ryzen 9 PRO 7945 is therefore particularly relevant to managed business desktops, corporate workstations, and professional computing environments. Organizations evaluating this processor should verify the exact AMD PRO security and management capabilities offered by the complete desktop system, rather than assuming that every feature is available on every compatible motherboard.

These capabilities complement the processor’s 12-core, 24-thread architecture by addressing the broader requirements of business computing, where processing performance, security, and manageable deployment are all important factors.

AMD Ryzen 9 PRO 7945 Vs AMD Ryzen 9 7950X3D

The difference between AMD Ryzen 9 PRO 7945 and AMD Ryzen 9 7950X3D includes the following.

Advantages

The advantages of the AMD Ryzen 9 PRO 7945 processor include the following.

• This processor provides powerful multitasking and handles heavy workloads smoothly, such as video editing, data analysis, and rendering.
• It provides workstation-class performance at a modest 65-watt TDP; thus, it consumes low power and produces low heat compared to higher-wattage alternatives.
• This processor uses the current Raphael platform on the AM5 infrastructure by ensuring high IPC (instructions-per-clock) performance and up to 5.4 GHz boost CLK speed.
• It supports Error-Correcting Code RAM that detects & corrects data corruption for mission-critical business systems & professional stability.
• The design guards corporate data, secures system deployment, and simplifies remote management through enterprise-grade safety and manageability features.
• It delivers PCIe 5.0 lanes for quick communication with upcoming graphics cards & high-speed NVMe storage.
• It uses high-bandwidth dual-channel DDR5 memory to speed up data transmission rates and system awareness.
• It features built-in AMD Radeon Graphics for basic display output & troubleshooting without requiring a separate graphics card.

Disadvantages

The disadvantages of the AMD Ryzen 9 PRO 7945 processor include the following.

• Its built-in Radeon integrated graphics lack the heavy gaming capability for high-end mobile APUs or dedicated GPUs.
• Its official DDR5 memory speed can support peaks at 5200 MT/s. It is lower than the latest generations or alternative high-end mobile or desktop parts.
• This processor features a locked multiplier; thus, you cannot overclock it to obtain higher CLK speeds.
• The PRO series processors target business channels and enterprise OEM desktop systems for custom DIY PC builds.
• They’re specifically designed for OEM business systems, making it more challenging for individuals to purchase them in the retail DIY consumer market.

Applications

The applications of the AMD Ryzen 9 PRO 7945 processor include the following.

• It handles complex CAD & rendering tasks with its 12 Zen 4 cores & 64MB of L3 cache.
• The processor supports up to 128 GB of DDR5 memory, subject to platform compatibility, for memory-intensive workloads.
• It quickly compiles large codebases with 24 threads by running Boost CLK speed up to 5.4 GHz.
• Its ECC memory finds and fixes data errors automatically, avoiding system crashes within medical or financial databases.
• It runs multiple virtual machines at the same time with advanced hardware virtualization tools.
• AMD PRO technologies provide security and manageability features designed for enterprise IT environments.
• Operates at a steady 65W TDP by maintaining low power use while delivering high multi-core performance.

FAQs

Can I overclock this AMD Ryzen 9 PRO 7945?

No, this chip locks the multiplier, prioritizing efficiency and stability over manual overclocking.

Does it feature AMD PRO technologies?

Yes, they feature built-in safety features, remote management tools, and data protection designed for enterprise environments.

Does this processor support ECC memory?

This processor supports DDR5 dual-channel memory through ECC (Error Correction Code) capability.

What graphics card is integrated with this processor?

It is integrated with AMD Radeon Graphics with two graphics cores running at 2200 MHz of a frequency. It is designed for standard display output instead of heavy gaming.

In summary, AMD Ryzen 9 PRO 7945 is a 12-core, 24-thread high-performance desktop processor based on the Zen 4 architecture. It provides outstanding multi-threaded power with a 65W efficient TDP. This is a perfect choice for professional desktop environments that need heavy workstation performance without the massive power draw. This processor balances strong Zen 4 computing speeds, a modest 65W energy footprint, and enterprise security features. Here is a question for you: what is the AMD Ryzen 9 7950X3D processor?
