NVIDIA Spectrum-4 Ethernet Switch : Specifications, Architecture, Working, Differences & Its Applications

NVIDIA Spectrum-4 is a high-performance Ethernet Switch platform built for cloud-scale data centers, AI infrastructure, and demanding distributed workloads. At its core is the Spectrum-4 ASIC, which provides up to 51.2 Tbps of bidirectional switching capacity and supports 400GbE and 800GbE connectivity. NVIDIA combines the ASIC with adaptive routing, congestion control, shared packet buffering, telemetry, security acceleration, and RoCE support to build high-performance Ethernet fabrics for AI clusters. This article elaborates on the NVIDIA Spectrum-4 Ethernet Switch, its operation, and its applications.

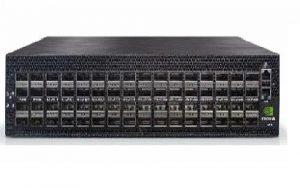

What is an NVIDIA Spectrum-4 Ethernet Switch?

The NVIDIA Spectrum-4 is the first 51.2 Tbps Ethernet switch globally, built for AI and accelerated cloud data centers. It is powered by an ASIC with 100 billion transistors and an advanced process for high power efficiency to deliver massive 400GbE and 800GbE port densities. It provides ultra-low latency, high-throughput, and advanced congestion management necessary to maintain massive GPU clusters that run efficiently. Please refer to this if you’re interested in understanding AI Chips Basics.

How does NVIDIA Spectrum-4 Ethernet Switch Work?

The NVIDIA Spectrum-4 Ethernet switch works by delivering massive 51.2 Tbps of bidirectional throughput. It combines ultra-high port density, as 128 ports of 400GbE, a shared buffer architecture, and higher RoCE (RDMA over Converged Ethernet) features like congestion control and adaptive routing to reduce traffic blockages. It is designed for cloud-scale and AI workloads using advanced adaptive routing, a completely shared packet buffer, and fixed integration through NVIDIA BlueField-3 SuperNICs. So it eliminates network congestion and increases data center efficiency. Please refer to the fundamentals of how AI GPUs Actually Work.

Specifications

The key specifications of NVIDIA Spectrum-4-based switches include the following.

• It provides up to 51.2 Tbps of bidirectional switching capacity.
• The transistor count is above 100 billion, built on a 4N advanced process.
• It supports up to 64x 800GbE ports or 128x 400GbE ports.
• Its completely shared packet buffer architecture ensures equality and fairness in heavy loads.
• It uses N+1 redundant hot-swappable fan modules and redundant AC power supplies.
• It is powered by integrated high-performance AMD EPYC or x86 CPUs with embedded processors with safe boot and hardware root of trust.
• It is deeply integrated into the NVIDIA Spectrum-X platform alongside BlueField-3 SuperNICs to enhance generative AI fabric performance.
• It uses hardware-based secure boot, VXLANsec encryption, and MACsec capabilities.
• This Ethernet switch uses advanced real-time telemetry, analysis tools, and packet tracking for congestion visibility.
• It provides Precision Time Protocol support for synchronized distributed workloads.

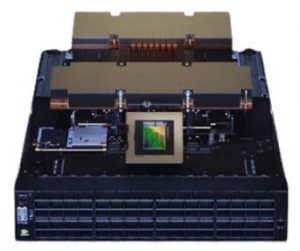

NVIDIA Spectrum-4 Ethernet Switch Architecture

The NVIDIA Spectrum-4 Ethernet switch architecture is executed as the Spectrum-4 ASIC to drive the SN5000 series open Ethernet switch systems. This Ethernet switch features 128 ports of 400GbE by leveraging 100 billion transistors with OSFP/QSFP-DD form factors. It integrates a completely shared packet buffer, advanced telemetry, and adaptive routing. This architecture enables low-latency forwarding while maintaining high throughput for large-scale cloud-native and AI workloads. Therefore, it works as the hardware foundation in the broader NVIDIA Spectrum-X accelerated networking platform designed for AI clouds.

Architecture Components

The basic building blocks of the NVIDIA Spectrum-4 Ethernet Switch Architecture include: Spectrum-4 ASIC, High-Density Port Interfaces, Fully Shared Packet Buffer, Management and Timing Ports, Hardware-Based Security Engines, NVIDIA BlueField-3 DPUs/SuperNICs, NVIDIA ConnectX-7 Adapters, LinkX Cables & Transceivers, Cooling & Power Subsystems, and Software System.

Spectrum-4 ASIC

The Spectrum-4 ASIC is a high-performance core engine that delivers a massive 51.2 Tbps of bi-directional switching capacity. It works as the foundational silicon that powers AI-optimized Ethernet fabrics, drives ultra-low latency, advanced adaptive routing, and incorporates hardware-based safety for hyperscale data centers. This core processing engine delivers advanced AI workload optimization, line-rate encryption, and massive bandwidth for upcoming data centers.

High-Density Port Interfaces

High-density port interfaces are the physical and electrical capacity of the switch ASICs in the architecture that delivers bi-directional bandwidth up to 51.2 Tbps. They support configurations like 128 ports of 400GbE/64 ports of 800GbE with advanced OSFP & QSFP-DD form factors to scale cloud and massive AI workloads. So, it reduces hops & scale high-performance AI and cloud fabrics through ultra-low latency.

Fully Shared Packet Buffer

The NVIDIA Spectrum-4 Ethernet switch architecture features a massive, completely shared packet buffer wherever total on-chip memory is dynamically allowable by any port. This design removes traditional sliced memory bottlenecks by allowing congested ports. It immediately uses inactive cache from inactive ports to absorb traffic bursts and microbursts without packet loss. Therefore, it ensures expected performance, low cut-through latency, and fair bandwidth sharing.

Management and Timing Ports

This architecture features dedicated secondary management ports like an RJ45 100MbE/1GbE port & an RS232 serial console port next to ultra-precise, hardware-based timing capabilities. These are driven through IEEE 1588 PTP (Precision Time Protocol) that is embedded into the 51.2 Tbps ASIC directly.

NVIDIA Spectrum-4 architecture provides nanosecond-scale timing precision using full hardware-based IEEE 1588 PTP (Precision Time Protocol) and SyncE integration. It offloads time stamping and flow management completely to the ASIC. It eliminates software intervention to attain multi-order accuracy that is necessary for AI training and scattered simulation clusters.

Hardware-Based Security Engines

This architecture features hardware-based security engines which are directly incorporated into its 51.2 Tbps ASIC. These are dedicated physical silicon blocks in network processors that perform tasks like cryptography, platform integrity, and authentication at line rate.

These security engines in the architecture deliver 12.8 Tbps of encrypted bandwidth, safe boot through a Hardware Root of Trust, and native VXLANsec/ MACsec support without affecting data-path latency.

NVIDIA BlueField-3 DPUs/SuperNICs

BlueField-3 SuperNIC is a streamlined network accelerator developed from the BlueField-3 architecture. The NVIDIA Spectrum-4 Ethernet switch architecture features 400 Gb/s infrastructure platforms like NVIDIA BlueField-3 DPUs & SuperNICs. They deliver adaptive routing, telemetry, and congestion control for high-performance AI Ethernet fabrics.

BlueField-3 DPU

A programmable infrastructure processor that combines networking acceleration with general-purpose Arm compute for offloading infrastructure services.

BlueField-3 SuperNIC

A network accelerator optimized for high-performance GPU-to-GPU networking, particularly AI workloads, with less emphasis on general infrastructure processing.

NVIDIA ConnectX-7 Adapters

The NVIDIA Spectrum-4 Ethernet switch architecture features NVIDIA ConnectX-7 adapters, which work as high-performance 400 Gb/s SmartNIC endpoints. They connect compute & storage nodes to the Spectrum-4 switching fabric. It delivers end-to-end 400 Gb/s throughput, hardware-accelerated security, and advanced RDMA for cloud data centers and AI.

LinkX Cables & Transceivers

NVIDIA LinkX cables and transceivers in this architecture are high-speed physical layer interconnect products. These are designed to connect Spectrum-4 Ethernet switches to GPUs, storage nodes, and servers in cloud data centers and AI. They deliver 800GbE and 400GbE speeds with advanced 100G PAM4 signaling to make sure highest bandwidth, strict signal integrity, and ultra-low latency.

Cooling & Power Subsystems

The cooling and power subsystems in this architecture maintain thermal stability & constant uptime for high-density 51.2 Tbps hardware. They handle total system power draw by reaching up to 2,800 watts and avoid thermal throttling in intensive generative AI workloads. The cooling and power subsystems depend on robust, surplus air-cooled modules, airflow path matching, and high-line AC inputs to uphold constant data center operations.

Software System

The NVIDIA Spectrum-4 Ethernet switch uses an open and flexible software system model. It gives operators a choice of NOS (network operating systems), rich developer APIs (application programming interfaces), and higher simulation tools to handle 51.2 Tbps AI & cloud fabrics. In addition, it can support network operating systems like SONiC, native Linux switch drivers, and Cumulus Linux. This software stack functions with the Spectrum-4 ASIC to handle AI workflows, security, and telemetry.

NVIDIA Spectrum-4 Ethernet Switch vs NVIDIA Quantum-2

The difference between the NVIDIA Spectrum-4 Ethernet Switch and NVIDIA Quantum-2 includes the following.

Refer to this if you’re interested in understanding Clash of AI Titans: NVIDIA vs AMD.

Advantages

The advantages of NVIDIA Spectrum-4 Ethernet Switch include the following.

• It delivers massive bandwidth, like 51.2 terabits per second, to support high-throughput environments.
• It supports up to 128 ports of 400 GB/s or 256 ports of 200 GB/s per unit.
• It delivers consistent and low-latency packet processing for demanding distributed applications.
• This Ethernet switch smoothly connects massive GPU clusters in a leaf-spine topology.
• It dynamically balances network traffic to avoid blockages and optimize data paths.
• This Ethernet switch reduces packet loss with advanced RoCEv2 integrations.
• It achieves up to 97% network utilization compared to 50-60% within legacy systems when connected with NVIDIA BlueField DPUs.
• It features strong, line-rate MACsec & VXLANsec encryption for safe data flows.
• It delivers real-time network diagnostics & deep visibility into traffic patterns.
• This Ethernet switch is compatible with open networking systems like SONiC and Cumulus Linux.

Disadvantages

The disadvantages of NVIDIA Spectrum-4 Ethernet Switch include the following.

• It must be connected tightly with NVIDIA BlueField-3 SuperNICs or DPUs to unlock the full efficiency of Spectrum-4.
• Combining Spectrum-4 with multi-vendor network equipment can reduce advanced telemetry & adaptive routing benefits.
• These are more expensive than standard enterprise switches.
• It needs specialized operational expertise to manage features like RoCE adaptive routing & in-band telemetry demands.
• It draws considerable power and needs robust data center cooling configurations.

Applications

The applications of NVIDIA Spectrum-4 Ethernet Switch include the following.

• This Ethernet switch is used to balance traffic across network paths to eliminate hot spots and congestion in heavy deep learning workloads.
• It works like a backbone for the NVIDIA Spectrum-X platform to connect a number of GPUs for LLM training like BERT and GPT.
• It delivers constant 95% effective fabric bandwidth efficiency in heavy multi-node AI training loads.
• It delivers up to 128 ports of 400G/64 ports or 64 ports of 800G high port density to connect massive server racks through low latency.
• It allows operators to check security policies, upgrades, and automation safely with software simulations through NVIDIA Air.
• This Ethernet switch uses a flexible programmable packet pipeline by supporting SRv6, massive-scale VXLAN routing, and NAT (network address translation).
• It protects data streams in flight through inline MACsec & VXLANsec encryption, backed by an HRoT (hardware root of trust).
• It provides real-time visibility into microbursts & congestion points to optimize overall data center performance.
• This Ethernet switch handles deep learning and generative AI workloads.

FAQs

Which SN5000 models use Spectrum-4?

The NVIDIA SN5000 family includes the SN5400, SN5600, SN5600D, and SN5610 switch systems, all based on the NVIDIA Spectrum-4 ASIC. The SN5400 provides up to 25.6 Tbps of switching capacity with 64 × 400GbE ports, while the SN5600, SN5600D, and SN5610 provide up to 51.2 Tbps with 64 × 800GbE ports. These high-speed ports can also be configured with breakout cables for lower-speed and higher port-count configurations.

How much bandwidth does Spectrum-4 provide?

NVIDIA Spectrum-4 provides up to 51.2 Tbps of bidirectional switching capacity in the 800GbE-class SN5000 systems. The SN5600, SN5600D, and SN5610 support 64 × 800GbE ports or up to 128 × 400GbE through breakout configurations. The SN5400 provides 25.6 Tbps using 64 × 400GbE ports.

Does Spectrum-4 support 800GbE?

Yes. Spectrum-4-based systems such as the SN5600, SN5600D, and SN5610 support up to 64 × 800GbE ports. These OSFP ports can also be split into multiple lower-speed interfaces, including configurations of up to 128 × 400GbE or up to 256 × 200GbE and other supported speeds, depending on the switch model and breakout configuration.

What is the difference between Spectrum-4 and Quantum-2?

The main difference is the networking technology they use. Spectrum-4 is an Ethernet switching platform designed for Ethernet and RoCE-based AI and cloud networks, while NVIDIA Quantum-2 is an InfiniBand switching platform based on 400Gb/s NDR InfiniBand technology. Spectrum-4 is therefore well suited to organizations that want an open Ethernet ecosystem and RoCE networking, whereas Quantum-2 targets high-performance computing and AI environments built around InfiniBand.

What is Spectrum-X?

NVIDIA Spectrum-X is an AI networking platform built around Ethernet that combines NVIDIA Spectrum Ethernet switches, compatible networking adapters or SuperNICs, congestion-control technologies, and networking software. It is designed to improve the performance, scalability, and utilization of Ethernet fabrics used for large-scale AI workloads. Spectrum-4 provides the high-bandwidth switching foundation, while components such as BlueField-3 SuperNICs and ConnectX adapters can provide high-performance connectivity at the server or GPU side.

Does Spectrum-4 support RoCEv2?

Yes. Spectrum-4-based Ethernet platforms support RoCEv2 (RDMA over Converged Ethernet version 2) for high-performance data transfers over Ethernet. RoCEv2 allows applications such as distributed AI training and accelerated storage to use RDMA while operating over an IP-based Ethernet fabric. Spectrum-4 complements RoCEv2 with congestion-management, quality-of-service, telemetry, and routing capabilities designed for demanding AI and cloud workloads.

What NOS does Spectrum-4 support?

Spectrum-4-based SN5000 switches support open networking software options including NVIDIA Cumulus Linux and, on supported models and releases, SONiC. The SN5000 ecosystem also integrates with technologies such as ONIE, NVIDIA NetQ, and NVIDIA Air. However, software support can vary by specific switch model and software release, so the supported NOS should be verified for the particular SN5000 system being deployed.

How does Spectrum-4 handle congestion?

Spectrum-4 handles congestion using a combination of congestion-control mechanisms, adaptive routing, quality-of-service capabilities, and a fully shared packet-buffer architecture. The shared buffer allows available buffer resources to be used more flexibly when traffic experiences bursts or temporary congestion. Adaptive routing can steer eligible traffic toward less-congested paths, while congestion-control mechanisms help manage traffic flows in demanding RoCE and AI networking environments. These technologies help reduce congestion and improve network utilization, rather than eliminating congestion.

What is the role of BlueField-3?

NVIDIA BlueField-3 provides programmable networking and infrastructure acceleration at the server or GPU-node level. BlueField-3 DPUs can offload networking, storage, security, and other infrastructure services from host CPUs, while BlueField-3 SuperNICs are optimized for high-performance networking in AI environments. When deployed with Spectrum Ethernet switches as part of Spectrum-X, BlueField-3 can work with the network fabric to support congestion control, telemetry, and high-performance GPU-to-GPU communication. Spectrum-4 itself does not require BlueField-3 to function as an Ethernet switch.

What is the role of ConnectX-7?

NVIDIA ConnectX-7 provides high-speed network connectivity between servers, GPUs, storage systems, and the Ethernet fabric. It supports high-performance Ethernet networking and RDMA capabilities, including connectivity up to 400GbE for supported adapters. In a Spectrum-4 or Spectrum-X environment, ConnectX-7 can serve as the network adapter at compute nodes, while Spectrum-4 switches provide the high-capacity switching fabric that connects those nodes. NVIDIA’s current Spectrum-X documentation also lists ConnectX-7 among supported NICs for Spectrum-X configurations.

This is an overview of the NVIDIA Spectrum-4 Ethernet Switch, which delivers 800GbE port speeds and 51.2 Tbps of switching capacity. It provides a lossless architecture to accelerate cloud data centers and AI workloads. This switch combines traditional Ethernet with high-performance demands by providing a strong, safe, and scalable fabric for modern generative AI clusters. It eliminates traditional networking bottlenecks to increase GPU cluster efficiency while connected with BlueField-3 SuperNICs through Spectrum-X. Here is a question for you: What is NVIDIA Quantum-2?
