AMD Ryzen 7 9850X3D : Specifications, Architecture, Working, Differences & Its Applications

The AMD Ryzen 7 9850X3D desktop processor was launched in 2026 and formally announced by AMD at CES in early January 2026. The AMD Ryzen 7 9800X3D is the direct predecessor to the AMD Ryzen 7 9850X3D, which was launched in late 2024. This processor was launched to claim the title of the world’s best gaming CPU. AMD launched this processor to deliver higher clock speeds on the Zen 5 architecture and maintain a competitive edge against competing hardware. This article elaborates on the AMD Ryzen 7 9850X3D processor, its working, and its applications.

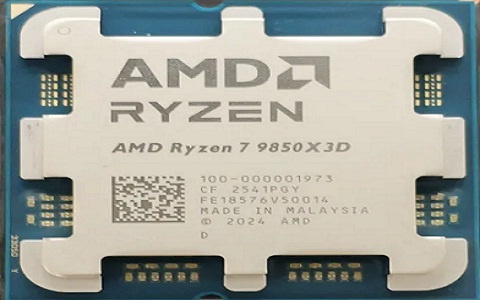

What is AMD Ryzen 7 9850X3D?

AMD Ryzen 7 9850X3D high-performance desktop processor is a part of the Ryzen 7 lineup, built on the Zen 5 (Granite Ridge) architecture and equipped with 3D V-Cache technology. AMD built this Ryzen 7 9850X3D on a 4 nm production process with 8,315 million transistors. It is an enhanced, high-performance version of the Ryzen 7 9800X3D processor. It is designed for enthusiasts seeking the best gaming performance, making it one of the best gaming CPUs available.

Ryzen 7 9850X3D features 8 cores, 16 threads, a base clock of 4.7 GHz, a boost clock of up to 5.6 GHz, and 96 MB of L3 cache based on the workload. This processor features an unlocked multiplier, which allows users to adjust the CPU frequency for overclocking. It can be adjusted easily by dialing in any overclocking frequency.

The Ryzen 7 9850X3D processor consumes a lot of power, like 120 W, so it needs good cooling. It supports DDR5 memory through a dual-channel interface. Thus, its maximum supported memory speed officially is 5600 MT/s. However, it can go even higher with over-clocking. It supports significant features like ECC memory for mission-critical systems, which avoids data corruption. This processor uses a PCI-Express Gen 5 connection for communication with remaining components within the machine.

Hardware virtualization on the Ryzen 7 9850X3D processor greatly enhances virtual machine performance. The processor supports for the latest AVX-512 and AVX2 instructions.

Specifications

The key specifications of the AMD Ryzen 7 9850X3D processor include;

• AMD Ryzen 7 9850X3D is an enthusiast-class desktop processor.
• It features 8 cores and 16 threads.
• It is built on Zen 5 Architecture.
• Base Clock is 4.7 GHz
• Boost Clock is Up to 5.6 GHz
• It uses the AM5 socket.
• Total Cache is 104 MB
• L2 Cache is 8 MB and L3 Cache is 96 MB
• Memory type is DDR5
• It features 2 (Dual-channel) memory channels.
• Max memory speed is up to DDR5-5600.
• Max memory support is 256 GB
• It features AMD Radeon integrated graphics.
• It uses PCIe 5.0 Express Version.
• It features 28 total PCIe lanes / 24 usable.
• This processor is unlocked for overclocking.

How Does AMD Ryzen 7 9850X3D Work?

AMD Ryzen 7 9850X3D desktop processor works by using the Zen 5 architecture through stacked 3D V-Cache technology. It combines up to 5.6 GHz high core clock speeds with 96MB of stacked 3D V-Cache using a flipped die layout. Thus, it helps reduce memory-access latency for frequently accessed data. This design directly places additional cache on the processor die that drastically reduces memory latency and enhances frame rates in games while achieving up to 5.6 GHz speed.

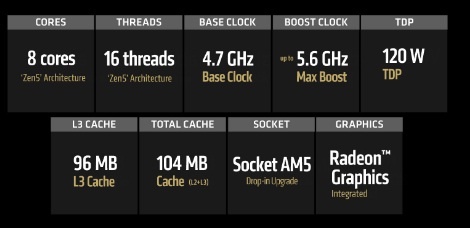

AMD Ryzen 7 9850X3D Architecture

AMD Ryzen 7 9850X3D desktop processor is built on the Zen 5 micro-architecture, connected with second-generation 3D V-Cache. It uses a single 8-core CCD connected with an I/O die on the AM5 platform, which delivers a better, higher-binned variant with higher clock frequencies. This architecture features cores, threads, a massive cache pool, and TDP. The processor keeps its cores cooler and achieves up to 5.6 GHz higher boost speeds by locating the cache under the processor cores instead of on top.

Components

The basic building blocks of AMD Ryzen 7 9850X3D desktop processor architecture include: 8 cores, 16 threads, cache memory, integrated GPU, SMT, a 120W TDP, Clock, PCI Express Support, AM5 platform, integrated Radeon graphics, cooling system, and software system.

Cores and Threads

The AMD Ryzen 7 9850X3D processor architecture features 8 physical CPU cores. Each core uses simultaneous multithreading to process two instruction streams concurrently. These cores work to perform system commands, process gaming logic & run apps efficiently with simultaneous multithreading.

This architecture features 8 CPU cores and 16 threads, where each core supports two hardware threads through SMT. Thus, this enables the processor to handle 16 task streams immediately, enhancing efficiency in heavy gaming, background apps & multitasking workloads with SMT.

Cache Memory

AMD Ryzen 7 9850X3D features a total of 104 MB of cache, where L1 cache is 640 KB, L2 cache is 8 MB, and massive L3 cache is 96 MB, powered by AMD’s 3D V-Cache technology. This large on-chip cache stores regularly used game data close to the cores.

• L1 cache is small and fast private storage, used for instant core instructions.
• L2 cache provides fast, low-latency storage close to the CPU cores.
• L3 Cache is massive stacked 3D V-Cache, used to reduce the need for data fetching from slower system RAM.

Integrated GPU (Integrated Radeon Graphics)

AMD Ryzen 7 9850X3D processor features AMD Radeon Graphics and features two compute units running at 2.2 GHz clock speed. This iGPU delivers initial display output, light desktop functionality, and troubleshooting capability. In addition, it manages daily tasks like office apps, video playback, and web browsing without needing a separate graphics card, but it is not intended for demanding gaming without a discrete GPU.

SMT

Simultaneous Multithreading (SMT) is a CPU feature that allows a single physical processor core to handle two separate execution threads at the same time. In the 8-core, 16-thread AMD Ryzen 7 9850X3D, SMT maximizes hardware efficiency by feeding independent instruction streams to idle core resources.

TDP

The TDP of AMD Ryzen 7 9850X3D Desktop Processor is rated at 120W. This Thermal Design Power is the highest amount of heat measured in watts that a computer cooling system must dissipate from the processor.

Clock

AMD Ryzen 7 9850X3D desktop processor features a CLK that measures the number of electrical cycles a CPU performs per second, generally expressed in GHz (gigahertz). The clock speed of the processor states how quickly its 8 Zen 5 cores can process game logic, instructions & system tasks. This processor features 4.7 GHz of base CLK and up to 5.6 GHz maximum boost CLK.

PCI Express Support

PCIe 5.0 Express or PCIe support is the high-speed motherboard interface standard that directly connects graphics cards & storage drives to the CPU. This native PCIe 5.0 interface in the architecture ensures the highest data bandwidth that allows next-generation NVMe SSDs and GPUs to work without performance bottlenecks. This interface doubles the bandwidth limits of previous PCIe 4.0 systems, which deliver 28 total & 24 usable native CPU PCIe lanes mainly for system configurations.

AM5 Platform

The AMD Ryzen 7 9850X3D architecture features the AM5 Platform. It is a modern desktop CPU socket of AMD and motherboard infrastructure. Its main function is to supply the vital physical interface, PCIe 5.0 data pathways, and high-speed DDR5 memory pipelines required for this Zen 5 3D V-Cache processor to deliver high gaming performance.

Cooling System

The AMD Ryzen 7 9850X3D does not include a CPU cooler in the box. Due to higher power draws in gaming and multi-core tasks than earlier generations, a high-performance liquid cooler or a strong dual-tower air cooler is required to handle best boost clocks and stay within the 95°C highest operating limit.

Software System

AMD Ryzen 7 9850X3D relies on the high-performance Zen 5 architecture connected with second-generation 3D V-Cache technology. Thus, it natively operates on standard operating systems like Linux and Windows 11 through the AMD AM5 platform infrastructure. Its core software system depends on the motherboard UEFI or BIOS firmware, AMD chipset drivers & tuning utilities like AMD Ryzen Master.

Ryzen 7 9850X3D Gaming Performance

Gaming is the main area where the Ryzen 7 9850X3D is designed to excel. Its eight Zen 5 cores, high boost clock, and large L3 cache provide the CPU with fast access to frequently used game data.

The benefits of a large cache are most noticeable in games that are sensitive to CPU performance and memory latency. In these situations, keeping frequently accessed data closer to the processor can reduce the number of requests made to system memory and help maintain consistent frame delivery.

The difference between the Ryzen 7 9850X3D and other high-end processors can vary considerably from one game to another. At lower resolutions, such as 1080p, the CPU can have a greater influence on frame rates when paired with a sufficiently powerful graphics card. At 1440p and 4K, the graphics card increasingly becomes the limiting component in many games, which can reduce the visible difference between high-end CPUs.

For this reason, CPU gaming performance should not be judged from a single benchmark or game. A meaningful comparison should consider average frame rates, 1% lows, different game engines, resolutions, and the graphics card used in the test system.

Ryzen 7 9850X3D for Productivity

Although the Ryzen 7 9850X3D is primarily aimed at gaming, its eight cores and 16 threads also make it capable of handling a wide range of productivity applications.

The higher clock speeds can benefit applications that depend heavily on single-core or lightly threaded performance. Tasks such as general office work, web browsing, application development, photo editing, and other everyday workloads can run comfortably on the processor.

The processor can also handle content-creation applications such as video editing and image processing. However, users whose primary workloads involve long-running, heavily multithreaded tasks may benefit more from processors with a higher core count.

This distinction is important when choosing a CPU. A processor designed primarily around gaming performance does not necessarily provide the highest performance in every professional application. The Ryzen 7 9850X3D is better viewed as a high-performance all-round desktop processor with a strong emphasis on gaming

Otherboard and Platform Compatibility

The Ryzen 7 9850X3D uses AMD’s AM5 socket and requires a compatible AM5 motherboard and DDR5 memory. This allows it to fit into AMD’s current desktop platform without requiring a transition to a different CPU socket.

However, socket compatibility alone does not guarantee that every AM5 motherboard will support the processor immediately. Depending on the motherboard model and its firmware version, a BIOS or UEFI update may be required before the processor can be used.

Users upgrading an existing AM5 system should therefore check the motherboard manufacturer’s CPU-support list and BIOS requirements before purchasing the processor.

The platform also provides support for modern connectivity standards, including PCIe 5.0 and DDR5 memory. The exact expansion and storage capabilities available to a system will depend on the motherboard design and chipset.

Integrated Graphics

The Ryzen 7 9850X3D includes basic integrated Radeon graphics. The integrated GPU can be useful for displaying the desktop, running everyday applications, playing video, and troubleshooting a system when a discrete graphics card is unavailable.

It is not intended to replace a powerful discrete graphics card in a high-end gaming system. Users purchasing the Ryzen 7 9850X3D specifically for demanding games will generally pair it with a dedicated GPU.

The integrated graphics can nevertheless be useful during system setup and troubleshooting. For example, they can provide display output while a discrete graphics card is being installed, tested, or diagnosed.

Limitations of 3D V-Cache

The large cache provided by 3D V-Cache can improve performance in workloads that frequently access data that can be kept close to the CPU cores. This is one reason X3D processors are particularly well suited to many gaming workloads.

However, adding more cache does not automatically improve performance in every application. Some programs are limited by CPU core count, clock speed, storage performance, GPU performance, or other parts of the system.

As a result, the Ryzen 7 9850X3D should not be considered universally faster than every other processor in every workload. Its design is optimized around providing strong gaming performance while still offering capable general-purpose desktop performance.

This distinction is important when comparing the processor with higher-core-count CPUs designed for workstation and heavily multithreaded applications.

AMD Ryzen 7 9850X3D vs AMD Ryzen 7 9800X3D

The differences between the AMD Ryzen 7 9850X3D and the AMD Ryzen 7 9800X3D include the following.

AMD Ryzen 7 9850X3D	AMD Ryzen 7 9800X3D
The AMD Ryzen 7 9850X3D is an enthusiast desktop processor.	The AMD Ryzen 7 9800X3D is a desktop processor.
It is built on the Zen 5 architecture	It is built on the Zen 5 architecture.
Its maximum clock speed is up to 5.6 GHz,	Its maximum clock speed is around 5.2 GHz.
It delivers premium gaming performance, offering a 3% to 4% average gaming improvement over the Ryzen 7 9800X3D.	It provides the best frame rates, outstanding 1% low stability, and better efficiency than its earlier generations.
Its official TDP rating is 120W,  but it can pull a little more power and marginally run warmer in heavy loads because of its pushed frequencies.	Its TDP rating is 120W
Select the AMD Ryzen 7 9850X3D processor if you need the highest clock speeds for high refresh rate competitive gaming.	Select the AMD Ryzen 7 9800X3D processor if you need better value for your price, because it delivers almost the same performance for a low price.
Its price is slightly higher than the 9800X3D processor.	Its price is lower than the 7 9850X3D processor.

Advantages

The advantages of AMD Ryzen 7 9850X3D include the following.

• This processor combines Zen 5 architecture through massive 3D V-Cache to provide the highest range of gaming performance.
• It boosts up to 5.6 GHz by providing a 400 MHz bump over the previous Ryzen 7 9800X3D processor for single-core and better low-thread tasks.
• It protects small performance gains within demanding applications like Adobe Photoshop and 7-Zip compression.
• Drops right into accessible 600-series and 800-series motherboards without requiring a change in platform.
• It features 8 identical performance cores by avoiding software complications fixed to mix efficient or performance core layouts.
• It keeps a 120W TDP while providing users with flexible power-saving modes for cooler, quieter operation in solid builds.
• Productivity Uplift: Offers marginal single- and multi-threaded performance gains in creative applications like Adobe Photoshop and video editing over previous-generation X3D models.
• It is completely unlocked for CPU and memory tuning by supporting for AMD EXPO, Precision Boost Overdrive & Curve Optimizer voltage offsets.
• It works at peak gaming capacity without requiring background utility software like core-parking or Xbox Game Bar drivers.

Disadvantages

The disadvantages of AMD Ryzen 7 9850X3D include the following.

• It delivers only a 3% to 4% improvement in normal gaming compared to the earlier Ryzen 7 9800X3D processor.
• It is more expensive than its predecessor.
• At 1440p and 4K, the performance difference from older X3D processors may be smaller in GPU-limited games.
• It trails behind higher-tier CPUs or multi-chiplet in heavy 3D rendering & specialized multi-threaded workstation software.
• Similar to other recent Ryzen chips, this processor retains higher absolute memory latencies than some earlier generations.
• It may operate at higher voltages under certain workloads.
• Temperatures can increase under sustained high-power workloads or aggressive performance settings.

Applications

The applications of AMD Ryzen 7 9850X3D include the following.

• This processor provides the highest frame rates and reduces stuttering in competitive esports and demanding AAA titles.
• It handles CPU-intensive game logic, physics calculations, and simulation workloads.
• It runs small-scale local language models & Windows ML tasks on the CPU efficiently.
• It can handle multitasking, content creation, and office applications, and gaming simultaneously.
• It is used to achieve the utmost frame rates at high refresh rates in competitive eSports titles.
• It drives high-resolution setups smoothly when connected with a powerful graphics card.
• It manages daily multitasking efficiently next to gaming workloads.
• This processor runs local virtual machines efficiently with strong hardware virtualization support.
• It can accelerate compatible calculation-heavy workloads using AVX2 and AVX-512 instructions.
• It executes general video editing & rendering tasks in Premiere Pro & DaVinci Resolve Studio programs, although heavy multi-threaded workloads help higher-core Ryzen 9 chips.
• It runs single-core-heavy creative applications like Adobe Photoshop through a performance benefit.

FAQs

Does it feature cores and threads?

Yes, it features 8 cores & 16 threads.

What is the total cache size?

The AMD Ryzen 7 9850X3D features 104 MB of total cache, which includes 640 KB of L1 cache, 8 MB of L2 cache & 96 MB of L3 cache

Which socket does it use?

It uses the AM5 socket; thus, it needs an AM5-compatible motherboard with DDR5 memory support and PCIe 5.0.

What memory is supported?

It supports dual-channel DDR5 memory with 192 GB of maximum official capacity.

What is the Thermal Design Power?

The default Thermal Design Power of the AMD Ryzen 7 9850X3D processor is 120W.

How does it compare to the Ryzen 7 9800X3D?

It has a maximum boost clock that is up to 400 MHz higher & delivers about 3% to 4% superior average gaming performance @ 1080p.

Does it handle productivity tasks?

It shines in single-threaded tasks like Photoshop, although it trails high core count CPUs within heavy multi-threaded rendering workloads.

Does it need high-end cooling?

Yes, a capable liquid cooler or a standard good air cooler is enough depending on the workload.

The AMD Ryzen 7 9850X3D is a top-tier, absolute fastest gaming processor, built on the Zen 5 architecture with 2nd Gen 3D V-Cache, features 8 cores and 16 threads. Thus, it offers a modest 3% to 5% performance gain over its predecessor through a 400 MHz higher boost clock. However, it slightly draws more power. Here is a question for you: what is AMD Ryzen 7 9800X3D?
