AMD Ryzen 9 9950X3D : Specifications, Architecture, Working, Differences & Its Applications

The AMD Ryzen 9 9950X3D was officially announced at CES 2025 and released on March 12, 2025. It is a flagship desktop processor from the Ryzen 9000 series, succeeding the Ryzen 9 7950X3D. It is an enthusiast-level CPU for content creators and gamers. This processor uses AMD’s second-generation 3D V-Cache technology, combining a high core count with gaming-focused optimizations. At present, this desktop processor is available and compatible with AM5 motherboards. This article provides a brief information on AMD Ryzen 9 9950X3D, working, and its applications.

What is AMD Ryzen 9 9950X3D?

The AMD Ryzen 9 9950X3D is a flagship desktop processor from AMD, based on the Zen 5 Granite Ridge architecture, considered a versatile and powerful all-around CPU. This processor features 128MB of L3 cache & second-generation 3D V-Cache technology from AMD. As a result, it significantly enhances performance within cache-sensitive applications, high-end gaming & content creation. It incorporates 32 threads and 16 cores, including 4.3 GHz of base clock frequency & boost speed reaches up to 5.7 GHz. Read our in-depth article on AI Chips Basics.

The AMD Ryzen 9 9950X3D processor has 170 W of thermal design power by default and is well-matched with the AM5 socket platform by supporting DDR5 memory. In addition, this processor features two core complex dies, where one CCD is standard while the other is equipped with the large 3D V-Cache for gaming performance.

How does AMD Ryzen 9 9950X3D Work?

The AMD Ryzen 9 9950X3D processor works by merging 16 Zen 5 cores with a huge amount of 3D V-Cache to improve gaming performance. It also provides high-end multi-core performance for gaming and content creation. The V-Cache die is placed under the CCD, so the cores sit closer to the cooler. Thus, it significantly accelerates gaming performance by maintaining more data near the cores. Please refer to a detailed explanation of how AI GPUs Actually Work.

This processor’s operating system can be optimized to utilize the cores without an additional cache for high clock speeds by ensuring strong multi-threaded performance. In essence, this processor works as an extremely specialized hybrid processor that cleverly adapts its resources to deliver top-tier performance for both heavy productivity and demanding gaming applications.

Specifications

The AMD Ryzen 9 9950X3D specifications include the following.

• This processor uses Zen 5 Architecture with a 4 nm manufacturing process.
• It features 16 Cores and 32 Threads.
• The base clock is 4.3 GHz.
• Its Boost Clock Max is 5.7 GHz.
• L3 Cache is 128 MB, including 3D V-Cache technology.
• Its power consumption or TDP is 170W.
• Its DDR5 memory support is up to 5600 MT/s.
• Basic integrated AMD Radeon graphics (2 RDNA 2 CUs), suitable for display output and troubleshooting.
• Processor Technology is TSMC 4nm FinFET.
• Total Cache is 144MB, where L3 Cache is 128MB and L2 Cache is 16MB.
• Socket is AM5.

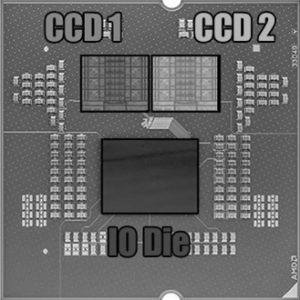

AMD Ryzen 9 9950X3D Architecture

The AMD Ryzen 9 9950X3D is a high-end gaming processor that uses the Zen 5 architecture. CCDs are built on TSMC 4nm, the I/O die on 6nm, and the chip uses the AM5 socket. This processor uses second-generation 3D V-Cache technology from AMD to enhance performance, principally for gaming. The stacked die adds 64MB, giving 128MB of L3 and 144MB of total cache (L2 + L3). Thus, placing the cache beneath the CCD improves heat transfer, enhancing cooling. It allows higher clock speeds than earlier generations.

Components

AMD Ryzen 9 9950X3D architecture components mainly include CPU Microarchitecture, cores, threads, L3 Cache, socket, memory support, and PCIe support. In addition, it can also include key technologies like 3D V-Cache, SMT, and PBO (Precision Boost Overdrive).

CPU Microarchitecture

The codename, like Granite Ridge, is used for desktop CPUs from AMD with the Zen 5 architecture, especially the Ryzen 9000 series. This processor uses the existing AM5 socket, well-matched with various current AM5 motherboards, including the latest 800-series chipsets. The Granite Ridge CPUs, like the earlier generation, will have up to 16 cores.

Cores & Threads

The AMD Ryzen 9 9950X3D processor features 16 cores & 32 threads. The cores of this architecture are the physical processing units, whereas the threads are the virtual execution paths. It allows the CPU to manage various tasks separately through a simultaneous multi-threading process.

L3 Cache

The Ryzen 9 9950X3D architecture features 128MB of L3 cache, improved by AMD’s 3D V-Cache technology. This cache is extensively larger than the non-X3D 9950X. It stacks an additional layer of cache on top of one of the CPU’s Core Complex Dies (CCDs) to drastically improve gaming performance. Each CCD has its own L3 cache; only one has the V-Cache stack. As a result, it significantly lowers effective memory latency and boosts cache-sensitive workloads within cache-sensitive applications, particularly gaming.

AM5 Socket

The AM5 socket for the AMD Ryzen 9 9950X3D processor is the physical interface that supports cutting-edge technologies like PCIe 5.0 and DDR5 memory. Its design allows for upcoming processor upgrades and provides extended I/O support for current peripherals & quick storage.

Core Complex Dies or CCDs

This flagship desktop processor uses a multi-chiplet design including two CCDs. As a result, one CCD includes a second-generation 3D V-Cache from AMD. It is stacked on top of the normal L3 cache vertically to severely enhance memory capacity. This multi-chiplet design improves performance within cache-sensitive gaming applications. Similarly, the second CCD does not contain the additional cache that balances the design for both multi-threaded productivity and gaming tasks by allowing advanced sustained clock speeds over the non-X3D die.

I/O Die or IOD

The I/O Die in the AMD Ryzen 9 9950X3D architecture is a separate chiplet, designed for all I/O functions like handling communication with the system memory, CPU cores, and other components through the AM5 socket. The IOD is manufactured on a 6nm smaller process node to manage I/O tasks very efficiently. Therefore, it works like a central bridge by routing CPU cores’ requests to the RAM and also provides PCIe 5.0 lanes & integrated graphics features.

PCIe Support

This architecture offers 28 PCIe 5.0 lanes (24 usable) by providing high-speed bandwidth for modern GPUs & NVMe SSDs. It is well-matched with the AM5 socket & a variety of chipsets like X870, X870E, B840, B850, and the earlier B650 and X670 series generations.

Key Technologies

This processor supports key technologies like 3D V-Cache, SMT, and PBO (Precision Boost Overdrive), which are discussed below.

• 3D V-Cache is a technology that stacks extra cache on top of (or beneath) the CPU die. Therefore, it extensively increases L3 cache capacity by enhancing performance within gaming & content creation memory-sensitive workloads.
• SMT is a simultaneous multithreading which allows every core to manage two threads for better multitasking.
• The precision boost overdrive, or PBO lets the CPU boost beyond stock limits when power and thermal headroom allow.

Software System

The AMD Ryzen 9 9950X3D software system features operating systems like Windows 10/11 and Linux. So it needs specific drivers for functionality like the AMD Chipset Software & drivers for other integrated graphics & USB port components. In addition, it can also have AMD 3D V-Cache technology that profit from optimized applications. It can be handled through the BIOS settings; software utilities can also adjust performance.

• It is compatible with operating systems like 64-bit Windows 10 or 11, or RHEL x86 64-bit or Ubuntu x86 64-bit Linux distributions.
• The AMD Chipset Software is important for all functions & it can be installed through the installer on the official AMD website.
• As the processor features integrated graphics, you will require drivers for the built-in AMD Radeon Graphics.
• Drivers are elements of the chipset driver package for native USB 3.2 Gen 2 & other peripherals.
• The key feature of this software, like AMD EXPO™ Technology, allows for simple memory overclocking that can be handled through the BIOS of the motherboard.
• The Process Lasso utilities can be used for superior process management, like setting priorities or per-app affinities, which can be helpful for further tuning of performance.

AMD Ryzen 9 9950X3D Vs Intel Core Ultra 9 285K

The difference between AMD Ryzen 9 9950X3D and Intel Core Ultra 9 285K includes the following.

Interested in how NVIDIA compares with AMD in AI computing? Read our detailed comparison: NVIDIA vs AMD.

How to Maintain an AMD Ryzen 9 9950X3D Processor?

• The AMD Ryzen 9 9950X3D can be maintained by ensuring proper cooling through dust cleaning from the heat sink & re-applying thermal paste every 2 to 3 years.
• The software must always be updated with the newest motherboard BIOS & chipset drivers.
• For best performance & temperature management, use PBO with a Curve Optimizer negative offset and a temperature limit.
• Focus on the best cooling through proper fitting of a superior CPU cooler & good case airflow.

Advantages

The advantages of the AMD Ryzen 9 9950X3D GPU include the following.

• The 3D V-Cache technology significantly improves performance in several games, which leads to maximum frames per second.
• It provides smoother frame pacing and decreases latency by enhancing the overall gaming experience.
• This is compatible with high-load scenarios within open-world games & single-threaded games.
• It delivers excellent content-creation performance alongside top-tier gaming & performs well in many tasks.
• Its core design is versatile.
• It is efficient under load but has relatively high idle draw.
• This processor supports the newest technologies for PCIe 5.0 & better bandwidth for next-generation GPUs & storage devices.

Disadvantages

The disadvantages of the AMD Ryzen 9 9950X3D GPU include the following.

• This high power draw translates to higher heat output, requiring a more powerful and efficient cooling system to keep the CPU from overheating.
• This processor has fairly high idle power consumption within the Windows desktop environment.
• The lopsided cache configuration can lead to performance problems if the operating system improperly plans workloads.
• Multi-threaded performance is close to the non-X3D 9950X, with small differences in some workloads and productivity-focused environments due to the design limitations of the 3D V-Cache chiplet.

Applications

The applications of the AMD Ryzen 9 9950X3D GPU include the following.

• This GPU provides immersive and smooth gameplay at high frame rates in CPU-intensive games whenever connected with a powerful GPU.
• It handles the demanding VR game requirements for a more immersive experience.
• It is brilliant for live streamers who want to run a game & stream simultaneously.
• This processor reduces rendering times and delivers real-time performance within applications like DaVinci Resolve and Adobe Premiere Pro.
• It handles 4K+ footage and speeds up encoding and transcoding processes very efficiently.
• It manages 3D model rendering with both the 3D V-Cache and high core count.
• It provides strong performance in Adobe Photoshop & Lightroom Classic applications.
• It provides quick compilation times and fast open performance in IDEs (Integrated Development Environments).
• It runs several virtual machines efficiently for development and testing.
• It benefits from the high thread count by supporting parallel processing within scientific computing & machine learning.
• It handles lightweight ML tasks on the CPU; there is no dedicated NPU.

FAQs

What is the AMD Ryzen 9 9950X3D?

It is a 16-core, 32-thread Zen 5 desktop processor for the AM5 socket. It uses second-generation 3D V Cache for gaming and still performs well in productivity workloads.

Is the 9950X3D better than the 7950X3D?

Yes. It offers the newer Zen 5 architecture, higher clocks and better thermals thanks to the cache-under-the-CCD design. It also performs better in both gaming and multi-threaded work.

Do I need a new motherboard?

Only if you are not already on AM5. It works with 600-series (with a BIOS update) and 800-series boards. It requires DDR5 memory; DDR4 is not supported.

What cooler does it need?

A high-quality 280mm or 360mm liquid cooler or a top-tier dual-tower air cooler is recommended for sustained loads.

Is it worth buying for gaming only?

For pure gaming, 8-core X3D chips such as the Ryzen 7 9800X3D often match or beat it at a lower price. The 9950X3D makes the most sense if you also do heavy content creation, streaming or development on the same PC.

Does it have integrated graphics?

Yes, basic Radeon graphics for display output, but a dedicated GPU is recommended for gaming and creative work.

How much does it cost?

It launched at an MSRP of $699 (USD). Prices vary by region and retailer, so check current listings.

Which operating systems are supported?

64-bit Windows 10/11 and 64-bit Linux distributions. Install the latest AMD chipset driver so Windows schedules games on the V-Cache CCD.

In summary, the AMD Ryzen 9 9950X3D is an all-around excellent processor. It excels in both productivity & gaming by combining top-tier gaming performance with strong multi-core power. This processor uses Zen 5 architecture, including a high-end 16-core, 32-thread processor with a 4.3 GHz base clock & up to 5.7 GHz boost clock. This processor features a large cache memory and is specially designed for demanding productivity and gaming tasks by incorporating AMD’s 3D V-Cache technology. It significantly improves performance within cache-sensitive applications. This is an excellent choice for users who need a single PC for both gaming & demanding professional workloads.
