AI Chip Manufacturing Process : How AI Chips Are Designed, Fabricated, Packaged and Tested

Artificial Intelligence (AI) has transformed nearly every industry, from healthcare and finance to autonomous vehicles and robotics. Behind every intelligent application lies an extraordinary piece of engineering—the AI chip. These specialized processors perform trillions of mathematical operations every second, enabling machines to recognize images, understand speech, generate text, and make complex decisions in real time. When people hear about AI chips, they often think of powerful processors such as NVIDIA’s GPUs, Google’s TPUs, or Apple’s Neural Engine. However, designing an AI chip manufacturing process is far more complex than manufacturing a conventional microcontroller or desktop processor. An AI chip is the result of years of research, architectural planning, hardware design, software optimization, semiconductor fabrication, and extensive testing.

Modern AI chips contain tens to hundreds of billions of transistors, multiple processing engines, high-speed memory interfaces, security modules, power management circuits, and advanced interconnects—all integrated onto a single piece of silicon. Creating such a device requires collaboration among architects, circuit designers, verification engineers, physical design specialists, fabrication facilities, packaging experts, and software developers.

Unlike traditional processors, AI chips are optimized for highly parallel computations such as matrix multiplication, tensor operations, and neural network acceleration. As AI models continue to grow larger and more sophisticated, designing these chips has become one of the most challenging tasks in the semiconductor industry.

In this article, you’ll learn how an AI chip progresses from an initial idea to a finished semiconductor device. We’ll begin with the design stages, where engineers define the chip’s purpose and architecture. Later parts of this series will explore fabrication, advanced packaging, testing, and validation in greater detail.

Why is AI Chip Manufacturing so Challenging?

At first glance, an AI chip may look like any other integrated circuit. However, its internal complexity is significantly greater than that of most traditional processors.

Consider a simple analogy.

Imagine building a small family house. You need an architect, construction workers, electricians, plumbers, and interior designers. Although the project is challenging, it involves a relatively small number of components.

Now imagine constructing an entire smart city. In addition to buildings, you must design transportation systems, power grids, communication networks, water supplies, traffic management, and emergency services—all while ensuring every part works together efficiently.

Designing an AI chip is much closer to building a smart city than constructing a house.

Every transistor, memory block, communication bus, clock signal, and processing engine must operate flawlessly. Even a tiny design error can cause the entire chip to fail after fabrication, resulting in months of delays and millions of dollars in additional costs.

Some factors that make AI chips particularly difficult to design include:

• Massive transistor counts
• Complex tensor and matrix computation engines
• Extremely high memory bandwidth requirements
• Low-power operation
• Thermal management
• Multi-chip communication
• Advanced packaging technologies
• Hardware security requirements
• Software compatibility

These challenges require a carefully planned development process that begins long before silicon is manufactured.

AI Chip Manufacturing Process Development Lifecycle

Manufacturing an AI chip is not a single process but a sequence of interconnected engineering stages.

Each stage builds upon the previous one, ensuring that design errors are detected and corrected before fabrication.

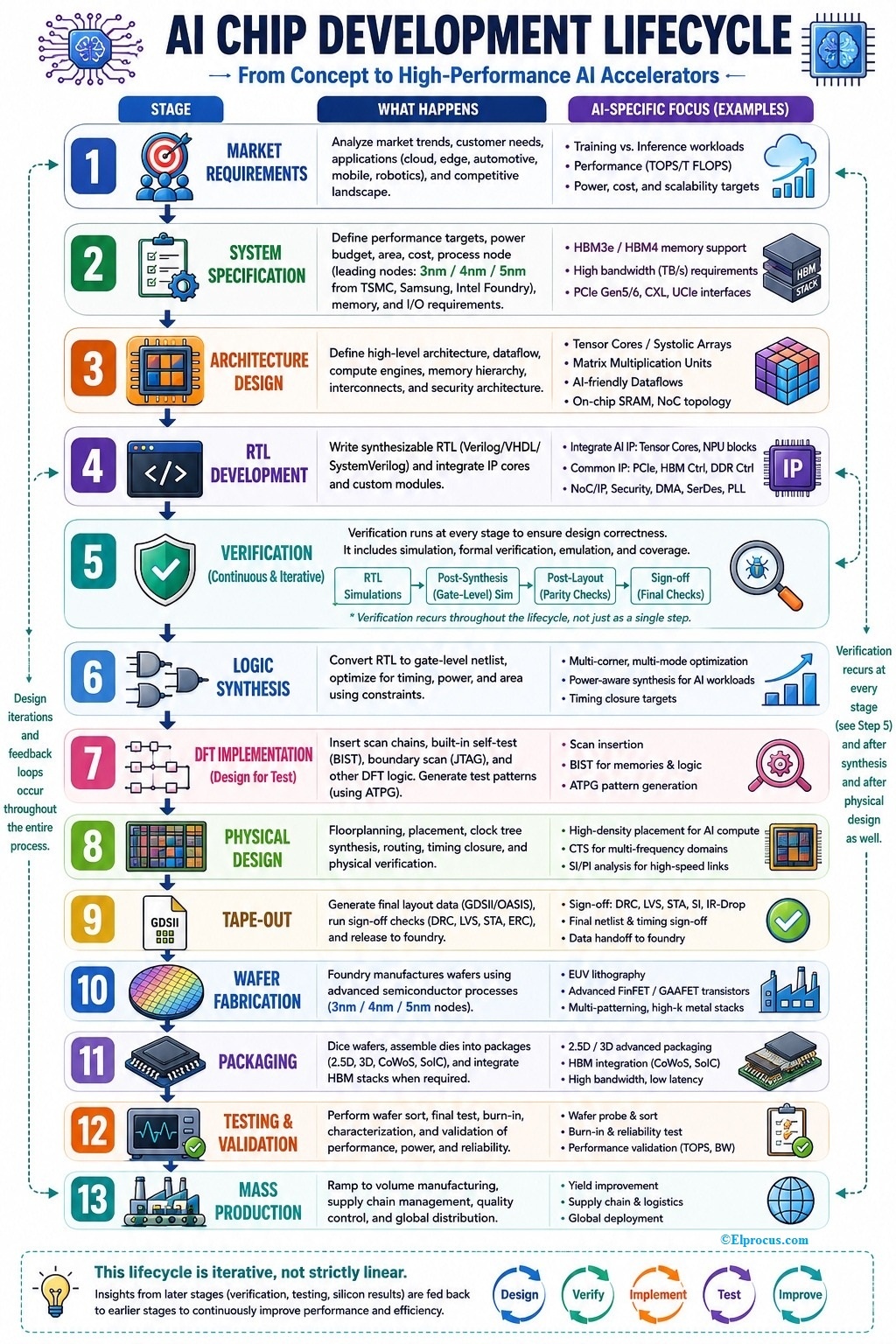

The overall development lifecycle can be summarized as follows:

Each stage has its own objectives, engineering tools, and specialized teams. Skipping or rushing any phase can significantly impact the performance, reliability, or manufacturability of the final chip.

Step 1: Understanding Market Requirements

Every successful AI chip begins with a simple question:

What problem should this chip solve?

Before engineers write a single line of hardware description code, companies perform extensive market research to understand customer needs.

For example, different applications require different types of AI processors:

Application	Primary Design Goal
Cloud AI Servers	Maximum computational performance
Smartphones	Low power consumption
Autonomous Vehicles	Real-time decision making
Medical Devices	High reliability and accuracy
Robotics	Fast sensor processing
Edge AI Devices	Energy-efficient inference

Defining Product Specifications

Once the target market has been identified, engineers create a detailed specification document. This document serves as the blueprint for the entire project and outlines the chip’s functional, performance, and manufacturing goals.

Typical specifications include:

AI Performance

Engineers estimate the required computational capability, often measured in:

• TOPS (Tera Operations Per Second)
• TFLOPS (Tera Floating Point Operations Per Second)

These metrics determine how quickly the chip can execute AI workloads.

Power Budget

Power consumption is a critical consideration, particularly for mobile and edge devices.

For example:

• Smartphone AI processor: 2–10 W
• Automotive AI processor: 50–300 W
• Data-center AI accelerator: 500–1200 W or more

The power budget influences cooling requirements, battery life, and overall system efficiency.

Memory Requirements

Modern AI models process vast amounts of data, requiring careful planning of:

• On-chip SRAM
• Cache hierarchy
• External memory interfaces
• High-bandwidth memory (HBM) support

Rather than selecting memory in isolation, architects evaluate how data will flow between processing units and memory to minimize bottlenecks.

Communication Interfaces

The chip must also communicate with other system components. Designers define interfaces such as:

• PCI Express (PCIe)
• Ethernet
• CXL
• High-speed chip-to-chip interconnects

The choice of interface depends on whether the chip is intended for cloud servers, embedded devices, or edge AI applications.

Step 2: System-Level Architecture Planning

Once the specifications are finalized, architects determine how the chip will be organized internally. This stage is comparable to creating the floor plan for a large building before construction begins. Instead of deciding where walls and rooms will be located, chip architects decide where computational engines, memory blocks, communication buses, and control units will reside.

Typical questions include:

• How many AI compute cores are required?
• Should the chip prioritize training, inference, or both?
• How much on-chip memory is needed?
• Which numerical formats should be supported (INT8, FP16, BF16, FP32)?
• How will data move between processing units?
• What level of redundancy is needed for reliability?

These decisions directly affect the chip’s performance, manufacturing cost, power consumption, and scalability.

Creating the Block-Level Architecture

After defining the overall system architecture, engineers divide the processor into smaller functional blocks.

A typical AI chip may include:

• Host Interface
• Instruction Decoder
• AI Compute Cluster
• Tensor Processing Engine
• Vector Processing Unit
• Matrix Multiplication Engine
• On-Chip SRAM
• Cache Controller
• Memory Controller
• DMA Engine
• Security Processor
• Clock Generation Unit
• Power Management Controller
• High-Speed Interconnect
• Debug and Test Logic

Each functional block is assigned to specialized engineering teams responsible for detailed implementation.

Architectural Trade-Offs

No chip can maximize every design goal simultaneously. Architects constantly balance competing requirements:

Design Objective	Typical Trade-Off
Higher Performance	Increased power consumption
Larger On-Chip Memory	Bigger silicon area and higher cost
Lower Power	Reduced maximum operating frequency
More Compute Units	Greater heat generation
Smaller Die Size	Limited room for additional features

Choosing the right balance depends on the target application. For example, a cloud AI accelerator may prioritize peak performance, whereas a smartphone NPU emphasizes energy efficiency.

Selecting the Semiconductor Process Node

One of the earliest strategic decisions is selecting the manufacturing process node. The process node influences transistor density, power efficiency, performance, and manufacturing cost.

Examples include:

Process Node	Typical Characteristics
7 nm	Mature, cost-effective, widely used for AI accelerators
5 nm	Higher transistor density and lower power consumption
4 nm	Optimized performance with incremental efficiency gains
3 nm	State-of-the-art for many high-performance AI processors
2 nm	Emerging technology offering further improvements in density and energy efficiency

Smaller process nodes generally enable more transistors within the same silicon area, allowing designers to integrate additional AI engines and larger caches. However, advanced nodes also involve significantly higher design complexity and manufacturing costs.

RTL Design, Hardware Description Languages, IP Integration, and Digital Implementation

So far, we have seen how AI chips begin as an idea and progress through market research, system specifications, architecture planning, and block-level design. At this stage, engineers have defined the overall structure of the processor, but the chip still exists only as diagrams and design documents.

The next challenge is transforming these architectural concepts into a digital circuit that can eventually be fabricated on silicon. This is accomplished through Register Transfer Level (RTL) design, which serves as the bridge between high-level architecture and physical hardware.

RTL design is one of the most important stages in semiconductor development because every transistor, logic gate, and processing engine within the final AI chip originates from the RTL description. A mistake made during this phase can propagate throughout the design process, potentially leading to costly redesigns after fabrication.

This section explains how engineers convert an AI chip architecture into a digital hardware design, the programming languages they use, and how reusable intellectual property (IP) blocks help accelerate chip development.

What is Register Transfer Level (RTL) Design?

Register Transfer Level (RTL) is a hardware abstraction used to describe how digital data moves between registers and how logic operations are performed under the control of a clock signal.

Unlike software programming, where instructions execute sequentially on a processor, RTL describes hardware that operates concurrently. Every logic block, arithmetic unit, and memory controller in the design can function simultaneously, reflecting the inherently parallel nature of digital circuits.

Think of RTL as the architectural blueprint of a building. Before construction begins, architects prepare detailed drawings that specify the dimensions, structure, and relationships between different rooms. Similarly, RTL provides a detailed description of how the functional blocks of an AI chip interact with one another.

Rather than specifying the physical placement of transistors, RTL focuses on the logical behavior of the circuit. It defines:

• Data paths
• Control paths
• Arithmetic operations
• Memory access
• State machines
• Communication between hardware modules

Once verified, RTL becomes the foundation for all subsequent design stages, including synthesis, physical design, and fabrication.

Why is RTL important in AI Chip Design?

Modern AI processors contain billions of transistors and hundreds of interconnected functional units. Designing these directly at the transistor level would be impractical.

RTL provides several advantages:

• Simplifies complex hardware development.
• Enables modular and hierarchical design.
• Allows early verification through simulation.
• Supports design reuse across multiple chip generations.
• Facilitates automated synthesis into logic gates.

For example, the tensor processing engine used in one AI accelerator can often be refined and reused in future processors with minimal changes, reducing development time and engineering effort.

Understanding Hardware Description Languages (HDLs)

RTL is written using Hardware Description Languages (HDLs). These languages allow engineers to describe digital hardware in a textual form that can later be synthesized into physical logic gates.

Unlike programming languages such as Python or C++, HDLs describe hardware structures rather than sequences of software instructions.

A useful analogy is to compare writing software with designing a factory.

• A software program describes what a worker should do step by step.
• An HDL describes how the entire factory is built, including every machine, conveyor belt, and control system operating simultaneously.

This distinction is essential because digital circuits execute many operations in parallel.

The most widely used HDLs include:

• Verilog
• VHDL
• SystemVerilog

Each language has unique strengths and is widely supported by Electronic Design Automation (EDA) tools.

Verilog

Verilog is one of the most widely adopted HDLs in the semiconductor industry. It was developed to provide a concise and efficient method for describing digital logic.

Its syntax resembles the C programming language, making it relatively easy for engineers with software backgrounds to learn.

Verilog is commonly used for:

• Arithmetic Logic Units (ALUs)
• Memory controllers
• Bus interfaces
• AI accelerator modules
• Pipeline control logic

Because of its simplicity and widespread tool support, Verilog remains popular for commercial semiconductor development.

VHDL

• VHDL (VHSIC Hardware Description Language) was originally developed for the U.S. Department of Defense as part of the Very High-Speed Integrated Circuit (VHSIC) program.
• Compared with Verilog, VHDL emphasizes strong typing and explicit declarations, making it particularly suitable for large, safety-critical projects.
• Many aerospace, defense, and industrial systems continue to rely on VHDL due to its rigorous design methodology and long-term maintainability.
• Although its syntax is more verbose, VHDL helps reduce design ambiguity and improve code readability.

SystemVerilog

SystemVerilog extends the capabilities of Verilog by incorporating advanced language features that support both design and verification.

It has become the preferred language for developing modern AI processors because it simplifies the creation of highly complex digital systems.

Key advantages include:

• Object-oriented programming features
• Enhanced data structures
• Assertions for verification
• Interfaces
• Randomized testing
• Functional coverage

Today, many leading semiconductor companies use SystemVerilog throughout both the design and verification processes.

Modular Design Approach

Designing an AI processor as one enormous hardware block would be extremely difficult to manage. Instead, engineers divide the processor into smaller, reusable modules.

Typical modules include:

• Tensor Processing Unit
• Matrix Multiplication Engine
• Vector Processor
• DMA Controller
• Cache Controller
• Memory Controller
• PCIe Interface
• Clock Generator
• Power Controller
• Security Processor

Each module is designed, verified, and tested independently before being integrated into the complete chip.

This modular approach offers several benefits:

• Easier debugging
• Better code reuse
• Parallel development by multiple engineering teams
• Simplified maintenance
• Faster verification

RTL Coding Methodology

Writing RTL involves much more than simply describing digital logic. Engineers follow well-established coding methodologies to ensure that designs remain reliable, maintainable, and synthesizable.

A typical RTL coding workflow includes:

• Define module functionality.
• Create input and output interfaces.
• Design internal registers and combinational logic.
• Implement finite state machines where required.
• Add timing constraints.
• Simulate the design.
• Review and optimize the code.
• Perform peer code reviews.
• Verify synthesis compatibility.

Following a disciplined coding methodology reduces design errors and improves collaboration among large engineering teams.

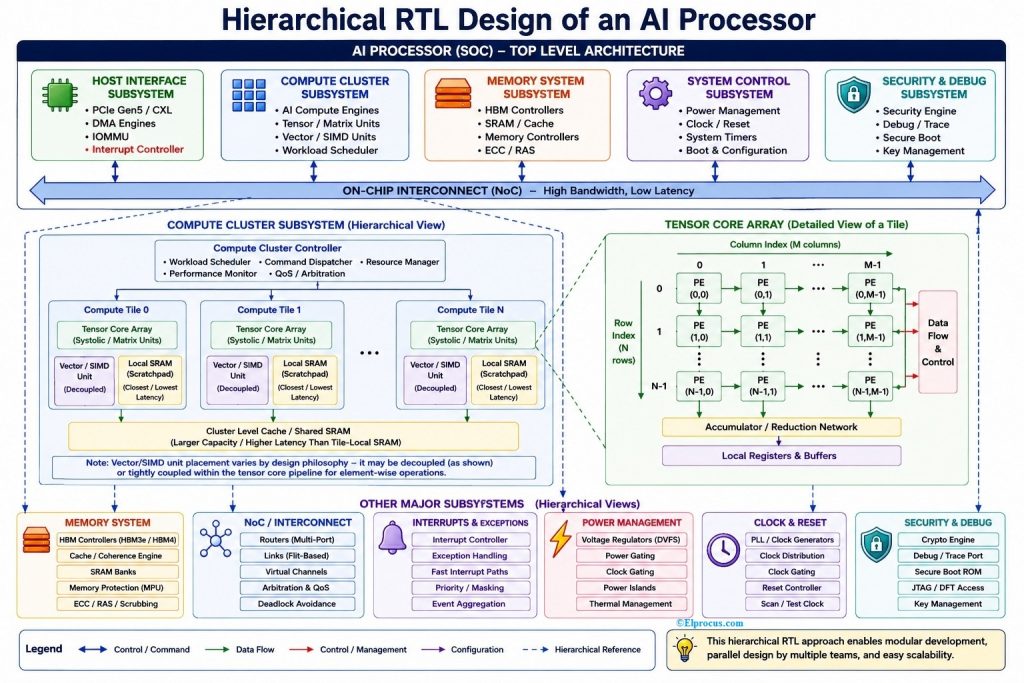

Hierarchical Design

Modern AI chips often contain hundreds of hardware modules. Managing such complexity requires a hierarchical design methodology.

Instead of treating the chip as one monolithic design, engineers organize it into multiple levels.

This organization allows different engineering teams to work independently while maintaining a coherent overall architecture.

Intellectual Property (IP) Cores

Designing every hardware block from scratch would significantly increase development time and cost. Instead, semiconductor companies rely heavily on Intellectual Property (IP) cores, which are pre-designed and verified hardware modules.

An IP core functions much like a reusable software library. Rather than reinventing a standard component, engineers integrate an existing design that has already been validated.

Common IP cores used in AI chips include:

• PCI Express controllers
• DDR and HBM memory controllers
• Ethernet interfaces
• USB controllers
• Clock generators
• Security modules
• DMA engines
• Cache controllers
• Debug interfaces

By reusing proven IP blocks, companies reduce risk, shorten development cycles, and improve overall design reliability.

Soft IP, Firm IP, and Hard IP

IP cores are generally classified into three categories:

Soft IP

Delivered as synthesizable RTL code, Soft IP offers maximum flexibility. Designers can modify and optimize it for different semiconductor technologies.

Firm IP

Firm IP is provided as an optimized netlist. It offers less flexibility than Soft IP but provides more predictable performance.

Hard IP

• Hard IP is delivered as a fully customized physical layout optimized for a specific fabrication process.
• Examples include high-speed SerDes interfaces, PLLs, and advanced memory macros.
• Because Hard IP is already optimized for manufacturing, it typically delivers the highest performance and lowest power consumption.

IP Integration

Once individual IP blocks are selected, they must be integrated into the overall AI chip architecture.

This involves:

• Connecting communication interfaces
• Matching clock domains
• Resolving data-width differences
• Integrating interrupt systems
• Configuring address maps
• Ensuring protocol compatibility
• Verifying timing relationships

Improper IP integration can introduce subtle design flaws that may not become apparent until later verification stages, making careful planning and validation essential.

Functional Verification: Ensuring the AI Chip Works Correctly Before Fabrication

After completing the Register Transfer Level (RTL) design and integrating all required Intellectual Property (IP) blocks, engineers have a digital description of the AI processor. However, this description is only a design specification—it has not yet been converted into physical hardware.

Before the design proceeds to logic synthesis and silicon fabrication, engineers must answer one critical question:

“Will the chip function exactly as intended under every possible operating condition?”

Finding the answer requires a comprehensive process known as functional verification.

Functional verification ensures that every hardware block performs according to the design specification, every communication interface operates correctly, and every possible operating scenario has been evaluated before manufacturing begins.

Skipping this stage is not an option. A single undetected design error can render an entire wafer of fabricated chips unusable, resulting in substantial financial losses and project delays.

Why is Functional Verification so Important?

Imagine constructing a skyscraper without first checking whether the elevators work, the electrical wiring is correct, or the emergency systems function properly.

Even if the building appears complete, hidden faults could make it unsafe or unusable.

The same principle applies to semiconductor design.

Once an AI chip reaches the fabrication stage, modifying its internal circuitry becomes virtually impossible. Correcting even a minor logic error often requires redesigning the chip and repeating expensive manufacturing steps.

Functional verification helps engineers identify and eliminate these issues while the design still exists as digital code.

Objectives of Functional Verification

Verification engineers evaluate the design to ensure that it:

• Performs every intended function correctly.
• Handles normal and abnormal operating conditions.
• Produces accurate outputs for all valid inputs.
• Recovers safely from unexpected situations.
• Meets timing and synchronization requirements.
• Communicates reliably with external devices.
• Operates consistently across all supported configurations.

These objectives help ensure that the final silicon behaves exactly as expected.

Verification vs. Validation

Although these terms are often used interchangeably, they have distinct meanings in semiconductor engineering.

Verification	Validation
Checks whether the hardware has been designed correctly.	Confirms that the completed chip satisfies user and market requirements.
Performed before fabrication.	Performed after silicon is manufactured.
Uses simulations and digital models.	Uses actual hardware testing.
Detects design errors.	Evaluates real-world functionality and performance.

A useful way to remember the difference is:

• Verification: Did we build the chip correctly?
• Validation: Did we build the correct chip?

Developing Verification Plans

Before testing begins, verification engineers prepare a detailed verification plan.

This document identifies every feature that must be tested, including:

• Instruction execution
• Tensor processing
• Matrix multiplication
• Cache operations
• Memory transfers
• DMA functionality
• Interrupt handling
• PCI Express communication
• Security modules
• Power management
• Error recovery
• Clock switching
• Reset behavior

Large AI processors may require thousands of individual verification scenarios to ensure comprehensive coverage.

Testbenches

• A testbench is a virtual environment used to evaluate the RTL design.
• Instead of testing the chip on physical hardware, engineers create software models that generate input signals, monitor outputs, and compare the observed behavior with expected results.
• You can think of a testbench as a driving simulator.
• Rather than testing a newly designed car directly on public roads, manufacturers first evaluate it under thousands of simulated conditions, including rain, snow, heavy traffic, and emergency braking.
• Similarly, testbenches expose an AI processor to a wide range of operating scenarios before it is manufactured.

A typical testbench performs the following tasks:

• Generates input stimuli.
• Applies clock and reset signals.
• Simulates external devices.
• Monitors outputs.
• Detects incorrect behavior.
• Produces detailed reports for engineers.

Directed Testing

The simplest verification approach is directed testing.

In directed tests, engineers manually define specific input conditions and verify that the hardware produces the expected output.

For example:

• Multiply two matrices.
• Transfer data to memory.
• Execute an AI instruction.
• Trigger an interrupt.
• Reset the processor.

Directed tests are excellent for verifying individual features but become impractical for extremely complex processors with billions of possible operating conditions.

Constrained Random Verification

• Modern AI chips contain so many possible input combinations that manually writing every test would be impossible.
• Instead, verification engineers use constrained random testing.
• In this approach, software automatically generates thousands—or even millions—of legal test scenarios while following predefined design constraints.

Advantages include:

• Discovers unexpected bugs.
• Exercises unusual operating conditions.
• Improves overall verification coverage.
• Reduces manual effort.
• Increases design robustness.

Constrained random verification has become a standard methodology for modern semiconductor development.

Assertions

An assertion is a statement embedded within the RTL or verification environment that continuously checks whether the design behaves correctly.

For example, an assertion may verify that:

• A memory request always receives a response.
• A data packet is never corrupted.
• Two processors never access the same resource simultaneously.
• Clock synchronization remains valid.
• Reset signals propagate correctly.

If an assertion fails during simulation, engineers immediately receive detailed diagnostic information, making debugging much easier.

Functional Coverage

Testing every possible input combination of a modern AI processor is practically impossible.

Instead, engineers use functional coverage to measure how thoroughly the design has been exercised.

Coverage metrics answer questions such as:

• Were all instructions executed?
• Were all cache states tested?
• Were all AI compute engines activated?
• Were error conditions exercised?
• Were power-saving modes verified?
• Were all communication interfaces tested?

Coverage reports help engineers identify untested portions of the design before sign-off.

Code Coverage

In addition to functional coverage, verification tools measure code coverage.

Code coverage evaluates whether every portion of the RTL source code has been executed during simulation.

Typical code coverage metrics include:

• Statement coverage
• Branch coverage
• Condition coverage
• Toggle coverage
• Finite State Machine (FSM) coverage

High code coverage provides greater confidence that hidden design bugs are less likely to remain undiscovered.

RTL Simulation

RTL simulation is the primary technique used to verify digital hardware.

Simulation tools execute the RTL code while applying various test scenarios and recording the resulting waveforms.

During simulation, engineers observe:

• Register values
• Data transfers
• Clock behavior
• Memory operations
• State transitions
• Interface timing
• AI instruction execution

Waveform viewers allow engineers to inspect signal behavior over time, making it easier to identify the root cause of design failures.

Debugging Design Errors

No complex semiconductor project is free from bugs.

Common RTL issues include:

• Incorrect state transitions
• Arithmetic overflows
• Memory access violations
• Synchronization errors
• Race conditions
• Clock domain crossing problems
• Data corruption
• Deadlocks

Verification engineers use debugging tools to trace signals through the design and determine precisely where incorrect behavior originates.

Because AI processors contain hundreds of interconnected modules, debugging often requires collaboration among RTL designers, architects, and verification specialists.

Clock Domain Crossing (CDC) Verification

Modern AI chips frequently operate with multiple clock domains.

For example:

• Tensor cores may run at one frequency.
• Memory controllers at another.
• PCIe interfaces at a third.
• System management logic at a lower frequency.

Whenever data crosses from one clock domain to another, synchronization issues can occur.

Clock Domain Crossing (CDC) verification ensures that these transfers occur safely without introducing metastability or data corruption.

CDC analysis has become an essential verification step for high-performance AI processors.

Reset Verification

A processor must always initialize correctly after power-up or during system recovery.

Reset verification confirms that:

• Registers initialize properly.
• Memory enters a known state.
• Clock generators stabilize.
• Power controllers activate correctly.
• AI compute engines begin operation safely.

Improper reset behavior can cause intermittent failures that are extremely difficult to diagnose after fabrication.

Low-Power Verification

Power efficiency is a major design objective for AI chips, particularly in smartphones and edge devices.
Verification engineers therefore evaluate:

• Clock gating
• Power gating
• Sleep modes
• Wake-up sequences
• Dynamic voltage scaling
• Power domain transitions

Ensuring correct low-power operation helps maximize battery life while maintaining reliable system performance.

AI Chip Manufacturing Process is a highly structured and collaborative engineering process that begins long before a single transistor is fabricated on silicon. As discussed in this article, the journey starts with understanding market requirements, defining product specifications, and carefully planning the chip architecture to meet performance, power, memory, and scalability goals. These early decisions establish the foundation upon which every subsequent design stage is built.

Once the architecture is finalized, engineers translate the design into Register Transfer Level (RTL) descriptions using Hardware Description Languages (HDLs) such as Verilog, VHDL, and SystemVerilog. Through modular design techniques and the integration of proven Intellectual Property (IP) cores, complex AI processors can be developed more efficiently while maintaining flexibility, scalability, and reliability.

However, creating RTL code is only part of the challenge. Before an AI chip can be manufactured, it must undergo rigorous functional verification to ensure that every hardware module operates correctly under millions of possible operating conditions. Using advanced verification methodologies—including testbenches, simulation, assertions, constrained-random testing, coverage analysis, and debugging—engineers identify and eliminate design flaws while the chip still exists as digital code. This verification-first approach significantly reduces development risks, shortens time-to-market, and prevents costly silicon re-spins after fabrication.

Modern AI processors often integrate billions of transistors, hundreds of functional modules, and sophisticated AI acceleration engines, making verification one of the most time-consuming and critical phases of semiconductor development. In many projects, verification consumes more engineering effort than RTL design itself because even a minor design error can compromise the functionality of an entire chip.

Understanding the design and verification stages provides valuable insight into the complexity behind today’s AI hardware. Every AI chip powering applications such as generative AI, autonomous vehicles, robotics, cloud computing, and intelligent edge devices undergoes these carefully managed processes before entering production.

In the next part of this AI Chip Manufacturing Process series, we’ll move beyond digital design and verification to explore how verified RTL designs are transformed into physical hardware. We’ll discuss logic synthesis, gate-level netlists, place-and-route, clock tree synthesis, timing closure, design rule checking (DRC), layout-versus-schematic (LVS) verification, and tape-out—the essential steps that prepare an AI chip for semiconductor fabrication. These stages bridge the gap between a verified digital design and the creation of the silicon wafer that eventually becomes a high-performance AI processor.

Key Takeaways

• AI chip development begins with defining market needs, performance targets, and system specifications.
• System architects create a block-level architecture that balances performance, power consumption, memory bandwidth, and manufacturing cost.
• RTL design converts architectural concepts into synthesizable digital hardware using HDLs such as Verilog, VHDL, and SystemVerilog.
• Modular design and reusable IP cores accelerate development while improving reliability and reducing engineering effort.
• Functional verification validates every hardware feature through simulation, assertions, testbenches, constrained-random testing, and coverage analysis.
• Verification is one of the most critical phases of AI chip development, helping detect and eliminate design errors before fabrication.

A thoroughly verified RTL design forms the foundation for the physical implementation stages that ultimately produce the final semiconductor device.
