AMD Threadripper PRO 7000WX : Specifcations, Architecture, Working, Differences & Its Applications

The AMD Ryzen Threadripper PRO 7000 WX-Series processors were first announced on Oct 19, 2023. After that, it will be officially available to purchase on November 21, 2023. These high-end workstation processors replaced the Zen 3 5000WX line with the Zen 4 architecture to deliver 30% quick performance than earlier generations in complex, heavy electronics projects. Therefore, these are available for both DIY & OEM workstations with 96-core models. This processor is designed with management and enterprise-level safety features for professionals who require high core counts for complex CAD, computational design & rendering. It provides a huge leap over its predecessors, with reports citing up to a 75% lead in rendering tasks. This article elaborates on the AMD Threadripper PRO 7000WX processor, working & its applications.

What is an AMD Threadripper PRO 7000WX?

The AMD Threadripper PRO 7000WX is a superior workstation processor series that uses the 5nm Zen 4 architecture by providing up to 96 cores, 128 PCIe 5.0 lanes & 192 threads. These are the fastest workstation CPUs that provide outstanding performance gains over earlier generations & the Intel Xeon W-3400 competitors. These processors are designed for professionals in AI, engineering & media, which deliver excellent rendering & simulation performance. It represents a major upgrade over earlier generations in core count, efficiency & speed. These processors are frequently connected with WRX90/ TRX50 motherboards and need significant cooling because of their high 350W TDP.

How does AMD Threadripper PRO 7000WX Work?

The AMD Ryzen Threadripper PRO 7000 WX-Series processor works with a high-density multi-die architecture using 5nm “Zen 4” technology by delivering up to 192 threads & 96 cores. These processors combine high-speed core performance for lightly threaded tasks with huge multi-threaded throughput for heavy rendering & simulation tasks. All these can be managed by the Infinity Fabric of AMD. The 7000 WX-Series signifies a major leap from the 5000WX generation.

It provides 28% on average higher single-thread performance & 41% quicker multi-thread computing. The AMD Threadripper PRO 7000WX-Series processors work as workstation-class CPUs by using a chiplet-based design with 128 PCIe 5.0 lanes & 8-channel DDR5 memory. It is designed especially for complex simulations, AI development & high-end rendering by providing better multitasking capability than standard desktop chips.

Specifications

The AMD Threadripper PRO 7000WX processor specifications include the following.

• It is a leading high-end workstation processor line.
• This processor uses the 5nm Zen 4 architecture.
• It features up to 96 cores and 192 threads.
• Its maximum boost clock range is from 5.1 GHz to 5.3 GHz based on model & base CLK ranges from 2.5 GHz to 4.7 GHz.
• It supports both TRX50 & WRX90 platforms for workstation processors.
• Memory is 8-Channel DDR5-5600.
• It uses up to 128 PCIe 5.0 lanes.
• It provides up to 480MB of total cache (L3 Cache = 384 MB & 96 MB L2).
• It uses the sTR5 Socket.
• This processor provides faster rendering up to 47% over competing Xeon W-3400 processors.
• This processor supports complete PRO features.
• Its performance is up to 28% faster single-thread & 41% faster multi-thread than the 5000WX
• generation.
• It supports AMD PRO technologies like Secured-Core PC & AMD Memory Guard.
• It features 350W of default TDP.
• It uses robust cooling solutions due to increased thermal demands & high power consumption.

AMD Threadripper PRO 7000WX Product Family

Model	Cores	Threads	Base Clock	Boost Clock
Threadripper PRO 7995WX	96	192	192 2.5 GHz	Up to 5.1 GHz
Threadripper PRO 7985WX	64	128	128 3.2 GHz	Up to 5.1 GHz
Threadripper PRO 7975WX	32	64	4.0 GHz	Up to 5.3 GHz
Threadripper PRO 7965WX	24	48	4.2 GHz	Up to 5.3 GHz
Threadripper PRO 7955WX	16	32	4.5 GHz	Up to 5.3 GHz
Threadripper PRO 7945WX	12	24	4.7 GHz	Up to 5.3 GHz

This extensive lineup enables professionals to choose a processor based on workload requirements and budget without sacrificing enterprise-class features such as ECC memory support, AMD PRO security technologies, and extensive PCIe connectivity.

Manufacturing Technology

The AMD Threadripper PRO 7000WX family utilizes an advanced chiplet-based manufacturing approach that combines multiple process nodes for optimal performance and efficiency.

Component	Manufacturing Process
Zen 4 Compute Chiplets (CCD)	TSMC 5nm
I/O Die (IOD)	TSMC 6nm

The use of TSMC’s 5nm technology allows AMD to significantly increase transistor density while reducing power consumption compared to previous Zen 3 processors. The separate 6nm I/O die manages memory, PCIe connectivity, Infinity Fabric communication, and external interfaces efficiently.

This heterogeneous design improves manufacturing yield, lowers production costs, and enables AMD to scale the processor family up to 96 cores while maintaining excellent performance-per-watt characteristics.

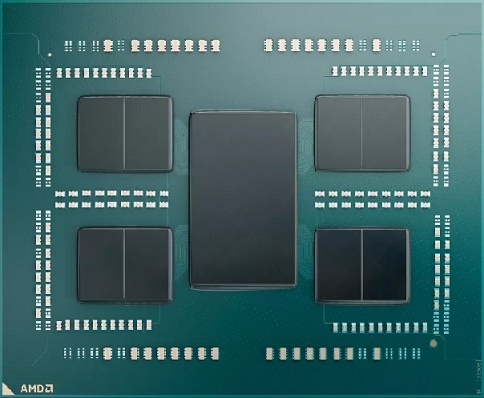

AMD Threadripper PRO 7000WX Architecture

The AMD Threadripper PRO 7000 WX-Series processor is based on the Zen 4 micro-architecture. It provides a ~14% IPC increase over the “Zen 3” architecture and approximately 16.9% faster boost clocks. So it provides huge performance gains for rendering & simulations. The PRO 7000WX line is separate from the normal 7000 series by providing higher core counts & significantly more PCIe lanes.

Components

AMD Threadripper PRO 7000WX Architecture can be built with different components like: Zen 4 Compute Dies, I/O Die, AMD Infinity Fabric, Cache, 8-Channel DDR5 Memory Controller, Cache Hierarchy, Cores & Threads, 128 PCIe 5.0 Lanes, WRX90 & TRX50 Chipsets, AMD PRO Technologies & 350W TDP.

Zen 4 Compute Dies

Zen 4 Compute Dies or CCDs are advanced 5nm chiplets in AMD Threadripper PRO 7000WX processors. These are designed for high-density performance by allowing up to 96 cores & and 192 threads with up to 12 CCDs next to a 6nm I/O die. Therefore, they feature a 14% IPC increase over Zen 3 by supporting PCIe 5.0 & DDR5 memory for multi-threaded tasks.

I/O Die

The I/O Die is an essential, 6nm TSMC-manufactured chiplet in this processor architecture. It handles all uncore functions by connecting up to 12 Zen 4 CCDs to external peripheral devices & memory. This centralized I/O hub provides workstation-class connectivity with 8-channel DDR5 & 128 usable PCIe Gen 5.0 lanes support.

AMD Infinity Fabric

The AMD Infinity Fabric is a high-performance interconnect system in this chipset that connects up to 96 Zen 4 cores to the central I/O die via 12 compute dies. This fabric facilitates 8-channel DDR5 memory access by supporting 128 PCIe 5.0 lanes to provide low-latency & huge bandwidth communication. This series represents a major rise in performance for workstations that are designed for high-core count applications.

Cache

The AMD Threadripper PRO 7000 WX-Series processor offers up to 384MB of L3 cache & doubling the L2 cache for each core compared to earlier generations. This cache performs as a high-speed data pool in this architecture for 96 cores to ensure stable data throughput for heavy rendering, simulation & generative design tasks. These processors deliver a high bandwidth per core & a high on-chip storage capacity to handle huge data sets.

Cache Type	Capacity
L1 Cache	80 KB per core
L2 Cache	1 MB per core
L3 Cache	Up to 384 MB Shared
Total Cache	Up to 480 MB

Each Zen 4 core includes dedicated L1 and L2 caches, while large shared L3 caches are distributed across the compute chiplets. This architecture minimizes data fetch delays and improves performance in workloads such as rendering, software compilation, engineering simulations, and AI inference.

AI and Machine Learning Performance

Artificial Intelligence has become one of the fastest-growing workstation applications, and the Threadripper PRO 7000WX platform is specifically designed to support AI development workflows.

Key AI-related advantages include:

• Up to 96 cores and 192 threads for data preprocessing.
• Support for multiple high-end GPUs.
• 128 PCIe Gen 5.0 lanes for maximum GPU bandwidth.
• Massive memory capacity for large AI datasets.
• High-speed storage connectivity for training data.

Typical AI workloads include:

• Large Language Model (LLM) development.
• Computer Vision applications.
• Stable Diffusion image generation.
• Deep Learning model training.
• AI inference.
• Scientific AI simulations.

While GPUs perform most neural network computations, the Threadripper PRO platform ensures that data preparation, orchestration, storage management, and multi-GPU communication never become bottlenecks.

Benchmark Performance

The AMD Threadripper PRO 7000WX family consistently ranks among the fastest workstation processors available. Typical benchmark results show substantial gains over previous generations and competing workstation CPUs.

Benchmark Performance	Characteristics
Cinebench 2024 Multi-Core	Industry-leading scores
Blender Rendering	Excellent rendering throughput
V-Ray Benchmark	Exceptional ray-tracing performance
SPECworkstation	Superior engineering workload performance
PugetBench Premiere Pro	Outstanding content creation results
Unreal Engine Compilation	Faster build times

In highly parallel workloads, the flagship 7995WX frequently outperforms competing workstation processors by substantial margins due to its 96-core design and massive memory bandwidth.

Power Consumption and Cooling Requirements

High workstation performance requires robust power delivery and thermal management.

Parameter	Value
Default TDP	350 W
Maximum Package Power	400 W+
Recommended PSU	1200 W or Higher
Cooling Solution	High-End Air Cooler or 360mm AIO
Workstation Chassis	Full Tower Recommended

For sustained rendering, simulation, and AI workloads, professional liquid cooling solutions are strongly recommended. Proper airflow and thermal management help maintain maximum boost frequencies and system stability.

Compatible Motherboards

The Threadripper PRO 7000WX platform supports two primary workstation chipsets.

WRX90 Platform

The WRX90 platform is designed for enterprise and professional workstation environments.

Features include:

• Full 128 PCIe 5.0 lanes.
• 8-channel DDR5 memory.
• Advanced remote management.
• Enterprise security features.
• Maximum expansion capabilities.

Best suited for:

• AI workstations.
• Scientific computing.
• Engineering simulations.
• Visual effects production.

TRX50 Platform

The TRX50 platform targets content creators and high-end enthusiasts.

Features include:

• Reduced platform cost.
• Strong PCIe expansion capabilities.
  DDR5 memory support.
• Excellent workstation performance.

Best suited for:

• Video editing.
• Software development.
• 3D rendering.
• CAD applications.

DDR5 Memory Controller

The 8-Channel DDR5 Memory Controller is a server-grade memory subsystem with high bandwidth, designed for professional workstation computing. So, it supports huge data throughput that allows the processor to interface through eight distinct 64-bit memory channels simultaneously. It uses registered DDR5 ECC memory to support up to 2TB of RAM.

This controller is a foundation of the Storm Peak architecture that provides the required bandwidth to feed up to 96 high-performance CPU cores. The Threadripper PRO 7000 WX-Series with its 8-channel controller is designed for enterprise workstations requiring the highest speed & capacity compared to the non-PRO Threadripper 7000 series.

Memory Subsystem and Bandwidth

Memory performance plays a critical role in workstation workloads such as finite element analysis (FEA), computational fluid dynamics (CFD), AI model training, and scientific simulations. The Threadripper PRO 7000WX platform features an 8-channel DDR5 memory architecture that dramatically increases memory throughput compared to traditional desktop platforms.

Feature	Specification
Memory Type	DDR5 ECC RDIMM
Memory Channels	8
Maximum Capacity	Up to 2 TB
Memory Speed	DDR5-5200/5600
Error Correction	ECC Supported
Peak Memory Bandwidth	Up to ~358 GB/s

The eight-channel memory subsystem ensures that all processor cores receive sufficient data, preventing memory bottlenecks during highly parallel workloads. This is particularly beneficial for applications involving large datasets, virtual machines, AI training, and real-time simulation environments.

Cores & Threads

This processor features up to 96 cores & 192 threads, which operate at a 350W TDP. These are designed for professional workstations requiring the highest compute power, challenging directly within the high-end workstation market.

128 PCIe 5.0 Lanes

The AMD Ryzen Threadripper PRO 7000 WX-Series processor supports the WRX90 chipset, providing high-speed data pathways like 128 PCIe 5.0 lanes. These lanes allow huge bandwidth for multi-GPU configurations, AI acceleration & high-speed storage. This platform can provide up to 96 cores with 8-channel DDR5 memory. These lanes double the bandwidth for each lane over 4.0, essential for complex rendering, AI/ML training & high-performance computing workflows.

WRX90 & TRX50 Chipsets

The WRX90 chipset provides maximum performance with 128 PCIe 5.0 lanes, 8-channel memory & enterprise-grade safety for these CPUs. Similarly, the TRX50 chipset is a “high-end desktop platform that supports 48-80 PCIe lanes & 4-channel memory, designed for a blend of value & performance.

AMD PRO Technologies

This processor uses AMD PRO technologies to provide enterprise-grade safety, reliability & manageability for professional workstations. It is built on “Zen 4” architecture with 5nm technology, 128 PCIe 5.0 lanes, 8-channel DDR5 memory & up to 96 cores by targeting complex simulation, AI workloads & rendering.

TDP

This processor features 350W of default TDP across the whole lineup. This signifies an increase from the earlier 5000 WX-Series by providing superior performance for 24-core to 96-core models.

Cost Analysis and Pricing

In addition to processor costs, buyers should consider expenses associated with WRX90/TRX50 motherboards, DDR5 ECC memory, professional cooling solutions, and high-capacity power supplies.

Software System

The AMD Threadripper PRO 7000 WX-Series processor is a high-performance workstation platform that normally runs Linux or Windows 11 Pro 64-bit. The software system in this processor maximizes the performance of high-core-count processors through specialized management tools, security features, & through optimized drivers. Therefore, these software components are essential for system stability maintenance, improving productivity, and enabling higher hardware functionality within professional workflows like 3D rendering, simulation, & AI training.

Who Should Buy AMD Threadripper PRO 7000WX?

The AMD Threadripper PRO 7000WX series is ideal for professionals who require exceptional computational performance and extensive expansion capabilities.

Recommended for:

• AI researchers and data scientists.
• Mechanical and civil engineers.
• CAD and CAE professionals.
• VFX artists and animation studios.
• Scientific researchers.
• Software developers compiling large codebases.
• Architects and designers.
• Professional content creators.

However, these processors are generally excessive for gaming, web browsing, office productivity, and lightly threaded applications where mainstream Ryzen 9 processors often provide better value.

AMD Threadripper PRO 7000WX Vs Intel Xeon W-3400

The difference between AMD Threadripper PRO 7000WX Vs Intel Xeon W-3400 processors includes the following.

AMD Threadripper PRO 7000WX	Intel Xeon W-3400
It is a top-tier workstation processor	It is a high-end Sapphire Rapids workstation processor.
This processor is based on 5nm Zen 4 architecture.	This processor is based on the Sapphire Rapids micro-architecture.
It features 96 cores and 192 threads.	It features 56 cores & 112 threads
Its base frequency ranges from 2.5 GHz to 4.5 GHz.	Its base frequencies range from 1.9 GHz to 3.2 GHz.
Its boost frequency ranges from 5.3 GHz to 5.4 GHz.	Its boost frequency is up to 4.8 GHz
It features an sTR5 socket.	It uses an LGA 4677 socket.
This processor provides 128 PCIe 5.0 lanes	This processor provides up to 112 PCIe 5.0 lanes
Its cache is up to 384MB L3.	Its cache is up to 105MB L3
Memory is 8-channel DDR5 support, up to 2TB capacity & up to 5200 MT/s.	It uses 8-channel DDR5 ECC RDIMM for up to 4TB of memory support.

AMD Threadripper PRO 7000WX vs Ryzen 9 9950X

While the Ryzen 9 9950X excels in gaming and mainstream productivity, the Threadripper PRO 7000WX dominates professional workstation workloads. The Ryzen 9 9950X provides fewer cores, fewer PCIe lanes, and dual-channel memory, whereas the Threadripper PRO platform offers up to 96 cores, 128 PCIe Gen 5.0 lanes, and 8-channel DDR5 memory support. For rendering, AI training, engineering simulations, and virtualization, the Threadripper PRO series delivers substantially higher performance and scalability.

Is AMD Threadripper PRO 7000WX Worth It?

For professionals whose productivity directly depends on workstation performance, the Threadripper PRO 7000WX series offers an exceptional return on investment. The combination of massive core counts, enterprise-grade reliability, extensive memory capacity, and unparalleled I/O connectivity makes it one of the most capable workstation platforms available today.

Organizations involved in engineering, AI development, scientific research, and digital content creation can significantly reduce project completion times, making the platform’s premium cost worthwhile over the long term.

Advantages

The advantages of the AMD Threadripper PRO 7000WX processor include the following.

• It delivers up to 96 cores & 192 threads by providing unparalleled multi-threaded performance, crucial for rendering & simulation.
• 128 PCIe Gen5 lanes provide better I/O for several GPUs & high-speed NVMe storage by supporting 8-channel DDR5 memory to provide up to 2TB of massive bandwidth.
• They constantly outperform Intel Xeon W-3400 processors by showing up to 94% higher performance within certain applications.
• DDR5-5200 support provides up to 1.63x more bandwidth for each core than earlier generations.
• It features PRO technologies like management tools & advanced security features appropriate for enterprise environments.
• It provides up to 28% faster single-threaded performance for higher clock speeds & CAD over 5GHz.
• It is built on 5nm Zen 4 architecture with 13% average IPC improvement & extensively high base or boost frequencies.

Disadvantages

The disadvantages of the AMD Threadripper PRO 7000WX processor include the following.

• These chips are more expensive than standard consumer processors like Intel Core i9/ Ryzen 9.
• The high core counts are ineffective or can even result in performance penalties for gaming, lightly threaded & general-purpose applications.
• These processors are power-hungry with high TDPs that need specific cooling solutions to avoid thermal throttling, particularly below sustained & maximum-core workloads.
• This is a specialized tool for scientific simulation, complex video production & 3D rendering, but it is not suitable for daily productivity systems or general gaming.
• This processor is not available with a thermal solution within the box, which adds to the cost of the whole system.
• The 96-core 7995WX is 12% faster in some rendering packages than the 64-core 7985WX, despite having 50% more cores, leading to diminishing returns for the extra cost.
• The PRO WX-Series needs high-end TRX50 or specific WRX90 motherboards, which are expensive & may have limited availability.

Applications

The applications of the AMD Threadripper PRO 7000WX processor include the following.

• The AMD Threadripper PRO 7000WX processor handles complex simulations, high-level 3D modeling & generative design with quick iterations & design analysis.
• This series allows developers to significantly decrease code compile times.
• The high core count is perfect for visual effects (VFX), managing complex post-production and rendering photorealistic imagery workflows in Premiere Pro/DaVinci Resolve software.
• The 128 PCIe 5.0 lanes of this processor can support multi-GPU configurations, which are significant for accelerating ML/AI model training.
• It is used in industries that need heavy data processing, like automotive simulation & manufacturing.
• It is optimized for simulation, editing & heavy rendering tasks in software like DaVinci Resolve, After Effects & Adobe Premiere Pro.
• It is perfect for managing complex simulations & large-scale software builds.
• This processor is used for complex asset management & real-time rendering within Unreal Engine.
• It enables quick, production-grade rendering within Corona, Blender & V-Ray, gaining from high-core count & sustained performance.
• It supports generative design, photorealistic visualization & complex simulation for designing & civil engineering projects.

FAQs

What is the difference between Threadripper 7000 & PRO 7000WX?

The standard HEDT 7000 series supports 48 PCIe 5.0 lanes & 4-channel memory, whereas the PRO version supports 128 PCIe 5.0 lanes & 8-channel memory.

What socket do AMD Threadripper PRO 7000WX use?

AMD Threadripper PRO 7000WX processors use the sTR5 socket.

What is the performance development over 5000 WX-Series?

They provide significant improvements, frequently 20 to 30% faster in different apps, like 35–45%, DaVinci Resolve, or more, within heavy CPU rendering.

Does this series support ECC RAM?

Yes, this series can support Registered DDR5 ECC memory.

Are they good for AI?

Yes, they are mostly designed to speed up GPU-centric workloads by providing quick performance for AI training & inferencing. In addition, it supports 128 PCIe 5.0 lanes for multi-GPU systems.

The AMD Threadripper PRO 7000 WX-Series represents one of the most powerful workstation processor families ever developed, combining up to 96 Zen 4 cores, 192 threads, 128 PCIe 5.0 lanes, and 8-channel DDR5 memory support in a single platform. Designed specifically for professionals working in engineering, scientific computing, AI development, 3D rendering, visual effects, and complex simulations, these processors deliver exceptional multi-threaded performance while maintaining strong single-thread responsiveness for demanding professional applications.

With advanced AMD PRO security technologies, enterprise-grade reliability, massive memory bandwidth, and extensive I/O capabilities, the Threadripper PRO 7000WX series removes many of the performance bottlenecks encountered in modern workstation workloads. Whether handling photorealistic rendering, machine learning model development, CAD/CAE simulations, software compilation, or content creation, these processors provide the computational power required for the most demanding professional environments.

Although the platform requires a significant investment in processors, motherboards, memory, cooling, and power delivery, its unmatched performance, scalability, and expandability make it an ideal solution for organizations and professionals seeking the highest levels of workstation computing performance. As workstation applications continue to grow in complexity, the AMD Threadripper PRO 7000 WX-Series stands as a benchmark for high-end desktop and professional workstation processing.
