Radeon RX 7900 XT : Specifications, Architecture, Working, Differences & Its Applications

The AMD Radeon RX 7900 XT is a high-end graphics card from the Radeon RX 7000 Series, launched on December 13, 2022. At launch, the Radeon RX 7900 XT carried a premium price due to its exceptional performance. But over the period, as prices declined over time, the card became a much better value. Thus, it has become a more attractive choice for high-performance gaming, particularly at 1440p & 4K resolutions. The price reduction made the graphics card a cost-effective choice and very sensible for consumers. This article offers an in-depth examination of the Radeon RX 7900 XT graphics card, its operation, and its applications.

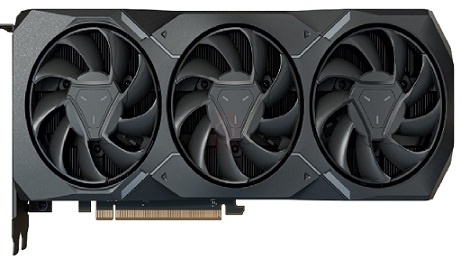

What is the Radeon RX 7900 XT Graphics Card?

The AMD Radeon RX 7900 XT is a high-performance, high-end consumer graphics card from AMD. This GPU uses RDNA 3 architecture with superior features like the FSR (FidelityFX Super Resolution) upscaling technology and hardware ray tracing for creative and game applications. It boasts high-speed 20GB of GDDR6 memory, which supports up to 4K resolutions. Therefore, it makes it a powerful option for professional content creation, creative tasks, and high-end gaming.

Specifications

The specifications of the Radeon RX 7900 XT Graphics Card include the following.

• This is a high-performance, high-end consumer graphics card.
• It uses AMD RDNA 3 architecture.
• It includes 5376 Stream Processors.
• Video memory is 20GB GDDR6
• Memory Interface is 320-bit
• Bus Standard is PCI Express 4.0
• Boost CLK is up to 2400 MHz.
• Game CLK is up to 2000 MHz.
• Display Outputs are: DisplayPort 2.1 – 2, HDMI 2.1 – 1, and USB Type-C – 1.
• Digital maximum resolution is 7680 x 4320.
• This GPU supports different technologies like AMD FidelityFX super resolution, AMD Infinity Cache, and Radeon super resolution.

How does Radeon RX 7900 XT Work?

The AMD Radeon RX 7900 XT GPU is built on AMD’s RDNA 3 architecture. This architecture features chiplet technology and advanced compute units to process graphics & accelerate performance for professional and high-resolution gaming applications. This graphics card uses dedicated AMD Infinity Cache and GDDR6 memory to deliver fast data access for high refresh rates and complex environments by supporting software like FSR (FidelityFX Super Resolution), Anti-Lag, enhancing frame rates & reducing input latency.

This high-end graphics card is designed for outstanding performance within both professional and gaming applications. It excels at 1080p, 1440p & 4K high-resolution gaming, which provides smooth gameplay and high frame rates. Its fast memory, advanced software technologies, and powerful architecture combination allow it to provide complex 3D environments by delivering the delivering an excellent gaming experience.

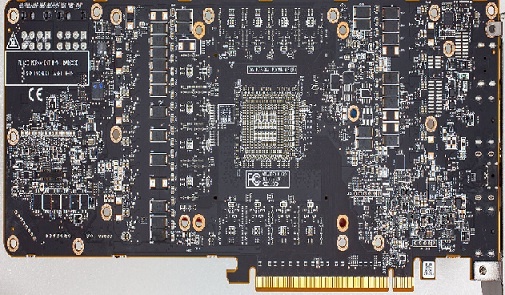

Radeon RX 7900 XT Architecture

The Radeon RX 7900 XT uses the first consumer chiplet-based GPU architecture, like RDNA 3 architecture. So, it is designed with a central, 5nm GCD (Graphics Core Die) with numerous minor, 6nm MCDs (Memory Cache Dies) for better transistor density, better power efficiency, and higher performance. In addition, the architecture also features second-generation hardware ray tracing with better Ray Accelerators, support for the latest DisplayPort 2.1 display standards, and a large Infinity Cache.

Radeon RX 7900 XT Architecture Components

The significant components of this architecture mainly include: chiplet design with a central GCD (Graphics Compute Die) and six MCDs (Memory Cache Dies). In addition, it can also have some key components like: Stream Processors -5,376, Ray Accelerators – 84, second-generation AMD Infinity Cache, and a GDDR6 memory interface – 20GB on a 320-bit bus. Therefore, it can also include the Radiance Display Engine and higher FSR (FidelityFX Super Resolution) technology for upscaling.

Navi 31 Chipset

The Navi 31 chipset in the AMD Radeon RX 7900 XT is built using TSMC’s 6nmand 5nm processes. So, it includes compute units (CUs) – 84, shader units – 5,376, and Infinity Cache – 80MB, with GDDR6 memory – 20GB by providing bandwidth – 800 GB/s. The Navi 31 GPU is an MCM (multi-chip module) design with a central GCD (Graphics Compute Die) and MCDs (Memory Cache Dies).

Chiplet Design (MCM)

The MCM in the architecture divides the functions of GPUs across different chiplets. This chiplet design is used in a consumer gaming GPU by AMD. So the MCM approach will allow AMD to optimize the usage of transistors as well as manufacturing costs. It connects a state-of-the-art GCD (Graphics Compute Die) with less critical MCDs (Memory Cache Dies).

Graphics Compute Die

The GCD in AMD Radeon RX 7900 XT is a 5nm central chiplet that structures the hub of the GPU’s RDNA 3 architecture, enclosed by 6nm MCDs (Memory Cache Dies). This die includes the major processing units like Infinity Fabric, AI Accelerators, and Shader Engines, whereas the accompanying MCDs offer the high-bandwidth Infinity Cache. The RX 7900 XT graphics card uses five active MCDs, including one dummy die to create 20 GB of memory and a 320-bit memory bus. It is a key difference from the 7900 XTX model.

Memory Cache Dies

The memory cache dies in the Radeon RX 7900 XT architecture are smaller, 6nm chiplets that surround the main 5nm GCD (Graphics Compute Die). Every MCD includes L3 Infinity Cache & a memory controller which connects to the GDDR6 memory interface and GCD. The chiplet design of memory cache dies with a 6nm process & an onboard L3 cache. It contributes to the power efficiency of the architecture & improved performance for each watt as compared to earlier generations.

Stream Processors

The stream processors in the Radeon RX 7900 XT’s RDNA 3 architecture are the basic execution units in the CUs (Compute Units) that perform many calculations for graphics & computation. This processor includes 5376 Stream Processors, which are arranged into Compute Units – 84, where every CU includes 64 Stream Processors. Thus, these Stream Processors are used for different tasks like applying textures, performing complex mathematical operations, and rendering pixels, which are essential for professional and modern gaming applications.

Ray Accelerators

Ray accelerators are specialized hardware units in the architecture that speed up ray tracing calculations. These accelerators are incorporated differently & work in tandem with the other compute units of the GPU while they execute a related function to dedicated RT cores of Nvidia. This graphics card has a single Ray Accelerator per CU (Compute Unit) for a total of 84 accelerators.

AI Accelerators

AI accelerators are dedicated hardware components in the architecture that increase performance for ML tasks significantly by accelerating essential computations, mostly matrix multiplication operations. These can work in combination with the standard compute units of the GPU. RDNA 3 introduces AI accelerators that improve AI inference workloads and certain creative applications. However, the RX 7900 XT is primarily designed as a gaming GPU rather than a dedicated AI accelerator. So, it makes the graphics card a capable tool for the development of AI on a local desktop. This hardware is designed to improve the performance of ML applications.

AMD Infinity Cache

It is a large, high-bandwidth, high-speed, and high-efficiency cache memory incorporated into the MCDs to enhance performance and decrease latency. This memory performs as a massive bandwidth amplifier to enhance power efficiency and performance by decreasing the need to access the main GDDR6 memory. This is arranged on dedicated MCDs (Memory Cache Dies), which are connected to the main GCD (Graphics Compute Die) through a high-speed interconnect. This second-generation Infinity Cache provides more bandwidth for the GPU, which leads to a significant performance increase as compared to earlier architectures.

Radiance Display Engine

This is an integrated display controller that enhances visual quality. Therefore,  it supports advanced display features like DisplayPort 2.1, HDMI 2.1b, 12-bit HDR, and the full REC2020 color space for superior color accuracy and high resolutions/refresh rates up to 8K 144Hz. In addition, it integrates RIS 2 (Radeon Image Sharpening) for image development, which works with FreeSync technology to avoid screen tearing by coordinating frame rates with the monitor.

AMD FidelityFX™ Super Resolution

This is a spatial, cutting-edge upscaling technology that improves image quality and performance by delivering high-fidelity gaming by rendering at a lower resolution & upscaling it intelligently. This open-source FSR algorithm provides quality presets that balance frame rates and image quality. It is well-matched with a wide range of hardware by allowing for significantly enhanced FPS within supported games.

Hardware Raytracing

Hardware raytracing on the architecture utilizes dedicated raytracing accelerators, which are incorporated into the Compute Units (CUs). Thus, it efficiently handles the computationally intensive tasks like simulating light, shadows, and reflections in real-time. This implementation uses the BVH (Bounding Volume Hierarchy) traversal & intersection tests, which are achieved by sending rays throughout the scene’s geometry to rapidly decide what they hit.

Radeon RX 7900 XT Software

The AMD software, like Adrenalin Edition, is used with a Radeon RX 7900 XT and provides drivers and a set of tools for system monitoring, setting management, and performance tweaking for the graphics card & well-suited AMD CPUs. So, this AMD software customizes its stream content, optimizes performance, and the gaming experience for its specific system by allowing users.

• The software includes necessary drivers that allow the graphics card to communicate with your OS (operating system) & games.
• The software settings can be adjusted by the user, like fan speeds, power limits, and clock speeds, to optimize performance for various tasks.
• This software provides real-time data on CPU and GPU usage, clock speeds, temperatures & other system metrics.
• This software allows users to stream content and record gameplay directly to other platforms or devices.
• This feature allows stream content of users from their PC to Smart TVs, mobile devices, or other PCs through Radeon graphics cards.
• The Adrenalin Edition software supports different operating systems like Linux, Windows 10, and Windows 11.

Difference between RX 7900 XT and RX 7900 XTX

Both the RX 7900 XT & RX 7900 XTX are high-end AMD Radeon GPUs. But the 7900 XTX GPU has more compute units & memory, which provides higher performance & is better suited for professional workloads and 4K gaming. The 7900 XT GPU is still an outstanding graphics card designed for 4K gaming and high-refresh-rate QHD. The difference between the RX 7900 XT and RX 7900 XTX GPUs includes the following.

Advantages

The advantages of the Radeon RX 7900 XT GPU include the following.

• This graphics card provides outstanding performance at 1440p.
• It can handle 4K resolution comfortably in most games, particularly without ray tracing.
• It provides higher raw gaming performance for AMD cards.
• This graphics card supports hardware-accelerated ray tracing by providing better visual fidelity within supported titles.
• It uses an efficient & powerful RDNA 3 architecture to deliver next-generation performance & energy efficiency.
• This card supports DisplayPort 2.1 by allowing higher refresh rates & resolutions for well-matched displays.
• The AMD Anti-Lag feature can decrease input lag to deliver a more responsive gaming experience.
• The RX 7900 XT GPU with 20GB of GDDR6 memory handles rendering complex 3D environments & large textures.
• The RDNA 3 architecture includes dedicated AI Accelerators for matrix operations.

Disadvantages

The disadvantages of the Radeon RX 7900 XT GPU include the following.

• Potential driver instability can lead to issues and crashes with fan noise and overheating on some models.
• Performance issues can occur, such as freezes, crashes, driver-related issues, etc.
• This GPU’s ray tracing performance can be considered less impressive than that of the RTX 4080.
• Certain models have been associated with loud fan noise and higher temperatures.
• It exhibits high power draw when used for media playback or multi-monitor setups, probably a driver bug.
• Its physical dimensions are quite large, so it could be a problem for some types of PC cases.
• It has fewer power connectors than other cards, which limits its overclocking potential.

Applications

The applications of the Radeon RX 7900 XT GPU include the following.

• The RX 7900 XT GPU is mainly designed for 1440p for high-refresh-rate gaming and at 4K resolution for solid performance.
• This graphics card provides significant performance improvements over earlier generations; it is capable of several content creation tasks.
• It includes a media engine to support hardware-accelerated encoding & decoding of HEVC, AV1, and H.264 codecs. Thus, it provides faster rendering and smooth playback within Adobe Premiere Pro and DaVinci Resolve applications.
• AMD has made major strides by supporting ML and AI applications on its consumer hardware with the RX 7900 XT.
• The RX 7900 XT includes robust hardware for high-quality broadcasts and stream gameplay.
• It provides superior display features that help multiple applications.

Thus, this is an overview of the Radeon RX 7900 XT graphics card, its working, and its applications. This is a strong 4K & high-refresh-rate 1440p gaming card that provides outstanding rasterization performance for its cost, particularly compared to NVIDIA’s competitors. But its ray tracing abilities are extensively weaker than NVIDIA’s offerings. This graphics card includes 20GB of GDDR6 VRAM, AV1 hardware support, and DisplayPort 2.1 to make it an excellent choice for users who prefer raw performance & price over higher ray tracing features. This graphics card is suitable for gamers who mainly play demanding titles within rasterization and desire high frame rates at 4K or 1440p without depending on ray tracing. Here is a question for you: What is a GPU?
