What is Radeon RX 9070 XT?

The Radeon RX 9070 XT from AMD’s 9000 series is a high-end graphics card that uses the latest RDNA 4 architecture built on the 4 nm process, based on the Navi 48 graphics processor. It is designed for high-performance gaming and content creation, which upgrades significant performance, particularly in ray tracing, over earlier generations. This card supports DirectX 12 Ultimate in its Navi 48 XTX variant.
The Navi 48 graphics processor is a big chip with 357 mm² & 53,900 million transistors in a die area. It features texture mapping units, tensor cores, raytracing acceleration cores, ROPs, and shading units, where tensor cores help in improving the speed of ML applications. Please refer to our in-depth article on AI Chips Basics.

In addition, AMD has equipped the Radeon RX 9070 XT with 16 GB of GDDR6 memory via a 256-bit memory interface. The GPU operating frequency ranges from 1660 MHz to 2970 MHz, where memory runs at 2518 MHz. The Radeon RX 9070 XT is a dual-slot card that draws power from two 8-pin power connectors with a power draw rated at a maximum 304 W. Its display outputs can be connected to the rest of the system with a PCI-Express 5.0 x16 interface.

Working

The Radeon RX 9070 XT works with the RDNA 4 architecture of AMD to process graphical data using its stream processors, memory unified compute units, and eventually rendering images on a display. It features RDNA 4 Compute Units with stream processors & enhanced raytracing capabilities to perform various calculations simultaneously. This allows the GPU to deliver high performance for gaming & other applications, boosted with technologies like FidelityFX Super Resolution and AMD’s HYPR-RX. It connects via a PCIe 5.0 x 16 interface to a system and receives power using its dedicated two 8-pin connectors. Please refer to a detailed explanation of how AI GPUs Actually Work.

Specifications

The Radeon RX 9070 XT specifications include the following.

• GPU is Navi 48 (RDNA 4)
• It features Stream Processors or SMS – 4096.
• Compute Units – 64, Ray Accelerators – 64, and AI Accelerators – 128.
• Memory size is 16 GB.
• Memory type is GDDR6.
• Memory interface is 256-bit.
• Memory speed is 20 Gbps.
• Memory Bandwidth is 644.6 GB/s.
• Base Clock is 1660 MHz, Game Clock is 2400 MHz, and Boost Clock is 2970 MHz
• FP32 Performance is 48.66 TFLOPS.
• Memory Clock is 2518 MHz.
• TDP is 304 W.
• Recommended PSU ranges from 700W to 750W
• It includes two 8-pin power connectors.
• Display Outputs are: 3x DisplayPort 2.1a and 1x HDMI 2.1b.
• PCI Express is 5.0.
• DirectX is 12 Ultimate.
• Infinity cache is 64 MB.

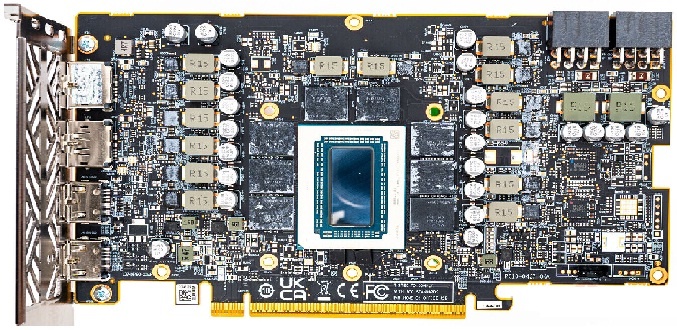

Radeon RX 9070 XT Architecture

The Radeon RX 9070 XT graphics card uses AMD’s RDNA 4 architecture, which is built on TSMC’s 4nm process. This graphics card features enhanced Compute Units with improved Ray Tracing & AI accelerators, a 256-bit GDDR6 interface through a faster Infinity Cache, and the latest memory tech like unusable Memory Queuing that focuses on 4K gaming, enhanced RT/AI efficiency & higher media features above RDNA 3.

Components

The Radeon RX 9070 XT architecture can be built with different components, which include the following.

GPU Die

The AMD Radeon RX 9070 XT graphics card uses the Monolithic Navi 48 GPU die, which is built on TSMC’s N4P process. It features a ~357mm² size with approximately 53.9 billion transistors, 4 Shader Engines (SEs), & a large central Infinity Cache. In addition, it can also have higher RDNA 4 features like the latest AI accelerators, which provide strong performance with more transistors in a smaller and solid die.

4nm TSMC N4P Process Node

This graphics card can be built with the 4nm TSMC N4P process node, which is a performance-improved version of their 5nm-class technology. This is a fixed monolithic die design as an element of the architecture, an exit from the chiplet design utilized in the earlier RDNA 3 generation.

Compute Units

The AMD Radeon RX 9070 XT features 64 Compute Units, where each CU can be enhanced with third-generation ray accelerators & second-generation AI Accelerators. The dual CU design of TRDNA 4 improves parallelism through two scheduler blocks, enhanced scalar units, and superior memory management that significantly boosts performance over earlier generations.

Stream Processors

The Stream Processors are the core execution units in the architecture. This architecture features 4,096 SMs, which are grouped into 64 CUs for parallel processing, managing shading, and rendering tasks. In addition, it improves Ray Accelerators and AI accelerators for better performance in current games & applications.

Ray Accelerators

The Ray Accelerators are specialized hardware units in the Radeon RX 9070 XT, designed to accelerate ray tracing calculations significantly. It allows shadows, reflections, and realistic lighting in games, which provides much better efficiency and ray tracing performance than earlier generations.

Memory

The AMD Radeon RX 9070 XT, built on the RDNA 4 architecture, features 16GB of GDDR6 memory on a 256-bit bus, offering up to 640 GB/s bandwidth, along with 64MB of AMD Infinity Cache. It controls the latest memory management, AI for high-performance gaming and & content creation through recent features like DisplayPort 2.1.

Interface PCI Express 5.0 x16.

The Radeon RX 9070 XT architecture features a 5.0 x 16 PCI Express interface. It is the high-speed digital connection that connects to the motherboard by providing high-speed data transmission. Therefore, it provides around 32 GB/s of massive bandwidth for quick data transmission between the CPU & the GPU. Ensure whether it completely uses its 16GB GDDR6 memory by supporting next-generation DP 2.1 displays for peak performance within modern games & AI tasks.

Display Outputs

This architecture features two display outputs like HDMI 2.1b and DisplayPort 2.1a next to internal RDNA 4 improvements like better ray tracing & AI accelerators, built on a 4nm process. These display outputs support high refresh rates, 4K/8K resolutions & advanced features like HDR and DSC (Display Stream Compression) by allowing next-generation gaming & professional content creation with strong connectivity for multi-monitor systems.

Key Technologies

The AMD Radeon RX 9070 XT architecture integrates key technologies like FSR 4, HYPR-RX, AV1 Encode/Decode & the advanced Radiance Display Engine. These technologies can control dedicated AI accelerators of RDNA 4 for next-generation content creation, gaming, and many more.

FSR 4 or FidelityFX Super Resolution 4 is the next-gen upscaling and frame generation of AMD, which moves beyond FSR 3. It uses the latest RDNA 4’s AI accelerators for ML-based upscaling & analytical frame generation, which assures huge FPS gains and superior quality. It delivers up to 3.7x significant performance boost in some cases, with better image quality for 4K gaming.

HYPR-RX or Hyper-Resolution is a one-click performance improvement feature within AMD Software. It activates various AMD technologies simultaneously wherever supported in a game for the highest performance & responsiveness. Therefore, it simplifies achieving peak gaming performance through a single toggle.

AV1 Encode/Decode is dedicated hardware in the architecture for the AV1 video codec. It allows high-quality and efficient video compression & streaming. The main benefits are: superior streaming & recording quality with less bandwidth, essential for current content creators.

AMD Radiance Display Engine

This is the display hardware core in the RDNA 4 architecture. It provides broad display support, advanced color depth, high refresh rates, and better media processing. They deliver professional-grade display output & image quality for creative and gaming work.

Software

The AMD Radeon RX 9070 XT graphics card runs on the RDNA 4 architecture with AMD Software: Adrenalin Edition for drivers, performance tuning & AI features. This software ecosystem includes support for AI-powered FSR 4, DisplayPort 2.1a, and integrations through creative apps like DaVinci Resolve and Adobe CC through DirectML/AI acceleration, which benefits from RDNA 4’s higher memory management & improved math units for content creation and gaming.

Difference between Radeon RX 9070 XT and RX 9070

The difference between Radeon RX 9070 XT and RX 9070 includes the following.

Interested in how NVIDIA compares with AMD in AI computing? Read our detailed comparison NVIDIA vs AMD.

How to Maintain Radeon RX 9070 XT?

The maintenance of Radeon RX 9070 XT includes physical maintenance, software optimization, monitoring & testing. Therefore, frequent physical cleaning & smart software tweaks are significant to keep it cool, fast, and quiet by avoiding overheating & increasing lifespan.

Physical Maintenance

The steps involved in physical maintenance are cleaning dust, ensuring air flow, and checking fans.

• Clean your PC case and the fans or heat-sink of CPUs frequently to avoid heat buildup.
• Ensure case fans are arranged to bring cool air in and drain hot air out efficiently.
• Pay attention to unusual noises and replace damaged fans.

Software Optimization

The steps involved in software optimization mainly include driver updates, fan curve, power tuning, undervolting, and overclocking.

• Always utilize the most recent AMD drivers for stability and performance.
• Fan speeds must be customized in Adrenalin Software to balance noise and cooling.
• The power limit must be reduced for significant efficiency gains with minimum FPS loss.
• The voltage must be reduced while maintaining the clocks’ high performance for low power and heat.
• Incrementally increase frequency/voltage or VRAM within small steps, stability testing through 3DMark benchmarks after every change.

Monitoring and Testing

The built-in tools like Adrenalin or HWInfo64 help in tracking temperatures, voltages, and clocks. Use tools or games like 3DMark’s Steel Nomad to check stability after changes.

Advantages

The advantages of Radeon RX 9070 XT include the following.

• It is built on the newest RDNA 4, providing significant boosts in efficiency and performance over earlier generations.
• This graphics card frequently beats the RTX 5070 Ti in raw gaming power.
• Its power efficiency is excellent, which is helpful for the overall power & heat of the system.
• 16GB of GDDR6 memory easily handles modern games & creative tasks.
• It provides outstanding performance for its price point.
• The AMD radiance display engine provides exact HDR and color, perfect for content creators.
• Improved compute capabilities provide major potential for machine learning and AI development tasks.
• The Adrenaline software is noted for its user-friendly and reliable features, with improvements to its recording software and desktop capture.
• Some models feature a dual BIOS and 12VHPWR power connector with an OC switch for extra customization.
• Custom models frequently feature high-performance coolers that achieve low memory temperatures and quiet operation even under heavy loads.

Disadvantages

The disadvantages of Radeon RX 9070 XT include the following.

• Its ray tracing performance generally lags behind NVIDIA’s comparable offerings.
• Some competitive games show uneven frame times, which leads to less fluid experiences in spite of high average FPS.
• It may have compatibility problems or less robust support in certain professional applications as compared to NVIDIA.
• Its value mainly depends a lot on pricing.
• This card has a fairly high power draw, with an average power consumption of approximately 400W.
• This card is fairly large and requires a triple-slot space in nearly all builds.
• Its performance cannot be consistent.
• There can be potential availability issues with retail availability & pricing within some regions.

Applications

The applications of Radeon RX 9070 XT include the following.

• This processor is appropriate for high-end gaming by providing high frame rates in 4K and 1440p for video editing & 3D rendering applications.
• Its applications can also extend to AI-accelerated tasks because of its second-generation AI accelerators, making it a versatile card for current workloads.
• It delivers strong performance in 4K and 1440p gaming resolutions.
• This processor supports next-level visuals & technologies like high-performance raytracing.
• AMD’s AI-powered upscaling, like FidelityFX Super Resolution, boosts frame rates while keeping image quality, which is helpful at 4K resolution.
• It efficiently manages video encoding & editing tasks, which is supported through software like DaVinci Resolve and Adobe Creative Cloud.
• This card is optimized for AI-powered tasks & generative AI workloads.
• It is optimized for professional applications like Premiere Pro, Lightroom, DaVinci Resolve, and After Effects.
• It works with AI-powered software from Topaz Labs companies for video and photo enhancement.
• It supports structured sparsity for up to 8x higher INT8 throughput for each AI accelerator as compared to the earlier generation, improving AI performance.

The Radeon RX 9070 XT is a strong mid-range graphics card that provides outstanding raw performance for high-refresh 1440p & capable 4K gaming. Its key strengths are significant VRAM (16GB), superior price-to-performance & improved driver optimization, which makes it perfect for gamers. Here is a question for you: What is Radeon RX 9070?
