NVIDIA GeForce RTX 5080 : Specifications, Architecture, Working,Differences & Who should buy it

The NVIDIA GeForce RTX 5080, as part of the RTX 50 series, is an enthusiast-class GPU, the successor to the RTX 40 series GPUs such as the RTX 4070 and 4080. NVIDIA launched the GeForce RTX 5080 alongside the RTX 5070 and RTX 5090 during CES 2025. Modern GPUs such as the RTX 5080 are increasingly optimized for AI inference, neural rendering, and large language model (LLM) workloads. To understand how AI GPUs differ from conventional graphics processors, read our article on How AI GPUs Actually Work. This GPU brought significant leaps in ray tracing and AI rendering. NVIDIA generally positions the “80” series GPUs as high-end enthusiast gaming GPUs, delivering strong performance for creative workloads, AI-enhanced tasks, and 4K gaming. This article provides an overview of the NVIDIA GeForce RTX 5080 GPU, its workings, and its applications.

What is the NVIDIA GeForce RTX 5080 GPU?

The NVIDIA GeForce RTX 5080 is an enthusiast-class desktop GPU based on the Blackwell architecture, manufactured on STMC’s custom 4N process node. It is based on the GB203 graphics processor; this GPU supports DirectX 12 Ultimate in its GB203-400-A1 variant. Therefore, this ensures that all current games will run on the RTX 5080 GPU. In addition, the DirectX 12 Ultimate ability provides support for variable-rate shading and hardware-raytracing in future video games.

This graphics card features shading units, texture mapping units, ROPs, tensor cores, & ray-tracing acceleration cores. NVIDIA has connected the GeForce RTX 5080 16 GB GDDR7 memory using a 256-bit memory interface. The RTX 5080 incorporates dedicated AI hardware, including fifth-generation Tensor Cores that accelerate matrix operations used in deep learning. Learn more about the fundamentals of AI hardware in  AI Chips – Basics.

The NVIDIA GeForce RTX 5080 operating frequency ranges from 2295 MHz to 2617 MHz, where memory runs at 1875 MHz. This dual-slot card draws power from a single 16-pin power connector, with maximum power draw rated at 360 W. This GPU includes four display outputs, like 1x HDMI 2.1b and 3x DisplayPort 2.1b. It is connected to the remaining components with a PCI-Express 5.0 x16 interface. Refer to this link for the AI Chip Manufacturing Process.

Specifications

The specifications of the NVIDIA GeForce RTX 5080 GPU include the following.

• GPU Architecture is Blackwell
• It features 10,752 CUDA Cores and 84 (4th Generation) Ray Tracing Cores.
• It features 336 Tensor Cores.
• AI performance is 1,801 AI TOPS
• Compute performance is 56.3 TFLOPS
• Memory Size is 16 GB GDDR7
• Memory Bus is 256-bit with 30 Gbps memory speed.
• Memory Bandwidth (BW) is 960 GB/sec
• Base CLK is 2.30 GHz, and Boost CLK is ~2.73 GHz.
• Maximum GPU temperature is 88°C
• Thermal Design Power or TDP is 360 W
• Recommended PSU is 850 W.
• It uses 1 × 16-pin power connector.
• It features four display outputs, like 3 × DisplayPort 2.1b and 1 × HDMI 2.1b
• Bus type is PCI-Express 5.0 x16.

How does NVIDIA GeForce RTX 5080 Work?

The NVIDIA GeForce RTX 5080 GPU is based on the Blackwell architecture. It works by processing massive streams of data using specialized silicon cores. Thus, it changes game code and AI models into lighting, physics, frames, and billions of pixels in real-time. Therefore, it accelerates AI workloads and demanding games with a hybrid of traditional rasterization and higher-level and deep-learning algorithms. This GPU performs as an AI-powered rendering engine that depends on hardware-accelerated ray tracing and deep learning to provide real-time cinematic graphics.

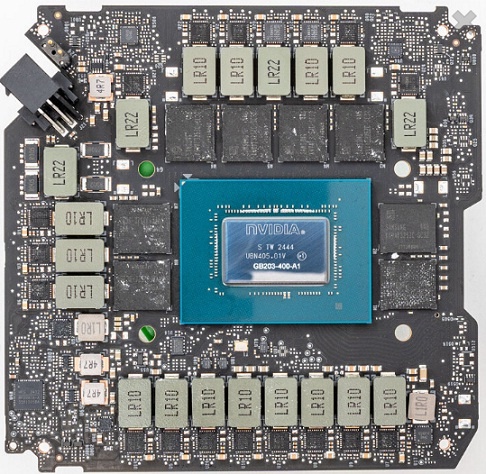

NVIDIA GeForce RTX 5080 Architecture

The NVIDIA GeForce RTX 5080 GPU is based on the Blackwell GPU architecture, manufactured on STMC’s custom 4N process node. This GPU acts as a high-end, enthusiast-class GPU where its architecture introduces some key technological advancements for both artificial intelligence and gaming. This GPU uses the GB203 graphics processor, manufactured on TSMC’s 4N process. Therefore, it is designed like a high-end enthusiast-class card that incorporates next-generation AI, memory subsystems and ray tracing.

Architecture Components

The required components to build the NVIDIA GeForce RTX 5080 architecture include: streaming multiprocessor, CUDA cores, RT Cores, fifth-generation tensor cores, memory subsystem, DLSS 4 engine, PCIe 5.0 x16 interface, NVENC/NVDEC, display ports, etc.

Streaming Multiprocessor

The Streaming Multiprocessor in the GPU acts as the first compute engine. This GPU features 84 streaming multiprocessors based on the Blackwell architecture. Each streaming multiprocessor integrates superior RT (Ray Tracing), Tensor cores, and CUDA cores to drive severe rasterization, complex lighting, and hardware-accelerated AI workloads similar to DLSS 4.

CUDA Cores

The GPU features the foundational processing units, such as 10,752 CUDA cores. These cores can manage standard graphics rendering and general-purpose parallel computing, which are spread across 84 SMs with an accurate 128 CUDA cores for each streaming multiprocessor. During AI inference and training, these CUDA and Tensor Cores perform billions of matrix multiplication operations every second. To understand this process in detail, see How GPU Cores Perform Matrix Multiplication in AI.

RT Cores

The RT Cores act as dedicated hardware accelerators in the GPU for path tracing and real-time ray tracing. So this architecture features 84 fourth-generation RT Cores that significantly offload ray calculations from typical CUDA cores. They deliver up to 2x the ray-triangle intersection rate of earlier generations while decreasing memory footprints. So it offloads lighting and complex geometry calculations.

Fifth-generation Tensor Cores

The fifth-generation Tensor Cores in the GPU can bring more upgrades to AI performance. It enables generative AI and complex neural rendering workloads exactly on your desktop. These tensor cores speed up AI computing like DLSS 4 with Multi-Frame Generation and introduce the latest native support for FP4 precision. It delivers up to 2× the performance of the earlier generation. Tensor Cores are specifically designed to accelerate AI workloads such as neural network inference, transformer models, and generative AI. Their operation is closely related to specialized AI chips used across the industry. Read AI Chips – Basics for a broader understanding of AI hardware architectures.

Memory Subsystem

The memory subsystem in this architecture is powered by next-generation GDDR7 VRAM that delivers a massive 30 Gbps of effective memory speed and up to 960 GB/s of bandwidth. This subsystem is centered on next-generation GDDR7 VRAM and a 256-bit memory interface. Therefore, this subsystem combines high-speed 30 Gbps memory modules with higher signaling to provide 960 GB/sec of peak bandwidth to optimize it for AI workloads & 4K gaming.

DLSS 4 Engine

DLSS 4 is the 4th generation of NVIDIA’s AI-powered neural rendering technology, launched with the Blackwell architecture. It basically upgrades upscaling & frame generation by changing from previous CNN (Convolutional Neural Network) models to a very advanced transformer-based AI model. This engine features numerous key architectural components & abilities that push real-time computer graphics.

PCIe 5.0 x16 Interface

The PCIe 5.0 x16 interface in this architecture is the physical & electrical connection between the graphics card & your motherboard. This interface acts as the high-speed communication interface between the CPU and GPU that allows your GPU & CPU to communicate effortlessly. To get the full benefit of the GPU’s highest speed, it must be connected with a well-matched CPU & a motherboard that supports PCIe 5.0 natively.

NVENC/NVDEC

The NVIDIA Encoder (NVENC) and NVIDIA Decoder (NVDEC) are dedicated hardware components which physically separated from the CUDA cores. They take over compute-intensive video encoding & decoding by freeing up the CPU & graphics cores for ray tracing, AI processing, or gaming. These hardware modules can offload video processing from the CPU, allowing faster, high-quality streaming, rendering & exporting without affecting workflow performance or gaming.

Display Ports

The GPU features three DisplayPort 2.1b ports, which work as the primary high-bandwidth video outputs. These ports support UHBR20 (Ultra-High Bit Rate 20) technology, which enables them to output uncompressed video or utilize Display Stream Compression to drive refresh rates & extreme resolutions.

Software System

The software system for the GPU is based on the Blackwell architecture and is a complete stack that incorporates NVIDIA CUDA drivers, the NVIDIA App for optimization, & DLSS 4.5 AI-native engines. This combined software environment increases 16GB of GDDR7 memory & hardware capabilities to enhance gaming frame rates & halve AI generation times. This software architecture depends on tight communication between hardware & low-level software.

The software stack performs as the intelligent bridge between physical hardware & applications. Therefore, it handles resource allocation by optimizing rendering or AI workloads through Shader Execution Reordering. It directs the latest AI Management Processor for seamless multitasking between AI & intensive graphics tasks.

The software stack enables efficient execution of AI models on the GPU, making it suitable for local AI assistants, image generation, and large language models. For a detailed explanation, read How AI GPUs Actually Work.

NVIDIA GeForce RTX 5080 Vs NVIDIA GeForce RTX 5090

The difference between NVIDIA GeForce RTX 5080 & NVIDIA GeForce RTX 5090 GPUs includes the following.

Who Should Buy the NVIDIA GeForce RTX 5080?

The NVIDIA GeForce RTX 5080 is designed for enthusiasts who require exceptional graphics performance for gaming, AI workloads, and professional content creation. It is best suited for users upgrading from older RTX 30-series or earlier GPUs who want access to the latest Blackwell architecture, DLSS 4, GDDR7 memory, and improved ray tracing performance. This GPU is an excellent choice for:

• Gamers who play modern AAA titles at 1440p ultra settings or native 4K resolution with high refresh rates.
• Content creators working with 4K and 8K video editing, visual effects, animation, and 3D rendering.
• AI developers running local generative AI models, machine learning inference, and LLM-based applications.
• Streamers who require high-quality hardware encoding through NVIDIA NVENC while maintaining excellent gaming performance.
• Professionals using GPU-accelerated software such as Blender, Unreal Engine, Adobe Premiere Pro, DaVinci Resolve, and After Effects.

However, users who already own an RTX 4080 Super may experience only modest gaming improvements, making an upgrade worthwhile primarily for those interested in the latest AI capabilities, DLSS 4, or enhanced creative workflows.

NVIDIA GeForce RTX 5080 vs RTX 4080 Super

Compared to the RTX 4080 Super, the RTX 5080 delivers higher memory bandwidth, faster AI processing, improved neural rendering, and more advanced ray tracing capabilities. Although traditional rasterization performance improvements are moderate, DLSS 4 Multi-Frame Generation provides significantly higher frame rates in supported games.

Interested in how NVIDIA compares with AMD in AI computing? Read our detailed comparison – NVIDIA vs AMD.

Gaming Performance of NVIDIA GeForce RTX 5080

The NVIDIA GeForce RTX 5080 is designed to provide exceptional gaming performance at both 1440p and 4K resolutions. Its fourth-generation Ray Tracing Cores and fifth-generation Tensor Cores work together with DLSS 4 to improve image quality while maintaining high frame rates.

In demanding AAA titles, the GPU can comfortably handle Ultra graphics settings with advanced ray tracing enabled. Games that support DLSS 4 Multi-Frame Generation benefit from substantial frame rate improvements without noticeably affecting visual quality.

Competitive esports titles such as Counter-Strike 2, Valorant, Apex Legends, and Fortnite can achieve extremely high refresh rates, making the RTX 5080 suitable for 240 Hz and even higher-refresh gaming monitors.

Overall, the RTX 5080 is optimized for gamers seeking premium visual fidelity, realistic lighting effects, and smooth gameplay at high resolutions.

AI Features of the NVIDIA GeForce RTX 5080

Artificial Intelligence is one of the most significant improvements introduced with the NVIDIA GeForce RTX 5080. Powered by fifth-generation Tensor Cores, the GPU accelerates AI-assisted rendering, image generation, video enhancement, and local inference workloads.

Its AI capabilities include:

• DLSS 4 Multi-Frame Generation for AI-generated intermediate frames.
• Transformer-based neural rendering for improved image reconstruction.
• Local execution of generative AI models and Large Language Models (LLMs).
• AI-powered image editing and video enhancement.
• Faster AI-assisted content creation workflows.
• NVIDIA Broadcast features such as background removal, eye contact correction, and AI noise suppression.

These AI capabilities make the RTX 5080 an attractive option for developers, researchers, creators, and professionals working with modern AI applications.

Is the NVIDIA GeForce RTX 5080 Worth Buying?

The NVIDIA GeForce RTX 5080 is a compelling upgrade for users moving from RTX 30-series or older graphics cards. It offers substantial improvements in AI processing, memory technology, ray tracing performance, and overall efficiency through the Blackwell architecture.

Users who frequently play demanding games, create professional content, or work with AI-based applications will benefit from its advanced hardware capabilities and long-term software support.

However, gamers currently using an RTX 4080 Super may experience only moderate improvements in conventional gaming performance. For these users, the value of upgrading depends largely on whether they require DLSS 4, enhanced AI acceleration, or next-generation creative features.

Overall, the RTX 5080 represents a strong investment for enthusiasts seeking a future-ready graphics card capable of handling modern gaming, AI workloads, and professional creative applications.

Buying Considerations before Choosing the RTX 5080

Before purchasing the NVIDIA GeForce RTX 5080, consider the following factors:

• Ensure your power supply meets the recommended wattage requirements.
• Verify that your PC case has sufficient clearance for a large triple-slot graphics card.
• Pair the GPU with a modern multi-core processor to minimize CPU bottlenecks.
• Install adequate cooling to handle the GPU’s thermal output during extended workloads.
• Use a PCIe 5.0-compatible motherboard to maximize compatibility and future upgrade potential.
• Check whether your monitor supports high refresh rates or 4K resolution to fully utilize the GPU’s capabilities.
• Evaluating these factors before upgrading helps ensure optimal performance and system stability.

Advantages

The NVIDIA GeForce RTX 5080 GPU advantages include the following.

• This GPU is equipped with 16 GB of GDDR7 memory to provide bandwidth of up to 960 GB/sec by removing blockages for high-resolution textures.
• It is powered by the 5th-gen Tensor Cores & Blackwell architecture, pushing up to 1,801 AI TOPS. Therefore, it allows DLSS 4 to produce AI frames for smoother gameplay & also to speed up AI-assisted creative workflows.
• It features fourth-generation RT Cores to manage complete, high-resolution ray tracing & path tracing within demanding titles like Cyberpunk 2077 & Black Myth: Wukong without giving up frame rates.
• This GPU incorporates NVIDIA Reflex 2 technology to decrease system latency severely, providing aim precision & unparalleled responsiveness for competitive esports titles.
• It provides highly sought-after hardware acceleration for H.265 & 4:2:2 H.264 decoding. So it significantly speeds up project exports & workflow in video editing applications.
• It provides outstanding hardware-accelerated ray tracing, especially for AI-driven tools & workflows.

Disadvantages

The disadvantages of the NVIDIA GeForce RTX 5080 GPU include the following.

• This graphics card is massive, so it takes up a huge amount of space within PC cases. Thus, it blocks other motherboard elements & limits room for clean cable management.
• This GPU has high power consumption.
• Its physical size is large.
• High launch price.
• Professional content creation applications can lack instant day-one native support, so it can be a problem for workstation users.
• Limited generational improvement over the RTX 4080 Super.

Applications

The applications of the NVIDIA GeForce RTX 5080 GPU include the following.

• It runs demanding AAA titles at maximum 4K settings.
• It uses fourth-generation DLSS 4 & Ray Tracing cores for smooth frame rates & hyper-realistic lighting.
• The high memory bandwidth and Tensor Cores provide outstanding throughput to run fine-tuning local generative AI & LLMs.
• Modern AI applications depend on specialized GPU hardware to process billions of mathematical operations efficiently. Learn more in How GPU Cores Perform Matrix Multiplication in AI.
• This GPU empowers enthusiasts & creators to remaster classic games with AI-assisted path tracing & modernized physics.
• This GPU powers local AI assistants to optimize gameplay & system parameters in real time.
• It empowers enthusiasts & creators to remaster classic games with AI-assisted path tracing & efficient physics.
• This GPU accelerates workflows heavily in Adobe Premiere Pro, DaVinci Resolve & After Effects.
• This GPU delivers more compute power for 3D rendering in V-Ray, Unreal & Blender Engines.
• It uses dedicated hardware encoders & NVIDIA Broadcast software to improve streaming quality with background replacements and real-time AI noise removal.

FAQs

What is the suggested power supply for the NVIDIA RTX 5080 GPU?

The minimum power supply suggested by NVIDIA is 850 W. In addition, you will also require a 16-pin PCIe Gen 5 cable for supplying 450W, or an adapter that connects three 8-pin cables to the 16-pin connector.

What is DLSS 4 & does this GPU support it?

Yes, this GPU supports DLSS 4 natively with multi-frame generation to increase frame rates up to 8X while significantly improving image quality within demanding titles.

Can the RTX 5080 GPU perform 8K gaming?

Yes, this supports up to 8K resolutions at 165Hz through DSC (Display Stream Compression) & up to 4K at 480Hz.

How does this GPU execute local AI tasks?

This graphics card is a powerhouse for AI generation, providing outstanding token throughput & using its fast GDDR7 bandwidth & huge 16GB VRAM pool.

Does the RTX 5080 support NVIDIA DLSS 4?

The RTX 5080 GPU completely supports DLSS 4, which accelerates image quality & performance through AI innovations like Smooth Motion, advanced ray reconstruction & Multi-Frame Generation.

In summary, this is an overview of the NVIDIA GeForce RTX 5080 GPU, architecture, working, and its applications. The NVIDIA GeForce RTX 5080 is a powerful & high-efficiency GPU that shines at high-framerate 1440p & 4K gaming. But it’s moderately modest generational uplift over the 40-series, & its best pricing will make it a tough sell as a pure upgrade for those previously on high-end Ada Lovelace architecture. It is designed for demanding AI & 4K gaming workloads, which provide 960 GB/s bandwidth & 30 Gbps memory speeds. Here is a question for you: What is the NVIDIA GeForce RTX 5090?
