NVIDIA GeForce RTX 4070 : Specifications, Architecture, Working, Differences & Its Applications

The GeForce RTX 40 series from NVIDIA was announced during NVIDIA’s “GeForce Beyond” event on September 20, 2022. RTX 4090 launched on October 12, 2022 and RTX 4070  launched on April 13, 2023 . It is a family of consumer graphics processing units (GPUs), succeeding the GeForce RTX 30 series. The RTX 40 series graphics cards offer a quantum leap in efficiency and performance, making them perfect for gamers and creators seeking AI and cutting-edge graphics features. The NVIDIA GeForce RTX 40 series mainly includes NVIDIA GeForce RTX 4070, RTX 4060, RTX 4060 Ti, RTX 4070 Ti, RTX 4080, RTX 4090, etc. This article elaborates on the NVIDIA GeForce RTX 4070, its working, and applications.

What is NVIDIA GeForce RTX 4070?

The NVIDIA GeForce RTX 4070 from NVIDIA’s 40-series is a powerful mid-range graphics card. It uses an efficient Ada Lovelace architecture to provide outstanding 1440p gaming with features like full ray tracing, AI acceleration, and DLSS 3. This GPU provides a significant jump in efficiency and performance over earlier generations. Therefore, it is perfect for creators and gamers who are seeking advanced visuals and high frame rates at a mainstream price point.

How does NVIDIA GeForce RTX 4070 Work?

The NVIDIA GeForce RTX 4070 works with its Ada Lovelace architecture using specialized CUDA, RT, and Tensor cores. Therefore, it accelerates AI, ray tracing, and graphics for smooth 1440p gaming with DLSS 3 for image quality and AI-powered frame generation. This graphics card works on the massively parallel processing principle, improved by dedicated hardware for artificial intelligence and ray tracing. It changes application or game instructions into millions of parallel mathematical operations to produce images realistically and efficiently.

Specifications

The specifications of NVIDIA GeForce RTX 4070 include the following.

• GPU Architecture is NVIDIA Ada Lovelace.
• It features 5888 CUDA cores.
• It features 4th-generation tensor cores for DLSS 3.
• It features 3rd-generation RT Cores for ray tracing.
• Its memory is 12GB GDDR6X.
• Memory Interface is 192-bit.
• Boost Clock is ~2475 MHz, and Memory Clock is ~21 Gbps.
• Interface is PCI Express 4.0 x16.
• Thermal Design Power (TDP) is 200W.
• It’s recommended PSU is 650W.
• It includes 3x DisplayPort 1.4a and 1x HDMI 2.1 display outputs.
• Max resolution is 7680 x 4320.

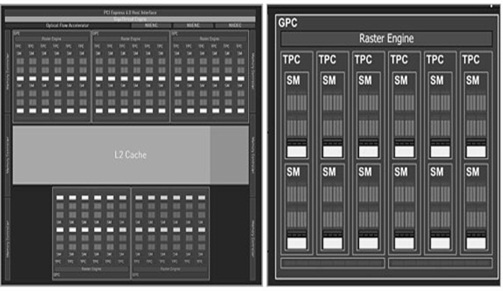

NVIDIA GeForce RTX 4070 Architecture

The NVIDIA GeForce RTX 4070 graphics card uses the Ada Lovelace architecture built on TSMC 4N process, a custom 5nm class node optimized for NVIDIA Ada Lovelace GPUs by bringing significant performance boosts and efficiency over earlier generations. This graphics card features 4th gen tensor cores, 3rd gen ray tracing cores & DLSS 3 for AI-powered frame generation to make it the best choice for content creation and 1440p gaming with its 12GB GDDR6X memory, AD104 GPU core & higher AV1 encoding. Its advancements, like the AV1 encoding support and optical flow accelerator for DLSS 3 frame generation, make it powerful for creative and gaming tasks.

Components

The NVIDIA GeForce RTX 4070 architecture includes different components like process node, CUDA cores, tensor cores, RT cores, memory DLSS 3, shader execution reordering (SER), optical flow accelerator, and dual 8th Gen NVENC.

Process Node

The NVIDIA GeForce RTX 4070 GPU can be built on the TSMC 4N process node. It is a 5nm-class custom-designed process node, developed mainly for NVIDIA’s Ada Lovelace architecture. This is an advanced fabrication process that provides significant benefits over the earlier generation, like higher transistor density, improved power efficiency, and higher clock speeds. The TSMC 4N process node adoption is a main factor in the efficiency and performance of the whole RTX 40 series. It allows new features like enhanced ray tracing and DLSS 3 abilities.

CUDA Cores

The NVIDIA GeForce RTX 4070 architecture features 5,888 CUDA Cores. These are the fundamental processing units which provide very strong performance for 4K gaming, 1440p & creative workloads through its GDDR6X memory & efficient architecture. CUDA cores handle parallel computing and graphics rendering tasks. These cores allow it to be AI-driven and process complex graphics features efficiently, like DLSS 3 for realism and higher frame rates.

Tensor Cores

This graphics card features 4th-generation tensor cores, which provide significant AI performance boosts. It is significant for technologies like DLSS 3 with AI to generate additional frames for very smooth gameplay. Tensor cores in this architecture can be combined with the OFA (Optical Flow Accelerator) by allowing massive FPS gains for making DLSS 3 exclusive to RTX 40-series architecture. In addition, the RTX 4070 features 3rd Generation RT Cores for better ray tracing, which is built on the Ada Lovelace architecture. The 4th Gen Tensor Cores of RTX 4070 are essential to its performance, mainly for delivering next-gen AI features for significantly improving efficiency and gaming performance.

RT Cores

This architecture features specialized hardware units like 3rd Generation RT Cores to provide up to 2x faster ray tracing performance as compared to the earlier generation. These RT cores, next to DLSS 3 and 4th Gen Tensor Cores, deliver large improvements within overall rendering efficiency and realistic lighting for games & applications.

DLSS 3 & AI Frame Generation

• DLSS 3 uses 4th Gen Tensor Cores + Optical Flow Accelerator.
• Generates entirely new features.
• Independent of VRAM type or memory bus.

Shader Execution Reordering

Shader Execution Reordering in this architecture is a key feature, designed to severely improve the efficiency and performance of ray tracing workloads. Therefore, it tackles the shader divergence problem, a major bottleneck within traditional GPU architectures, while handling the random secondary rays’ paths within complex ray-traced scenes. The Shader Execution Reordering feature is designed to boost ray tracing performance significantly by dynamically identifying inefficient shader workloads into efficient and more coherent groups.

Optical Flow Accelerator

An optical flow accelerator is dedicated hardware that calculates stereo disparity and optical flow. Therefore, it enables advanced features like smoother video interpolation, enhanced AI applications, and DLSS 3 Frame Generation. These intensive tasks can be offloaded from the main GPU cores, which boosts efficiency and performance for creative and gaming work.

Dual 8th Gen NVENC

• The RTX 4070 does include dual 8th Generation NVENC.
• It supports AVI encoding.
• Valuable for streaming, video editing and research workflows.

Fans & Cooling System

Fans and Cooling System of NVIDIA GeForce RTX 4070 The NVIDIA GeForce RTX 4070 uses advanced air-cooling solutions designed to maintain optimal performance while preserving power efficiency. Cooling implementation depends on the Founders Edition or custom AIB (Add-In Board) designs.

Founders Edition Cooling

• Dual axial-fan design.
• Large vapor chamber and aluminum heatsink.
• Optimized airflow path through the card.
• Maintains low acoustic noise under gaming workloads.

Custom Board Partner Cooling

• Typically features dual-fan or triple-fan designs.
• Larger heatsinks with multiple copper heat pipes.
• Enhanced thermal pads and reinforced backplates.
• Factory overclocked models rely on stronger cooling.

Thermal Characteristics

• Typical gaming temperatures: 60–70°C.
• Throttling threshold: ~83°C.
• Improved efficiency due to Ada Lovelace architecture reduces heat output.

Why this Matters for Students & Creators?

Stable thermals improve sustained performance in rendering and AI workloads Lower noise is beneficial for study, streaming, and content creation environments Understanding cooling helps in PC system design and thermal management learning.

Software System

The software system for NVIDIA GeForce RTX 4070 centers on its Game Ready/Studio drivers. It is managed via GeForce Experience by providing core functions like ray tracing, AI features, and DLSS 3 with software tools like RTX Video Super Resolution, third-party utilities, and NVIDIA Control Panel for monitoring & optimization on Windows 10 or Windows 11. It allows creative workflows and high-performance gaming with HDR video enhancement.

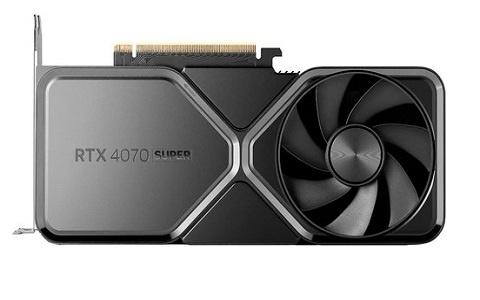

NVIDIA GeForce RTX 4070 vs RTX 4070 Super

The difference between the NVIDIA GeForce RTX 4070 vs RTX 4070 Super includes the following.

NVIDIA GeForce RTX 4070	NVIDIA GeForce  RTX 4070 Super
The GeForce RTX 4070 by NVIDIA was a performance-class GPU, positioned primarily for 1440p gaming and creator workloads.	The NVIDIA GeForce RTX 4070 Super by NVIDIA is a mid-to-high-end, powerful graphics card.
CUDA Cores 5,888.	CUDA Cores 7,168.
Memory is 12GB GDDR6X	Memory is 12GB GDDR6X
Its architecture is AD104 (AD104-250).	Its architecture is AD104 (AD104-350).
The RTX 4070 must be selected only if you discover it at a considerable discount & your main goal is 1080p or 1440p gaming through lower power draws.	The RTX 4070 Super must be selected for better future-proofing, superior value, and significant performance uplift in the 1440p & entry 4K space.

How to Maintain NVIDIA GeForce RTX 4070?

The NVIDIA GeForce RTX 4070 maintenance mainly involves a mix of hardware maintenance and software maintenance. By following these regular maintenance practices, you can make sure your graphics card remains in high condition for years of creative work and high-performance gaming.

Hardware Maintenance

• Eventually, dust can build up in the heat sink fans and fins, which can obstruct cooling efficiency.
• The GPU and PC case must be cleaned frequently or at least twice yearly if your surroundings are mainly dusty.
• Compressed air must be used to blow out dust from the heatsinks and fans.
• Make sure the PC is unplugged and powered off. Hold the fans with your finger in place to prevent them from rotating too fast while using compressed air, as it can spoil the bearings.
• Good ventilation is essential for dissipating heat. Make sure your PC case has sufficient intake & exhaust fans, and handle cables to keep them away from obstructing airflow.
• When the RTX 4070 graphics card generally runs cool and is efficient, then temperature monitoring can help catch early potential problems.
• Always maintain optimal and safe operating temperature in heavy workloads.
• Use HWiNFO64 or MSI Afterburner software to check GPU temperatures.
• Check for any foreign objects or loose power connectors within the casing periodically. So a secure physical connection within the primary PCIe x16 slot is necessary for stability.

Software Maintenance

• Keeping your drivers current ensures reliability, maximum performance, and entrée to the latest features & optimizations for the latest games & creative applications.
• The official NVIDIA App must be downloaded and installed with the latest Studio drivers or Game Ready drivers easily.
• Utilize the NVIDIA App to optimize your game settings for an excellent experience.
• Explore NVIDIA software features like NVIDIA Broadcast, DLSS, and RTX video super resolution to improve your streaming and visual experience. All these can be maintained with driver updates.

Advantages

The advantages of NVIDIA GeForce RTX 4070 include the following.

• It is excellent for high-refresh-rate 1440p gaming & capable at 4K, mainly when DLSS is allowed.
• It is more power-efficient as compared to previous graphics cards, with less power while providing better performance.
• It uses AI to produce extra frames, enhancing FPS & improving image quality.
• Strong dedicated cores for shadows, reflections, and realistic lighting in games.
• It decreases system latency for better reaction in competitive games.
• It features AI-powered NVIDIA Broadcast for video or voice enhancement & Studio drivers for creative tasks.
• Its efficient Ada Lovelace architecture improves performance per watt.
• This graphics card provides a balanced mix of cutting-edge AI, strong gaming performance features, and outstanding power efficiency. Therefore, it is a popular choice for improving to modern gaming standards.

Disadvantages

The disadvantages of NVIDIA GeForce RTX 4070 include the following.

• This graphics card uses the latest 16-pin 12VHPWR connector that may need bulky adapters or specific PSUs (power supply units).
• The 192-bit memory interface is narrower, so it can limit memory bandwidth regardless of architectural improvements.
• 12GB of VRAM can become a bottleneck in modern which potentially leads to performance issues earlier than graphics cards with more memory.
• Its price was too high for this graphics card, mainly aimed at 1440p gaming, particularly when compared to earlier generation value.
• Its raw power drops sometimes in traditional games.
• Features the latest 16-pin connector & adapter, which some users find difficult compared to standard 8-pin connectors.
• Sometimes, its raw power in traditional games falls short of competitors like AMD’s RX 7900 XT.
• It uses a narrower 192-bit memory bus & an early version.

Applications

The applications of NVIDIA GeForce RTX 4070 include the following.

• The NVIDIA GeForce RTX 4070 GPU excels in high-refresh-rate 1440p gaming that delivers smooth frame rates through features like DLSS 3.
• It is a strong performer within creative tasks like 3D rendering, video editing, AI-powered streaming, etc.
• Its applications span demanding games, content creation, and AI-enhanced productivity to make it a versatile GPU.
• This GPU is ideal for maxing out games at 1440p with above 100 FPS in titles like Dying Light 2, Microsoft Flight Simulator, and Cyberpunk 2077.
• It allows realistic lighting & reflections within supported games through hardware-accelerated ray tracing.
• Boosts frame rates extensively in supported games with frame generation and AI-powered upscaling.
• It speeds up rendering & export in applications like Adobe Premiere Pro and DaVinci Resolve, with AV1 encoding for faster exports.
• This GPU boosts performance in Unreal Engine, V-Ray, and Blender by leveraging its 40% faster performance than the RTX 3070 Ti within some apps.
• Tensor Cores speed up AI tasks and support open model research by benefiting Omniverse apps.

FAQs

Is the NVIDIA GeForce RTX 4070 good for AI and Machine Learning?

Answer: Yes, the RTX 4070 is good for AI inference, small-to-medium deep learning models, and educational ML projects. Its 4th-generation Tensor Cores accelerate matrix operations used in neural networks, making it suitable for frameworks like TensorFlow, PyTorch, and CUDA-based AI workloads. However, the 12GB VRAM limits large model training, so it is not ideal for training large LLMs or very deep networks.

Is RTX 4070 future-proof for engineering students?

Answer: The RTX 4070 is reasonably future-proof for engineering students for the next 3–4 years. It supports modern technologies such as ray tracing, DLSS 3, AV1 encoding, CUDA, and AI acceleration, which are widely used in academic software, simulations, and creative tools. While VRAM may become a limitation in the long term, it remains sufficient for most student-level projects.

RTX 4070 vs RTX 3070 – What are the architectural differences?

Answer: The RTX 4070 uses the Ada Lovelace architecture, while the RTX 3070 is based on Ampere. Key differences include:

• 4th-gen Tensor Cores (vs 3rd-gen)
• DLSS 3 with Frame Generation (DLSS 2 only on RTX 3070)
• Better performance per watt
• AV1 encoding support
• Improved ray tracing efficiency Overall, RTX 4070 offers higher efficiency and advanced AI features, even though raw raster performance gains are moderate.

Can RTX 4070 be used for CUDA programming?

Answer: Yes, the RTX 4070 is excellent for CUDA programming. It supports the latest CUDA toolkit, offers a large number of CUDA cores, and is well-suited for learning parallel computing, GPU acceleration, and heterogeneous system design. It is commonly used in academic environments for CUDA labs, simulations, and performance optimization experiments.

Is RTX 4070 suitable for research simulations?

Answer: The RTX 4070 is suitable for graphics-based simulations, AI inference research, and visualization workloads. It performs well in tools such as Unreal Engine, Blender, Omniverse, MATLAB GPU computing, and OpenCV CUDA pipelines. However, for FP64-heavy scientific simulations, professional GPUs (RTX A-series or NVIDIA H-series) are more appropriate.

Is RTX 4070 good for 1440p and 4K gaming?

Answer: The RTX 4070 is excellent for high-refresh-rate 1440p gaming and capable of entry-level 4K gaming, especially when DLSS 3 is enabled. Ray tracing performance is strong at 1440p, while 4K gaming may require DLSS for smooth frame rates in demanding titles.

What are the main limitations of RTX 4070?

Answer: The main limitations include:

• 12GB VRAM, which may limit future AAA games and large AI models.
• 192-bit memory bus, which restricts memory bandwidth.
• Higher launch pricing compared to earlier mid-range GPUs Despite these, architectural improvements compensate for many bandwidth limitations.

Is RTX 4070 better for creators or gamers?

Answer: The RTX 4070 is balanced for both creators and gamers. Gamers benefit from DLSS 3 and ray tracing, while creators gain from AV1 encoding, NVENC, CUDA acceleration, and AI-based tools. It is particularly attractive for students who game and also work on creative or technical projects.

Does RTX 4070 support AV1 encoding?

Answer: Yes, the RTX 4070 supports hardware AV1 encoding and decoding using its dual 8th-generation NVENC engines. This is highly beneficial for video compression research, streaming, and next-generation media workflows.

Who should NOT choose RTX 4070?

Answer: The RTX 4070 may not be suitable for:

• Users training large-scale AI or LLM models.
• Researchers requiring high FP64 performance.
• Users seeking maximum 4K gaming without DLSS In such cases, higher-end or professional GPUs are recommended.

In summary, the NVIDIA GeForce RTX 4070 is a graphics card that provides strong performance for high-refresh-rate 1440p gaming. Therefore, it delivers solid ray tracing, excellent efficiency, and DLSS 3 frame generation magic. It is a significant upgrade over previous cards, although some find its performance jump and high pricing. Therefore, it is a competent card that delivers smooth 1080p/1440p gameplay and a good entry into current features. Here is a question for you: What is RTX 4070 Super?
