AMD Ryzen 3 8300G : Specifications, Architecture, Working, Differences & Its Applications

The AMD Ryzen 3 8300G is part of the Ryzen 8000G series entry-level desktop APU, launched in early 2024 for the AM5 platform. It mainly targets OEM desktop systems and entry-level pre-built PCs rather than the DIY retail market. This processor fills the entry-level gap in the AM5 ecosystem, offering a lower-cost alternative to the Ryzen 5 8600G and Ryzen 7 8700G. This processor is mostly distributed throughout OEM channels to make it common in pre-built desktop systems instead of separate retail, frequently connected with the A620/B650 motherboards. This article elaborates on the AMD Ryzen 3 8300G processor, working & its applications.

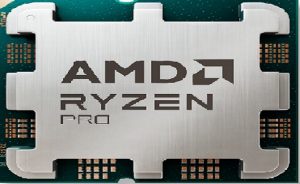

What is AMD Ryzen 3 8300G Processor?

The AMD Ryzen 3 8300G is an entry-level, versatile desktop processor from the Ryzen 3 lineup. It is based on the modern Zen 4 (Phoenix) architecture with Socket AM5 on an advanced 4 nm production process. This chip is designed to provide a solid base for daily tasks and the best solution for media consumption & casual gamers.

Ryzen 3 8300G processor has 8 MB of L3 cache that operates by default at 3.4 GHz, but boosts up to 4.9 GHz based on the workload. The Ryzen 3 8300G processor consumes typical power levels with 65 W of TDP for a modern PC. An AMD processor can support DDR5 memory through a dual-channel interface. The officially supported highest memory speed is 5200 MT/s, but you can go even higher with overclocking.

Important capabilities like ECC memory are used to avoid data corruption for mission-critical systems. The Ryzen 3 8300G processor uses a PCI-Express Gen 4 connection for communication with other components within the computer. This processor features the integrated Radeon 740M graphics solution.

Hardware virtualization is available on the Ryzen 3 8300G processor, which really improves virtual machine performance. Programs with Advanced Vector Extensions will run on this processor to boost performance for calculation-heavy applications. The Zen 4 architecture supports AVX-512 instructions through dual 256-bit execution pipelines, improving performance in AI, scientific, and computation-heavy workloads  & besides AVX instructions.

Specifications

The specifications of the AMD Ryzen 3 8300G processor include the following.

• This processor is based on Zen 4 Architecture on a 4nm process.
• It features 4 Cores / 8 Threads.
• Processor technology for CPU cores is TSMC 4nm FinFET.
• Its base CLK is 3.4 GHz, and Boost CLK is up to 4.9 GHz.
• This processor is integrated with AMD Radeon 740M Graphics.
• TDP is 65W.
• It uses the AM5 Socket by supporting DDR5 memory & PCIe 4.0 version.
• Cache is 8 MB L3 Cache & 4 MB L2.
• Graphics frequency is 2600 MHz
• It supports Precision Boost 2 and Ryzen AI acceleration features.
• This processor supports different chipsets like A620, X670, X670E, B650, B650E, X870, X870E, B840 & B850.
• Its maximum operating temperature, or Tjmax, is 95°C.
• It supports different operating systems like Windows 10 – 64-Bit Edition, Windows 11 – 64-Bit Edition, Ubuntu x86 64-Bit & RHEL x86 64-Bit.

How AMD Ryzen 3 8300G Processor Work?

The AMD Ryzen 3 8300G processor works by integrating Radeon 740M graphics, AI acceleration & CPU onto one chip by allowing playable 720p to 1080p gaming in esports and lighter titles without a dedicated GPU. This processor works primarily on AM5 by supporting PCIe 4.0 & DDR5. It operates at a 3.4 GHz base & 4.9 GHz boost clocks with 8MB of L3 cache, designed for budget-friendly, energy-efficient, office & 1080p gaming tasks. This is mainly accessible to OEMs for readymade PCs by providing a solid, basic-level to moderate PC experience.

AMD Ryzen 3 8300G Architecture

The AMD Ryzen 3 8300G desktop processor is based on the 4nm Phoenix2 architecture  combines one standard Zen 4 core with three compact Zen 4c cores. Unlike Intel efficiency cores, Zen 4c cores support the same instruction set and similar IPC as standard Zen 4 cores, but are optimized for higher core density.. The “Phoenix2” silicon is specially designed to bring AM5 capabilities to a low price point while delivering capable 1080p graphics without a dedicated GPU. It uses a mix of one standard, high-performance Zen 4 core & three compact Zen 4c cores to handle power & performance.

Components

The required components to make this AMD Ryzen 3 8300G architecture include: integrated graphics, AMD Ryzen AI, manufacturing process, platform & connectivity, socket/chipset, memory support, cache, PCIe version, clock, TDP & cooling, display capabilities, AI Engine, security, etc.

Integrated Graphics

The AMD Ryzen 3 8300G processor is integrated with AMD Radeon 740M graphics, which works as the main display & processing engine. It allows for media consumption, productivity & 1080p gaming without any dedicated graphics card. It provides four compute units at up to 2600 MHz by delivering economical and efficient performance for tiny form-factor PCs, light gaming, daily productivity & media consumption without any dedicated GPU.

AMD Ryzen AI

AMD Ryzen AI is an integrated Neural Processing Unit in the Ryzen 3 8300G. It is designed to accelerate AI tasks directly on the processor. In addition, it offloads AI tasks from the GPU/ CPU by allowing efficient, low-power processing for features like Windows Studio effects & local generative AI applications.

Manufacturing Process

The AMD Ryzen 3 8300G processor is manufactured with a 4nm FinFET process technology. So this chip is fabricated through TSMC and uses the “Zen 4” core architecture, particularly with a blend of one standard Zen 4 core & three compact Zen 4c cores on a “Phoenix” die.

Platform & Connectivity

The AMD Ryzen 3 8300G is designed for the modern AM5 platform to provide advanced connectivity like PCIe® 4.0, DDR5 memory support, The platform supports optional USB4 connectivity depending on motherboard implementation & integrated Radeon™ 740M graphics. This processor works as an economical, integrated-graphics-focused processor within the modern “Phoenix” AMD family. Its platform & connectivity are designed for AM5 to provide a mix of native display, high-speed memory support, & PCIe Gen 4 to bridge the main gap between low power consumption & straight multimedia performance.

Socket/Chipset

The AMD Ryzen 3 8300G processor uses the AM5 socket platform with associated 600/800-series chipsets to allow PCIe 4.0 connectivity, high-speed DDR5 memory & future-proof upgradability for Zen 4 architecture. This socket handles physical installation, whereas the chipset handles communication between the CPU & components. This platform works as the physical interface for power delivery, communication & mounting with system components.

Memory Support

The AMD Ryzen 3 8300G processor can support dual-channel DDR5 memory with an official 5200 MT/s (DDR5-5200) of maximum speed. It supports 256 GB of maximum capacity with UDIMM modules and Error Correction Code memory, based on platform support. In addition, it is highly suggested to use quick, dual-channel DDR5 memory to ensure the integrated Radeon 740M graphics work at peak performance.

Cache

The AMD Ryzen 3 8300G processor features 12 MB of total cache, consisting of 8 MB of L3 cache & 4 MB of L2 cache. This cache structure can be connected with the Zen 4 architecture, which allows efficient data access for its 4 cores & 8 threads. This cache hierarchy ensures quick data delivery, essential for gaming and processing, particularly in the lack of a discrete GPU.

PCIe Version

The AMD Ryzen 3 8300G desktop processor features PCIe® 4.0 connectivity for connecting components such as NVMe SSDs & graphics cards. It provides 14 PCIe lanes, with 10 usable lanes for discrete graphics cards & NVMe SSDs. This PCIe 4.0 version ensures the chip is compatible with modern components, although it does not support the even faster PCIe 5.0 standard found within higher-end Ryzen series processors.

Clock

The CLK within the AMD Ryzen 3 8300G refers to the operating frequencies of the integrated GPU & CPU. It features 3.4 GHz base speed & up to 4.9 GHz boost capabilities. In addition, it features a Radeon 740M GPU & hybrid core architecture with specific clock speeds for different components to increase performance.

TDP & Cooling

This processor has a default Thermal Design Power of 65W that can be configured between 45W and 65W. In addition, it is integrated with AMD Radeon 740M graphics, which operates at a maximum temperature of 95 °C and is normally bundled with an AMD Wraith Stealth cooler.

Display Capabilities

The AMD Ryzen 3 8300G processor can support up to 4 displays The integrated graphics engine supports multiple display outputs depending on motherboard design, DisplayPort 2.1 & HDMI 2.1, and high-resolution output up to 7680×4320 at 60Hz or 3840×2160 at 240Hz. Therefore, it is a capable APU for lower-demanding, entry-level, or modern gaming setups.

AI Engine

The AI Engine is the Neural Processing Unit powered by AMD XDNA architecture. It handles localized AI tasks, improving system efficiency & productivity. This processor manages artificial intelligence workloads without heavily depending on the cloud or overburdening the GPU & CPU.

Security

The AMD Ryzen 3 8300G processor features an in-built robust security, mainly driven through the AMD Secure Processor & a dedicated safety subsystem. In addition, it can support modern protection standards like firmware TPM for cryptographic keys, AMD Memory Guard for data encryption & Windows 11-ready safety features.

Software System

This processor supports an AMD Software: Adrenalin Edition for gaming/graphics, Ryzen Master for tuning & Ryzen AI Software for AI acceleration on Linux or Windows 10/11. In addition, it supports DDR5 memory, advanced safety & PCIe 4.0 technologies.

AMD Ryzen 3 8300G Vs AMD Ryzen 5 5600G

The difference between the AMD Ryzen 3 8300G and the AMD Ryzen 5 5600G processors includes the following.

AMD Ryzen 3 8300G	AMD Ryzen 5 5600G
The AMD Ryzen 3 8300G is the latest, power-efficient APU	The AMD Ryzen 5 5600G is a desktop processor.
It is based on Zen 3 (Cezanne) Architecture.	It is based on the 7nm “Cezanne” desktop APU Architecture.
It features 4 cores / 8 threads.	It features 6-cores/12-threads.
Base CLK is 3.4 GHz & a maximum boost CLK is up to 4.9 GHz.	Base CLK is 3.9 GHz, and /Boost Clock is 4.4 GHz.
It is integrated AMD Radeon 740M graphics.	It is integrated with AMD Radeon graphics.
This processor uses the AM5 platform through DDR5 support by providing better upgradeability.	This processor uses the mature AM4 platform.
Its total cache is 12 MB (4 MB of L2 cache & 8 MB of L3 cache).	Total Cache is 19 MB (16 MB L3 + 3 MB L2).
TDP is 65W (Default), 45-65W configurable	TDP is 65W (default), 45-65W configurable
This chip supports DDR5 (2 channels, max 256 GB) memory.	This chip supports DDR4-3200 (Dual Channel) memory.
It supports PCIe 4.0 version	It supports PCIe Version is PCIe 3.0
Choose this chip if you are designing a latest PC on the AM5 platform with the intent to upgrade to a faster CPU or separate GPU later.	Choose this chip if you are on a strict plan and require superior multitasking and rendering power for a workplace.

Phoenix vs Phoenix2 Difference

AMD designed the Ryzen 8000G series processors with two different silicon designs called Phoenix and Phoenix2. The higher-end Ryzen 7 8700G and Ryzen 5 8600G processors use the full “Phoenix” die with standard Zen 4 cores, larger integrated graphics, and more hardware resources. In contrast, the Ryzen 3 8300G uses the smaller “Phoenix2” die, specially optimized for entry-level desktop systems and lower manufacturing costs.

The Phoenix2 architecture combines one standard Zen 4 core with three compact Zen 4c cores. Unlike Intel’s efficiency cores, the Zen 4c cores use the same instruction set and similar IPC (Instructions Per Clock) as regular Zen 4 cores. However, they are physically designed with a denser layout and smaller cache structures to save silicon space and reduce power consumption.

The Phoenix2 design allows AMD to deliver modern AM5 platform features like DDR5 memory, PCIe 4.0 connectivity, and RDNA 3 graphics at a much lower price point. However, compared to the full Phoenix silicon, Phoenix2 includes fewer PCIe lanes, a smaller integrated GPU, and lower overall multi-threaded performance.

This hybrid design makes the Ryzen 3 8300G a highly power-efficient and cost-effective processor for entry-level gaming PCs, office systems, and compact desktop builds without requiring a dedicated graphics card.

Radeon 740M Graphics Architecture

The AMD Ryzen 3 8300G processor features integrated Radeon 740M graphics based on the modern RDNA 3 graphics architecture. This integrated GPU is designed to provide efficient multimedia performance, light gaming capability, and hardware acceleration without needing a separate graphics card.

The Radeon 740M graphics engine includes 4 Compute Units (CUs) operating at frequencies up to 2600 MHz. Although it is smaller than the Radeon 760M and 780M graphics found in higher-end Ryzen 8000G processors, it still delivers solid performance for esports games, video streaming, office applications, and everyday multimedia tasks.

The RDNA 3 architecture significantly improves graphics efficiency, media processing, and power consumption compared to older Vega-based integrated graphics solutions. It supports modern graphics technologies like DirectX 12 Ultimate, Vulkan, AMD FidelityFX, and hardware ray tracing features at a basic level.

In addition, the Radeon 740M graphics engine includes advanced multimedia capabilities such as:

• Hardware AV1 video decode support.
• H.264/H.265 hardware acceleration.
• High-resolution 4K and 8K video playback.
• DisplayPort 2.1 and HDMI 2.1 support.
• Multi-monitor output capability.

These capabilities make the Ryzen 3 8300G processor highly suitable for media centers, entry-level gaming PCs, home office systems, and compact desktop builds.

Memory Impact on Integrated Graphics Performance

The gaming and graphics performance of the AMD Ryzen 3 8300G processor depends heavily on memory bandwidth because the integrated Radeon 740M graphics does not have its own dedicated VRAM. Instead, it uses the system’s DDR5 memory as shared graphics memory.

For this reason, memory configuration plays a major role in determining overall gaming performance. Using dual-channel DDR5 memory significantly improves graphics bandwidth compared to single-channel memory configurations. Higher-speed DDR5 memory modules can further improve frame rates, reduce stuttering, and enhance responsiveness in games and multimedia applications.

For the best performance, AMD generally recommends using:

• Dual-channel DDR5 memory configuration.
• DDR5-5200 or faster memory modules.
• Two identical memory sticks for balanced bandwidth.

When using single-channel memory, the Radeon 740M graphics may experience noticeable performance reduction in games and graphics-intensive applications due to lower available memory bandwidth.

Therefore, memory selection becomes extremely important when building a gaming or multimedia system based on the Ryzen 3 8300G APU.

PCIe Lane Breakdown

The AMD Ryzen 3 8300G processor supports PCIe® 4.0 connectivity for high-speed communication with graphics cards, NVMe SSDs, and motherboard components. However, because the processor uses the compact Phoenix2 die, it provides fewer PCIe lanes compared to higher-end Ryzen desktop processors.

The PCIe lane allocation of the Ryzen 3 8300G generally includes:

• 8 PCIe 4.0 lanes dedicated for discrete graphics cards.
• 4 PCIe 4.0 lanes for NVMe SSD storage devices.
• Additional lanes for chipset communication and onboard motherboard devices.

Unlike mainstream Ryzen desktop CPUs that provide full x16 PCIe connectivity for graphics cards, the Ryzen 3 8300G limits dedicated GPUs to PCIe 4.0 x8 operation. While this limitation usually has minimal impact on entry-level and mid-range graphics cards, very high-end GPUs may experience slight bandwidth limitations in certain workloads.

Despite the reduced lane count, PCIe 4.0 still provides excellent bandwidth for modern SSDs, gaming systems, and productivity applications. This configuration helps AMD reduce manufacturing costs and power consumption while maintaining strong overall platform performance for budget-oriented desktop systems.

Advantages

The advantages of the AMD Ryzen 3 8300G processor include the following.

• The integrated Radeon 740M graphics at low settings allow for smooth 1080p gaming within many titles by removing the instant need for a separate graphics card.
• It supports high speed DDR5 memory by ensuring enhanced longevity & upgrade paths to upcoming AMD processors than earlier platforms.
• It is built on TSMC’s 4nm node that provides high efficiency through a 65W TDP by maintaining lower heat & power consumption.
• The processor boosts up to 4.9 GHz by providing snappy performance for productivity & everyday tasks.
• This chip is capable of designing a solid and economical PC for office work & light gaming without obtaining a separate graphics card.
• This processor can support USB 4 (40Gbps) & PCIe 4.0 for quick storage & peripheral connections.

Disadvantages

The disadvantages of the AMD Ryzen 3 8300G processor include the following.

• The processor is frequently sold through OEMs & system integrators, making it hard to buy as a separate component.
• It may struggle with heavily threaded or modern heavy multitasking applications more than 6-core alternatives due to 4 cores & 8 threads.
• The CPU has restricted PCIe Gen 4 connectivity, meaning.The processor provides fewer PCIe lanes compared to higher-end Ryzen desktop CPUs, limiting dedicated GPUs to PCIe 4.0 x8 operation, potentially bottlenecking high-end GPUs
• The Radeon 740M graphics are not as strong as compared to the 780M or 760M found within higher-tier 8000G chips, limiting gaming potential.
• It needs AM5 motherboards & DDR5 memory, which can enhance the overall price of a budget build.
• Although Ryzen processors are generally unlocked, overclocking support depends heavily on motherboard BIOS support and OEM system limitations, avoiding simple overclocking to develop performance.
• As an OEM-focused chip, it is mainly available in prefabricated systems, making it hard for DIY users to buy it individually.

Applications

The applications of the AMD Ryzen 3 8300G processor include the following.

• This processor allows gaming on a budget with Radeon 740M graphics. Therefore, it achieves very smooth 60+ FPS at 1080p in many titles.
• The 65W default TDP makes it a perfect candidate for tiny, energy-efficient HTPC (home theater PCs), budget desktop & media server builds that don’t require a large discrete GPU.
• This provides consistent performance for daily tasks like video conferencing, web browsing, and office software. So it is suitable for home office or student PCs.
• Its Zen 4 architecture handles high-definition streaming, light photo/video editing & video playback efficiently.
• This processor supports PRO technologies. So it is capable of virtualization tasks & hardware-accelerated tasks with AVX-512 extensions.
• The integrated Radeon 740M graphics allow for smooth 1080p gaming in many titles without requiring a dedicated graphics card.
• It is perfect for small-footprint, efficient builds that save power & space while providing modern performance.
• It handles daily tasks very efficiently, like Microsoft Office, content streaming, web browsing & video calls.
• This processor handles light photo processing & video editing.
• It is a cost-effective and reliable processor for schoolwork & multitasking.
• The AMD Ryzen 3 PRO 8300G provides advanced safety features, platform stability & manageability tools for corporate environments.

The AMD Ryzen 3 8300G is an entry-level AM5 processor  APU designed for the AM5 platform, combining Zen 4 CPU technology, RDNA 3 integrated graphics, DDR5 memory support, and PCIe 4.0 connectivity within a highly power-efficient 65W package. Built on AMD’s compact Phoenix2 architecture, this processor delivers a balanced mix of productivity, multimedia, and light gaming performance without requiring a dedicated graphics card.

Its integrated Radeon 740M graphics engine enables smooth everyday computing, high-resolution media playback, esports gaming, and entry-level 1080p gaming performance while reducing overall system cost and power consumption. In addition, support for advanced technologies such as AVX-512 instructions, AMD Ryzen AI features, DisplayPort 2.1, HDMI 2.1, and high-speed DDR5 memory makes the processor highly suitable for modern desktop environments.

Although the Ryzen 3 8300G is not intended for heavy workstation workloads or high-end gaming systems, it provides excellent value for budget-conscious users, OEM desktop systems, home office PCs, compact multimedia systems, and educational computers. Its AM5 platform compatibility also provides a future-ready upgrade path for users planning to move toward more powerful Ryzen processors later.

Overall, the AMD Ryzen 3 8300G stands out as an efficient and cost-effective integrated desktop processor that successfully brings modern AM5 platform technologies, RDNA 3 graphics capabilities, and strong everyday performance to the entry-level PC market.
