NVIDIA GeForce RTX 5090 : Specifications, Architecture, Working, Differences & Its Applications

The NVIDIA GeForce RTX 5090 graphics card was announced at CES 2025 & launched in January 2025. It is the successor to the RTX 4090 flagship consumer graphics card, designed for 8K gaming, professional rendering & demanding AI workloads. This card is promoted as the next-generation flagship GPU, with a strong focus on AI-driven performance to advance graphics rendering & ray tracing. This article provides an overview of the GeForce RTX 5090, its working and applications.

What is NVIDIA GeForce RTX 5090 Processor?

The GeForce RTX 5090 is an enthusiast-class graphics card by NVIDIA. It is based on the Blackwell Architecture (GB202 graphics processor) built on TSMC’s customized 4NP fabrication process. This graphics card supports DirectX 12 Ultimate in its GB202-300-A1 variant. Therefore, it ensures that all current games will run on this graphics card. In addition, its DirectX 12 Ultimate ability guarantees support for variable-rate shading, hardware ray tracing, and more, in future video games.

This architecture features 21760 shading units, reportedly includes 176 ROPs, 680 texture mapping units, 680 tensor cores & 170 raytracing acceleration cores. NVIDIA has connected 32 GB GDDR7 memory through the GeForce RTX 5090 using a 512-bit memory interface. The GPU is operated at 2017 MHz frequency that can be boosted up to 2407 MHz & The GDDR7 memory operates at an effective data rate of up to 28 Gbps.

The NVIDIA GeForce RTX 5090 graphics card is a dual-slot card that draws power from 1x 16-pin power connector, rated at 575 W maximum power draw. It features display outputs like 3x DisplayPort 2.1b & 1x HDMI 2.1b. This graphics card is connected using a PCI-Express 5.0 x 16 interface to the rest of the system.

Specifications

The specifications of the GeForce RTX 5090 Processor include the following.

• This flagship GPU is based on the Blackwell architecture with TSMC 4NP process.
• It features 21,760 CUDA Cores.
• Memory is 32GB GDDR7 & Memory Bus is 512-bit.
• Bandwidth is ~1.79 TB/s.
• Boost Clock is ~2.41 GHz – 2.58 GHz (OC Edition)
• TGP is 575W
• It uses a PCIe 5.0 x16 Interface.
• It features Outputs like 1x HDMI 2.1b & 3x DisplayPort 2.1b
• Recommended PSU is 1000W/

How does NVIDIA GeForce RTX 5090 Work?

The NVIDIA GeForce RTX 5090 operates based on the Blackwell architecture. It works as a massively parallel computing system, optimized for high-speed ray tracing, intensive AI inference & AI-driven neural rendering. This processor uses TSMC’s 4NP process to pack 32GB of GDDR7 memory & AI-driven neural rendering. It allows processing AI models & complex graphics at approximately 30–35% higher performance over its predecessor.

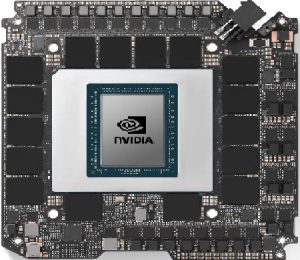

NVIDIA GeForce RTX 5090 Architecture

The NVIDIA GeForce RTX 5090 graphics card is based on the Blackwell architecture (GB202 die) built on the TSMC 4NP node. It is particularly optimized for high-performance AI-powered gaming & rendering. This GPU features CUDA cores, GDDR7 memory, and a memory bus, delivering above 50% faster performance as compared to the 4090 GPU. This architecture highlights 4th gen RT cores, 5th gen Tensor cores & neural rendering. Therefore, it is designed to manage huge, real-time AI workloads, pushing the neural rendering limits & increasing AI management for game reliability.

Components

The required components to make this NVIDIA GeForce RTX 5090 processor include: streaming multiprocessors, core counts, memory, shader core pipeline, cache, CLK, display engine, power & PCIe Interface, DLSS 4 & thermal design.

Streaming Multiprocessors

The NVIDIA GeForce RTX 5090 GPU features 170 SMs, which are optimized for neural shaders. It provides better processing throughput for AI. It is combined with 4th Gen RT Cores & 5th Gen Tensor Cores to deliver 30 to 40% better AI or rendering performance as compared to the 4090. These SMs are designed for tighter incorporation with AI engines. So it allows for increased performance within tasks like ray tracing complex geometry, high-throughput AI inference & neural rendering.

Core Counts

This graphics card features 21,760 CUDA cores, 680 Tensor Cores & 170 RT Cores.

• The NVIDIA GeForce RTX 5090 features 21,760 CUDA cores, which represent a ~33% increase over the RTX 4090 GPU. These are known as parallel processors, which handle shader calculations, compute & intense rasterization workloads. It delivers significantly higher performance for 3D rendering, AI inference & 4K gaming.
• This GPU features 170 4th Gen Ray Tracing Cores, designed for faster ray tracing & mega geometry processing.
• This GPU features 680 5th Gen Tensor Cores, specialized for AI-driven tasks by supporting FP4 & FP8 data formats for dramatically enhanced AI inference throughput.

Memory

The NVIDIA GeForce RTX 5090 processor features 32GB of GDDR7 memory across a 512-bit interface. It delivers ~1.79 TB/s bandwidth to support severe AI tasks, 8K gaming & real-time ray tracing. Therefore, this massive memory subsystem provides a ~78% increase in bandwidth over the RTX 4090 with 28 Gbps PAM3 signaling to feed CUDA cores.

Shader Core Pipeline

The shader core pipeline works as the main engine for rendering with a major shift to neural rendering, wherever shader cores work in tandem through 5th-gen Tensor cores to blend traditional graphics through AI-driven visual enhancements.

Cache

The NVIDIA GeForce RTX 5090 processor features a huge 96 MB L2 cache. It represents a 33% increase over the RTX 4090 to decrease memory latency, handle 32 GB of high-speed GDDR7 VRAM & accelerate AI/ ray tracing workloads. Therefore, it works next to 21.7 MB of L1 cache, handling high-speed data access for SMs.

Clock

The NVIDIA GeForce RTX 5090 GPU features high clock speeds, designed to increase performance in AI & ray tracing tasks. This processor works with a 2017 MHz base clock & Boost Clock – 407 MHz,Factory OC models may exceed 2.5 GHz..

The high clock speeds directly enable the RTX 5090 to manage its immense 21,760 CUDA cores and 680 5th-gen Tensor Cores, crucial for high-fidelity gaming and AI rendering. The high-speed GDDR7 memory clock ensures the data keeps pace with the core’s intense compute needs, supported by a 512-bit bus, bringing 1792 GB/s bandwidth.

Display Engine

The Display Engine in the GPU works as the high-bandwidth and smart interface between the modern display panels & GPU’s rendering pipeline. It is enhanced significantly to manage refresh rates & extreme resolutions by supporting advanced standards like HDMI 2.1b & DisplayPort 2.1a.

Power & PCIe Interface

The NVIDIA GeForce RTX 5090 GPU depends on a massive 575W TGP that requires standardized, robust power delivery & high-speed data transmission to attain its highest performance potential. Its design centered on the PCIe 5.0 x16 interface & 12V-2×6 power connector to handle this high energy & data load. The combination of these two ensures the GPU has both the required energy for its CUDA cores & the data bandwidth required for its memory.

DLSS 4

DLSS 4 works as a foundation technology for the GPU, utilizing the 5th generation Tensor Cores to radically increase frame rates & visual fidelity, frequently DLSS 4 with Multi Frame Generation can significantly improve frame rates in supported titles, especially with ray tracing enabled. It moves rendering to neural rendering from traditional brute-force to make demanding 4K+ gaming with full ray tracing fluid & responsive.

Thermal Design

This GPU uses advanced thermal design to handle high power loads with a 3D vapor chamber, liquid metal TIM (thermal interface material) with a protective sealant & a redesigned dual-slot flow-through cooler. The system maintains the GPU at around 72 to 77.6°C under load, though GDDR7 memory reaches 89 to 90°C.

Software System

The software system performs as a significant bridge between the architecture, hardware & applications, increasing performance with AI-driven optimization. It focuses on improving gaming, accelerating creative workflows & handling advanced AI features through a full-stack software suite. Its software components mainly include the NVIDIA app, CUDA 12.8+, NVIDIA NIM, Windows 11 DirectX 12 Ultimate support & NVIDIA Broadcast.

NVIDIA GeForce RTX 5090 vs GeForce RTX 5080

The difference between the NVIDIA GeForce RTX 5090 and GeForce 5080 GPUs includes the following.

NVIDIA GeForce RTX 5090	NVIDIA GeForce RTX 5080
The RTX 5090 features 21,760 CUDA cores.	The RTX 5080 features 10,752 CUDA cores.
It includes up to 32 GB on a 512‑bit bus.	It includes 16 GB of GDDR7 on a 256‑bit bus.
Its memory bandwidth is 1,792 GB/s.	Its memory bandwidth is around 896 GB/s.
Its power consumption is 575 W.	Its power consumption is 360 W.
It features 170 (4th Gen) RT cores & 680 Tensor cores.	It features 84 (4th Gen) RT cores & 336 Tensor cores.
The RTX 5090 GPU is necessary for no-compromise professional AI, 8K, or 4K/240Hz workloads.	The RTX 5080 GPU is a better value for high-refresh 4K gaming through lower power consumption.
Base clock is 2,017 MHz & Boost clock is 2,407 MHz.	Base clock is 2,295 MHz & Boost clock is 2,617 MHz.

RTX 5090 Benchmark Performance

Synthetic Benchmark Performance

The NVIDIA GeForce RTX 5090 delivers a significant leap in synthetic benchmark performance compared to previous-generation flagship GPUs. Its massive CUDA core count, higher memory bandwidth, and fifth-generation Tensor cores enable excellent scores in rendering, AI inference, and ray-tracing workloads.

In GPU-intensive benchmark suites like 3DMark Speed Way, Port Royal, Blender Open Data, and Geekbench Compute, the RTX 5090 consistently outperforms the RTX 4090 by approximately 30–40%, especially in workloads optimized for AI acceleration and path tracing.

The large 32GB GDDR7 memory subsystem and 1.79 TB/s bandwidth also reduce bottlenecks in high-resolution rendering tasks and massive AI datasets.

Approximate Synthetic Benchmark Comparison

Benchmark	RTX 4090	RTX 5090	Performance Gain
3DMark Time Spy Extreme	~19,500	~26,000	~33%
3DMark Port Royal	~25,000	~34,000	~36%
Blender Classroom Render	~6,500 samples/min	~9,000 samples/min	~38%
Geekbench AI	~40,000	~58,000	~45%
OctaneBench	~1,000	~1,420	~42%

Stable Diffusion & Generative AI Performance

The RTX 5090 significantly accelerates generative AI workloads using Tensor cores and CUDA acceleration.

Approximate AI Generation Performance

AI Workload	RTX 4090	RTX 5090
Stable Diffusion XL	~18 img/min	~28 img/min
AI Video Upscaling	~1.4x realtime	~2.1x realtime
LLM Token Generation	~110 tok/s	~165 tok/s
TensorRT AI Inference	Baseline	~40% Faster

The GPU performs exceptionally well in:

• AI image generation
• Video enhancement
• Background removal
• AI denoising
• Speech synthesis
• Real-time AI streaming

RTX 5090 Gaming FPS Performance

The RTX 5090 GPU is specifically designed for ultra-high-refresh 4K gaming, advanced ray tracing, and experimental 8K gaming. The combination of DLSS 4 Multi Frame Generation, fourth-generation RT cores, and high-bandwidth GDDR7 memory allows the GPU to deliver extremely high frame rates in modern AAA titles.

At lower resolutions like 1080p, the GPU may become CPU-limited because of its immense rendering power. However, at 4K and 8K resolutions, the RTX 5090 fully demonstrates its architectural advantages.

Approximate Gaming FPS Comparison (Ultra Settings)

Game Title	RTX 4090	RTX 5090	Resolution
Cyberpunk 2077 RT Overdrive	~92 FPS	~132 FPS	4K
Alan Wake 2	~78 FPS	~112 FPS	4K
Microsoft Flight Simulator	~120 FPS	~162 FPS	4K
Hogwarts Legacy RT Ultra	~105 FPS	~148 FPS	4K
Starfield	~98 FPS	~134 FPS	4K
Black Myth: Wukong	~70 FPS	~102 FPS	4K
Call of Duty Warzone	~210 FPS	~285 FPS	4K
Fortnite UE5 Epic + Lumen	~145 FPS	~210 FPS	4K

Ray Tracing & Path Tracing Performance

The RTX 5090 introduces major improvements in real-time ray tracing and full path tracing performance through its fourth-generation RT cores and AI-enhanced rendering pipeline.

Modern games using full ray tracing workloads like Cyberpunk 2077 RT Overdrive, Alan Wake 2, and Portal RTX benefit significantly from:

• DLSS 4 Multi Frame Generation
• Neural rendering
• Improved BVH traversal
• Faster ray-triangle intersection calculations
• AI-driven denoising

As a result, the GPU can maintain smooth frame rates even in extremely demanding cinematic rendering scenarios.

AI Workload Analysis of RTX 5090

The RTX 5090 is not only a gaming GPU but also a powerful AI acceleration platform for researchers, developers, and content creators. Its fifth-generation Tensor cores support advanced

AI formats including FP4, FP8, FP16, and Tensor Float operations, dramatically improving inference throughput.

The GPU is highly suitable for:

• Local LLM inference
• Stable Diffusion image generation
• AI video generation
• Transformer-based AI models
• Neural rendering
• AI-assisted content creation

Its 32GB GDDR7 VRAM enables larger AI models to run locally without heavy memory swapping.

Local LLM Performance

The RTX 5090 can efficiently run advanced large language models locally using frameworks like:

• Ollama
• TensorRT-LLM
• PyTorch
• CUDA
• LM Studio

The high VRAM capacity allows:

• 70B parameter quantized models
• High-context AI inference
• Faster token generation
• Reduced latency

This makes the GPU extremely attractive for AI researchers and developers who want local AI processing instead of cloud-based inference.

FAQs

What is the VRAM of RTX 5090?

The RTX 5090 GPU features 32 GB of GDDR7 memory.

What is the architecture of NVIDIA GeForce RTX 5090?

It is based on the Blackwell architecture (GB202-300-A1).

What is the power consumption of RTX 5090?

The highest graphics power draw can be rated at 575 W.

What is the performance gain of this GPU?

It features a 78% improvement in memory bandwidth over the RTX 4090.

What is the recommended PSU for this GPU?

A minimum recommended PSU is 1000W.

What power connector does it use?

It utilizes a single 16-pin PCIe Gen 5 cable or a minimum of four PCIe 8-pin cables through an adapter.

Does it support any displays?

Yes, it supports DisplayPort 2.1b & PCIe Gen 5.

Does it use cooling?

It features a redesigned dual flow-through fan design for the Founders Edition.

Does it support DLSS?

Yes, it supports DLSS 4. Disclaimer: Information based on early 2025 releases and specifications.

Advantages

The advantages of the GeForce RTX 5090 processor include the following.

• It provides unparalleled gaming & compute performance.
• This GPU is equipped with 32 GB of GDDR7 memory & a 512-bit interface to provide 1.79 TB/s bandwidth. Therefore, it significantly decreases bottlenecks for 4K gaming & demanding AI workloads.
• This GPU includes fifth-generation Tensor Cores by supporting DLSS 4 with the latest Multi Frame Generation & enhanced ray reconstruction for higher FPS & better visuals.
• Its fourth-generation RT cores provide faster ray tracing & better realism calculations, which are significant for modern titles.
• It is perfect for AI tasks, 3D rendering & heavy creative workflows because of its huge 32GB VRAM capacity.
• It features Reflex 2 technology using Frame Warp, focused on reducing latency for competitive gamers.
• This GPU supports DisplayPort 2.1b by allowing for high-refresh-rate display & superior high-resolution capabilities.

Disadvantages

The disadvantages of the GeForce RTX 5090 processor include the following.

• It is very expensive, frequently connected with the best power supplies.
• It needs a high-wattage ATX 3.1 PSU because of drawing up to 600W+ within some scenarios. This graphics card runs very hot, demanding outstanding case ventilation.
• It frequently hits CPU bottlenecks at low resolutions (1080p, 1440p), rendering its power extreme for lower-resolution gaming.
• Some graphics cards have reported missing ROP units because of manufacturing errors, reducing performance.
• The graphics card has a very large physical footprint, that needs strong case airflow & space.
• Its power cables can overheat under sustained high-current deliver, with some designs screening potential for overheating.
• Performance improvements in certain games are underwhelming over the RTX 4090.
• It lacks the huge HBM memory & NVLink support found within professional enterprise GPUs (H100/A100).
• High-end CPUs can bottleneck the graphics card below 4K resolution, which limits performance gains.

Applications

The applications of the GeForce RTX 5090 processor include the following.

• This graphics card supports higher ray tracing (& neural rendering which is perfect for high-fidelity gaming.
• It allows hobbyists & developers to run, infer & train complex LLMs & large AI models locally through massive bandwidth.
• It speeds up workflows in Adobe Premiere Pro & DaVinci Resolve with ninth-gen NVIDIA Encoders for fast video exports.
• This processor is suitable for simulation, 3D animation & rendering in Blender tools, leveraging 32 GB of GDDR7 memory for huge datasets.
• It uses the NVIDIA Broadcast App for enhancing AI-driven video or voice & RTX Video Super Resolution to high-end videos.
• It is well-matched with RTX Remix to create RTX remasters of classic games.
• It provides ultra-high frame rates within demanding titles with complete ray tracing, using DLSS 4 multi-frame generation for the highest performance.
• This GPU uses Tensor cores & AI for HDR & RTX Video Super Resolution to change low-resolution video into high-clarity 4K.
• It uses the NVIDIA Broadcast App for removing noise in AI-powered video & voice, virtual backgrounds & better microphone performance.
• It provides the required power for high-fidelity VR experiences & CAD or scientific simulations work.

The NVIDIA GeForce RTX 5090  represents a major advancement in consumer GPU technology, combining the power of the Blackwell architecture with next-generation AI acceleration, advanced ray tracing, and ultra-high-bandwidth GDDR7 memory. With 21,760 CUDA cores, 32GB of GDDR7 VRAM, DLSS 4 support, and massive AI processing capabilities, this graphics card is designed to deliver exceptional performance for 4K/8K gaming, professional rendering, content creation, and local AI workloads.

Compared to the previous-generation RTX 4090, the RTX 5090 provides substantial improvements in gaming frame rates, AI inference throughput, ray tracing efficiency, and memory bandwidth. Its fifth-generation Tensor Cores and fourth-generation RT Cores enable realistic neural rendering and smoother gameplay in demanding modern titles. In addition, the GPU is highly suitable for advanced AI applications such as Stable Diffusion, local LLM inference, video enhancement, and scientific simulations.

Although the RTX 5090 demands high power consumption and premium cooling solutions, it establishes a new benchmark for enthusiast-class graphics performance. Therefore, it is an ideal choice for gamers, AI developers, 3D artists, and professional creators who require cutting-edge GPU acceleration and future-ready technologies for next-generation workloads
