NVIDIA GeForce RTX 4070 Ti Super : Specfications, Architecture, Working, Differences & Its Applications

The NVIDIA GeForce RTX 40 series GPUs, such as the 4070 SUPER, 4070 Ti SUPER, and 4070 Ti, are high-performance Ada Lovelace architecture GPUs. All these GPUs are available in various custom designs from different manufacturers, including GIGABYTE, ASUS, PNY, and MSI. These GPUs can support DisplayPort 1.4a, HDMI 2.1, and PCIe 4.0. Among them, NVIDIA GeForce RTX 4070 Ti Super was an upgraded version of the RTX 4070 Ti, launched on January 24, 2024. This article discusses an overview of NVIDIA GeForce RTX 4070 Ti Super, its working, and its applications.

What is NVIDIA GeForce RTX 4070 Ti Super?

The NVIDIA GeForce RTX 4070 Ti Super is a high-end, enthusiast-class GPU launched on January 8th, 2024. This graphics card uses Ada Lovelace-architecture, built on the 5 nm process, designed for capable 4K gaming and maxed-out 1440p. This graphics card is based on the AD103 graphics processor with a 379 mm² die area & 45,900 million transistors. Therefore, this graphics card supports DirectX 12 Ultimate in its AD103-275-A1 variant.

This graphics card features a 256-bit memory bus, 8,448 CUDA cores & 16GB GDDR6X VRAM, which delivers better performance than the original 4070 Ti with DLSS 3.5 support. This GPU is frequently considered the best option for high-performance gaming within the 4070 series because of its upgraded 16GB memory buffer & better CUDA core count. Additionally, the DirectX 12 Ultimate ability guarantees support for variable-rate shading and hardware-ray-tracing in future video games.

It features 264 texture mapping units, 264 tensor cores, 96 ROPs, 66 raytracing acceleration cores, and 8448 shading units, which improve the speed of ML applications. In addition, NVIDIA has connected the GeForce RTX 4070 Ti SUPER with the 16 GB GDDR6X memory using a 256-bit memory interface. This GPU operating frequency ranges from 2340 MHz to 2610 MHz, where memory runs at 1313 MHz.

This GPU is a triple-slot card that draws power from a single 16-pin power connector, supporting a maximum power draw of 285 Watts. It offers four display outputs, including 3 DisplayPort 1.4a ports and 1 HDMI 2.1 port. Additionally, it connects to the rest of the system via a PCI-Express 4.0 x16 interface.

Specifications

The specifications of NVIDIA GeForce RTX 4070 Ti Super include the following.

• NVIDIA GeForce RTX 4070 Ti Super is an enthusiast-class GPU by NVIDIA.
• It uses Ada Lovelace Architecture.
• This graphics card features DLSS 3, Broadcast, AV1 Encoding, and Reflex.
• It features 8,448 CUDA Cores.
• Memory is 16GB GDDR6X
• Memory Interface is 256-bit
• Memory Speed is 21 Gbps
• Its Base Clock is 2340 MHz and Boost Clock is 2,610 MHz.
• Its power consumption is 285W
• This GPU uses 1x 16-pin (12VHPWR) connector.
• It features three display outputs, like 1x HDMI 2.1a and 3x DisplayPort 1.4a.
• Recommended PSU is 700W or above
• It features 66 3rd Gen RT Cores
• It features 264 4th Gen Tensor Cores

How does NVIDIA GeForce RTX 4070 Ti Super Work?

The NVIDIA GeForce RTX 4070 Ti Super is a high-performance GPU based on the Ada Lovelace architecture, designed for 1440p, 4K gaming, ray tracing, and AI-accelerated rendering. This GPU operates with CUDA cores, a 256-bit memory bus, and GDDR6X memory for superior bandwidth. The graphics card aims to compete with the RX 7900 XT by offering an ideal solution for high-refresh 1440p and entry-level 4K gaming. With its increased 16GB VRAM, the RTX 4070 Ti Super excels in 3D rendering and AI-powered tasks in applications like Blender.

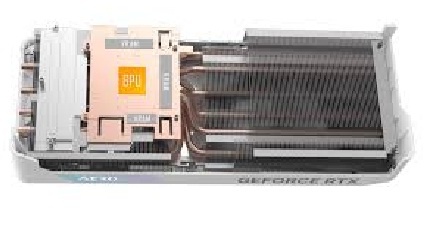

NVIDIA GeForce RTX 4070 Ti Super Architecture

The NVIDIA GeForce RTX 4070 Ti Super is based on the NVIDIA Ada Lovelace architecture (AD103 graphics processor) on a 5nm process. This architecture features CUDA cores, 3rd Gen Ray Tracing cores, 4th Gen Tensor cores, and GDDR6X memory on a 256-bit bus, which allows DLSS 3 & better ray tracing performance. This processor provides 4K gaming and high-performance 1440p, better ray tracing & AI-driven DLSS 3 features. This graphics card focuses on providing high-end & enthusiast-class performance.

Components

You can build the NVIDIA GeForce RTX 4070 Ti Super architecture using various components, including CUDA cores, 4th-generation tensor cores, 3rd-generation RT Cores, a memory subsystem, L2 cache, render output units, along with connectivity and power elements.

CUDA Cores

The NVIDIA GeForce RTX 4070 Ti Super GPU features parallel processing units like 8,448 CUDA cores. These cores accelerate computing tasks & running AI features. Therefore, this CUDA core count is an increase in the non-Super 4070 Ti from the 7,680 cores, which delivers higher performance for 4K and 1440p gaming. These CUDA cores deliver significantly faster rendering & computing, which is supported by 44 TFLOPS of shader performance. The increased core count functions next to 16GB of GDDR6X memory on a 256-bit bus to provide better performance than the original 4070 Ti. The core count is lower than the RTX 4080 (9,728 cores) and higher than the RTX 4070 Super (7,168 cores).

Tensor Cores

This GPU features specialized 264 fourth-generation AI processing units known as Tensor Cores. These are designed to speed up matrix operations for deep learning and AI-driven applications. They handle complex, parallel AI workloads and offer significant performance gains by enabling AI denoising, faster rendering, and DLSS 3 frame generation. These cores are significant for AI-related tasks in creative applications and games to serve as a foundation for the architecture.

RT Cores

Ray tracing cores are 3rd-generation dedicated hardware units in the NVIDIA GeForce RTX 4070 Ti Super GPU, designed to analyze real-time lighting, reflections, and shadows. These cores provide up to 2x faster ray-tracing performance by allowing for complex, interactive, and ultra-realistic in-game graphics. In addition, these third-generation hardware engines are specially designed to speed up ray tracing calculations.

Memory Subsystem

The NVIDIA GeForce RTX 4070 Ti Super GPU features an extensively upgraded memory subsystem. It is connected with a wider 256-bit memory interface with 16 GB of high-speed GDDR6X VRAM. This configuration delivers 672 GB/s of total memory bandwidth, which is a considerable increase over the 192-bit/12GB setup of the new 4070 Ti. This memory can operate at 21 Gbps (1313 MHz) effective speed. Therefore, this advanced memory subsystem eliminates the 12GB limitation of the earlier model. It allows for higher performance within VRAM-intensive titles, mainly at 4K resolution.

L2 Cache

The NVIDIA GeForce RTX 4070 Ti Super GPU features a 48 MB L2 cache. So this large cache is a major feature of the GPU architecture. It enables high-speed data access to increase performance & effective memory bandwidth. It is a major upgrade from the 36 MB L2 cache found on the non-Super 4070 Ti.

Render Output Units

The NVIDIA GeForce RTX 4070 Ti Super features 96 ROPs that are essential to the AD103 GPU architecture. These units allow the graphics card to manage fast pixel throughput and high-resolution rendering for gaming & creative based applications. These ROPs allow the GPU to efficiently manage the last stages of the rendering pipeline by supporting its optimized performance for 1440p & 4K gaming.

Connectivity & Power

This GPU features 3x DisplayPort 1.4a and 1x HDMI 2.1a ports, which allow for up to four instantaneous displays. It is connected through a PCI Express 4.0x 16 interface with a single 16-pin power connector, normally supported through a 2x 8-pin to 16-pin adapter. This GPU has 285W of total graphics power, which uses a single 16-pin (12VHPWR) connector. So, a minimum power supply from 700W to 750W is suggested for a system using this graphics card.

Software System

The NVIDIA GeForce RTX 4070 Ti Super needs the Game Ready Driver for Windows 10/11, available through GeForce Experience. It supports superior software features like AI-powered denoising, DLSS 3, RTX Video HDR, and Ray Reconstruction to upscale video.

• Its Game Ready Drivers can deliver optimizations for the latest releases, while Studio Drivers support innovative applications like Premiere Pro, DaVinci Resolve, and Blender.
• NVIDIA DLSS 3 has AI-powered frame generation for better performance within supported titles.
• RTX Video HDR changes standard dynamic range video automatically to high dynamic range for better visuals on displays.
• NVIDIA App/GeForce Experience is used for driver updates, streaming, automatic game setting optimization, and gameplay recording.
• NVIDIA control panel provides settings for 3D settings and display by allowing low-latency mode features.

RTX 4070 Vs RTX 4070 Ti Vs RTX 4070 Ti Super

The difference between GeForce RTX 4070, GeForce RTX 4070 Ti Vs GeForce RTX 4070 Ti Super includes the following.

RTX 4070 Ti Super Maintenance

The steps involved in NVIDIA GeForce RTX 4070 Ti Super GPU maintenance involves in physical maintenance and software maintenance.

Physical Maintenance

• Use compressed air every few months to remove dirt from the fans & heatsink to avoid overheating.
• It is a large graphics card; make sure you use the provided third-party support or anti-sag bracket to avoid strain on the PCIe slot.
• Make sure the 16-pin power connector is strongly plugged in to keep away from power issues.

Software Maintenance

• Use MSI Afterburner to under-volt the graphics card. Therefore, this decreases power consumption, reduces temperatures, and decreases fan noise.
• Use GPU-Z or NVIDIA App tools to check temperatures. This graphics card should normally operate efficiently through good airflow.
• Keep your graphics drivers updated through the NVIDIA app or GeForce Experience for stability and best game performance.
• Make sure your PC case has fine ventilation with rear/top exhaust fans or front intake fans to move hot air away from the graphics card.
• A high-quality, at least 700W power supply is suggested to ensure constant power delivery, especially when this graphics card can draw high wattage.
• Check fans rotate freely & do not make grinding noises.

Advantages

The advantages of the NVIDIA GeForce RTX 4070 Ti Super GPU include the following.

• It provides smoother performance and better future-proofing at higher resolutions
• It provides an average 5% performance boost over the original 4070 Ti.
• This GPU features 4th Gen Tensor Cores for 3rd Gen Ray Tracing Cores and AI for realistic lighting & reflections.
• This GPU provides faster frame rates and superior image quality through AI-powered frame generation.
• It is extremely capable for 3D rendering, video editing & other creative applications through NVIDIA Studio drivers and 16GB of VRAM.
• It features a 256-bit memory interface, 8448 CUDA cores & up to 102 TFLOPS of ray tracing performance.
• It delivers high performance through a 285W power rating with the 16-pin connector for power delivery.

Disadvantages

The disadvantages of the NVIDIA GeForce RTX 4070 Ti Super GPU include the following.

• It is about 6% faster than the original 4070 Ti at ultra settings & 3% faster only at medium settings.
• This processor is expensive.
• It struggles with native 4K within some demanding titles, needing DLSS to get high frame rates.
• These graphics cards are frequently very large, requiring sufficient case space with a 285W high TDP that may need upgrading to older power supplies.
• It lacks the modern DisplayPort 2.0 standard, which limits future-proofing for 4K/8K high-refresh-rate displays.
• It may struggle with ultra settings within demanding ray-traced games, which heavily depend on DLSS 3 to attain high framerates.
• It consumes more power.
• Some models are actually large with triple-fan, which may not fit within smaller PC cases.

RTX 4070 Ti Super Applications

The applications of the NVIDIA GeForce RTX 4070 Ti Super GPU include the following.

• It is excellent for 1440p & 4K gaming by supporting DLSS 3.5 frame generation and ray tracing in demanding Alan Wake 2 and Cyberpunk 2077 titles.
• This GPU is perfect for 3D modeling & rendering by providing up to 70% enhanced performance.
• This GPU features 4th Gen Tensor Cores for content creation tools, AI training, and inferencing.
• It allows maximum settings at high-refresh-rate 4K gaming and 1440p, using DLSS 3 (Deep Learning Super Sampling) for ray tracing and better frame rates for realistic lighting.
• It supports the AV1 encoder, allowing efficient and high-quality streaming with AI-enhanced audio/video tools through NVIDIA Broadcast.
• It is perfect for video editing, NVIDIA Omniverse collaboration, and AI-enhanced image processing.
• This processor accelerates demanding creative software like Adobe Premiere Pro, Blender, Photoshop, and DaVinci Resolve, using much faster rendering times than earlier generations.
• It uses 4th generation Tensor Cores for AI-powered tasks like NVIDIA Canvas & local operation of generative AI models.
• This GPU powers high-quality streaming through NVIDIA Broadcast to provide AI-driven features like virtual backgrounds, auto-framing, and noise removal.
• It supports Super Resolution and RTX Video HDR to enhance video quality within web browsers.
• It is optimized for Chaos V-Ray & Unity applications to provide up to 70% better performance than the RTX 3070 Ti within certain tasks.

This is an overview of NVIDIA GeForce RTX 4070 Ti Super, working, and its applications. It is the best and high-performance GPU that delivers outstanding 1440p & capable 4K gaming with DLSS 3, strong ray tracing, and 16GB VRAM. This GPU works as a major upgrade over the 4070 Ti, which provides competitiveness and better value. It is the best choice for 1440p/high-refresh-rate gaming. This graphics card is mostly regarded as a powerful, solid choice for users seeking high-end and smooth performance.
