AMD Ryzen Z2 A : Specifications, Architecture, Working, Differences & Its Applications

The AMD Ryzen™ Z Series Processors were developed to provide extreme portability, long battery life, and a first-class gaming performance. At present, these processors are based on next-generation AMD Ryzen™ Z2 Series processors, built to bring flexibility to your game. Therefore, these series of processors are specially designed for powerful handheld gaming PCs. The AMD Ryzen™ Z Series Processors include main processors like AMD Ryzen Z2 A, Ryzen Z1, Ryzen Z1 Extreme, Ryzen Z2, Z2 Extreme, and Z2A. This article elaborates on the AMD Ryzen Z2 A processor, its architecture, working, and its applications.

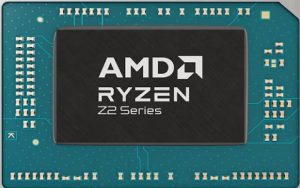

What is AMD Ryzen Z2 A Processor?

The AMD Ryzen Z2 A is an APU or accelerated processing unit, launched in 2025 by AMD. It is based on the Van Gogh graphics processor, built on the 7 nm process. This is an average-sized chip with 163 mm² die area with 2,400 million transistors. This processor features shading units, texture mapping units, raytracing acceleration cores, and ROPs. In addition, this card can also have LPDDR5 memory connected with a 128-bit memory interface.

The integrated GPU is operated at a 1000 MHz frequency, which can be boosted up to 1600 MHz, where memory is running at 800 MHz. The AMD Ryzen Z2 A processor has lower power consumption compared to other chips within the Z2 series.

Specifications

The AMD Ryzen Z2 A processor specifications include the following.

• This is a handheld gaming PC processor.
• It uses Zen 2 Architecture.
• It features 4 CPU cores and 8 threads.
• Its base clock is 2.8 GHz, and the boost clock is up to 3.8 GHz.
• Its default TDP is 15W, whereas configurable TDP ranges from 6W to 20W.
• It features 2MB of L2 cache & 4MB of L3 cache.
• Graphics model is AMD Radeon™ Graphics
• Graphics core count is 8.
• It can reach a boost frequency of upto 1800 MHz (1.8 GHz).
• It supports different technologies like AMD Radeon Boost, AMD Radeon Super Resolution & AMD FSR (FidelityFX Super Resolution).

How does the AMD Ryzen Z2 A Processor Work?

The AMD Ryzen Z2 A processor works by merging a CPU and a GPU on a single chip, forming a System-on-a-Chip (SoC), particularly for handheld devices. This processor performs instructions with its Zen 2 CPU architecture, including 4 cores & 8 threads for managing general tasks. RDNA 2 GPU features 8 graphics cores to manage rendering for visual and gaming applications. This processor can be optimized for power efficiency, operated in a 6 to 20W configurable TDP, which extends battery life within handheld gaming PCs.

The steps involved in AMD Ryzen Z2 A Processor working mainly include Instruction Fetch and Decode, Parallel Processing, Data Exchange, optimization technologies, and output.

• The CPU cores in the first step retrieve program instructions from the LPDDR5X memory of the system.
• In parallel processing, the Zen 2 cores execute instructions associated with AI, physics calculations, game logic, and managing the Windows OS.
• The RDNA 2 graphics cores process both the rendering commands & complex graphical calculations simultaneously to show visuals on the display.
• Both the GPU and CPU continually read from & write to the shared group of system memory. Therefore, this integrated design allows for faster data transmission between the CPU & GPU components as compared to systems with separate GPU and CPU memory.
• AMD software includes FSR (FidelityFX Super Resolution) and RSR (Radeon Super Resolution). It is used to upscale frames rendered at lower resolutions, enhancing performance & battery life without major quality loss.
• The processed visual & audio data can be sent to the speakers and displayed by providing a smooth and continuous gaming experience.
• Therefore, the design idea behind the processor focuses on performance & power consumption balancing to make it suitable for entry-level and long-lasting portable gaming devices.

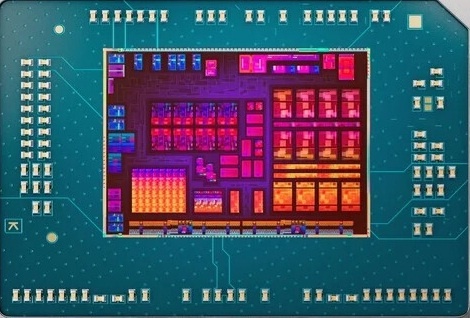

AMD Ryzen Z2 A Architecture

The AMD Ryzen Z2 A is a handheld Accelerated Processing Unit (APU) that uses AMD’s Zen 2 CPU architecture & RDNA 2 graphics architecture. It is designed to balance performance through power efficiency for gaming handhelds. So it is designed for power efficiency through a configurable cTDP (configurable TDP) range from 6W to 20W.

Components

The AMD Ryzen Z2 A architecture can be built with different components like 8 threads, 2MB of L2 cache & 4MB of L3 cache, 4 CPU cores, and an RDNA 2 GPU architecture through 8 graphics cores. In addition, it supports LP DDR5-6400 memory and different technologies like Radeon Super Resolution and FSR.

CPU Cores

The AMD Ryzen Z2 A architecture features 4 CPU cores, which are the basic processing units in a central processing unit that execute instructions & perform calculations. A single-core CPU includes one processing unit, whereas a multi-core CPUs include several cores on the same chip. Therefore, it allows them to manage various tasks simultaneously by improving overall performance.

Generally, a core is the brain that reads & carries out the instructions of a program from your computer. Thus, it performs the ALU operations that are the base of all computing. Every core in this architecture can process different tasks independently, which is essential for multitasking because it allows the CPU to function on different tasks together.

AMD Radeon Graphics

The AMD Radeon Graphics in the Ryzen Z2 A are based on the RDNA 2 architecture that features 8 Radeon Graphics Cores. This integrated GPU works at up to 1800 MHz, a boost frequency. It is designed to deliver console-class 1080p gaming within a handheld form factor. This integrated GPU in the RDNA 2 graphics architecture features 8 graphics cores, which run next to the Zen 2 CPU cores within the handheld-focused SoC. Therefore, it provides graphics capabilities for gaming & other applications on handheld PC devices.

Threads

The Threads in this architecture are virtual processing units that permit every physical CPU core to manage various tasks simultaneously. The Ryzen Z2 A model can be designed with four CPU cores and with SMT (Simultaneous Multithreading) with 8 threads. Therefore, each of the four physical cores can perform two threads. This develops multitasking & overall performance by allowing more instructions to be processed in parallel as compared to having simply the four physical cores.

Base Clock & Boost Clock

Base CLK is the minimum guaranteed speed at which a processor operates under normal conditions. The base clock speed of this processor is 2.8 GHz. Similarly, boost clock is a temporary and higher speed that the processor can attain for short bursts while performing intensive tasks. Therefore, the boost clock is engaged automatically whenever there is enough thermal & power headroom, which allows the processor to manage demanding workloads very efficiently. The maximum boost clock speed of this processor is up to 3.8 GHz.

Thermal Design Power or TDP

The AMD Ryzen Z2 A is an entry-level processor in the Ryzen Z2 series, designed for handheld gaming consoles, with a configurable TDP ranging from 6W to 20W. Therefore, this low cTDP range is intended to assist in extending battery life within devices that utilize it.

Cache Memory

The AMD Ryzen Z2 A architecture features cache memory, like 2MB of L2 cache & 4MB of L3 cache. This is a small and high-speed memory situated on the processor to store frequently accessed data quickly. Therefore, it accelerates the operations of CPUs as compared to data fetching from the main RAM. In addition, the L2 cache stores data for a single CPU core, whereas the L3 cache is shared between all cores for quick access across the whole CPU.

AMD Radeon Graphics

The AMD Radeon Graphics in this architecture is the iGPU (integrated graphics processing unit). This is a specialized GPU that is optimized for handheld gaming devices to provide 8 graphics cores for performance. Therefore, this technology allows a device without a separate graphics card to run games & visual applications.

Graphics Boost Frequency

The graphics boost frequency is the maximum clock speed the iGPU can attain in the best conditions. The Graphics Boost Frequency for the AMD Ryzen Z2 A is up to 1800 MHz or 1.8 GHz. Therefore, this is the maximum frequency that the incorporated AMD Radeon Graphics through RDNA 2 architecture will run at whenever thermal & power conditions allow for a burst within performance. It is used throughout demanding graphical workloads to improve performance, mainly in gaming.

Process Node

The TSMC 6nm process node in the AMD Ryzen Z2 is a key factor that determines the physical size & efficiency of the chip, manufactured on the 6nm fabrication procedure. This 6nm process node allows transistors to provide lower power consumption and better performance as compared to older, superior nodes.

Memory Support

The AMD Ryzen Z2 A architecture supports LPDDR5 memory with 6400 MT/s memory speed. It is a type of low-power DDR SDRAM, designed especially for mobile devices & laptops. This entry-level processor is designed for handheld gaming consoles with many features.

Battery Life Expectations

Workload	Expected Battery Life
1080p Gaming	1. 5 to 2. 5 hrs
Indie Games	3 to 4 hrs
Web browsing	6 to 8 hrs

Software System

The AMD Ryzen Z2 A processor runs on operating systems like SteamOS or Windows 11 and holds the AMD software technologies suite for better gaming features. This processor is well matched with general-purpose OS used in handheld PCs, mainly Valve’s Linux-based SteamOS and Microsoft Windows 11. This chip supports the complete set of AMD software features designed to progress visual quality & performance within games. The AMD for developers involved in software optimization provides hardware sources & tools like the AMD Ryzen AI Software platform for arranging machine learning models.

How to Maintain AMD Ryzen Z2 A?

The steps involved in AMD Ryzen Z2 A maintenance include software maintenance and physical maintenance, which include the following.

Software maintenance is essential for the best performance & stability. This is maintained by the following steps.

• System BIOS/Firmware must be updated.
• A clean Windows version must be installed.
• Drivers must be updated.
• Manage thermal design power (TDP).

The physical maintenance targets are ensuring the right cooling and the long life of the device. This maintenance can be done by using the following steps.

• Make sure the correct ventilation
• The device must be cleaned.
• Quality accessories must be used.
• Need to handle with care.

AMD Ryzen Z2 A Vs AMD Ryzen Z2 Extreme

The difference between AMD Ryzen Z2 A Vs AMD Ryzen Z2 Extreme includes the following.

AMD Ryzen Z2 A	AMD Ryzen Z2 Extreme
The Ryzen Z2 A is a lower-end chip which uses an older Zen 2 CPU architecture, RDNA 2 graphics & lacks an NPU.	AMD Ryzen Z2 Extreme is a high-end chip that uses the latest Zen 5 CPU architecture, RDNA 3.5 graphics & an included NPU for AI tasks.
It features 4 CPU Cores and 8 Threads	It features 8 CPU Cores and 16 Threads
This processor features RDNA 2 graphics architecture.	This processor features RDNA 3.5 graphics architecture.
It features 8 graphics cores.	It features 16 graphics cores.
Cache is 6MB ( L2 cache is 2MB & L3 cache is 4MB).	Cache is 24MB.
TDP is 6 to 20W	TDP is 15 to 35W
GPU code name is Van Gogh	GPU code name is Strix Point
It features 2,400 million transistors.	It features 34 billion transistors.
It uses  7nm manufacturing process technology.	It uses a 4 nm manufacturing process technology.
It has 16 ROPs, 32 TMUs, and 8 Ray Tracing Cores.	It has 48 ROPs, 64 TMUs, and 16 Ray Tracing Cores.

Please refer to this link to know more about AMD Ryzen Z2 A vs Snapdragon G3x Gen2 vs Intel Meteor Lake.

Advantages

The advantages of AMD Ryzen Z2 A include the following.

• It consumes very low power (6W to 20W), configurable, making it highly energy-efficient.
• It provides an appropriate range of performance for entry-level handheld gaming, including 8 threads, 4 CPU cores & 8 RDNA 2 graphics cores.
• This processor is more affordable.
• Its architecture looks like the custom SoC within the original Steam Deck, which means a common and established platform for users and developers.
• Ryzen Z2A battery life is better in hand held gaming PCs as compared to higher-end models.
• Its lower-spec design makes it perfect for more reasonable handhelds to expand the market for gaming devices based on PC.
• In addition, it uses Zen 2 CPU architecture & an RDNA 2-based GPU to make it simpler & cheaper to design.
• This processor is compatible with a strong stream operating system.

Disadvantages

The disadvantages of AMD Ryzen Z2 A include the following.

• The Z2 A processor has a lower graphics core count, which leads to low performance for demanding AAA titles.
• It uses older RDNA 2 graphics architecture.
• It is not designed for high-performance-based gaming. So it is not suitable for users who desire to play the most recent games at the highest settings.
• Its gaming capability is limited.
• AMD’s Z2 lineup features different chips from different Zen 2 to Zen 5 generations, which leads to consumer confusion regarding the level of performance provided by the chip.

Applications

The applications of AMD Ryzen Z2 A include the following.

• It is used for powering portable gaming devices.
• It is a general-purpose APU, so it can handle daily tasks like general computing and light content creation.
• This processor is designed for lower-cost handhelds, suitable for running less demanding games & titles from earlier generations at higher frame rates.
• It is a flexible mobile PC processor, used for online connectivity, light-to-moderate productivity, and multimedia applications.
• This processor is designed especially for handheld gaming consoles by providing a performance & power efficiency balance for portability.
• Its design is perfect for manufacturers who desire to make handhelds that are related to the Steam Deck in performance.
• It allows handy gaming experiences with a focus on games, optimized for its hardware, related to the Steam Deck, which uses a similar Van Gogh APU.
• This is adopted by more handheld devices; thus, developers can create more games improved for their specific architecture & power efficiency.
• In addition, it supports a variety of AMD technologies to improve gaming, like Radeon Boost, FreeSync, FSR, and Radeon Chill.
• This processor powers handheld gaming PCs to run different games.

FAQ’s

1. Is the AMD Ryzen Z2 A processor suitable for modern games?

The AMD Ryzen Z2 A can handle modern games at medium to low settings, especially when paired with technologies like AMD FSR. It is best suited for indie titles, esports games, and older AAA releases, rather than graphically demanding new AAA titles at high settings.

2. Who should choose a handheld device powered by Ryzen Z2 A?

The Ryzen Z2 A is ideal for users who value portability, battery life, and affordability. It is a good choice for casual gamers, emulation enthusiasts, and users who want a Steam Deck–like experience without paying for premium hardware.

3. How does Ryzen Z2 A differ from laptop Ryzen processors?

Unlike laptop Ryzen processors, the Ryzen Z2 A is specifically optimized for handheld gaming PCs. It operates at much lower power levels, integrates console-style GPU optimizations, and is tuned for sustained performance within tight thermal and battery constraints.

4. Can AMD Ryzen Z2 A run Windows 11 and Linux-based operating systems?

Yes. The Ryzen Z2 fully supports Windows 11, as well as Linux-based platforms such as SteamOS. This makes it flexible for handheld manufacturers and users who prefer open-source or gaming-focused operating systems.

5. Is the Ryzen Z2 A good choice for emulation?

Yes. The processor performs well for emulating older consoles such as PSP, PS2, GameCube, Wii, and some Nintendo Switch titles. Performance depends on the emulator, game optimization, and power profile settings.

6. Does Ryzen Z2 A include AI acceleration or an NPU?

No. The Ryzen Z2 A does not include a dedicated Neural Processing Unit (NPU). AI-related tasks are handled through the CPU and GPU, unlike higher-end Z2 Extreme models that include specialized AI hardware.

7. How does Ryzen Z2 A impact battery life in handheld gaming devices?

Because of its 6W–20W configurable TDP, the Ryzen Z2 A can deliver significantly better battery life compared to higher-end APUs. Manufacturers can tune power profiles to prioritize either long play sessions or higher performancedepending on device design.

8. Is Ryzen Z2A future-proof for upcoming games?

The Ryzen Z2 A is not designed for long-term future-proofing. While it will remain relevant for lighter games and optimized titles, future AAA games may increasingly demand newer CPU and GPU architectures.

9. What type of memory configuration works best with Ryzen Z2 A?

High-speed LPDDR5 memory (6400 MT/s) is recommended to get the best performance. Faster memory significantly improves integrated GPU performance, especially in gaming workloads.

10. How does Ryzen Z2 A compare with the original Steam Deck processor?

The Ryzen Z2 A closely resembles the Steam Deck’s Van Gogh APU in design philosophy. However, it offers wider TDP configurability, allowing manufacturers to fine-tune performance and efficiency more aggressively.

Conclusion:

The AMD Ryzen Z2 A processor is an entry-level APU that provides an economical option by directly resembling the Steam Deck’s original processor. This processor features a four-core/ eight-thread Zen 2 CPU &8 RDNA 2 GPU cores, including a 6 to 20W low TDP for outstanding battery life & efficiency. Therefore, it is the best choice for manufacturers to create portable devices. Therefore, the Ryzen Z2 A processor uses a similar core architecture to the original Steam Deck processor; however, with a high TDP range for better performance, potentially. Here is a question for you: What is AMD Ryzen Z2 Extreme?
