NVIDIA unveiled the GeForce RTX 4070 SUPER consumer graphics card at CES on January 17, 2024, to bridge the performance gap between the RTX 4070 and the exclusive RTX 4070 Ti. Therefore, it provides approximately 20% faster performance as compared to the original 4070 graphics card. So this graphics card continuously provides 1440p-focused gaming and high-performance in NVIDIA’s 40-series cards. This article elaborates on the GeForce RTX 4070 SUPER card, its working principles, and its applications.

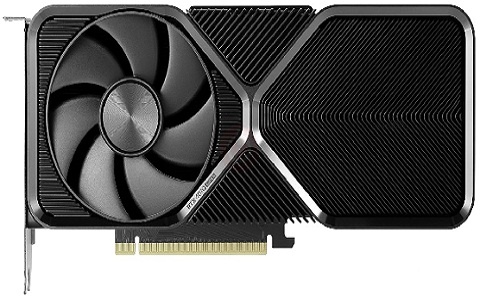

What is GeForce RTX 4070 SUPER?

The NVIDIA GeForce RTX 4070 SUPER, a high-end graphics card, features the NVIDIA Ada Lovelace architecture and is built on a 5 nm process. It utilizes the AD104 graphics processor, specifically the AD104-350-A1 variant, which supports DirectX 12 Ultimate. The AD104 processor, a standard-sized chip, boasts a die area of 294 mm² and contains 35.8 billion transistors. Hence, this ensures that all the latest games will run on this graphics card. In addition, the DirectX 12 Ultimate ability guarantees support for variable-rate shading and hardware-raytracing within upcoming video games.



NVIDIA has disabled some shading units on this graphics card to achieve the shader count target of the product. This graphics card features texture mapping units, shading units, ROPs, tensor cores, and raytracing acceleration cores. NVIDIA has connected this graphics card with 12 GB GDDR6X memory using a 192-bit memory interface. As a result, the GPU operating frequency ranges from 1980 MHz to 2475 MHz, and the memory runs at 1313 MHz.

The NVIDIA GeForce RTX 4070 SUPER is a dual-slot card that requires a 16-pin power connector and has a maximum power draw of 220 W. It offers four display outputs, including three DisplayPort 1.4a and one HDMI 2.1. You can connect the GeForce RTX 4070 SUPER to the rest of your system using a PCI-Express 4.0 x 16 interface.

Specifications

The GeForce RTX 4070 SUPER specifications include the following.

• NVIDIA uses Ada Lovelace architecture.
• GPU name is AD104, and its variant is AD104-350-A1.
• It features 7,168 CUDA Cores.
• Memory is 12GB GDDR6X.
• Memory Interface is 192-bit.
• Memory speed is 21 Gbps.
• Base Clock is 1,980 MHz.
• Boost Clock is 2475 MHz.
• It features 12 GB of GDDR6X memory with an effective memory CLK speed of 21 Gbps (1313 MHz actual clock).
• Memory type is GDDR6X.
• Bandwidth is 504.2 GB/s.
• L1 Cache is 128 KB, and L2 Cache is 48 MB.
• Boost Clock ranges from 2,475 MHz.
• Its power consumption is 220W.
• It includes four display outputs: 3x DisplayPort 1.4a and 1x HDMI 2.1a.
• It features 3rd-generation ray tracing cores and 4th-generation tensor cores.
• It features 7168 – Shading Units, 56 – RT Cores, and 224 – TMUs.
• This graphics card features 80 ROPs, 56 SM Count, and 224 Tensor Cores.

How does GeForce RTX 4070 SUPER Work?

The NVIDIA GeForce RTX 4070 SUPER high-performance graphics card works by using CUDA cores to perform massive parallel processing. It is built upon the Ada Lovelace architecture with a 5nm process technology, designed for content creation & 1440p gaming.

The RTX 4070 SUPER graphics card works as a high-efficiency renderer that depends on AI acceleration (DLSS/Tensor cores) and supercharged core count. This means, it provides entry-level 4K gaming, high-frame-rate, and 1440p with higher ray-traced effects. This graphics card is exclusively designed to enhance ray tracing, AI-powered rendering, and efficiency. Consequently, the RTX 4070 SUPER graphics card provides approximately 15 to 20% higher-performance as compared to the standard 4070. It is positioned close to the higher-end 4070 Ti, mainly in 4K and 1440p scenarios supported through DLSS 3.

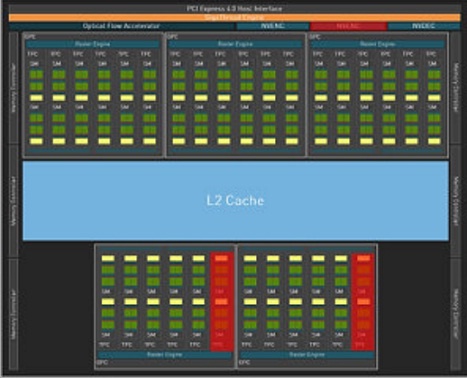

GeForce RTX 4070 SUPER Architecture

The GeForce RTX 4070 SUPER processor uses the 5nm Ada Lovelace architecture with the AD104-350-A1 chip to deliver 224 4th Gen Tensor cores, 3rd Gen 56 RT cores, and 7,168 CUDA cores. This architecture features 12GB of GDDR6X memory on a 192-bit bus, which provides major-performance gains over the 4070 with the support of AV1 encoding and DLSS 3. This architecture is designed to increase AI-accelerated performance through DLSS 3 to enhance frame rates. It is optimized for 1440p high-fidelity gaming & capable of basic-level 4K gaming. This architecture delivers strong performance-per-watt efficiency and tends to run cooler than previous-generation cards.

Components

The GeForce RTX 4070 SUPER Architecture can be built with different components like the GPU, SMS, CUDA cores, RT Cores, Tensor cores, memory subsystem, cache, encoder/decoder, interface, and display output.

GPU

This architecture uses a cut-down version of the AD104-350-A1 GPU. It features CUDA cores, Tensor cores, and RT cores. Therefore, this configuration links the performance gap between the 4070 & 4070 Ti processors by operating at a 220W TDP through 12GB of GDDR6X memory.

Streaming Multiprocessors

The GeForce RTX 4070 SUPER processor features 56 active Streaming Multiprocessors in its AD104 chip, which are more efficient than earlier generations. They provide up to two times performance & power efficiency than the earlier generation. These streaming microprocessors deliver approximately 56 third-generation RT cores, 224 fourth-generation Tensor cores, and 7,168 CUDA cores. So, it significantly boosts AI-powered graphics & ray tracing.

CUDA Cores

The NVIDIA GeForce RTX 4070 SUPER processor features 7,168 CUDA cores, which provide 5888 shading units for intense parallel processing. The 4070 SUPER adds 1,280 more CUDA cores than the base RTX 4070’s 5,888. Furthermore, it includes streaming multiprocessors, tensor cores & ray tracing cores which operate at 2475 MHz boost clock.

3rd Generation RT Cores

This processor features 56 dedicated RT cores that provide up to two times the ray-tracing performance as compared to earlier generations. So these cores contain new OMM (Opacity Micro-Map) engines and DMM (Displaced Micro-Mesh) engines to speed up complex geometry & ray tracing tasks.

4th Generation Tensor Cores

This processor features specialized AI accelerators like 4th-generation tensor cores. They deliver up to 568 AI TOPS & power DLSS 3 frame generation for up to 4x performance gains over brute-force rendering. These cores enable accelerated AI tasks like FP8 support for enhanced gaming & generative AI performance. Additionally, these cores support the latest data formats and sparsity acceleration to enhance inference speeds and AI training.

Memory Subsystem

This graphics card features 12 GB of high-speed GDDR6X memory connected with a 192-bit memory bus to provide 504.2 GB/s bandwidth. This graphics card operates at an effective 21 Gbps speed with 48MB of L2 cache memory configuration for 1440p high-performance gaming. This memory allows the graphics card to support intensive gaming with efficient ray tracing and DLSS 3 frame generation. Hence, the 48MB L2 cache is a major increase over earlier generations, which reduces the need for stable access to the major VRAM by enhancing performance efficiency.

Cache

The NVIDIA GeForce RTX 4070 SUPER graphics card features 48MB of massive L2 cache, which improves gaming performance & decrease memory bandwidth blockages.  Furthermore, it can also include 128KB of L1 cache for each SM. So this increased L2 cache can help the 12GB GDDR6X memory to operate more efficiently by allowing for higher performance within 1440p & 4K gaming.

NVENC & NVDEC

The GeForce RTX 4070 SUPER features dedicated hardware engines like NVENC & NVDEC, which speed up video encoding & decoding. These intense tasks can be offloaded from the CPU to the GPU. These engines on this graphics card allow high-quality, fast video editing and efficient streaming (AV1, HEVC) with AV1 support.

Interface

The GeForce RTX 4070 SUPER uses a PCI Express 4.0 x 16 interface, used to connect the GPU to the motherboard. It also features a 192-bit memory interface for its 12GB of GDDR6X VRAM. It provides 32 GB/s of high-speed data transfer with 16 lanes of the PCIe 4.0 standard.

Display/Output

This graphics card supports four display outputs, like 3 x DisplayPort 1.4a & 1x HDMI 2.1a for display output. Thus, it provides a maximum 7680×4320 @ 120Hz digital resolution by delivering high-speed and high-fidelity output, which is suitable for professional, creative, and 4K gaming applications.

GeForce RTX 4070 SUPER Vs GeForce RTX 4070 Ti

The difference between GeForce RTX 4070 SUPER Vs GeForce RTX 4070 Ti includes the following.

GeForce RTX 4070 SUPER	GeForce RTX 4070 Ti
It is a high-performance, mid-range graphics card.	It is an enthusiast-class graphics card.
It is a cut-down version with 224 Tensor Cores, 56 RT Cores, and 7,168 CUDA cores.	The 4070 Ti features 240 Tensor Cores, 60 RT Cores, and 7,680 CUDA cores.
The 4070 SUPER base clock is 1,980 MHz & boost clock is 2,475 MHz.	The 4070 Ti runs very fast with 2,310 MHz base CLK  & ~2,610 MHz boost CLK.
The 4070 SUPER operates at 220W.	The 4070 Ti processor is more power-hungry at 285W.
The 4070 SUPER is selected if you need the best lower power consumption, great 1440p performance, and price-to-performance ratio.	The 4070 Ti is selected if you need maximum 1440p FPS, superior ray-tracing performance, and a budget.

RTX 4070 SUPER Features

The NVIDIA GeForce RTX 4070 SUPER graphics card includes a wide range of advanced gaming, AI, and multimedia features designed to improve rendering quality, frame rates, and content creation performance. These features are mainly powered by the Ada Lovelace architecture, 3rd Generation RT cores, and 4th Generation Tensor cores.

DLSS 3.5

The RTX 4070 SUPER supports NVIDIA DLSS 3.5 (Deep Learning Super Sampling), an AI-powered rendering technology that utilizes Tensor cores to improve gaming performance and image quality. DLSS 3.5 introduces AI-based Frame Generation and Ray Reconstruction technologies to generate additional frames and enhance ray-traced lighting effects. Thus, it significantly increases FPS while maintaining high visual quality in demanding games like Cyberpunk 2077 and Alan Wake 2.

Ray Reconstruction

Ray Reconstruction is an advanced AI-driven rendering technique included within DLSS 3.5. It replaces traditional hand-tuned denoisers with AI neural networks to improve the quality of ray-traced lighting, shadows, and reflections. Therefore, it produces more realistic graphics with improved clarity and reduced visual noise.

NVIDIA Reflex

The RTX 4070 SUPER supports NVIDIA Reflex technology, which decreases system latency in competitive games. This technology synchronizes the CPU and GPU pipeline to reduce rendering delays and improve responsiveness. Hence, it provides quicker reaction times in esports games like Valorant, Apex Legends, and Counter-Strike 2.

AV1 Encoding Support

The graphics card features 8th Generation NVENC hardware encoders with AV1 encoding support. AV1 is a modern video codec that delivers improved compression efficiency compared to H.264 while maintaining high video quality. Consequently, streamers and content creators can achieve better-quality live streams with lower bandwidth usage.

RTX Video Super Resolution

RTX Video Super Resolution uses AI processing through Tensor cores to upscale low-resolution video content to higher resolutions. It improves video sharpness, removes compression artifacts, and enhances streaming quality while watching online videos through browsers like Chrome and Edge.

RTX Video HDR

RTX Video HDR automatically converts SDR (Standard Dynamic Range) video content into HDR (High Dynamic Range). Therefore, it enhances brightness, color depth, and contrast to provide more vibrant and realistic visuals on HDR-compatible displays.

Gaming Performance of RTX 4070 SUPER

The GeForce RTX 4070 SUPER graphics card delivers excellent gaming performance, particularly for high-refresh-rate 1440p gaming and entry-level 4K gaming. The increased CUDA core count and DLSS 3 support provide substantial improvements compared to the standard RTX 4070.

1080p Gaming Performance

At 1080p resolution, the RTX 4070 SUPER can easily exceed 144 FPS in most modern AAA and esports games with maximum graphical settings enabled. Competitive titles such as Fortnite, Valorant, and Call of Duty can achieve extremely high frame rates suitable for high-refresh-rate gaming monitors.

1440p Gaming Performance

The RTX 4070 SUPER is mainly optimized for 1440p gaming. It can deliver above 100 FPS in demanding games while maintaining ultra-quality settings and ray tracing effects. DLSS 3 further boosts performance by generating AI-assisted frames.

Typical 1440p Performance

Game	Average FPS
Cyberpunk 2077	110+ FPS
Hogwarts Legacy	120+ FPS
Forza Horizon 5	150+ FPS
Call of Duty MW3	170+ FPS
Alan Wake 2	90+ FPS

4K Gaming Performance

The RTX 4070 SUPER can also handle 4K gaming efficiently in many modern titles, especially when DLSS 3 and Frame Generation are enabled. Although it is not designed as a flagship 4K GPU, it still provides smooth gameplay in many demanding applications.

Typical 4K Performance

Game	Average FPS
Cyberpunk 2077	65–75 FPS
Red Dead Redemption 2	80+ FPS
Spider-Man Remastered	90+ FPS
Hogwarts Legacy	70+ FPS
Forza Horizon 5	100+ FPS

Thermal Performance & Cooling

The NVIDIA GeForce RTX 4070 SUPER graphics card is known for its excellent thermal efficiency because of the Ada Lovelace architecture and optimized 5nm manufacturing process.

Cooling System

Most RTX 4070 SUPER models feature:

• Triple-fan cooling systems
• Large aluminum heatsinks
• Vapor chamber cooling
• Heat pipes for efficient heat transfer

These cooling systems help maintain lower GPU temperatures during heavy gaming workloads.

Typical Operating Temperatures

The average operating temperature of the RTX 4070 SUPER ranges between:

• 30°C to 40°C during idle operation
• 60°C to 75°C during gaming
• 75°C to 80°C under heavy rendering workloads

Power Efficiency

The RTX 4070 SUPER operates with a 220W TDP, which provides excellent performance-per-watt efficiency. Therefore, it delivers near-RTX 4070 Ti performance while consuming lower power.

Undervolting Support

The graphics card supports undervolting through software tools like MSI Afterburner. Undervolting reduces power consumption and temperatures while maintaining nearly identical gaming performance.

Best PSU for RTX 4070 SUPER

Selecting a suitable power supply unit is essential for stable operation of the RTX 4070 SUPER graphics card.

Recommended PSU Wattage

NVIDIA generally recommends:

• Minimum PSU: 650W
• Recommended PSU: 750W for high-end CPUs and overclocking

Recommended PSU Features

A good PSU for RTX 4070 SUPER should include:

• 80 Plus Gold certification
• ATX 3.0 compatibility
• Native 12VHPWR connector
• High-quality capacitors
• Strong 12V rail stability

Suitable PSU Models

Some commonly recommended PSU series include:

• Corsair RM750e
• ASUS ROG Strix 750W
• MSI MAG A750GL
• Seasonic Focus GX-750
• Cooler Master GX III Gold

Best CPUs to Pair with RTX 4070 SUPER

The RTX 4070 SUPER performs best when paired with powerful modern processors to avoid CPU bottlenecks.

Best AMD CPUs

AMD Ryzen 7 7800X3D

This processor is one of the best gaming CPUs because of its large 3D V-Cache technology, which improves gaming performance significantly.

AMD Ryzen 7 7700X

The Ryzen 7 7700X provides strong gaming and productivity performance with lower cost compared to the 7800X3D.

Best Intel CPUs

Intel Core i7-14700K

This processor delivers excellent gaming and multitasking performance through high core counts and fast boost clocks.

Intel Core i5-14600K

The Core i5-14600K is a balanced option for gamers seeking excellent price-to-performance value.

RTX 4070 SUPER vs RTX 3070 Ti

The RTX 4070 SUPER provides significant improvements over the RTX 3070 Ti in terms of AI acceleration, ray tracing, and power efficiency.

Feature	RTX 4070 SUPER	RTX 3070 Ti
Architecture	Ada Lovelace	Ampere
CUDA Cores	7168	6144
VRAM	12GB GDDR6X	8GB GDDR6X
DLSS Version	DLSS 3.5	DLSS 2
Ray Tracing	3rd Gen RT Cores	2nd Gen RT Cores
Power Consumption	220W	290W
AV1 Encoding	Supported	Not Supported

The RTX 4070 SUPER delivers significantly better efficiency, ray tracing, and AI-assisted rendering performance than the RTX 3070 Ti.

DLSS 3 Working Principle

DLSS 3 works by utilizing AI and Tensor cores to generate additional frames between traditionally rendered frames. Initially, the GPU renders two normal frames using conventional rendering techniques. Then, the Optical Flow Accelerator analyzes movement data between frames. After that, AI algorithms running on Tensor cores generate intermediate frames to increase frame rates.

Therefore, DLSS 3 can:

• Increase FPS significantly
• Reduce GPU workload
• Improve gameplay smoothness
• Maintain image quality
• Enhance ray-traced gaming performance

This technology is especially useful for demanding 1440p and 4K gaming workloads.

GeForce RTX 4070 SUPER Maintenance

There are different steps involved in GeForce RTX 4070 SUPER graphics card maintenance, which include the following.

• The GeForce RTX 4070 Super graphics card needs regular and gentle cleaning of the fans and heatsink with compressed air to make sure best thermals.
• Use 70 to 75% isopropyl alcohol with a lint-free cloth for surface cleaning, ensure safe 16-pin power cable connections, and drivers must be updated through GeForce Experience.
• Make sure the 16-pin 12VHPWR connector is completely seated to avoid power issues.
• Software must be used to monitor, because the graphics card is designed for high-performance & must be kept cool.
• Check for firmware or BIOS updates, particularly if experiencing problems like display issues or fan noise.
• Ensure the graphics card is correctly supported within the PCIe slot to keep away from sag.
• These are designed with strong reinforcements, but regular dusting is still required for specific ASUS TUF Gaming models.
• The RTX 4070 Super is highly efficient and can be undervolted using tools like MSI Afterburner to reduce power consumption and lower temperatures while increasing and maintaining performance.
• Configure custom fan curves to make sure the fans ramp up properly as temperatures increase.
• Register your graphics card with the manufacturer within 30 days of buy to take advantage of extended warranties.

Advantages

The advantages of GeForce RTX 4070 SUPER include the following.

• It features an additional 1,280 CUDA cores.
• CUDA cores than the standard 4070 to provide a large boost to 4070 Ti-level performance.
• It provides outstanding and high-refresh-rate 1440p gaming.
• This graphics card incorporates 3rd Gen RT cores and 4th Gen Tensor Cores for DLSS 3. Therefore, it enables better and more realistic lighting within supported games.
• It maintains strong performance-per-watt efficiency by delivering almost 4070 Ti performance at fewer prices.
• It features AV1 hardware encoding or decoding, DLSS 3.5, and HDMI 2.1 support, which are perfect for content creators and streamers.
• These are frequently available in dual-fan, quiet-BIOS, and more compact configurations, which are appropriate for smaller builds.
• The RTX 4070 SUPER efficiently replaces the non-SUPER model by delivering better performance.

Disadvantages

The disadvantages of GeForce RTX 4070 SUPER include the following.

• The graphics card uses the 12-pin connector, which needs careful installation to avoid from potential melting and improper seating
• Despite having more CUDA cores than the base 4070, it is restricted by the same 192-bit memory bandwidth. So it can restrict performance gains within memory-intensive scenarios.
• The 12GB of VRAM can be a blockage in some current, resource-intensive games at 4K resolution, which potentially causes reduced or stuttering texture quality.
• It often needs heavy reliance on DLSS to maintain higher frame rates at 4K.
• It is a major investment for a mid-range graphics card.
• This graphics card faces strong competition from the AMD Radeon RX 7800 XT, which frequently costs less while providing better or similar performance in usual rendering.

Applications

The applications of GeForce RTX 4070 SUPER include the following.

• The GeForce RTX 4070 SUPER is designed mostly for 1440p gaming, AI-driven tasks, and creative applications.
• It is situated as a more efficient and faster alternative to the graphics card in intensive scenarios.
• It shines at 1440p with maximum settings by attaining above 100 FPS within demanding titles. In addition, it can also support 4K gaming, particularly with DLSS enabled.
• This processor provides better, more realistic lighting and reflections in Cyberpunk 2077 games with 56 3rd-generation ray-tracing cores.
• It utilizes AI to produce extra frames, improving smoothness within modern titles.
• It decreases system latency for quick response times within competitive shooters.
• This processor is appropriate for high-fidelity virtual reality experiences.
• It boosts up to 40% performance over the RTX 3070 Ti within apps.
• It is equipped with the 8th Generation NVENC, which features dedicated hardware for AV1 encoding by providing 40% better efficiency as compared to H.264.
• This processor can be optimized for 110+ creative applications by providing tools and stability for 3D, design & rendering.
• It utilizes AI for video and voice enhancement, like virtual backgrounds, webcam effects, and noise removal.
• This processor improves streamed 1080p video to 4K quality on displays with AI, well-matched with Chrome, VLC, and Edge.
• It automatically changes SDR (standard dynamic range) video into HDR (high dynamic range).

Conclusion:

Thus, this is an overview of the GeForce RTX 4070 Super , which is an extremely suggested mid-range GPU. It delivers effective ray tracing and outstanding 1440p performance. This graphics card is the best option from the 40-series due to its better value, strong ray tracing, and DLSS 3 frame generation. It is perfect for gamers who are looking for smooth frame rates in demanding titles and can even manage 4K gaming. So, it provides a large price-to-performance value with strong efficiency & cooling options from a variety of board partners like ASUS, MSI, Gigabyte, and many more. Here is a question for you: What is GeForce RTX 4070?
