How GPU Cores Perform Matrix Multiplication in AI with Example

Matrix multiplication is the fundamental operation behind Artificial Intelligence (AI). From neural networks to deep learning models, nearly every computation reduces to multiplying matrices. However, performing these operations on a traditional CPU is inefficient for large-scale AI workloads. This is where Graphics Processing Units (GPUs) play a crucial role. GPUs are designed to handle massively parallel computations, making them ideal for accelerating matrix multiplication in AI systems. In this article, we will explore in detail:

• How matrix multiplication works
• Why GPUs are faster than CPUs
• GPU architecture for AI computation
• Step-by-step working using an example
• Advanced optimization techniques like tiling and Tensor Cores

Understanding Matrix Multiplication in AI

Matrix multiplication is used in AI for:

• Neural network forward propagation
• Backpropagation (training phase)
• Convolution operations in CNNs
• Attention mechanisms in Transformers

The general formula for matrix multiplication is:

Ci,j= ∑k=1NAi,k⋅Bk,j

This means:

• Each element in the result matrix is computed using dot products.
• Requires multiple multiply and add operations.

Simple Example of Matrix Multiplication

Let us consider two matrices:

Now, we compute the result matrix C:

Step-by-step calculation:

• C1,1=(1×5)+(2×7)=19
• C1,2=(1×6)+(2×8)=22
• C2,1=(3×5)+(4×7)=43
• C2,2=(3×6)+(4×8)=50

Why GPUs Are Ideal for AI Computation

GPUs are designed for parallel workloads, originally for graphics rendering, but now widely used in AI.

Key Advantages:

1. Massive Parallelism

• Thousands of cores
• Each core performs simple operations simultaneously

2. High Throughput

• Optimized for floating-point operations
• Ideal for matrix multiplication

3. Specialized Hardware

• Includes Tensor Cores for AI acceleration

GPU Architecture for Matrix Multiplication

To understand how GPUs work, we need to look at their internal architecture.

Key Components:

1. Threads

• Smallest execution unit
• Each thread computes one element of output

2. Warps

• Group of 32 threads
• Execute instructions simultaneously

3. Thread Blocks

• Collection of threads
• Share data using shared memory

4. Streaming Multiprocessor (SM)

• The core processing unit in the GPU
• Executes multiple thread blocks

Parallel Matrix Multiplication in GPU

Let’s understand how GPUs compute matrix multiplication differently.

Instead of:

• One element at a time (CPU)

GPU does:

• All elements at the same time

Example Mapping

For a 2×2 output matrix:

C=[ C1,1C1,2 ]

[C2,1C2,2]

GPU Assigns:

Thread	Task
Thread 1	Compute C1,1C1,1​
Thread 2	Compute C1,2C1,2​
Thread 3	Compute C2,1C2,1​
Thread 4	Compute C2,2C2,2​

All threads execute simultaneously

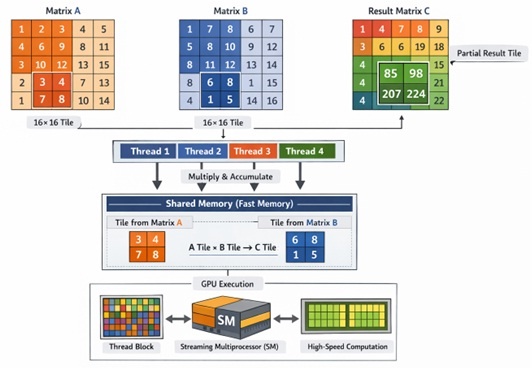

Tiled Matrix Multiplication (Core Optimization)

For large matrices, GPUs use an important technique called tiling.

What is Tiling?

Tiling divides matrices into smaller blocks:

• Instead of computing the entire matrix at once
• Break into smaller sub-matrices (tiles)

Example:

• 1024×1024 matrix → divided into 16×16 tiles

Why Tiling is Needed?

Without tiling:

• GPU repeatedly accesses slow global memory

With tiling:

• Data is loaded into shared memory (fast)

Reused multiple times

• This significantly improves performance

Step-by-Step Tiled Execution

Step 1: Divide Matrices into Tiles

• Matrix A → tiles
• Matrix B → tiles

Step 2: Load Tiles into Shared Memory

• Threads cooperatively load data
• Stored in fast on-chip memory

Step 3: Perform Partial Multiplication

• Multiply corresponding tiles
• Compute partial results

Step 4: Accumulate Results

• Add partial values
• Final output stored in matrix C

Shared Memory vs Global Memory

Memory Type	Speed	Usage
Global Memory	Slow	Large data storage
Shared Memory	Fast	Temporary tile storage

Efficient GPU programming minimizes global memory access

Tensor Cores: AI Acceleration Hardware

Modern GPUs include Tensor Cores, which are specialized units designed for matrix operations.

What Tensor Cores Do?

• Perform matrix multiplication in a single clock cycle
• Handle small matrices (e.g., 4×4 blocks)
• Execute multiple operations simultaneously

Example Operation

Instead of computing:

• One multiplication at a time

Tensor Core computes:

• Entire small matrix multiplication instantly

This gives massive speedup for AI workloads

Multiply-Accumulate (MAC) Operation

The core operation in matrix multiplication is:

• Result=(A×B)+Previous ResultResult=(A×B)+Previous Result

This is called: Multiply-Accumulate (MAC)

Why is MAC important?

• Used in neural networks
• Basis for convolution and dense layers
• Billions of MAC operations executed per second

End-to-End GPU Execution Flow

Let’s summarize how a GPU processes matrix multiplication:

Step 1: Data Transfer

• CPU sends matrices to GPU memory

Step 2: Thread Allocation

• GPU divides work among threads

Step 3: Tile Loading

• Data loaded into shared memory

Step 4: Parallel Computation

• Threads perform multiplication

Step 5: Accumulation

• Results combined

Step 6: Output Storage

• Final matrix stored in memory

Real-World AI Example

Consider a neural network layer:

• Input: 1024 neurons
• Output: 1024 neurons

This requires:

1024×1024=1,048,576 multiplications

For deep networks:

• Multiple layers
• Billions of operations

Only GPUs can handle this efficiently

Matrix Multiplication CPU vs GPU

Feature	CPU	GPU
Execution Style	Sequential	Parallel
Number of Cores	Few	Thousands
Performance	Moderate	Very High
Memory Access	Less optimized	Highly optimized
AI suitability	Limited	Excellent

Key Optimization Techniques in GPUs

1. Tiling

• Improves data reuse

2. Memory Coalescing

• Efficient memory access pattern

3. Warp Scheduling

• Efficient thread execution

4. Tensor Core Acceleration

• Special hardware for AI

Easy Analogy to Understand

Imagine solving a huge multiplication problem:

CPU:

• One student solving step-by-step

GPU:

• Thousands of students are solving different parts simultaneously

That’s why GPUs are faster

Why Matrix Multiplication Dominates AI?

Matrix multiplication is used in:

• Deep learning
• Computer vision
• Natural language processing
• Reinforcement learning

It is the core building block of AI computation

FAQs

1. What is the role of memory bandwidth in GPU matrix multiplication?

Memory bandwidth determines how quickly data can be transferred between GPU memory and processing cores. Even if a GPU has thousands of cores, low bandwidth can slow down matrix multiplication because the cores may wait for data instead of performing computations.

2. Why do GPUs use floating-point numbers instead of integers in AI computations?

AI models require high precision when handling weights and activations. Floating-point numbers allow the representation of very small and very large values, which is essential for training deep neural networks accurately.

3. What is mixed precision training in GPU-based AI?

Mixed precision training uses a combination of lower precision (like FP16) and higher precision (like FP32) calculations. GPUs, especially with Tensor Cores, can process FP16 much faster, improving performance while maintaining acceptable accuracy.

4. How does GPU latency differ from GPU throughput in matrix multiplication?

Latency refers to the time taken to complete a single operation, while throughput refers to how many operations can be completed per second. GPUs are optimized for high throughput rather than low latency, making them ideal for large-scale matrix computations.

5. What happens if the matrix dimensions are not compatible for multiplication?

Matrix multiplication is only possible if the number of columns in the first matrix equals the number of rows in the second matrix. If they are not compatible, the operation cannot be performed, and the program will return an error.

6. How do GPUs handle sparse matrix multiplication in AI?

In sparse matrices, many elements are zero. GPUs use specialized algorithms to skip zero values, reducing unnecessary computations and improving performance, especially in large AI models.

7. What is the difference between batch processing and single matrix multiplication?

Batch processing involves performing multiple matrix multiplications simultaneously. GPUs are highly efficient in batch processing because they can distribute multiple matrices across thousands of threads, increasing overall efficiency.

8. How does the cache hierarchy affect GPU matrix multiplication performance?

GPUs have multiple cache levels (L1, L2, shared memory). Efficient use of cache reduces access to slower global memory, thereby improving performance during repeated matrix operations.

9. Why are GPUs preferred over TPUs or FPGAs in some AI applications?

GPUs offer flexibility and are easier to program using frameworks like CUDA and OpenCL. While TPUs and FPGAs can be faster for specific tasks, GPUs provide a balance between performance, programmability, and cost.

10. How does power consumption impact GPU-based matrix multiplication?

High-performance GPUs consume significant power, especially during large AI computations. Efficient algorithms and optimizations like tiling and mixed precision help reduce power usage while maintaining performance.

Final Conclusion

Matrix multiplication is at the heart of AI, and GPUs accelerate it using:

• Massive parallel processing
• Efficient memory hierarchy
• Advanced techniques like tiling
• Specialized hardware such as Tensor Cores

Because of these innovations, GPUs can perform trillions of operations per second

This makes modern AI applications like:

• Self-driving cars
• Chatbots
• Image recognition
• Possible and efficient.
