NVIDIA GeForce RTX 3060 : Specifications, Architecture, Working, Differences & Its Applications

The GeForce RTX 30 series graphics processing units were developed by Nvidia and started shipping on September 17, 2020. The GeForce RTX 30 series succeeded the GeForce RTX 20 series. This series is based on the Ampere architecture with features like Nvidia’s second-generation ray tracing (RT) cores and third-generation Tensor Cores. Therefore, it enables enhanced, creative, and smoother 4K gaming applications. This GPU provides significant upgrades for creators and gamers with features like AI-powered DLSS, lower system latency, and realistic ray tracing for competitive gaming. This article elaborates on NVIDIA GeForce RTX 3060, working & its applications.

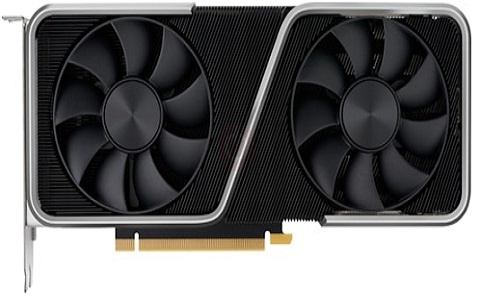

What is NVIDIA GeForce RTX 3060?

The NVIDIA GeForce RTX 3060 from the 30-series is a famous mid-range graphics card. It is built on the Ampere architecture to provide strong 1080p gaming performance, AI-powered DLSS, and real-time ray tracing for better frame rates. This GPU is a solid choice for creators and gamers who are seeking great efficiency and value for modern titles. It features 3rd Gen Tensor Cores for AI, 2nd Gen RT Cores for ray tracing & comes with 12GB of GDDR6 memory. Therefore, it provides a significant performance boost over previous graphics cards, particularly in games that support DirectX 12 Ultimate.

The GeForce RTX 3060 12 GB is based on the GA106 graphics processor. It supports DirectX 12 Ultimate in its GA106-300-A1 variant to ensure that all modern games will work on this graphics card. The GA106 graphics processor is a normal-sized chip with a 276 mm² die area with ~12 billion transistors.

NVIDIA on the GeForce RTX 3060 12 GB has disabled some shading units to attain the target shader count of the product. NVIDIA has connected 12 GB of GDDR6 memory with the GeForce RTX 3060 12 GB using a 192-bit memory interface. The operating frequency of this GPU ranges from 1320 MHz to 1777 MHz, where memory runs at 1875 MHz.

How does NVIDIA GeForce RTX 3060 Work?

The NVIDIA GeForce RTX 3060 works with its Ampere architecture. It uses a combination of specialized processing cores for real-time ray tracing, artificial intelligence, and traditional graphics rendering tasks. This is a hybrid approach that provides realistic visuals and better performance in supported applications. Its dedicated 3rd Gen Tensor Cores and 2nd Gen RT cores can be combined with quick GDDR6 memory for creative work and smooth gaming.

This GPU works as an accelerator that takes instructions via the PCI Express interface from the CPU. It processes graphics commands with its range of cores & technologies by managing the data flow through its high-speed memory. Therefore, it outputs the rendered images to a display through DisplayPort 1.4a or HDMI 2.1 ports.

It is a dual-slot card, so it draws power from one 8-pin power connector with a maximum 170 W of power draw. It features four display outputs, like 1x HDMI 2.1 and 3x DisplayPort 1.4a. This GPU is connected to the rest of the system with a PCI-Express 4.0 x 16 interface.

Specifications

The specifications of NVIDIA GeForce RTX 3060 include the following.

• This GPU uses NVIDIA Ampere Architecture.
• It features 3584 CUDA cores.
• It features 3rd-generation tensor cores and 2nd-generation RT cores.
• Memory size is 12 GB GDDR6.
• The memory bus is 192-bit, and the memory speed is 15 Gbps.
• It supports a maximum of four displays: 3x DisplayPort 1.4a and 1x HDMI 2.1.
• It features a maximum of four displays.
• Interface is PCI Express 4.0.
• Boost Clock is 1777 MHz
• Base Clock is 1320 MHz.
• Power connector is 1x 8-pin.
• Thermal Design Power or TDP is 170W.
• Recommended PSU is 550W
• It supports different technologies like Ray Tracing, DLSS, DirectX 12 Ultimate, and NVIDIA Reflex.

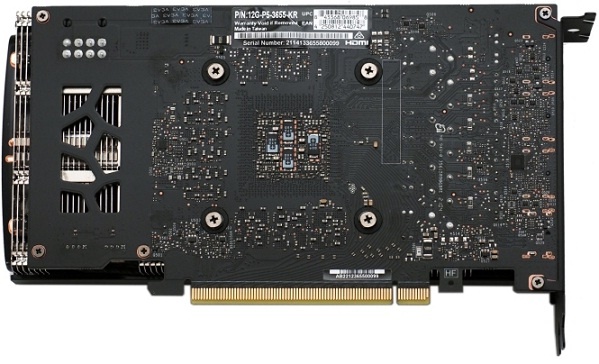

NVIDIA GeForce RTX 3060 Architecture

The NVIDIA GeForce RTX 3060 utilizes the Ampere architecture, built on an 8nm process with GDDR6 memory for quick data access. This architecture features 3rd Generation Tensor Cores, 2nd generation ray tracing cores, and the latest streaming multiprocessors. In addition, it supports advanced features like DirectX 12 Ultimate by enabling realistic ray tracing and better performance for creative work and gaming.

Components

NVIDIA GeForce RTX 3060 architecture can be built with different components like CUDA cores, RT cores, tensor cores, streaming multiprocessors, texture mapping units, raster output units, memory, and L1/L2 cache.

CUDA Cores

The NVIDIA GeForce RTX 3060 features 3584 CUDA Cores, which provide strong parallel processing for AI and gaming, though in some rare OEM versions. These CUDA cores handle parallel processing for AI and graphics with 3rd Gen Tensor Cores for AI acceleration and 2nd Gen RT Cores for ray tracing. In essence, this GPU provides a strong core count for its class to make it capable of modern AI and gaming applications.

RT Cores

The NVIDIA GeForce RTX 3060 GPU features 2nd Generation RT Cores. They deliver better ray tracing performance through concurrent RT and shading, next to 3rd Gen Tensor Cores for AI tasks. So it enables realistic lighting & faster frame rates within supported games. In essence, the dedicated hardware, like RT Cores in this GPU, handles complex ray tracing to make it a capable graphics card for new, visually rich gaming experiences.

Tensor Cores

The NVIDIA GeForce RTX 3060 GPU features specialized processing units like 3rd Generation Tensor Cores, which speed up AI & ML tasks for higher frame rates. In addition, these Tensor Cores provide a significant boost for content creation, gaming, and machine learning enhancements as compared to previous generations.

Streaming Multiprocessors

This GPU features 28 Ampere SMs, where each has 2nd Gen RT Cores for ray tracing, 128 CUDA Cores & 3rd Gen Tensor Cores for AI. Therefore, it provides a significant performance boost over earlier generations with better efficiency. This GPU supports different technologies like DLSS. Therefore, these streaming multiprocessors are the core processing units that deliver double the FP32 throughput as compared to earlier architectures, which enables higher features for creative and gaming tasks.

Texture Mapping Units

The NVIDIA GeForce RTX 3060 GPU features 112 TMUs in its desktop 12GB variant. So these are responsible for processing texture data within games. Some laptop or mobile versions might have somewhat fewer, approximately 96. These TMUs work next to other components like RT Cores and CUDA cores to deliver performance with the precise count based on the specific chip & form factor.

Raster Output Units

The NVIDIA GeForce RTX 3060 graphics card features 48 ROPs across its different standard mobile and desktop versions. These raster output units are significant parts that are responsible for the last stages of the rendering process, like writing the last pixel data to memory by performing tasks like anti-aliasing to process graphic quality.

Memory

The NVIDIA GeForce RTX 3060 GPU features 12GB of fast GDDR6 video memory on a 192-bit bus. It provides 15 Gbps speed and 360 GB/s bandwidth to make it great for content creation and gaming with large datasets. Therefore, it is a great choice for content creation and gaming, but later some models were released with 8GB GDDR6 for a lower price.

L1/L2 Cache

The NVIDIA GeForce RTX 3060 uses L1 cache for private data access & a larger, shared L2 cache that works as a buffer between L1 & slower VRAM. Therefore, it decreases memory bottlenecks for all streaming microprocessors by frequently caching used data for better performance within AI tasks and games. In addition, L1 cache is for immediate and private needs, whereas L2 cache is for a larger and shared pool to hold data to boost overall GPU efficiency significantly.

Software System

The NVIDIA GeForce RTX 3060 uses essential software systems with drivers to communicate through the operating system. In addition, it uses a set of software for better features like aiming optimization, content creation, and AI acceleration. The core components of this software system mainly include graphics drivers and NVIDIA app/GeForce Experience.

Graphics drivers in this software allow communication between the GPU & the rest of the system. So, NVIDIA provides specific game-ready drivers for the best performance in Studio Drivers and games for better stability within creative applications.

The NVIDIA App or GeForce experience application works as the central hub for handling the graphics card. In addition, it handles driver updates by providing different features like best game settings, automatic GPU tuning, In-game overlay, freestyle and ansel and automatic GPU tuning. The NVIDIA GeForce RTX 3060 GPU drivers are available for a variety of operating systems, like Windows 10, Windows 11, and Linux distributions.

NVIDIA GeForce RTX 3060 Vs RTX 3060 Ti

The difference between the NVIDIA GeForce RTX 3060 and RTX 3060 Ti includes the following.

How to Maintain NVIDIA GeForce RTX 3060?

The steps involved in RTX 3060 maintenance are: physical maintenance and software maintenance.

Physical Maintenance

• Compressed air must be used frequently to blow out dust from the fans & heat-sink fins.
• Make sure your PC case has good intake & exhaust fans to bring cool air in & push out hot air.
• Change the thermal paste every year between the GPU die & heat-sink to avoid overheating by using a thin brush & isopropyl alcohol tools.
• Thermal pads must be replaced if they dry out.

Software Maintenance

• The software tool must be used to keep updating your drivers & optimize game settings automatically for your card by ensuring peak performance.
• Allow this in GeForce Experience to sharpen video in browsers for clearer playback.
• If you encounter problems, then execute a clean install of drivers with the custom option within the installer to eliminate old files.

Advantages

The advantages of NVIDIA GeForce RTX 3060 include the following.

• Its Ampere architecture offers better screen rendering & ray tracing performance over older graphics cards.
• It uses Artificial Intelligence to enhance frame rates in supported games by providing significant performance strength for ray tracing & high resolutions.
• It enables sensible lighting, reflections, and shadows in games by providing immersive visuals.
• This GPU provides sufficient memory for demanding games and high-resolution textures, often outperforming the latest graphics cards with less VRAM within memory-intensive scenarios.
• It decreases system latency within competitive games by providing players with a faster response time.
• AI-powered tools can be used for content creators and streamers for noise removal, auto-framing, and virtual backgrounds.
• It utilizes the latest drivers for innovative apps to accelerate workloads in design, video editing, and other applications.
• This graphics card provides a strong balance of performance and price for entry-level 1440p and 1080p gaming.
• It is a budget-friendly and versatile card with new RTX features, especially for those who value high VRAM for long life & demanding texture settings.

Disadvantages

The disadvantages of NVIDIA GeForce RTX 3060 include the following.

• RTX 3060 can handle ray tracing at 1080p with DLSS enabled. Native RT at high settings is where it struggles.
• The GPU core is adequate for smooth 1440p with DLSS / medium–high settings, not native ultra settings.
• It is significantly slower than the RTX 3060 Ti due to its fewer cores, lower clock speeds, and narrower memory bus.
• Its GDDR6 memory and 192-bit memory interface can limit its memory bandwidth as compared to faster graphics cards.
• AMD cards in the same price bracket provide superior rasterization performance for less or similar money.
• It has limited 4K performance, struggles with demanding ray tracing without DLSS & potential future-proofing issues because of growing game requirements.

NVIDIA GeForce RTX 3060 Applications

The NVIDIA GeForce RTX 3060 supports the following applications.

• This graphics card excels in 1440p and 1080p gaming to provide smooth performance with ray tracing and DLSS within modern titles.
• In addition, it manages creative tasks like video streaming, editing & light 3D rendering for AI development and creators.
• It is a versatile GPU for both content creators and gamers who are seeking strong value.
• It handles current games at 1080p through high settings & 1440p through DLSS enabled for smooth frame rates.
• This GPU supports superior features like variable rate shading and ray tracing for realistic visuals.
• It decreases system latency within competitive games for improved responsiveness.
• It features the NVIDIA Broadcast app and hardware encoding or decoding for virtual backgrounds, auto-framing, and AI-powered noise removal for better video calls and streams.
• It is capable of handling demanding software and 4K video editing.
• Tensor Cores speed up machine learning applications and AI workloads with support from tools within the NGC Catalog, mainly for developers.

FAQs

1. Is NVIDIA GeForce RTX 3060 good for engineering students?

Yes. The RTX 3060 is excellent for engineering students working with CUDA, MATLAB, OpenCV, AI frameworks, and simulation software, thanks to its large VRAM and AI acceleration.

2. Can RTX 3060 handle ray tracing?

Yes, but ray tracing works best at 1080p with DLSS enabled. Native high-resolution ray tracing can reduce frame rates.

3. Is RTX 3060 suitable for AI and machine learning?

Yes. The Tensor Cores accelerate AI workloads, making it suitable for TensorFlow, PyTorch, and ML experiments.

4. Is RTX 3060 better than GTX 1660?

Yes. RTX 3060 offers ray tracing, DLSS, better performance, and much higher VRAM, making it a significant upgrade.

5. Is NVIDIA GeForce RTX 3060 still in use in 2026?

Yes. The RTX 3060 is still widely used for 1080p gaming, AI learning, content creation, and engineering applications. Its 12GB VRAM keeps it relevant even as newer GPUs are released.

The NVIDIA GeForce RTX 3060 GPU is a solid, economical GPU for 1080p gaming and creative work. This GPU delivers good value with features like ray tracing and DLSS. Its Ampere architecture and sufficient 12GB VRAM provide a good basis. The latest games frequently need DLSS or medium settings to maintain flat frame rates for budget-conscious learners and gamers. Here is a question for you: What is NVIDIA GeForce RTX 3060 Ti?
