NVIDIA GeForce RTX 4070 Ti : Specifications, Architecture, Working, Differences & Its Applications

The NVIDIA GeForce RTX 4070 series graphics cards are high-performance GPUs for laptops and desktops. These graphics cards use Ada Lovelace architecture, designed for outstanding content creation and 1440p gaming. This series includes the NVIDIA GeForce RTX 4070, 4070 Ti, 4070 Ti SUPER, and 4070 SUPER. Therefore, these graphics cards are aimed at enthusiasts who are looking to upgrade from earlier generations like the RTX 3070 or 2070 by providing a major boost in rendering, AI, and gaming tasks. This article elaborates on the NVIDIA GeForce RTX 4070 Ti graphics card, its working and applications.

What is NVIDIA GeForce RTX 4070 Ti?

The NVIDIA GeForce RTX 4070 Ti is a high-end, enthusiast-class GPU, launched in January 2023 by NVIDIA. It uses a 5nm process Ada Lovelace architecture with CUDA cores, shading units, raytracing acceleration cores, VRAM, texture mapping units, tensor cores, ROPs & DLSS 3 supports, designed for creator workflows & max-settings 1440p gaming. It is based on the AD104 graphics processor, which supports DirectX 12 Ultimate in its AD104-400-A1 variant. This AD104 graphics processor is a mid-sized die at 294 mm² and 35,800 million transistors.  In addition, the DirectX 12 Ultimate gives support for variable-rate shading and hardware-raytracing in future video games.

NVIDIA has paired the GeForce RTX 4070 Ti GPU with 12 GB GDDR6X memory using a 192-bit memory interface. Thus GPU operating frequency is from 2310 MHz to 2610 MHz, where memory runs at 1313 MHz. This is a dual-slot card that draws power from a single 16-pin power connector, and the maximum power draw is rated at 285 W. It features four display outputs, like 1x HDMI 2.1 and 3x DisplayPort 1.4a. This GPU uses a PCIe 4.0 x16 interface to connect to the rest of the system.

Specifications

The specifications of the NVIDIA GeForce RTX 4070 Ti graphics card include the following.

• It uses Ada Lovelace GPU Architecture.
• It features 7,680 CUDA Cores.
• Boost Clock is 2,610 MHz
• Memory is 12GB GDDR6X
• Memory Interface is 192-bit
• Memory Speed is 21 Gbps
• Total Graphics Power or TGP is 285W
• It features a PCIe 4.0 Interface,
• It features 3x DisplayPort 1.4a and 1x HDMI 2.1a outputs.
• Recommended PSU is 700W or above.
• Power Connector is 1x 16-pin (native) (or) 2x 8-pin (adapter).
• It features Third-generation Ray Tracing cores.
• It features fourth-generation tensor cores & an optical flow accelerator.

How does NVIDIA GeForce RTX 4070 Ti Work?

The NVIDIA GeForce RTX 4070 Ti GPU works with the Ada Lovelace architecture to power high-end 1440p gaming. It features 12GB of GDDR6X memory, 4th Gen Tensor Cores, and 7680 CUDA cores for DLSS 3 frame generation. Therefore, it delivers outstanding ray tracing through 3rd Gen RT cores through a 16-pin connector & 285Watts power draw.

This GPU uses a 5nm (4N) process technology to provide high-performance 1440p & 4K gaming, ray tracing, and AI-driven rendering. Therefore, its core functionality hinges on a blend of CUDA cores, 3rd-generation ray tracing cores, and 4th-generation tensor cores for AI, supported by 12 GB of GDDR6X memory.

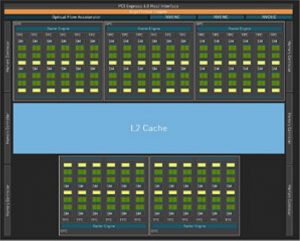

NVIDIA GeForce RTX 4070 Ti Architecture

The NVIDIA GeForce RTX 4070 Ti GPU uses the 5nm Ada Lovelace architecture based on the complete AD104 die. It is designed for entry-level 4K and high-end 1440p gaming, which delivers better power efficiency as compared to the RTX 30-series. Therefore, it allows for high performance in spite of a narrower memory interface. This graphics card features 240 4th-gen Tensor cores, 60 3rd-gen RT cores, 7,680 CUDA cores, 12GB GDDR6X memory, and 285W TGP. Therefore, it is designed for 1440p high-refresh gaming by delivering up to 2x ray tracing performance and 4 X AI performance through DLSS 3 with 12GB GDDR6X memory using a 192-bit bus.

Components

The NVIDIA GeForce RTX 4070 Ti Architecture can be built with different components like CUDA cores, 3rd generation ray tracing cores, 4th generation tensor cores, 12GB GDDR6X memory, 48MB L2 cache, Clock Speeds, Dual 8th Gen NVENC encoders, TSMC 4N process, and Total Graphics Power (TGP). In addition, it can also use advanced Technologies (DLSS 3, NVIDIA Reflex, NVIDIA Encoder (NVENC)), Power & Interface, and Outputs.

CUDA Cores

This GPU features 7,680 CUDA cores or shading units, designed for parallel processing. These parallel processors are designed for gaming, AI tasks, and rendering by delivering efficiency and significant performance increases over earlier generations. In addition, this graphics card can also use 3rd Gen RT cores and 4th Gen Tensor cores for higher graphics capabilities.

Ray Tracing Cores

This graphics card features 60 3rd-generation ray tracing cores. These are known as specialized hardware units, designed to speed up ray propagation to provide up to 2x faster ray tracing performance as compared to earlier generations. It enables physically accurate, real-time shadows, lighting, and reflections with advanced features like displaced micro-mesh for faster & more complex geometry rendering. In addition, the RTX 4070 Ti GPU combines RT cores with DLSS 3 and 4th-gen Tensor Cores to deliver high-fidelity gaming and high frame rates.

Tensor Cores

The NVIDIA GeForce RTX 4070 Ti features specialized AI hardware accelerators like 4th-generation Tensor Cores. They deliver up to 2x faster AI performance as compared to earlier generations. This GPU allows DLSS 3 frame generation, supports the latest FP8 data formats with sparsity acceleration. Therefore, it extensively enhances performance within AI-driven gaming, content creation tools, and rendering. These tensor cores are necessary for higher AI features like NVIDIA Broadcast effects and AI-accelerated rendering.

12GB GDDR6X Memory

The 12GB GDDR6X memory is high-speed video memory or VRAM on the NVIDIA GeForce RTX 4070 Ti GPU. It operates over a 192-bit interface by providing up to 672.3 GB/s bandwidth for quick data transmission. In addition, it supports the AI-driven rendering (DLSS 3) or high-resolution gaming of the Architecture. This memory setup is connected with the CUDA cores, Ray Tracing cores, and the AD104 chip.

Cache

This graphics card features a 48 MB L2 cache based on the architecture. This is a massive, high-speed on-die cache which is significant for improving the 192-bit memory bus, reducing latency, & improving performance by regularly storing accessed data nearer to the 7,680 shader cores. This L2 cache improves bandwidth efficiency with the 192-bit interface to execute at higher levels as compared to smaller and traditional caches. Therefore, it makes the graphics card very effective for AI tasks and 4K gaming. This considerable cache is a trademark of the Ada Lovelace architecture, which provides a major improve within data throughput as compared to the earlier RTX 30-series.

Clock Speeds

This graphics card features a 2310 MHz base clock speed & 2610 MHz of a boost clock speed. Therefore, many factory-overclocked Gigabyte Gaming OC models can go beyond these speeds by reaching 2625 MHz or higher to provide better performance.

Dual 8th Gen NVENC Encoders

The Dual 8th Gen NVENC encoders in the graphics card are two physical, hardware-based video encoding units. So it functions separately to compress video by allowing for extensively enhanced streaming performance and faster video exports. The 4070 Ti graphics card splits the workload between the dual units. It enables high-quality and high-throughput video encoding at multiple concurrent 4K60 streams or up to 8K60.

TSMC 4N Process

The TSMC 4N process is a custom-engineered 5nm-class manufacturing node that is optimized by NVIDIA and TSMC for the Ada Lovelace architecture. Therefore, it allows considerably high transistor density, up to 2.5+ GHz faster clock speeds & better power efficiency than earlier generation nodes. This manufacturing method is essential to the high-performance capabilities of the whole graphics card.

Software System

The software system in the NVIDIA GeForce RTX 4070 Ti architecture plays a significant, symbiotic role. It works as the bridge to unlock the potential of the Ada Lovelace hardware, like 4th Gen Tensor cores and 3rd Gen RT cores. Therefore, it changes raw computational power into superior gaming, AI-accelerated, and rendering features through DLSS 3, software-defined technologies, and Game Ready Drivers.

This software system features key components like Game Ready Drivers, NVIDIA DLSS 3, NVIDIA Reflex, NVIDIA Broadcast App, RTX Video Super Resolution & HDR, NVIDIA Studio Platform, and CUDA-X Libraries & APIs. This software specially leverages the latest hardware features like shader execution reordering (SER), AV1 encoder, and optical flow accelerator. The software system is not only a driver, but it is an active, AI-driven participant. It guides how the 4070 Ti streams, renders, and computes, increasing efficiency and allowing next-generation visual fidelity.

GeForce RTX 4070 Ti Maintenance

The steps involved in NVIDIA GeForce RTX 4070 Ti maintenance include physical maintenance, software maintenance, advanced maintenance, and troubleshooting. Keeping the graphics card cool & clean is essential because of its high power consumption.

Physical Cleaning & Maintenance

• Shut down the PC for every few months, unplug it & use compressed air to eliminate dust from the heatsink and fans.
• Make sure fans revolve freely & are not blocked by cables. Extreme noise may specify a need for a faulty bearing or cleaning.
• Ensure that the PC case’s intake filters are frequently cleaned to avoid dust from entering the GPU in the first place.
• The 4070 Ti GPU frequently uses the 12VHPWR connector. Check the cable is plugged tightly without any gap between the socket and the connector.
• Ensure the power cable has sufficient space and is not severely twisted close to the connector to avoid heat-related injury.

Advanced Maintenance

• If the graphics card runs hot or if the speeds of a fan are maxing out to keep low temperatures, then it may be required to disassemble the shroud, clean the older thermal paste off the GPU die, & apply the latest high-quality thermal paste.
• Inspect thermal pads on the VRMs and VRAM while disassembled. Therefore, replace them if they are crumbling or dried out.

Software Maintenance

• and install the newest Studio drivers or Game Ready frequently through the NVIDIA app or GeForce Experience software to ensure bug fixes and best performance.
• If experiencing unsteadiness, then perform a clean installation of drivers. After that, use the Display Driver
• Uninstaller tools in safe mode to eliminate old drivers completely before installing the latest ones.
• Use MSI Afterburner. ASUS GPU Tweak III software to check temperatures, clock speeds, and fan speeds.
• Configure the control panel settings of NVIDIA, like setting High-performance NVIDIA GPU and enabling G-SYNC within Manage 3D settings.

Troubleshooting

• If the graphics card is not identified, then insert it into the PCIe slot.
• Ensure the power supply is enough for the GPU because insufficient PSU capacity may cause instability or shutdowns.
• These steps must be performed frequently to avoid overheating, which can decrease the performance and lifespan of your graphics card.

NVIDIA GeForce RTX 4070 Ti Vs NVIDIA GeForce RTX 4070

The difference between NVIDIA GeForce RTX 4070 Ti Vs NVIDIA GeForce RTX 4070 includes the following.

Advantages

The advantages of the NVIDIA GeForce RTX 4070 Ti GPU include the following.

• It is designed for the highest settings at 1440p, regularly exceeding 120 FPS within modern titles by supporting 4K resolution.
• Its 3rd-generation RT cores deliver up to 2X of the ray tracing performance of earlier generations.
• It uses DLSS 3 (Deep Learning Super Sampling) and 4th-generation Tensor cores to produce additional high-quality frames, offering up to 4X the performance of brute-force rendering.
• It provides responsive gameplay and low-latency for competitive gaming.
• This GPU provides a huge leap in efficiency, AI-driven graphics, and performance.
• It is equipped with fast 12GB GDDR6X memory to ensure high-fidelity and smooth graphics.
• It is highly efficient for parallel computing within 3D modeling and video editing due to 7680 CUDA cores.
• It is supported by Studio drivers for the highest stability & performance within creative applications.
• Many models like MSI Gaming X Trio or the Gigabyte WINDFORCE use higher cooling systems to keep low temperatures under load.
• RTX 40 series uses 8th Gen NVENC. It features dual 8th-generation NVENC encoders with AV1 support.
• Several variants provide dual-slot options that fit into little PC cases.

Disadvantages

The disadvantages of the NVIDIA GeForce RTX 4070 Ti graphics card include the following.

• The NVIDIA GeForce RTX 4070 Ti was greatly criticized upon release for numerous key limitations, memory configuration, 4K capability, and mostly concerning its price-to-performance ratio.
• Although the bus width is narrower (192-bit), higher memory speeds and a large 48MB L2 cache compensate for bandwidth efficiency.
• Performance at 4K can be limited in some memory-intensive titles due to the 192-bit bus, especially without DLSS.
• This graphics card utilizes the latest 12VHPWR connector, which can be large and risky in some cases.
• Many 4070 Ti models have fitting issues within smaller PC cases.
• This graphics card lacks support for the latest DisplayPort 2.0 standard.

Applications

The applications of the NVIDIA GeForce RTX 4070 Ti graphics card include the following.

• This high-performance GPU is designed for entry-level 4K and premium 1440p gaming, professional workstations, and AI-accelerated content creation tasks.
• It delivers high-refresh-rate gaming at 1440p & is capable of 4K gaming with DLSS 3.
• It accelerates 3D rendering within Blender, Unreal Engine, Unity and video editing within Davinci Resolve.
• This graphics card delivers immersive visuals with complete ray tracing and enhances frame rates through neural rendering like RTX Remix for game modding.
• It uses the AV1 encoder for efficient, high-quality live streaming & NVIDIA Broadcast for AI-developed audio/video.
• This GPU supports AI-powered productivity through NVIDIA AI Workbench, data science with the NGC Catalog & AI-defined vehicle simulations.
• This graphics card is the best choice for both creative and gaming professional workflows.
• It features 4th-generation tensor cores for accelerating machine learning applications and AI tools.
• It provides faster performance in Chaos V-Ray, Unity, and Blender applications as compared to the 3070 Ti graphics card.

In summary, the NVIDIA GeForce RTX 4070 Ti is a powerful, high-end GPU that excels at competitive 4K and 1440p gaming by providing performance similar to the RTX 3090 Ti. This graphics card features excellent ray tracing, DLSS 3, and 12GB GDDR6X, but is constrained by a 192-bit memory bus & high launch pricing. This is a brilliant choice for users which upgrades from previous 20-series or 3070-class cards and desire to leverage DLSS 3. It needs a significant investment for a 70-series class product. Here is a question for you: What is NVIDIA GeForce RTX 4070?
