NVIDIA Quadro P5000 : Features, Specifications, Architecture, Working, Differences & Real-World Applications Explained

NVIDIA launched a powerful and high-end professional graphics card around January 2017, namely the Quadro P5000. This professional workstation graphics card is based on Pascal GPU architecture. The main reason for designing the Quadro P5000 by NVIDIA is to provide powerful workstation graphics for professionals with complex tasks. Thus, it meets the growing demands mainly for larger designs, immersive VR, and higher fidelity visualization. It provides significant improvements over earlier generations, which include more CUDA cores, advanced features, and greater memory. These Quadro cards are tested by workstation manufacturers and licensed for a wide range of complicated professional applications. This article elaborates on the NVIDIA Quadro P5000, its working, and applications.

What is NVIDIA Quadro P5000?

The Quadro P5000 by NVIDIA is a professional graphics card that uses NVIDIA Pascal™ architecture built on the 16 nm process. This GPU uses the GP104 graphics processor, which supports DirectX 12 in its GP104-875-A1 variant. The GP104 is a large chip with 314 mm² die area & 7,200 million transistors. In addition, it can also have shading units – 2560, ROPs- -64, and texture mapping units -160.

NVIDIA has connected GDDR5X memory – 16 GB with the Quadro P5000 using a 256-bit memory interface. Its operating frequency ranges from 1607 MHz to 1733 MHz, where the memory is running at 1127 MHz. The NVIDIA Quadro P5000 is a dual-slot card that draws power from an 8-pin power connector with a power draw rated at a maximum of 180 Watts. Its display outputs are: DisplayPort 1.4a – 4 and DVI-1.

Features

The features of NVIDIA Quadro P5000 include the following.

• It is built on the Pascal GPU architecture of NVIDIA.
• It has ECC memory protection for improved data integrity.
• It supports up to four displays simultaneously.
• It is well-matched with NVIDIA Quadro SVS for bigger display configurations.
• This GPU can be synchronized easily with Quadro Sync II modules to drive many displays from a single system.
• The normal NVIDIA Quadro P5000 has a Dual-slot and full-height PCIe form factor, which measures 10.5 inches long & 4.4 inches high.

Specifications

The specifications of NVIDIA Quadro P5000 include the following.

• It is a professional workstation GPU.
• It is built on the NVIDIA Pascal architecture,
• This GPU includes 2560 CUDA Cores.
• It has 16 GB GDDR5X memory.
• It uses a 256-bit memory Interface.
• Memory bandwidth is up to 288 GB/s
• System Interface is PCI Express 3.0 x16
• Its maximum power consumption is 180W
• It has an Active blower-style cooler for cooling
• It offers versatile connectivity with four DisplayPort 1.4 Outputs and one DVI-D Dual link connector.
• Its max DP 1.4 resolution at 30 Hz is up to 7680 x 4320
• In addition, it has four maximum simultaneous displays.
• FP32 Performance is 8.9 TFLOPS
• Graphics APIs like OpenGL 4.5, Shader Model 5.1, Vulkan 1.0, and DirectX 12.
• Compute APIs like DirectCompute, CUDA, and OpenCL™

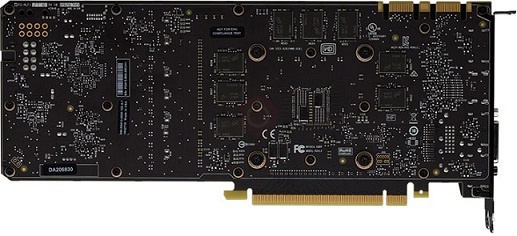

NVIDIA Quadro P5000 Architecture

The professional graphics card, like the NVIDIA Quadro P5000, is built on the Pascal architecture of NVIDIA. A significant step forward in GPU design prioritizes energy efficiency, computational flexibility, and performance. Thus, it is adapted for demanding visual computing tasks like DCC, CAD, VR, and simulations. The architecture of Quadro P5000 combines the performance advantages of Pascal through professional-grade reliability & support. In addition, it is a solid choice for designers and engineers who work on complex visual workloads due to the balance of memory, cores & bandwidth that makes it ideal for creators.

NVIDIA Quadro P5000 Architecture Components

The NVIDIA Quadro P5000 architecture includes different components. Let’s explore each component of this architecture by breaking down its major elements.

CUDA Cores

CUDA cores are the parallel processors in the GPU that perform the actual computing tasks. It has 2,560 CUDA cores, which are arranged across 20 SMs. The main function of CUDA cores is to handle both general-purpose GPU computing and graphics rendering. Thus, it allows 3D modeling, GPU acceleration, and complex simulations in SolidWorks or Adobe Premiere Pro software.

Streaming Multiprocessors or SMs

Each streaming multiprocessor in this Pascal architecture includes 128 CUDA cores, various execution units, and registers. The main purpose of these multiprocessors is to be the workhorses of the GPU, which handle tasks like texture mapping, math operations, and shading simultaneously. Pascal SMs have improvements over the previous generation, like Maxwell, which allows more instructions to be issued in parallel by improving overall throughput.

VRAM & Controllers

This is a memory subsystem that is equipped with 16 GB of GDDR5X memory, providing high capacity and speed. In addition, it uses a 256-bit interface, which allows higher data flow between the VRAM and GPU. It provides up to 288 GB/s of memory bandwidth, significant for handling huge textures, detailed simulation data, and high-res video frames. This memory subsystem function is to ensure that the large datasets and models can be loaded & processed without buffering or slowdowns.

L2 Cache & Shared Memory

Pascal GPUs feature a unified L2 cache that improves data reuse and reduces memory latency. Each SM has a dedicated shared memory region, which acts as a high-speed buffer between threads during parallel execution. This layered memory architecture helps improve performance and reduce dependency on slower global memory.

Raster Engine & Render Output Units

Raster engine changes vector graphics or shapes into pixels, which is a fundamental procedure within the rendering pipeline. Render output units, or ROPs, are responsible for the last steps, like depth testing, blending, and pixel writing to the frame buffer. The P5000 GPU includes 64 ROPs, which allows high-speed rendering mainly for 3D graphics and complex visual scenes.

TMUs (Texture Mapping Units)

The texture mapping units handle different operations like texture sampling, filtering & applying textures to 3D models. The P5000 architecture includes 160 TMUs, which allows very detailed & high-fidelity textures to be applied very efficiently. It is significant for photorealistic rendering in architectural visualization, product design, and animation.

NVENC and NVDEC

These are video encoding and decoding engines. So NVENC is a dedicated hardware encoder that allows real-time H.264/H.265 video compression. NVDEC is a hardware decoder, utilized for smooth playback & compressed video formats processing. The main function of this is to offload video tasks from the major GPU cores by allowing smoother workflows within VR streaming and video editing.

Display Engine

It handles the output to monitors & VR headsets. In addition, it supports up to four 4K displays or VR headsets to make it perfect for multi-monitor workstations & immersive environments. It includes DisplayPort 1.4 & superior color depth for HDR workflows.

Instruction Scheduling & Warp Management

Warp scheduler controls how instructions are transmitted across CUDA cores. The architecture develops warp scheduling to decrease idle time and enhance execution efficiency. The main benefit of this is to help in handling complex and different workloads by increasing the usage of available cores.

Power & Thermal Management

It is rated at around 180W, thus strikes a balance between performance & efficiency. It uses NVIDIA’s GPU Boost 3.0 technology to vigorously correct clock speeds depending on thermal and power conditions. In addition, the 16nm FinFET design supplies lower power consumption as compared to earlier generation GPUs.

How does NVIDIA Quadro P5000 Work?

The NVIDIA Quadro P5000 works with NVIDIA Pascal architecture and also uses many CUDA cores to process graphics & compute tasks by using features like instruction-level compute preemption & dynamic load balancing to exploit performance. This GPU takes input from specialized applications and performs complex calculations with its GDDR5X memory – 16GB. Thus, it provides output to several high-resolution displays through DisplayPort or some other connections.

The main strength of this GPU is its high FP32 performance, mainly for design, visualization & simulation workloads to improve Quadro Sync II & VR for synchronizing various displays. In addition, it connects via a PCIe 3.0 x16 interface to a workstation by supporting up to four 4K displays using DisplayPort 1.4 outputs.

NVIDIA Quadro P5000 Vs Quadro P6000

The Quadro P5000 & Quadro P6000 by NVIDIA are both professional and high-performance GPUs that use Pascal architecture. However, they differ in terms of memory, performance, and raw power capabilities. Thus, the breakdown between NVIDIA Quadro P5000 Vs Quadro P6000 is discussed below.

Comparison Chart

Advantages

The advantages of NVIDIA Quadro P5000 include the following.

• It has a high-performance Pascal architecture, GDDR5X memory – 16GB for complex designs & simulations. Thus, it supports high-resolution multi-display setups & superior VR capabilities.
• It provides powerful rendering & simulation performance.
• NVIDIA’s Pascal™ GPU technology powers this GPU, delivering excellent workstation performance.
• The team has licensed and tested this GPU with a wide range of professional applications to ensure stability and compatibility.
• You can combine multiple P5000 cards to achieve outstanding rendering power for demanding and larger workloads.
• Additionally, you can synchronize it with other Quadro GPUs using Quadro Sync II cards for seamless multi-display setups and impressive visualizations..
• It provides quick and extensive memory to handle complex models, very large datasets, and challenging simulations without decreasing fidelity.
• It delivers high compute performance for quick rendering and difficult calculations.
• This GPU drives up to four 8K/5K displays separately to create an extensive visual workspace.
• Offers superior geometry throughput and advanced hardware/software optimizations for creating highly detailed, lifelike, and immersive VR experiences.
• It allows interactive design through realistic physics, materials, and lighting powered by NVIDIA Iray plug-in tools.

Disadvantages

The disadvantages of NVIDIA Quadro P5000 include the following.

• This graphics card is surpassed by the latest architectures like RTX PRO.
• It is not suited for VR or gaming.
• Screen capture support is poor or unstable.
• It has limited features for gaming.
• SLI setup is complex & frequently not supported through existing games
• The software ecosystem is messy.
• It draws high power as compared to recent GPUs.

Applications

The applications of NVIDIA Quadro P5000 include the following.

• Professionals use the NVIDIA Quadro P5000 in fields that require robust compute capabilities and high-performance graphics, including CAD/CAM, digital content creation (DCC), medical imaging, virtual reality (VR), and scientific visualization.
• In design and engineering, experts leverage this GPU to create and manipulate complex 3D models, perform simulations, and visualize their designs effectively..
• In addition, it is also perfect for large-scale simulations, complex modeling & creating immersive VR experiences due to its GDDR5X memory – 16GB, CUDA Cores – 2560, and supports multiple displays.
• The P5000 GPU is suitable for animation, video editing, and visual effects, wherever complex rendering and large datasets are very common.
• It allows the creation of sophisticated data visualizations and & analysis in fields like advanced medical imaging and scientific research.
• Its power & memory allow creating immersive & complete VR environments for design, entertainment & professional applications.
• The Pascal architecture of this GPU provides the compute power to develop & deploy ML technologies.
• It powers huge digital signage & harmonized display systems by connecting several P5000s through an NVIDIA Quadro Sync II card.
• In addition, GDDR5X memory – 16 GB to handle large models, complex datasets, and detailed textures very efficiently.
• The 2560 CUDA cores of this architecture provide the required power for simulation, compute, and demanding visualization tasks.

In summary, the NVIDIA Quadro P5000 remains one of the most reliable workstation GPUs based on Pascal architecture. With 2560 CUDA cores, 16 GB of GDDR5X memory, and strong FP32 compute performance, it continues to power industries that rely on 3D modeling, CAD, and visualization. Although newer RTX-based GPUs now dominate the market, the Quadro P5000 still offers outstanding value for professional workloads demanding stability, compatibility, and precision.
