NVIDIA Titan Xp : Specifications, Architecture, Working, Differences & Its Applications

The enthusiast-class graphics card, the NVIDIA TITAN Xp, was launched on April 6th, 2017. The Titan Xp name was used to distinguish it from the Titan X model. This is a line of powerful graphics cards that is famous for bridging the gap between professional Quadro cards and consumer gaming GPUs. It was targeted at gamers, professionals, and enthusiasts who required high performance for tasks such as deep neural network training, creative applications, gaming, and many more. This article elaborates on NVIDIA Titan Xp, its working, and applications.

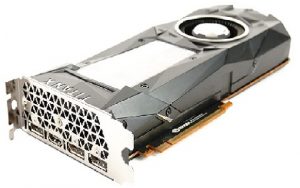

What is NVIDIA Titan Xp?

The TITAN Xp is an enthusiast-class graphics card, built on the Pascal architecture using the 16 nm process and the full GP102 GPU. This graphics processor supports DirectX 12 in its GP102-450-A1 variant. The GP102 is a large graphics processor with 471 mm² & 11,800 million transistors die area. It is a dual-slot graphics card that draws power from 6-pin and 8-pin power connectors with a maximum 250 W of power draw. TITAN Xp card features display outputs like 3x DisplayPort 1.4a, one Dual-Link DVI-D and 1x HDMI 2.0. This card is connected to the remaining system via a PCI Express 3.0 x16 interface.

It features shading units, texture mapping units, and ROPs. NVIDIA has connected GDDR5X memory through the TITAN Xp using a 384-bit memory interface. Its operating frequency ranges from 1405 MHz to 1582 MHz, where memory runs at 1426 MHz.

How does NVIDIA Titan Xp Work?

The NVIDIA Titan Xp is a high-performance graphics card that works by leveraging the Pascal architecture with many CUDA cores used for parallel processing. Therefore, it was designed for both professional and gaming workloads to accelerate parallel processing tasks. It features GDDR5X memory – 12GB to manage complex rendering and large dataset tasks. This graphics card delivers up to 3x the performance of earlier generations.

This graphics card is based on the Pascal architecture that uses a Graphics Processing Unit including CUDA cores. So it accelerates parallel processing tasks for gaming, deep learning, and professional computing workloads. This Titan Xp works with its huge number of specialized cores to execute extremely parallel computations, after that they can be assembled into the last output image or else used for analysis of complex data.

Specifications

The specifications of NVIDIA Titan Xp include the following.

• NVIDIA Titan Xp uses Pascal Architecture.
• It uses a GP102 GPU.
• It includes 3,840 CUDA Cores.
• Memory is 12 GB GDDR5X
• Base CLK is 1405 MHz.
• GDDR5X memory runs at 11.4 Gbps.
• .Boost CLK is 1582 MHz
• Memory bus width is 384-bit
• Memory Bandwidth is 547.7 GB/s
• It includes 240 TMUs and 96 ROPs.
• It features 6-pin and 8-pin power connectors.
• Its thermal design power or TDP is 250 W
• It uses a PCI Express 3.0 x16 Interface.
• It features 1x HDMI 2.0, 3x DisplayPort 1.4a & one Dual-Link DVI-D port display outputs.

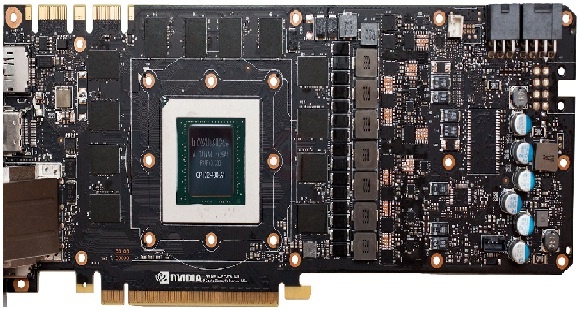

NVIIA Titan Xp Architecture

The NVIDIA Titan Xp uses the Pascal architecture, including the GP102 GPU & CUDA cores. This architecture was designed for high efficiency and high performance, enabling significant gains in both gaming and compute-intensive workloads. In addition, this Titan Xp can also feature 12GB of GDDR5X memory, which runs at 11.4 Gbps, with 60 SMs (streaming multiprocessors).

Components

The NVIDIA Titan Xp architecture can be built with different components like: GPU, CUDA Cores, Streaming Multiprocessors, Memory, Memory Interface, Performance, API Support, Cooling, Host Interface, and Display Support.

GPU

The NVIDIA Titan Xp features the GP102 graphics processor, built on the Pascal architecture. This powerful GPU includes CUDA cores – 3,840, Streaming Multiprocessors – 60, and GDDR5X memory -12 GB. Therefore, it provides major computational performance for demanding tasks like scientific research & professional content creation.

CUDA Cores

The NVIDIA Titan Xp features CUDA cores – 3840 with GDDR5X memory – 12GB & 547.7 GB/s of memory bandwidth. These cores in the GPU are the parallel processing units, responsible for managing graphics rendering & other general-purpose parallel computational tasks. It features 1405 MHz of core clock & 1582 MHz of boost clock speed.

Streaming Multiprocessors

The NVIDIA TITAN Xp utilizes the Pascal architecture, including streaming multiprocessors. The SMs in this Titan Xp have a combined L1 data cache & shared memory subsystem. It improves performance and simplifies programming by delivering higher bandwidth and lower latency as compared to earlier architectures, similar to Maxwell.

GDDR5X Memory

The NVIDIA Titan Xp uses GDDR5X memory – 12GB with a 384-bit memory interface & 11.4 Gbps speed. This memory configuration delivers 547.7 GB/s of significant memory bandwidth. So it is essential for its high performance, particularly for tasks like deep learning and 4K gaming. It is a significant component in the Pascal architecture because it enables its high performance within professional and gaming workloads.

Texture Mapping Units

This architecture features 240 Texture Mapping Units, which are critical components of the GPU. Its main function is to address & filter textures by performing operations to plan flat images onto the 3D model’s geometry. The number of TMUs openly impacts the texturing performance of the card. TMUs can work in combination with the CUDA cores and ROPs as an element of the overall graphics pipeline to generate the final image to display on the screen.

ROP Units

The Render Output Units/Raster Operation Pipelines (ROPs) – 96 are significant parts of the GPU. These are responsible for the final steps within the rendering process, like pixel data writing to memory & performing anti-aliasing. Its configuration helps to attain a high pixel fill rate.

Display Connectors

The NVIDIA Titan Xp features three display connectors, like three DisplayPort 1.4 ports, one HDMI 2.0b port, and one Dual-Link DVI-D port. In addition, it supports a maximum digital resolution of 7680 x 4320 at 60Hz with HDCP 2.2.

The DisplayPort 1.4 ports can support digital audio & video output at up to 8K (7680×4320) resolutions at 60Hz. They can also support HDR (High Dynamic Range) deep color. The HDMI 2.0b port can output digital audio and video by supporting up to 4K (4096×2160/2160p) resolutions at 60Hz, including HDR support.

A Dual-Link DVI-D port is a digital-only video port that utilizes two separate data channels to send signals, enhancing the video bandwidth as compared to a single-link connection. Therefore, it supports higher resolutions up to 2560 x 1600 at 60Hz.

Power Connectors

The NVIDIA Titan Xp features one 8-pin and one 6-pin PCI Express power connector from a 600W minimum power supply. These power connectors deliver the additional power required for the GPU to run beyond the power it uses from the PCIe slot. This GPU draws 250W of maximum power. These connectors must be connected to the GPU from the power supply before working on the system.

Cooling System

The NVIDIA Titan Xp uses a vapor chamber cooling system within a die-cast aluminum body to dissipate heat. This design is a blower-style cooler that exhausts hot air out of the back of the PC case and is equipped with a vapor chamber and an aluminum heat sink to cool the GPU, VRAM, and power delivery components. Although it prioritizes a premium aesthetic, the cooler was noted for its thermal limitations, sometimes causing the card to throttle under load, a problem that could be addressed by switching to a water-cooling solution.

SLI Support

This architecture supports two-way NVIDIA Scalable Link Interface (SLI) with an SLI HB bridge. This GPU was the last generation to support normal SLI before it was mostly phased out in support of high-end single GPUs or the latest NVLink for particular professional applications. SLI is a technology that merges the processing power of many GPUs to enhance performance.

Software System

The NVIDIA Titan Xp works with a variety of NVIDIA software & drivers to execute tasks by providing performance optimizations for professional and gaming applications, correspondingly. In addition, its hardware can also be supported through CUDA foundational programming frameworks for computationally intensive tasks.

Its key components mainly include the graphics driver for interaction with the operating system, DirectX 12 & Vulkan graphics APIs for professional applications & the CUDA platform is used for high-performance parallel computing. In addition, NVIDIA can also provide different tools like Nsight Systems for analysis & development of performance.

NVIDIA GeForce GTX Titan X Vs NVIDIA Titan XP

The Nvidia Titan Xp graphics card is superior to the GTX Titan X due to its more CUDA cores and higher clock speed, which results in enhanced performance. Therefore, the difference between NVIDIA GeForce GTX Titan X and NVIDIA Titan Xp includes the following.

Advantages

The advantages of NVIDIA Titan Xp include the following.

• It was one of the best & high-performance consumer GPUs.
• This GPU has a 3840-core count and faster GDDR5X memory – 12GB.
• It is faster than older Titan X GPUs and comparable to the GTX 1080 Ti within some applications.
• It is a very strong choice for users looking for a high-end GPU on a budget.
• This GPU includes high-end features.
• Its memory capacity is large.
• It is available at a fairly low price.
• It is best for older software.

Disadvantages

The disadvantages of NVIDIA Titan Xp include the following.

• These graphics cards are expensive.
• Its power consumption is high.
• It is not used for certain of the latest games.
• In addition, it can also have less efficient cooling as compared to the latest cards.
• These graphics cards are physically large and may not fit into all PC cases, especially in smaller form factor systems.
• Its driver & software support is limited.

Applications

The applications of NVIDIA Titan Xp include the following.

• The NVIDIA Titan Xp GPU can be used in gaming and innovative professional tasks like video editing, 3D rendering & scientific computing.
• It is the best option for both high-end gaming & demanding workloads due to its powerful and single-precision performance.
• The Titan Xp GPU is capable of running demanding games at higher settings.
• Its architectural improvement can boost performance within VR applications.
• It excels at 3D modeling & creating complex visual effects using precise driver updates, improving performance within Autodesk Maya software.
• This card handles demanding video editing tasks like 4K color correction and video editing within DaVinci Resolve and Adobe Premiere Pro programs.
• It is a powerful card, used for deep learning & other single-precision workloads.
• In addition, it is used within scientific research & other HPC applications that profit from GPU acceleration.

In summary, the NVIDIA Titan Xp processor remains one of the most iconic enthusiast-class GPUs from the Pascal era, offering remarkable compute performance, strong memory bandwidth, and excellent single-precision capabilities. Its major strengths lie in its 3,840 CUDA cores, 12 GB GDDR5X memory, and highly efficient Pascal architecture, making it a solid performer for tasks such as 3D rendering, video editing, GPU-accelerated research, and older or moderately demanding games. Even today, the Titan Xp continues to deliver reliable performance for GPU computing and creative workflows.

Who should buy it Today (2025)?

The Titan Xp is still a viable option for users who need a powerful, budget-friendly GPU for professional workloads that don’t require the latest DLSS, ray tracing, or Tensor-core acceleration. Content creators working with older software, researchers running CUDA-based simulations, hobbyist deep-learning learners, and gamers playing at 1080p or 1440p on legacy titles can benefit from its strong raw compute power. It is also suitable for users assembling secondary or workstation PCs and those who need high performance without investing in modern flagship GPUs.

Its relevance in 2025

While newer GPU architectures such as Ada Lovelace and Hopper overshadow the Titan Xp in efficiency, AI acceleration, and ray-tracing capabilities, the Titan Xp remains surprisingly relevant for classical CUDA workloads, traditional rendering pipelines, and general compute tasks. Its robust memory bandwidth and mature driver support allow it to continue powering professional and scientific workloads effectively. As long as the expectations are aligned with its generation, the Titan Xp still stands as a valuable, cost-effective GPU in 2025 for specific use cases.”
