RTX A5000 Graphics Card : Features, Specifications, Architecture, Working, Vs RTX5000 Ada & Its Applications

Nvidia RTX is a professional visual computing platform invented by Nvidia. It is designed for use in mainstream PCs for gaming and also in workstations to design complex, large-scale models within product design, architecture, energy exploration, scientific visualization, video, and film production. Nvidia has launched many cards that support different RTX series like the 40, 30, and 20. Among them, NVIDIA RTX A5000 is a professional-grade graphics card, launched in 2021. In addition, the RTX A5000 signifies a significant step within professional GPUs from NVIDIA, which provides a versatile and powerful solution for demanding workloads. This article elaborates on RTX A5000, its working, and its applications.

What is the RTX A5000 Graphics Card?

The RTX A5000 is a graphics card by NVIDIA, designed for high-performance computing, rendering, AI workloads, and different HPC workloads. This graphics card provides a compelling option mainly for a wide range of applications. The NVIDIA RTX A5000 uses Ampere architecture to provide major performance enhancements over earlier generations. It is a powerful tool for engineers, designers, researchers, and artists. Thus, selecting the best GPU for various applications needs cautious consideration of efficiency, cost, and performance.

This graphics card has some features like CUDA cores – 8,192, RT Cores – 2nd generation, and Tensor Cores – 3rd generation, along with GDDR6 memory -24GB. The combination of these features will provide a balance of performance, reliability, and power for professionals who are working on demanding projects.

How does the RTX A5000 Graphics Card Work?

The NVIDIA RTX A5000 graphics card works by revolving around its core architecture & components to handle extremely parallel computing tasks. This GPU merges GPU cores, specialized processing units, and memory to execute different tasks very efficiently, like AI inference, 3D rendering, scientific computing, and simulation.

The step-by-step working of the graphics card is discussed below.

The system sends data to the RTX A5000 processor like a game scene, 3D model, or data for an ML task. This processor has fast VRAM – 24 GB, where the data is stored temporarily so that the GPU works quickly. The 8192 CUDA cores in this processor process data by working in parallel. Thus, it handles various tasks immediately, like pixel color computing or AI calculations processing.

The tensor cores are special cores that speed up different AI tasks, like training machine learning models, by performing quicker calculations. These cores create sensible lighting & shadows within graphics for simulating how light bounces within a scene.

The A5000 chip processes 3D models and applies lighting, textures & shadows to produce a final 2D image. If it is performing scientific or AI work, then it calculates and gives the result. Thus, the final output, like a video or image, can be sent through the HDMI or DisplayPort to your monitor. Finally, the results are sent back to the processor and stored on your system.

Thus, the RTX A5000 processor receives the data, then processes it using tons of cores, and outputs the final results. Thus, it is designed for heavy tasks like AI model training and high-quality 3D rendering by providing super-fast processing with more memory.

RTX A5000 Features & Specifications

The features and specifications of RTX A5000 include the following.

• The RTX A5000 is a professional-grade graphics card by NVIDIA.
• Its ECC (error correction code) memory ensures data reliability, significant for professional applications.
• NVLink support allows scaling memory & performance with two RTX A5000 cards connected.
• PCIe Gen 4 provides a quick data transmission speed as compared to PCIe Gen 3.
• Virtualization support allows for reusing the workplace into several high-performance virtual workstations through NVIDIA RTX vWS software.
• It uses NVIDIA Ampere architecture:
• It has 8192 CUDA Cores, 64 RT Cores, and 256 Tensor Cores.
• This processor has 24GB of GDDR6 GPU memory with ECC.
• It has a 384-bit memory interface and 768 GB/s memory bandwidth.
• Boost Clock is 1.695 GHz, and TDP is 230W
• It has 4x DisplayPort 1.4a display outputs.
• It has 16 PCI Express Gen 4 Graphics Bus.
• NVLink supports two-way low-profile NVLink.
• NVIDIA RTX vWS, vApps, and vPC virtualization support:
• Single precision performance – 27.8 TFLOPS, RT core performance – 54.2 TFLOPS, and Tensor performance is 222.2 TFLOPS.

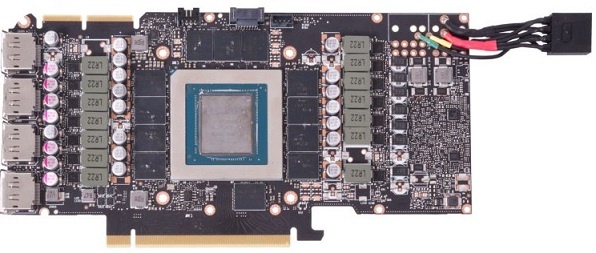

RTX A5000 Graphics Card Architecture

The NVIDIA RTX A5000 graphics card uses the Ampere architecture, which represents NVIDIA’s second-generation RTX architecture. This architecture introduces extensive improvements over earlier processors. This GPU is designed mainly for professional workloads like AI/ML, 3D rendering, scientific simulations, video production, and high-end visualization.

In addition, this processor can also be built for demanding tasks that need a combination of large memory capacity, real-time rendering, and high computational power capabilities. The key improvements within Ampere architecture have enhancements in AI acceleration, overall compute performance, and ray tracing.

RTX A5000 Graphics Card Architecture Components

The components of the RTX A5000 graphics card architecture include CUDA Cores, Tensor Cores (3rd Generation), SMs (Streaming Multiprocessors), Memory Subsystem, NVIDIA NVLink Support, PCIe Gen 4.0 Interface, Video Encoder and Decoder (NVENC/NVDEC), NVIDIA RT (Ray Tracing) Pipeline, Encoder/Decoder (NVENC/NVDEC), Power Management and Thermal Solutions, NVIDIA CUDA, OptiX, and Vulkan Support, Display Outputs, which are discussed below.

CUDA Cores

This processor includes 8,192 CUDA cores, and these are the main compute units. It executes general-purpose computations & parallel workloads like AI training, simulations & video rendering, 2nd generation RT cores. This processor provides huge parallel processing power mainly for demanding tasks.

Tensor Cores

These are particular cores that speed up machine learning and AI tasks. Thus, they execute mixed-precision calculations & accelerate training & inference workloads, particularly in deep learning. It supports INT8, FP16, and TF32 operations.

RT Cores

RT Cores are second-generation cores, designed to speed up real-time ray tracing, enhancing performance within graphics rendering that involves reflections, shadows, and complex light simulation. These cores can handle ray tracing calculations like BVH traversal & intersection testing. These cores provide superior performance for ray-traced graphics as compared to the first generation.

Streaming Multiprocessors

This processor has 104 Streaming Multiprocessors (SMs) with a set of Tensor cores, CUDA cores, and different control units that perform threads in parallel. Every streaming microprocessor manages various warps of threads in parallel by ensuring higher throughput. These Streaming Multiprocessors perform different tasks in parallel, which range from geometry processing to AI workloads & rendering.

Memory Subsystem

The memory system handles how data can be stored, accessed by ensuring quick data transmission from and to the GPU for a variety of tasks, like data processing or rendering. It has 24 GB GDDR6 memory and a 384-bit wide memory bus, which provides up to 768 GB/s high memory bandwidth. This memory can be shared by both the Tensor and CUDA cores to optimize the usage of resources across a variety of workloads.

NVIDIA NVLink Support

NVLink allows various GPUs to converse with each other to form a powerful multi-GPU system. This processor can be connected with another compatible processor to balance performance. Thus, it is mostly helpful for AI, HPC (high-performance computing) & data center applications. Generally, NVLink allows processors to share memory very effectively by enhancing overall throughput & allowing more complex and larger models.

PCIe Gen 4.0 Interface

PCIe Gen 4.0 interface provides the communication link between the CPU or motherboard and the GPU. It has up to 16 GT/s BW per lane, which provides 64 GB/s in the whole bandwidth for x16 lanes. Thus, this higher throughput is necessary for data-heavy workloads like scientific computing, 3D rendering, and AI/ML.

NVENC/NVDEC (Video Encoder & Decoder)

The video encoder and decoder cores are used to speed up video encoding & decoding processes, correspondingly. NVENC is a Hardware encoder that speeds up video encoding in different formats like HEVC (H.265), VP9, and H.264. So this is helpful for video streaming, transcoding, and rendering. NVDEC is a Hardware decoder for HEVC, AV1, and H.264 formats, which accelerates video playback & decoding operations.

NVIDIA RT Pipeline

The RT pipeline of this processor speeds up ray tracing operations like rays being cast, hitting surfaces & refraction, and reflecting effects. This pipeline includes the RT Core that manages intersection testing & BVH traversal. The RT Pipeline can be incorporated with the CUDA cores, mainly for general processing to make the processor optimized for real-time ray tracing workloads.

Power Management & Thermal Solutions

These optimized power utilization & cooling solutions make sure the processor remains steady in high-performance workloads. Its power consumption is ~230W TDP.

NVIDIA CUDA, OptiX & Vulkan Support

This processor completely supports libraries of NVIDIA for different workloads like machine learning, ray tracing, and scientific computing. The general-purpose GPU computing API is used widely in AI, scientific computing, and many other areas. OptiX ray tracing framework is used for AI-accelerated rendering & visual effects. Vulkan is an Open graphics API that provides high-performance rendering mainly for graphics applications.

Display Outputs

This processor has 4x DisplayPort 1.4a outputs, which are connected to high-end monitors, allowing professionals to work through multiple monitors or a large display simultaneously. This display output supports up to 8K resolutions, High Dynamic Range (HDR) & various 4K displays mainly for professional applications that need higher visual fidelity.

RTX A5000 Graphics Card Software

The RTX A5000 Graphics Card Software is the combination of tools, drivers, and utilities that allow the processor to work well & efficiently. They include the following.

• NVIDIA Drivers are significant for allowing the processor to function with your system & software. Thus, they ensure the best performance & compatibility.
• The NVIDIA control panel is a program that allows you to change settings for the performance of graphics, display options, etc.
• CUDA Toolkit includes a set of development tools that permit programmers to write software that takes advantage of the powerful processing abilities of the GPU.
• NVIDIA Nsight Tools are suitable for developers to outline, debug & optimize various GPU-accelerated applications.
• TensorRT and cuDNN libraries help to run AI models efficiently and faster on the GPU.
• NVIDIA vGPU Software is used for the GPU within virtualized environments by allowing various virtual machines
• NVIDIA Omniverse is a platform powered by the GPU for real-time 3D design & collaboration.

Thus, the above-mentioned tools allow software professionals to exploit the potential of GPU for various tasks like 3D rendering, AI, scientific simulations & various demanding workloads.

RTX A5000 Vs RTX 5000 Ada

The RTX A5000 and RTX 5000 Ada are two high-end professional GPUs; however, the RTX 5000 Ada is the upgrade model, which uses the Ada Lovelace architecture. This processor provides significant performance improvements over the A5000 and is based on the Ampere architecture. Thus, the RTX 5000 Ada has third-generation RT cores, fourth-generation Tensor cores, and more CUDA cores, resulting in faster performance within ray tracing, AI workloads, and graphics. In addition, it can also have 8GB more VRAM as compared to the A5000 processor, totaling 32GB. The difference between RTX A5000 and RTX 5000 Ada includes the following.

Advantages

The advantages of RTX A5000 include the following.

• The NVIDIA RTX A5000 provides numerous benefits, mainly for professional workloads.
  This processor delivers high performance.
• It handles complex computations & large datasets very effectively.
• Its third-generation Tensor Cores speed up AI & machine learning workloads by providing faster training & inference times mainly for neural networks.
• Enhanced RT Cores allow real-time ray tracing, which delivers realistic visuals for design and rendering applications.
• It supports NVLink by allowing multi-GPU configurations to improve performance within data centers & other demanding environments.
• The PCIe Gen4 interface of this processor provides high bandwidth for quick data transfer, essential for complex and large dataset applications.

Disadvantages

The disadvantages of RTX A5000 include the following.

• It has higher power consumption compared to some other processors
• It is more expensive than the RTX A30.
• It is not suitable for the largest datasets or models used in machine learning and advanced AI workflows.
• The performance gains above the RTX A30 may not always be important, particularly in ML/ AI workloads where both cards have similar Tensor cores generation.
• Some older applications might need driver updates for complete compatibility with the RTX A5000 processor. In addition, newer GPUs may be harder to source at first compared to previous models.

RTX A5000 Applications

The applications of RTX A5000 include the following.

• The RTX A5000 is used in AI development & training with 256 Tensor Cores to accelerate AI workloads.
• It is compatible for HPC tasks like scientific simulation, modeling, and visualization, which allow researchers to work through large datasets & speed up complex computations.
• It powers creative workflows within the media, entertainment, and design industries.
• In addition, it can also be used in areas like edge AI, extended reality, and robotics, wherever its performance abilities help deploy & develop intelligent systems.
• The A5000 can be used with NVIDIA RTX vWS software to make various high-performance virtual workstation instances by allowing remote users to access the power of the GPU for demanding tasks.
• It is a professional-grade GPU, used in a wide range of applications like 3D rendering, content creation, AI/machine learning, and CAD/CAM.
• It handles complex computations and large datasets, making it a better choice for data scientists.
• This processor is used in rendering and ray tracing tasks by allowing more realistic and faster visualizations in applications like 3ds Max, Blender, Autodesk Maya, etc.
• The RTX A5000 handles complex visualizations and simulations in scientific research & engineering fields.
• This processor is designed for collaborative 3D design workflows.
• Its performance makes it appropriate for manufacturing tasks and computer-aided design.

Thus, this is an overview of RTX A5000 is a professional and high-performance GPU that provides a compelling mix of ray tracing, professional graphics rendering, and AI acceleration capabilities. Thus, the RTX A5000 is a versatile and powerful GPU that provides a very strong foundation for demanding workloads in various fields like CAE, CAD & content creation areas. Here is a question for you: What is RTX 5000 Ada graphics card?
