AMD Ryzen 8000G Desktop Series : Specifications, Architecture, Working, Differences & Its Applications

A desktop processor is a CPU that works like a brain for a desktop computer. Its main function is to execute instructions by performing the operations and calculations needed to run software, handle data, and control hardware components.  The processor fetches instructions from memory, decodes them, and executes the tasks required by the operating systems and applications. The manufacturers of these processors are AMD and Intel. This article provides an in-depth examination of one of AMD’s desktop processors, specifically the Ryzen 8000G desktop series, including its architecture, operation, and applications.

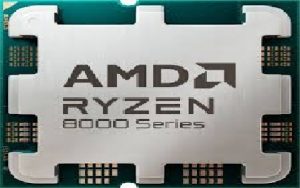

What is the Ryzen 8000G Desktop Series Processor?

AMD Launches Ryzen 8000G Desktop CPUs with Enhanced Integrated Graphics Processors (iGPUs).The AMD Ryzen 8000G Series Desktop Processor is an “all-in-one” chip that integrates a powerful CPU and an advanced integrated Radeon GPU into a single package, eliminating the need for a separate graphics card for many tasks.

It also includes a dedicated AI engine, making it the first desktop processor capable of accelerating AI workloads and improving performance in gaming, content creation, and productivity. These processors are built on the Zen 4 architecture and offer Radeon 700M Series graphics, allowing for capable 1080p gaming out of the box while providing a future-proof platform on the new Socket AM5.

How does the Ryzen 8000G Desktop Series Work?

The AMD Ryzen 8000G Series processor works by integrating powerful AMD Radeon 700M Series integrated graphics and high-performance Zen 4 CPU cores onto an APU. Thus, it allows for productivity performance and strong gaming without a separate graphics card. It is well-suited for small form-factor, entry-level, and low-power desktop builds. In addition, this processor features an integrated Neural Processing Unit (NPU) for speeding up AI workloads by allowing for local and efficient AI processing. This processor is ideal for small form-factor, entry-level, and budget-friendly gaming systems due to its all-in-one design & less power consumption.

Specifications

The specifications of the Ryzen 8000G desktop series processor include the following.

• Ryzen 8000G is a desktop series processor.
• This processor is manufactured by AMD.
• The 8000G Series models are: Ryzen 7 8700G, Ryzen 5 8600G, Ryzen 5 8500G, and Ryzen 3 8300G.
• This processor features up to 16 threads & 8 Zen 4 cores.
• Some processor models include RDNA 3 graphics & a dedicated XDNA AI Engine
• It is built on a TSMC 4nm fabrication process.
• This processor uses the AM5 socket, supports DDR5 memory, and provides PCIe 4.0 connectivity.
• Its Architecture is Zen 4 cores through RDNA 3 graphics.
• L1 & L2 cache for each core, with a whole cache up to 24MB for the higher-end models.

Ryzen 8000G Desktop Series Architecture

The AMD Ryzen 8000G Desktop Series processor uses the Zen 4 CPU architecture &RDNA 3-based graphics for its very powerful integrated performance. The processor includes a dedicated Ryzen AI NPU to accelerate local AI workloads efficiently. The APU design delivers strong performance for content creation, productivity tasks, and gaming—without requiring a separate graphics card. In addition, it supports separate GPU upgrades throughout the AM5 platform. This CPU core design provides high efficiency and performance for multi-threaded and general-purpose computing workloads.

Components

Ryzen 8000G desktop series architecture includes different components like Zen 4 CPU Core, RDNA 3 Graphics, XDNA AI Engine (NPU), DDR5 System Memory, and PCIe 4.0, which are discussed below.

Zen 4 CPU Core

The Ryzen 8000G desktop series processor uses a powerful and efficient Zen 4 architecture for the CPU cores. These processors are also known as Phoenix APUs and include up to 8 cores and 16 threads, Radeon 700M Series graphics, and a Ryzen AI Engine for dedicated AI acceleration. Thus, it supports DDR5 memory on the AM5 platform.

RDNA 3 Graphics

This processor integrates RDNA 3 graphics like Radeon 780M or 760M to provide very powerful gaming & content creation performance exclusive of a discrete GPU. These APUs merge the RDNA 3 graphics architecture through the Zen 4 CPU core architecture, along with the dedicated XDNA AI engine for AI acceleration. The Radeon 780M graphics deliver a significantly improved gaming experience compared to previous generations.

XDNA AI Engine or NPU

The Ryzen 8000G Desktop Series processor Architecture includes a dedicated hardware component like Neural Processing Unit (NPU) based on the AMD XDNA architecture. Thus, it speeds up AI workloads on the desktop, like image editing and AI noise cancellation, while the GPU and CPU handle other tasks. The built-in NPU in the processor provides major performance for AI applications by allowing a range of original software experiences.

The NPU in this architecture offloads AI tasks from the GPU and CPU by allowing faster and more power-efficient execution of AI-powered features. It works alongside the CPU and GPU to improve overall system performance, especially during demanding workloads.

DDR5 System Memory

This processor supports DDR5 system memory, which uses dual-channel configurations to give high bandwidth for incorporated graphics and also various system tasks. The memory controller manages memory frequency and determines the effective memory performance. This is a high-speed RAM that is essential for the performance of the APU.

It is mostly incorporated Radeon graphics through a dual-channel DDR5-6000 kit recommended by AMD for best performance and higher speed. This more efficient and faster memory enhances overall system load times, responsiveness, performance, and multitasking of the APU’s iGPU. Thus, it provides more bandwidth as compared to the previous DDR4 technology.

PCIe 4.0

The PCIe 4.0 platform in this processor provides a faster interface for connecting components like SSDs and discrete graphics cards compared to the previous PCIe 3.0 standard. This enables easy and fast data transfer that leads to faster game loading & application performance. The 8000G series processor supports PCIe 4.0 for its overall bandwidth requirements; however, it lacks the latest PCIe 5.0 support available in some other AMD processors.

65W Thermal Design Power

A 65W TDP in the processor is designed to disperse 65 watts of maximum heat in standard operation. It is a measure of its power consumption and indicates the necessary cooling requirements for the system. This 65W TDP reflects AMD’s focus on energy efficiency, allowing for lower power draw without sacrificing performance in these powerful desktop APUs (Accelerated Processing Units). The 65W TDP in this processor creates compact and power-friendly systems without sacrificing performance.

AM5 Platform

The AM5 platform is a modern high-performance socket designed for Ryzen 8000G processors. It includes the new LGA 1718 socket, which supports PCIe 5.0 and DDR5 memory, better power delivery, and quicker connectivity options like Wi-Fi 6E and USB4. Thus, it is designed to provide enhanced processing power, I/O capabilities & better power efficiency as compared to the earlier AM4 platform. This platform grows with the needs of users to support future upgrades.

Software System

The AMD Ryzen 8000G desktop series processor includes different components like Radeon Software used for graphics and gaming, Ryzen Master used for CPU overclocking & Ryzen AI Software to use the built-in NPU (Neural Processing Unit) for AI workloads. In addition, this system can also have chipset drivers, which include RAID drivers.

• The Radeon Software is a very advanced graphics software of AMD that allows high-performance gaming & other graphics-intensive tasks on the incorporated Radeon graphics.
• The AMD Ryzen Master utility allows users to monitor and overclock CPU performance, like overclocking, by providing different modes for fundamental or advanced users.
• Ryzen AI Software provides the required tools & runtime libraries for users and developers for optimizing & deploying AI inference tasks on the dedicated NPU processor. Thus, it improves the experience within noise cancellation applications.
• The chipset drivers manage a variety of components in the motherboard, like RAID functionality.
• The Ryzen 8000G Series processor has authorized software support for both Linux and Windows OS.

Ryzen 8000G Desktop Series Vs Intel Core i5

The differences between the Ryzen 8000G Desktop Series and the Intel Core i5 Processors include the following.

Advantages

The advantages of the Ryzen 8000G Desktop Series processor include the following.

• The Radeon 700M Series offers smooth 1080p gaming and extraordinary visual fidelity with the 780M Radeon in the Ryzen 7 8700G being the best built-in graphics in a desktop processor.
• The addition of an NPU allows for the acceleration of dedicated AI workloads by enhancing efficiency.
• In addition, this processor allows new AI-powered features for content creation & other applications without depending on cloud servers.
• This processor can be built on the powerful Zen 4 architecture. Thus, it provides strong CPU performance through various cores & high clock speeds for demanding and multitasking applications.
• These are cost-effective and occupy less space.
• These processors eliminate the need for a discrete GPU, making them highly cost-effective for compact and budget-friendly systems.
• This processor allows users to enter the current AM5 platform to provide a smooth gaming experience.
• It speeds up content creation tasks like graphic design and video editing.

Disadvantages

The disadvantages of the Ryzen 8000G Desktop Series processor include the following.

• This processor frequently has fewer CPU cores and L3 cache than their non-G counterparts.
• Its limited PCIe lanes can block future dedicated GPU upgrades.
• The integrated graphics perform best with high-speed DDR5 memory, which improves system responsiveness and gaming performance.
• This reduction within cache and core count can lead to bad performance within CPU-bound tasks & benchmarks.
• Some processors may support only connecting a separate GPU at x4 or even x8 speeds, which can limit the upcoming upgrade potential.
• It needs the DDR5 memory and Socket AM5 platform, which can make the overall build very expensive compared to other systems with previous DDR4 RAM and AM4 motherboards.

Applications

The applications of the Ryzen 8000G Desktop Series processor include the following.

• This is an all-in-one and versatile processor, used for content creation, AI-accelerated, and gaming tasks.
• These are perfect to design less costly and small form-factor-based PCs & efficient business-based workstations that need a balance of power, performance, and superior AI capabilities.
• This processor incorporates Radeon 700M graphics, which provide exciting performance for 1080p gaming, making it suitable for designing budget gaming PCs without requiring a separate graphics card.
• It provides a smooth gaming experience in Grand Theft Auto 5 and Cyberpunk 2077 at 1080p resolution titles, including options to regulate settings for even superior performance.
• The combination of integrated graphics and multi-core CPU power accelerates tasks like graphic design, rendering, and video editing.
• The incorporated Ryzen AI engine improves AI-powered features in photo and video editing software, enhancing productivity and workflows.
• The in-built Neural Processing Unit speeds up AI workload within Zoom software by unlocking new experiences for cancellation of noise & other AI-enhanced productivity tools.
• These are suitable for creating quiet, compact, and budget-friendly desktops due to integrated components and power efficiency.
• They offer strong performance and AI acceleration for business environments, supporting everything from daily productivity to demanding creative workloads.

Conclusion:

Thus, this is an overview of the AMD Ryzen 8000G Series processor. It is a powerful desktop processor, designed for productivity, entry-level AI, and gaming workloads at a lower cost. This package has the best incorporated Radeon 700M graphics for 1080p gaming, exclusive of a discrete GPU, a dedicated NPU, and entrée to the modern AM5 platform through the option to include a dedicated graphics card. Thus, these are perfect for budget builds, small form-factor PCs, and many more. The Ryzen 8000G Series processor represents a major step in desktop computing by carrying dedicated AI processing, the AM5 platform, and advanced integrated graphics together within a single package. They provide an all-in-one solution for entry level of gaming & productivity with the advantage of future-proofing for discrete GPU and AI upgrades. Here is a question for you: What is AMD?
