How AI GPUs Actually Work – Inside Modern AI Accelerators

Artificial Intelligence (AI) has rapidly evolved from simple rule-based systems to highly complex deep learning models capable of performing tasks like image recognition, natural language processing, and autonomous decision-making. Behind this revolution lies one of the most powerful hardware innovations of the modern era — AI GPUs (Graphics Processing Units). Originally designed for rendering graphics in gaming, GPUs have transformed into high-performance parallel processors that accelerate AI workloads. Modern AI GPUs from companies like NVIDIA, AMD, and Intel are specifically engineered to handle massive data computations required for training and inference of neural networks. This article provides a deep dive into how AI GPUs actually work, exploring their internal architecture, execution model, memory systems, and their role in accelerating AI workloads.

What is an AI GPU?

An AI GPU is a specialized processor optimized for parallel computation, particularly suited for matrix operations used in deep learning.

Unlike CPUs, which focus on sequential processing, GPUs execute thousands of operations simultaneously, making them ideal for:

• Neural network training
• Image processing
• Large-scale data analytics
• Scientific simulations

CPU vs GPU: Why GPUs Dominate AI

CPU Architecture

• Few cores (4–64 cores)
• Optimized for sequential tasks
• Large cache and complex control logic

GPU Architecture

• Thousands of smaller cores
• Optimized for parallel tasks
• High memory bandwidth

Key Difference

Feature	CPU	GPU
Cores	Few	Thousands
Execution	Sequential	Parallel
Best for	Logic tasks	Data-heavy computation

AI workloads involve matrix multiplications, which can be parallelized — making GPUs significantly faster.

Core Concept: Parallel Processing in AI

At the heart of GPU acceleration is parallel processing.

AI models operate on tensors (multi-dimensional arrays). For example:

• Matrix multiplication in neural networks
• Convolution operations in CNNs

These operations can be split into thousands of smaller tasks, each processed simultaneously by GPU cores.

Inside GPU Architecture

A modern AI GPU consists of several key components.

Streaming Multiprocessors (SMs)

The GPU is divided into multiple Streaming Multiprocessors (SMs).

Each SM contains:

• CUDA cores (compute units)
• Tensor cores
• Warp schedulers
• Registers
• Shared memory

SM is the main execution unit of the GPU.

CUDA Cores

CUDA cores are simple arithmetic units that perform:

• Addition
• Multiplication
• Logical operations

Thousands of CUDA cores allow GPUs to process many threads simultaneously.

Tensor Cores (AI Engine)

Tensor cores are specialized units designed for matrix multiplication, which is the backbone of AI.

They perform operations like:

• FP16 / BF16 matrix multiplication
• INT8 inference acceleration

Example Operation

D = A × B + C

Tensor cores can compute this in one clock cycle, making them extremely efficient for AI workloads.

Warp Execution Model

Threads in a GPU are grouped into warps (typically 32 threads).

• All threads in a warp execute the same instruction simultaneously
• This is called SIMT (Single Instruction, Multiple Threads)

Warp Scheduler

The warp scheduler:

• Selects which warp to execute
• Switches between warps to hide memory latency

This enables GPUs to maintain high utilization.

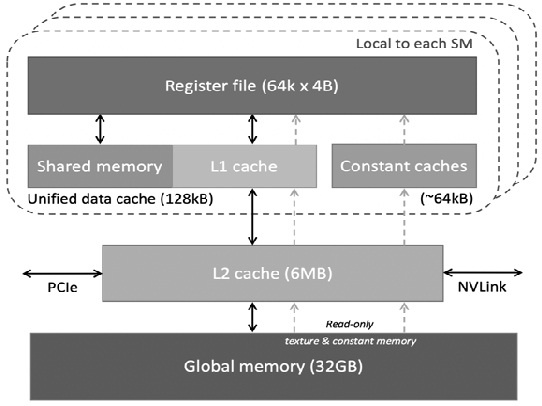

GPU Memory Hierarch

Memory is critical for AI performance.

Registers

• Fastest memory
• Private to each thread

Shared Memory

• Shared within an SM
• Low latency
• Used for data reuse

L1 Cache

• Local cache per SM
• Faster than global memory

L2 Cache

• Shared across all SMs

Global Memory (HBM/GDDR)

Modern AI GPUs use:

• HBM (High Bandwidth Memory)
• Bandwidth: > 1 TB/

Essential for large AI models.

How AI Workloads Run on GPU?

Step 1: Data Transfer

CPU sends data to GPU memory

Step 2: Kernel Launch

GPU executes a kernel (parallel function)

Step 3: Thread Execution

Thousands of threads run simultaneously

Step 4: Matrix Computation

Tensor cores perform matrix multiplications

Step 5: Result Storage

Output stored in GPU memory

Matrix Multiplication: The Heart of AI

AI models rely heavily on:

• Matrix multiplication
• Convolution operations

Example:

Output = Weights × Input

GPUs accelerate this using:

• Parallel threads
• Tensor cores
• Memory optimization

Mixed Precision Computing

AI GPUs use mixed precision to improve performance:

Precision	Use
FP32	High accuracy
FP16	Faster training
INT8	Inference

Lower precision = faster computation + less memory usage.

AI Training vs Inference

Training

• Requires high precision
• Uses FP32 / FP16
• Heavy computation

Inference

• Uses a trained model
• Uses INT8
• Faster and efficient

Data Flow Inside an AI GPU

• Input data loaded into memory
• Threads fetch data into registers
• Tensor cores perform computation
• Results written back

Memory Bottleneck Problem

Even with powerful cores, GPUs face:

• Memory latency
• Bandwidth limitations

Solutions:

• Caching
• Memory coalescing
• Prefetching

Modern AI GPU Innovations

High Bandwidth Memory (HBM)

• Faster data transfer

Multi-GPU Systems

• Parallel processing across GPUs

NVLink Technology

• High-speed GPU communication

AI-Specific Instructions

• Optimized for deep learning

Real Example: NVIDIA AI GPUs

Modern GPUs from NVIDIA include:

• Tensor cores
• RT cores
• Advanced scheduling

Example GPUs:

• A100
• H100
• Blackwell

Applications of AI GPUs

• Autonomous vehicles
• Medical imaging
• Natural language processing
• Robotics
• Gaming AI

Advantages of AI GPUs

• Massive parallelism
• High throughput
• Efficient matrix computation
• Scalable architecture

Disadvantages

• High power consumption
• Expensive hardware
• Complex programming

Future of AI GPUs

Future trends include:

• Photonic computing
• Neuromorphic chips
• Quantum acceleration

FAQs

What is an AI GPU?

An AI GPU is a processor optimized for parallel computation, particularly for matrix operations used in artificial intelligence.

Why are GPUs used in AI?

They can process thousands of operations simultaneously, making them ideal for neural networks.

What are Tensor Cores?

Tensor cores are specialized units designed for fast matrix multiplication in AI workloads.

What is the GPU memory hierarchy?

It includes registers, shared memory, caches, and global memory arranged by speed and size.

What is the difference between training and inference?

Training builds the model, while inference uses the model to make predictions.

AI GPUs have become the backbone of modern artificial intelligence by enabling massive parallel computation, high-speed memory access, and specialized hardware for matrix operations. Their architecture, built around streaming multiprocessors, tensor cores, and high-bandwidth memory, allows them to efficiently handle the complex computations required for training and deploying AI models. As AI continues to evolve, GPUs will remain central to innovation, driving advancements in fields ranging from healthcare to autonomous systems. Understanding how AI GPUs work provides valuable insight into the future of computing and the technologies shaping the modern world.
