AMD Radeon RX 9060 XT : Specifications, Architecture, Working, Differences & Its Applications

The AMD Radeon RX 9060 XT is a mainstream desktop graphics card based on AMD’s RDNA 4 architecture and Navi 44 GPU. AMD announced the card in May 2025 and made it available on June 5, 2025, with 8GB and 16GB GDDR6 configurations starting at $299 and $349, respectively. The RX 9060 XT is designed primarily for high-refresh-rate 1080p gaming and 1440p gaming. It features 32 Compute Units, 2,048 stream processors, 32 third-generation ray accelerators, 64 second-generation AI accelerators, a 128-bit memory interface, and 32MB of Infinity Cache. The 8GB version has a 150W typical board power rating, while the 16GB version is rated at 160W.

One of the card’s most important characteristics is the choice between 8GB and 16GB of VRAM. Both models use essentially the same GPU configuration, so the extra memory on the 16GB version is meant to provide more capacity for demanding games and workloads rather than automatically doubling performance.

AMD Radeon RX 9060 XT Specifications

The following table contains the core specifications of the two standard RX 9060 XT configurations. Because the two cards share the same GPU architecture and processing configuration, the principal differences are memory capacity and reference board power.

Specification	RX 9060 XT 8GB	RX 9060 XT 16GB
Architecture	AMD RDNA 4	AMD RDNA 4
GPU	Navi 44	Navi 44
Compute Units	32	32
Stream Processors	2,048	2,048
Ray Accelerators	32	32
AI Accelerators	64	64
Game Clock	2,530 MHz	2,530 MHz
Boost Clock	Up to 3,130 MHz	Up to 3,130 MHz
VRAM	8GB GDDR6	16GB GDDR6
Memory Interface	128-bit	128-bit
Memory Speed	Up to 20Gbps	Up to 20Gbps
Memory Bandwidth	Up to 320GB/s	Up to 320GB/s
Infinity Cache	32MB	32MB
Texture Units	128	128
ROPs	64	64
Transistors	29.7 billion	29.7 billion
Interface	PCIe 5.0 x16	PCIe 5.0 x16
Typical Board Power	150W	160W
AMD Recommended PSU	450W	450W
Power Connector	1 × 8-pin	1 × 8-pin
DisplayPort	2.1a	2.1a
HDMI	2.1b	2.1b
Launch SEP	$299	$349

AMD’s current specification page confirms the processing configuration, clocks, memory subsystem, power ratings, display interfaces, and software support.

What Makes the RX 9060 XT Different?

Rather than describing the RX 9060 XT as simply another 32-CU GPU, it is useful to look at the architectural changes AMD introduced with RDNA 4.

The RX 9060 XT combines conventional shader processing with dedicated ray-tracing and AI hardware. Its 32 Compute Units contain 2,048 stream processors for traditional graphics workloads, while 32 ray accelerators handle dedicated portions of ray-tracing calculations and 64 AI accelerators process supported matrix and machine-learning operations.

AMD states that RDNA 4 delivers up to twice the ray-tracing throughput of the previous generation. The architecture also introduced second-generation AI accelerators that AMD uses for technologies such as FSR 4’s machine-learning-based upscaling.

This combination is more meaningful than simply increasing the number of shader units. The RX 9060 XT is intended to handle conventional rasterization, ray tracing, and AI-assisted graphics workloads on the same mainstream desktop GPU.

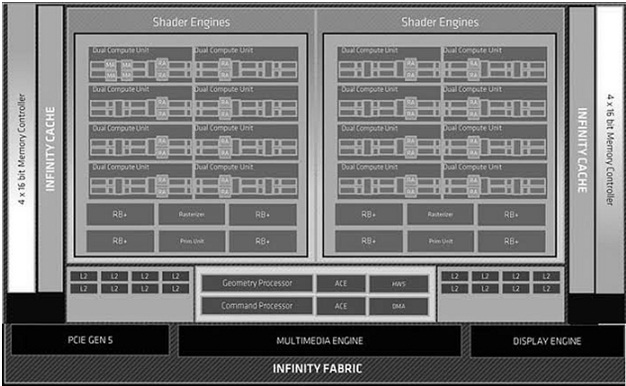

How Does the AMD Radeon RX 9060 XT Work?

Instead of describing a generic nine-step GPU pipeline, the RX 9060 XT can be understood through the interaction of its major processing blocks.

1. Compute Units Handle Conventional Rendering

The 32 Compute Units are responsible for the majority of programmable shader work. Their 2,048 stream processors execute the mathematical operations required for geometry, pixels, lighting, materials and other game-engine workloads.

2. Infinity Cache and GDDR6 Handle Data Movement

The 32MB Infinity Cache provides a fast on-chip data cache, while the 8GB or 16GB of GDDR6 stores larger assets such as textures, frame buffers and geometry data.

The 128-bit memory interface provides up to 320GB/s of external memory bandwidth. Infinity Cache can reduce some external memory accesses by keeping frequently used data closer to the GPU.

3. Ray Accelerators Process Dedicated RT Work

When a game enables hardware ray tracing, the GPU can use its 32 ray accelerators to accelerate specific ray-tracing operations. The remaining rendering work continues to use the Compute Units.

This division allows RDNA 4 to process ray-traced effects more efficiently than relying entirely on general-purpose shader hardware.

4. AI Accelerators Process Matrix Operations

The 64 second-generation AI accelerators are designed for supported matrix and machine-learning workloads. AMD uses this hardware in its ML-based graphics technologies, including FSR 4.

5. The Display and Media Engines Produce the Final Output

Once rendering and post-processing are completed, the display engine sends the final image to a monitor through DisplayPort 2.1a or HDMI 2.1b. The media engine separately provides hardware acceleration for supported video codecs, including AV1, H.264 and HEVC.

This architecture-specific view is more useful than presenting the RX 9060 XT as an example of a generic GPU pipeline.

RX 9060 XT 8GB vs 16GB

The 8GB and 16GB versions deserve separate consideration because VRAM capacity is one of the most important factors affecting the card’s long-term usefulness.

Both models contain 32 Compute Units, 2,048 stream processors, 32 ray accelerators and 64 AI accelerators. They also use the same 128-bit memory interface and offer up to 320GB/s of bandwidth. The main difference is the amount of available graphics memory.

The 8GB model is aimed at buyers who want to keep the initial GPU cost low, particularly for 1080p gaming. However, modern games can exceed or place significant pressure on an 8GB framebuffer at high texture quality, especially as resolution and graphical complexity increase.

The 16GB model provides substantially more memory headroom. It is therefore the more attractive configuration for buyers targeting 1440p gaming or planning to keep the card for several years.

Independent testing has highlighted this distinction. TechSpot’s testing of the 8GB version found significant VRAM-related limitations in several modern games, while its 16GB review showed the larger-memory configuration to be a much more compelling mainstream gaming option.

The important point is that 16GB does not automatically make the GPU twice as fast. The extra memory becomes valuable when a workload actually needs more than 8GB or benefits from avoiding VRAM-related performance problems.

Recommended Choice

• 8GB: Best considered for a budget-oriented 1080p system when the price is significantly lower.
• 16GB: Better suited to a new gaming PC, 1440p gaming and longer-term ownership.

RX 9060 XT Gaming Performance

The RX 9060 XT is primarily a gaming GPU, so actual game performance is more informative than theoretical specifications.

AMD positions the card for 1440p gaming, while independent reviews generally find the 16GB version particularly strong at 1080p and 1440p.

Benchmark results vary by game and settings, so the article should avoid presenting one universal FPS figure. Instead, performance should be evaluated using a consistent test methodology.

A useful benchmark methodology would include:

• 1080p Ultra rasterization
• 1440p Ultra rasterization
• 1080p ray tracing
• 1440p ray tracing
• Native rendering
• FSR enabled
• Frame generation where supported
• 8GB versus 16GB VRAM behavior
• Average FPS
• 1% low FPS
• Frame-time consistency
• Power consumption

Suitable games for a representative test suite include:

• Cyberpunk 2077
• Black Myth: Wukong
• Hogwarts Legacy
• The Last of Us Part I
• Horizon Forbidden West
• Forza Horizon 5
• Marvel’s Spider-Man 2
• Star Wars Outlaws
• Call of Duty
• Doom: The Dark Ages

These titles cover a mixture of rasterization, ray tracing, heavy texture usage and demanding modern game engines. Independent reviews from TechSpot, GamersNexus, Tom’s Hardware and Ars Technica provide useful examples of benchmark methodology and comparative testing.

For an evergreen article, update benchmark numbers when major driver or game-engine changes materially affect performance.

RX 9060 XT vs RTX 5060

The RX 9060 XT and GeForce RTX 5060 compete in the mainstream desktop graphics segment, but their hardware and software approaches differ.

Feature	Radeon RX 9060 XT	GeForce RTX 5060
Architecture	AMD RDNA 4	NVIDIA Blackwell
Compute Units / SMs	32 CUs	30 SMs
Shader Cores	2,048 Stream Processors	3,840 CUDA Cores
Ray-Tracing Hardware	32 Ray Accelerators	30 4th-gen RT Cores
AI Hardware	64 AI Accelerators	5th-gen Tensor Cores
VRAM	8GB / 16GB GDDR6	8GB GDDR7
Memory Interface	128-bit	128-bit
Memory Bandwidth	Up to 320GB/s	448GB/s
Reference Power	150W / 160W TBP	145W TGP
Interface	PCIe 5.0 x16	PCIe 5.0
Upscaling	AMD FSR	NVIDIA DLSS
Frame Generation	AMD Fluid Motion Frames / supported FSR features	DLSS Frame Generation / Multi Frame Generation
Video Encoder	AV1, H.264, HEVC	AV1, H.264, HEVC

The RX 9060 XT’s major hardware advantage is the availability of a 16GB configuration. The RTX 5060’s advantages include GDDR7 memory, NVIDIA’s DLSS ecosystem, CUDA compatibility and its established software ecosystem.

Neither GPU should be declared universally superior. Benchmark results should determine the winner for a particular gaming workload, while software requirements can be equally important for creative and professional users.

RX 9060 XT vs RTX 5060 Ti

The RTX 5060 Ti is a particularly important competitor because it is available with 8GB and 16GB of memory, making it directly relevant to the RX 9060 XT 16GB.

Feature	RX 9060 XT	RTX 5060 Ti
Architecture	AMD RDNA 4	NVIDIA Blackwell
Compute Structure	32 CUs	36 SMs
Shader Cores	2,048	4,608 CUDA Cores
Ray-Tracing Hardware	32 Ray Accelerators	36 4th-gen RT Cores
AI Hardware	64 AI Accelerators	144 5th-gen Tensor Cores
VRAM	8GB / 16GB GDDR6	8GB / 16GB GDDR7
Memory Bus	128-bit	128-bit
Bandwidth	Up to 320GB/s	448GB/s
Reference Power	150W / 160W	180W
Upscaling	FSR	DLSS
Frame Generation	FSR/AFMF features	DLSS 4 / Multi Frame Generation

NVIDIA’s official specifications list 4,608 CUDA cores and 180W TGP for the RTX 5060 Ti.

The comparison should focus on actual game performance, ray tracing, VRAM behavior, upscaling quality, frame generation, software compatibility and current street price.

At launch, the RX 9060 XT 16GB had a $349 SEP, compared with $429 for the RTX 5060 Ti 16GB.

RX 9060 XT vs RX 7600 XT

The RX 7600 XT is an important comparison because both cards use 32 Compute Units and 2,048 stream processors. However, the newer RX 9060 XT uses RDNA 4 rather than RDNA 3.

The newer architecture brings higher clocks, improved ray-tracing hardware, second-generation AI accelerators, and a substantially newer feature set. AMD’s comparative material reports significant performance improvements over the previous generation in its selected games.

This comparison also demonstrates why GPU performance cannot be determined simply by counting Compute Units. Architectural efficiency, clock speed, cache behavior, memory subsystem, ray-tracing hardware, and software optimization all contribute to real-world performance.

Ray Tracing and AI Capabilities

Ray tracing is one of the most important architectural improvements in RDNA 4.

AMD identifies the RX 9060 XT as having third-generation ray accelerators and states that RDNA 4 can deliver up to twice the ray-tracing throughput of the previous generation.

The GPU also contains second-generation AI accelerators. These are particularly important for ML-based graphics technologies such as FSR 4. AMD’s launch material specifically identifies the second-generation AI hardware as a foundation for FSR 4.

However, these AI accelerators should not be interpreted as making the RX 9060 XT equivalent to a dedicated professional AI accelerator. General-purpose AI performance depends on software frameworks, drivers, model support, and application optimization.

AMD FSR and Frame Generation

At launch, AMD highlighted FidelityFX Super Resolution 4 (FSR 4) as one of the major features of the RX 9060 XT. FSR 4 uses machine learning to reconstruct frames and improve image quality at lower rendering resolutions.

AMD’s current product specifications have since expanded the software branding to include FSR “Redstone”, so an evergreen article should avoid presenting FSR 4 as the only current AMD upscaling technology.

Frame generation should also be distinguished from upscaling. Upscaling reconstructs a higher-resolution image from a lower-resolution render, while frame generation creates additional frames between conventionally rendered frames.

Frame generation can substantially increase displayed FPS, but it does not provide the same input responsiveness as increasing the native rendered frame rate. Therefore, it is best used when the underlying game already has a reasonably strong base frame rate.

Driver and Software Support

Driver support is an important consideration for a newly launched GPU because early drivers can contain game-specific bugs that are gradually addressed through subsequent releases.

The RX 9060 XT received official support through AMD Software: Adrenalin Edition at launch. AMD’s initial Adrenalin 25.6.1 release notes documented RX 9060 XT support as well as several launch-period known issues. These included intermittent application crashes or driver timeouts in Marvel’s Spider-Man 2 when ray tracing was enabled and an intermittent crash when first launching The Last of Us Part I.

These issues should be described as launch-period driver issues, rather than permanent defects in the hardware.

AMD has continued releasing drivers for the RX 9060 XT. As of August 20, 2026, AMD’s official driver page lists Adrenalin Edition 26.8.1 WHQL Recommended for Windows 10/11, demonstrating continued software support for the product.

For an evergreen article, this section should be updated whenever a major driver release introduces significant performance improvements, fixes important compatibility problems or adds new features.

Launch Date, Pricing and Availability

The Radeon RX 9060 XT was announced by AMD in May 2025 and launched at retail on June 5, 2025. The official launch suggested prices were:

• RX 9060 XT 8GB: $299
• RX 9060 XT 16GB: $349

AMD also announced that custom cards would be supplied by multiple board partners.

Actual retail pricing has not always matched AMD’s suggested pricing. Contemporary launch coverage found differences in availability between the two memory configurations, with some 16GB cards selling above the $349 suggested price.

Therefore, the article should distinguish clearly between launch SEP/MSRP and current street price.

Applications

Gaming

Gaming is the primary application of the RX 9060 XT. The card is designed for high-performance 1080p gaming and capable 1440p gaming, with the 16GB version providing greater memory headroom.

Ray-Traced Gaming

The third-generation ray accelerators improve the card’s ability to process real-time ray tracing compared with earlier AMD mainstream GPUs.

Video Streaming and Recording

The hardware media engine supports AV1, H.264 and HEVC encoding and decoding, making the card useful for supported streaming, recording and video-processing workloads. AMD’s launch documentation also lists support for up to 8K and 80 FPS maximum encode/decode under its specified conditions.

Video Editing

Supported applications can use the GPU for accelerated effects, encoding, decoding and other workloads. Actual performance depends on the editing application and its AMD GPU support.

3D Rendering

The RX 9060 XT can accelerate compatible GPU-based rendering and visualization applications. Users should check application-specific GPU support before choosing the card for professional production workloads.

AI and Compute

The second-generation AI accelerators can accelerate supported matrix operations and machine-learning workloads. However, application compatibility remains important, particularly for users selecting a GPU for local AI development.

High-Refresh-Rate Displays

DisplayPort 2.1a and HDMI 2.1b provide modern connectivity for high-resolution and high-refresh-rate displays.

Advantages

• RDNA 4 architecture with improved ray-tracing capability.
• 32 Compute Units and 2,048 stream processors.
• 64 second-generation AI accelerators.
• 32 third-generation ray accelerators.
• Choice of 8GB or 16GB GDDR6.
• 16GB configuration provides substantial VRAM capacity for the mainstream segment.
• Strong 1080p and capable 1440p gaming performance.
• 32MB Infinity Cache.
• Up to 3.13GHz boost clock
• PCIe 5.0 x16 interface.
• DisplayPort 2.1a and HDMI 2.1b.
• Hardware AV1 encoding and decoding.
• AMD FSR and Fluid Motion Frames support.
• Relatively moderate reference board power of 150W or 160W depending on memory configuration.

Disadvantages

• The 8GB version can become VRAM-limited in demanding modern games.
• The 16GB version is considerably more attractive for long-term ownership but costs more.
• Heavy ray tracing and path tracing can still reduce performance substantially.
• FSR and related features are not supported in every game.
• NVIDIA retains advantages in areas such as CUDA, DLSS and certain professional applications.
• Partner cards vary in size, cooling, acoustics and power limits.
• Launch-period driver issues affected some games, although AMD has continued releasing driver updates.

Who Should Buy the RX 9060 XT?

The RX 9060 XT is particularly suitable for:

• Gamers building a new mainstream desktop PC.
• Users targeting high-refresh-rate 1080p gaming.
• Players who want to move to 1440p without moving to a high-end GPU.
  Buyers who value 16GB of VRAM at a mainstream price.
• Streamers who want hardware AV1 encoding.
• Users interested in AMD’s FSR and frame-generation technologies.

The 16GB model is the more suitable option for most new gaming systems if its price premium is reasonable.

The 8GB model makes more sense when the purchase price is substantially lower, and the system is primarily intended for 1080p gaming with sensible texture settings.

Users who depend heavily on CUDA applications, NVIDIA-specific professional software or DLSS may have stronger reasons to choose an NVIDIA alternative.

Final Verdict

The Radeon RX 9060 XT is one of AMD’s most important mainstream RDNA 4 products because it combines improved ray tracing and AI hardware with a relatively moderate power requirement and a 16GB memory option.

The 16GB model is the more compelling version for a new gaming PC, particularly for 1440p users who want greater VRAM headroom. The 8GB model can still make sense as a lower-cost 1080p option, but its memory capacity makes it less attractive for long-term ownership.

The RX 9060 XT is not simply a specification upgrade over the RX 7600 XT. RDNA 4 introduces meaningful changes to ray tracing, AI acceleration and overall GPU efficiency. At the same time, buyers should compare the card against NVIDIA’s RTX 5060 and RTX 5060 Ti based on current pricing, game performance and software requirements rather than relying on specifications alone.

For most buyers, the deciding factors are straightforward: choose the 16GB RX 9060 XT if you want a balanced mainstream 1440p gaming card with substantial VRAM; consider the 8GB version primarily when its lower price makes the trade-off worthwhile.

Frequently Asked Questions

When was the RX 9060 XT launched?

The Radeon RX 9060 XT launched on June 5, 2025. AMD announced the product in May 2025.

What was the launch price?

AMD announced a suggested price of $299 for the 8GB model and $349 for the 16GB model. Actual partner-card retail prices can be higher or lower.

How many Compute Units does it have?

The RX 9060 XT has 32 Compute Units.

How many stream processors does it have?

It has 2,048 stream processors.

How much VRAM does it have?

The RX 9060 XT is available with either 8GB or 16GB of GDDR6.

For the practical difference between the two versions, see the RX 9060 XT 8GB vs 16GB section above.

What is its power consumption?

The reference 8GB model has a 150W TBP, while the 16GB model has a 160W TBP.

What PSU does it require?

AMD recommends a 450W minimum system power supply. Actual PSU requirements depend on the complete PC configuration and partner-card design.

Does the RX 9060 XT support ray tracing?

Yes. It has 32 third-generation ray accelerators. AMD states that RDNA 4 can provide up to 2× the ray-tracing throughput of the previous generation.

Does it have AI accelerators?

Yes. It has 64 second-generation AI accelerators. AMD uses the RDNA 4 AI hardware for supported machine-learning workloads and features such as FSR 4.

Does it support AV1?

Yes. The RX 9060 XT supports hardware-accelerated AV1 encoding and decoding, along with H.264 and HEVC.

Is the 16GB model better?

For most new 1440p gaming systems, the 16GB model is the preferable configuration because it provides substantially more VRAM headroom.

It does not, however, automatically provide twice the performance. The benefit depends on whether the game or workload actually needs more than 8GB of VRAM.

Is the RX 9060 XT good for 1440p gaming?

Yes. AMD specifically positions the RX 9060 XT for 1440p gaming, and independent reviews have generally found the 16GB version particularly well suited to this resolution.

Did the RX 9060 XT have driver problems at launch?

Some launch-period driver issues were documented. AMD’s initial RX 9060 XT-supported Adrenalin driver listed intermittent crashes/timeouts in Marvel’s Spider-Man 2 with ray tracing and an intermittent launch crash in The Last of Us Part I.

AMD has continued to release drivers for the card; its current driver page lists Adrenalin 26.8.1 WHQL for Windows as of August 20, 2026.

What games should be included in a benchmark test?

A useful test suite should include games representing rasterization, ray tracing, and VRAM-heavy workloads. Examples include Cyberpunk 2077, Black Myth: Wukong, Hogwarts Legacy, The Last of Us Part I, Horizon Forbidden West, Forza Horizon 5, Marvel’s Spider-Man 2, Star Wars Outlaws and Call of Duty.

For an evergreen article, update benchmark results when major driver or game updates materially change performance.
