Projects on Speed Checker To Detect Rash Driving On Highways

While driving on highways, drivers should not exceed the maximum speed limit permitted for their vehicle. However, accidents keep on occurring due to speed violations as drivers follow their speedometers and control their speed according to them, and reduce the speed if they find it to be exceeding and beyond their control. A highway speed checker comes handy for the traffic police, especially against the speed limit violators  because it provides the digital display as well as buzzing sound or alarm to detect any vehicle speed if the vehicle exceeds the permitted speed limit.


Highways Speed Checker
Highways Speed Checker

The make up of these highways, sometimes leads to accidents because most of the times, there is no rule to govern speed limits on these highways.  To overcome this problem, we have implemented a circuit called as a speed checker for highways. This kit is inexpensive and it is used for considering the average and high speed of vehicles that move on the highways or  roads.

By taking all these considerations in mind, we have designed a highway- speed checker circuit to detect the rash driving by using different electronic components such as timer, counter, logic gates, microcontroller, seven segment display and all other components. To understand this circuit better, the following paragraphs describe a project report on speed-checker for highways, which covers three types of speed checker projects that can be controlled using three types of controllers.

1. A Speed Checker to Detect Rash Driving on Highways Using a Timer

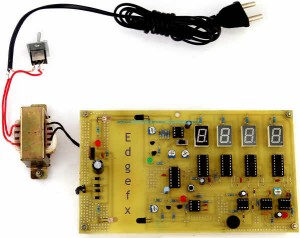

Speed Checker to Detect Rash Driving on Highways Using Timer by Edgefxkits.com
Speed Checker to Detect Rash Driving on Highways Using Timer by Edgefxkits.com

Nowadays, in our daily life most of the accidents occur due to rash driving on highways which may lead to the loss of many lives. Therefore, to overcome this problem, the following project implements a speed checker to detect rash driving on highways by using a timer.

The main objective of this system is to develop a highway speed-checker device that detects rash driving on highways and alerts, traffic authorities if the speed checker finds any vehicle violating the set speed limits on highways.

Block Diagram of Highway Speed Checker using 555 Timer (Edgefxkits.com)
Block Diagram of Highway Speed Checker using 555 Timer by (Edgefxkits.com)

The proposed system checks rash driving by calculating the speed of a vehicle by using the time taken to travel between the two set points placed on the road at a certain distance. A set point consists of a couple of sensors comprising an IR transmitter and an IR receiver, which are placed on either side of the road. The speed limit is set by the police who use the system depending on the traffic at each location.

The time taken by the vehicle to travel from one set point to the other is calculated by the control circuit. Based on the time that has elapsed between the two sensors, the control circuit calculates the speed and displays the result on a seven segment display. If a vehicle exceeds the speed limit between transmitter and receiver, then this system emanates a buzzing sound as an alarm and alerts the police.

2. A Speed Checker to Detect Rash Driving on Highways by Using a Microcontroller

The main purpose of this system is to develop a speed checker for highways using a microcontroller and to alert the traffic authorities in case of any speed violation. Many passengers and drivers, including commuters have lost their lives due to rash and rude driving on highways.

In olden days, for detecting rash driving, highway police used to target vehicles by using radar guns at the vehicle and would record their speeds. If a vehicle would exceed its speed, automatically the information would reach to the nearest police station for controlling the speed of the vehicle. Due to this system a lot of time would get wasted.

Block Diagram of Highway Speed Checker using Microcontroller by (Edgefxkits.com)
Block Diagram of Highway Speed Checker using Microcontroller by (Edgefxkits.com)

This proposed system consists of a power-supply block, microcontroller, IR sensors, Relays, Buzzer, Lamp and Displays. The entire system gets it power from the power-supply block and the microcontroller acts as the major component of the whole systems. IR sensors are placed on either side of the road, for detecting the speed limit of the vehicle. The microcontroller is programmed by using embedded C programming that calculates the time duration between two sensors, correspondingly gives the speed. If the speed limit exceeds then relay gets activated and the lamp gets ‘on’ while the buzzing sound gives indication to the police that the vehicle is crossing the speed limits  and displays the information on the LCD Display.

Until now we have seen about speed checker to detect rash driving on highways using 555 timer and microcontroller. By adding another advanced wireless technology, we can make the circuit to operate remotely to achieve an  efficient rash-driving  control system.

3. Wireless Rash Driving Detection

The proposed system comprises these components: power supply, 8051 microcontroller, speed sensors, relays, buzzer and lamp are a part of this project, which will check on rash driving by calculating the speed of a vehicle using the time taken to travel between the two set points at a stationary distance and as if the microcontroller is programmed by using Embedded C programming language in such a way that it transmits the data over a frequency of 2.4GHz to the central control room. The relays get activated and the buzzer sounds  as  an alarm for altering the police as well as the control room wirelessly giving  the status of the vehicles  (whether the vehicle is within limits or exceeding the speed limits), and then displaying the speed limits of the vehicle on the LCD Display.

Block Diagram of Wireless Rash Driving Detection Transmitter Section by (Edgefxkits.com)
Block Diagram of Wireless Rash Driving Detection Transmitter Section by (Edgefxkits.com)

The transmitted speed limit data are sent to the receiver section with the help of 2.4GHZ RF receiver module and compares with the speed limits programmed into the microcontroller using embedded C software. If the speed limit exceeds, it sends the data to the traffic police as well as to a control room. To know about the speed limit status of the vehicle, a lamp is used to indicate if the vehicle exceeds the speed limit and the status gets displayed on the LCD. In addition, the buzzing sound as an alarm alerts the traffic police patrolling on the highway indicating the vehicle’s location on highways.

Block Diagram of Wireless Rash Driving Detection Receiver Section by (Edgefxkits.com)
Block Diagram of Wireless Rash Driving Detection Receiver Section by (Edgefxkits.com)

This Speed checker’s concept to detect rash driving on highways can be further implemented by integrating a camera with the system to capture the image of the vehicle’s number plate and to send that information to the traffic authorities.

This is all about the different highway-speed-checker circuits that are used to detect rash driving on highways. To extend support to the engineering students, we have mentioned a project report ‘Speed-Checker for Highways’, which covers different types of technologies. For additional suggestions or help regarding this topic, you can contact us by commenting in the comment section given below.
