Types of Electric Actuators and Its Applications

The actuator is a mechanical or electro-mechanical device which is used to offer controlled, positioning and sometimes limited movements which are functioned manually, electrically, or by a variety of fluids like air, hydraulic, etc. The two necessary motions are rotary and linear, where linear actuators vary the power into straight line motions, normal for positioning electrical actuator applications, and generally, have two tasks namely push and pull. Some linear actuators are not power driven and functioned manually by utilizing a rotating handle or hand wheel. Rotary actuators alter energy to provide motion of rotary. The main purpose of this is the control of several valves like a butterfly or ball. For various power configurations, each kind of actuator has different versions and available in various sizes and styles based on the application. Different types of electric actuators have versions for various power configurations and come in many styles and sizes depending on the application.

Types of Electric Actuators

Basically, an electric actuator is one kind of gear motor which can be of various voltages and is the main torque producing component. To stop extreme current draw, electric actuator motors are generally set with a thermal overload sensor fixed in the motor windings. This sensor is energetic in series with the power source and unlocks the circuit should the motor be excited, then locks the circuit when the motor attains a secure operating temperature.

Types of Electric Actuators
Actuator

An electric motor consists of an armature, an electrical winding, and a gear train. When power is supplied to the winding, a magnetic field is generated causing the armature to rotate. The armature will turn as long as there is a control to the windings when the power is cut, the motor discontinues. Typical end of travel limit switches, which are essential for an electric actuator, handles this mission.

These actuators rely on a gear train, which is attached straight from the motor to improve the motor torque and say the output speed of the actuator. The single way to alter the o/p speed is to fit a cycle length control module. This module lets an increase in cycle time only. If a reduction in cycle time is necessary, an alternating actuator with the preferred cycle time and correct output torque must be used.

Smart Linear Electric Actuator

Smart linear electric actuator with the dislocation of linear output. The quality of this actuator is high, the precision material and design are stable, durable and safe, the application environment is broad, similar to all types of valve, ball valves like control, butterfly.

Smart Linear Electric Actuator

Rotary Electric Cut Off Actuator

Rotary electric cut off actuator allows the integrated standard signal and alters the signal into equivalent angular displacement, so as to mechanically control the valve and achieve the automatic modification task. In the automatic change, the physical, mechanical and bi-directional intrusion free controlling of the regulating system can be recognized. It comprises two parts, namely actuator, and servo amplifier. It can be controlled rapidly or physically at a distance.

Rotary Electric Regulating Type Actuator

Linear Electric Cut Off Actuator

Linear electric cut off actuator is available with two sorts of power supply model such as AC single-phase power supply & three-phase AC power supply. The latest electric actuator is established from the regulator control signal to attain a prearranged linear reciprocating motion. This sequence of electric actuators is employed as the regulating valve actuator, almost with the control valve itself needs a range of action change function, and the opening of the electric actuator valve signal function and physical function. Thus, it is extensively used in various industries like power generation, metallurgical, papermaking, petrochemical, environmental protection and light industries.

Linear Electric Cut-off Actuator
Linear Electric Cut-off Actuator

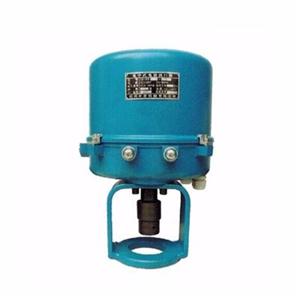

Rotary Electric Regulating Type Actuator

This type of actuator is a full electronic actuator gets 4mA to 20mA d.c or 1V to 5Vd.c input signals from the PC, operator or regulator to work with 220V AC single phase power supply like the driving power supply, and is offered with a servo system. An extra servo amplifier is not necessary. The input component “controller” accepts the complex mixed integrated circuits, and is hardened by resin pouring & topic to aging behavior, thus being high inconsistency and opposing to vibration and moisture. When the base and crank is accepted for fitting, the location of the crank zero end can be determined randomly within 0-360℃. In addition, the electrical actuator has the overload, temperature, and torque switch safeties, is high in control precision, product high inconsistency and competent of figuring the angular travel electric regulating valve with a variety of angular travel changeable mechanisms.

Rotary Electric Regulating Type Actuator
Rotary Electric Regulating Type Actuator

SMC Electric Actuator

SMC electric actuators give different advantages, speed and acceleration are controlled and also predictable. Several positions are achievable with high accuracy and repeatability. Almost forces can be automatic. With not require for condensed air, fewer energy costs and infrastructure. SMC’s electric actuators are designed with a center on easy arrangement and process. Function parameters come fixed, in addition, an “Easy Mode” setting choice lets you be operational rapidly. The different types of SMC electric actuators include the following.

SMC Electric Actuators
  • Sliders
  • AC Servo Sliders
  • Rod & Guided Rod
  • AC Servo Rod
  • Slide Tables
  • Rotary
  • Grippers
  • Miniature
  • Controllers & Drivers

Thus, this is all about types of electric actuators and its applications. We hope that you have got a better understanding of this concept. Furthermore, any doubts regarding this concept or to implement any electrical and electronic projects, please give your feedback by commenting in the comment section below. Here is a question for you, what is the function of an Actuator?
