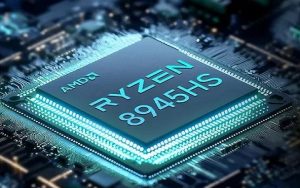

AMD Ryzen 9 8945HS : Specifications, Architecture, Working, Differences & Its Applications

The AMD Ryzen 9 8945HS is a high-end laptop processor released as part of the Ryzen 8040 series in early 2024. It is an updated version of the earlier 7940HS with a faster Ryzen AI NPU for better AI performance. This processor enhances AI capabilities through an upgraded Ryzen AI NPU, alongside Radeon 780M graphics, targeting best-in-class gaming and thin laptops. This is basically an optimized, higher-AI-performance processor, which makes it a strong choice for the best AI-capable laptops. This article elaborates on the AMD Ryzen 9 8945HS processor, working, & its applications.

What is AMD Ryzen 9 8945HS?

The AMD Ryzen 9 8945HS from the “Hawk Point” family is a high-end laptop processor. It is part of the Ryzen 9 lineup, based on AMD’s Zen 4 CPU architecture, and belongs to the Hawk Point mobile processor family. This mobile processor features 8 cores & 16 threads, with each core processing two instruction streams in parallel using available hardware units. It supports simultaneous multithreading (SMT), operates at a 4.0 GHz base clock and boosts up to 5.2 GHz, and is designed for the best laptops, delivering better AI performance through a faster NPU.

The Ryzen 9 8945HS processor consumes 45 W of TDP for a modern PC. An AMD processor can support DDR5 memory through a dual-channel interface. It supports 5600 MT/s of the highest memory speed. This processor uses a PCI-Express Gen 4 connection for better communication with other electronic components within the computer. In addition, it can also feature the Radeon 780M integrated graphics solution. The available hardware virtualization on the Ryzen 9 8945HS processor greatly enhances virtual machine performance.

Programs will run on this processor to boost performance with Advanced Vector Extensions for calculation-heavy applications. Besides AVX, AMD has added support for the latest AVX2 & AVX-512 instructions too. The dedicated Ryzen AI XDNA NPU delivers up to 16 TOPS of AI acceleration, while the combined CPU, GPU, and NPU provide up to 39 TOPS of total AI performance.

Specifications

The specifications of the AMD Ryzen 9 8945HS processor include the following.

• The AMD Ryzen 9 8945HS processor is based on Zen 4 (Hawk Point-HS) Architecture.
• It features 8 Cores and 16 Threads.
• Its Base CLK speed is 4.0 GHz, & Max Boost CLK is 5. 2 GHz.
• L2 Cache is 8 MB / L3 Cache is 16 MB.
• It uses the TSMC 4nm FinFET process node.
• Its default TDP is 45W, and configurable TDP is from 35-54W.
• This processor uses an AMD Radeon 780M GPU.
• Ryzen AI NPU = 16 TOPS. The total system AI Performance (CPU + GPU + NPU combined) = 39 TOPS.
• This processor supports Native USB 4 (40Gbps).
• The integrated Radeon 780M graphics enable smooth gaming and content creation without requiring a dedicated GPU.
• It features Ryzen AI technology for better gen
• Memory type is DDR5-5600/LPDDR5x-7500.
• Its memory capacity is upto 256 GB.
• It uses PCIe 4.0
• It is integrated with Radeon 780M to provide high-performance gaming capabilities.
• It features Ryzen AI technology for better generative AI efficiency.
• Its maximum operating temperature is 100 °C.

Ryzen 9 8945HS Features

The AMD Ryzen 9 8945HS incorporates several advanced technologies designed to maximize performance, efficiency, and AI acceleration in modern laptops. One of its key features is the Zen 4 architecture, which delivers improved instructions-per-clock (IPC) performance and enhanced power efficiency compared to previous generations. The processor also includes Precision Boost 2 technology, which dynamically adjusts clock speeds based on workload, temperature, and power availability to achieve optimal performance.

Another important feature is Precision Boost Overdrive (PBO), which intelligently increases processor performance when sufficient thermal and power headroom is available. The processor also supports AMD SmartShift technology, enabling dynamic power allocation between the CPU and GPU to improve overall system efficiency. In addition, Smart Access Memory allows compatible Radeon graphics solutions to access the entire system memory space, reducing bottlenecks and improving gaming performance.

A major highlight of the Ryzen 9 8945HS is the integrated Ryzen AI engine based on AMD XDNA architecture. This dedicated Neural Processing Unit (NPU) accelerates AI workloads such as image enhancement, background blur, noise suppression, and generative AI applications while consuming significantly less power than traditional CPU or GPU processing. Combined with the Radeon 780M integrated graphics and support for DDR5 memory, the processor delivers an excellent balance of performance, efficiency, and AI capabilities for modern AI PCs.

How does AMD Ryzen 9 8945HS Work?

The AMD Ryzen 9 8945HS high-performance laptop processor works based on the 4nm “Zen 4” architecture & 4nm technology, using 8 cores/16 threads through a 4.0 to 5.2 GHz boost CLK. The Ryzen 9 8945HS is basically a better version of the 7940HS processor that focuses on delivering better AI acceleration through its better NPU while maintaining the same core specifications.

Its working principle incorporates traditional processing through higher AI acceleration. It is designed for high-speed computation & efficiency within creative & gaming applications. Its core principle incorporates 39 TOPS whole system performance with a dedicated Ryzen AI NPU for efficient AI task handling, next to powerful Radeon 780M integrated graphics.

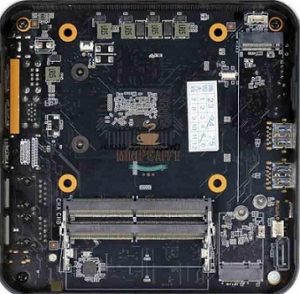

AMD Ryzen 9 8945HS Architecture

The high-performance AMD Ryzen 9 8945HS mobile processor is based on the “Hawk Point” architecture. It features 8 Zen 4 cores &16 threads, built on a 4nm TSMC process. This processor works as a refresh of the 7940HS processor by focusing on better AI capabilities for creator & gaming laptops. Therefore, this processor works at 4.0 GHz base with a 35 to 54W TDP. Its key features contain integrated Radeon 780M graphics, support for DDR5-5600/LPDDR5x-7500 memory & an enhanced Ryzen AI NPU. This is basically a refreshed version of the Ryzen 9 7940HS that provides similar CPU performance but with more efficient, faster AI capabilities.

Components

The required components to make this AMD Ryzen 9 8945HS processor include: CPU cores, CLK speeds, process technology, cache, graphics, AI engine, memory, TDP, and connectivity.

CPU Cores

The AMD Ryzen 9 8945HS mobile processor from the 8000 series features 8 CPU cores & 16 threads. These cores are the individual brains of the processor, which provide high instructions per clock (IPC) & increased speed to attempt multi-threaded and demanding applications like 4K video rendering & 3D modeling.

Each physical core in this processor handles two threads simultaneously. Therefore, this doubles the computing capacity by allowing the processor to manage intense multitasking like gaming while compiling or streaming code.

CLK Speeds

The AMD Ryzen 9 8945HS processor features 4.0 GHz of a base CLK speed & up to 5.2 GHz of a maximum boost CLK. So this laptop processor is designed for HPC (high-performance computing) with a default TDP of 45W. It is designed for content creation & gaming, which works on a 4nm process through 16MB L3 cache & supports automatic performance scaling through Precision Boost Overdrive.

Process Technology

The AMD Ryzen 9 8945HS processor uses a 4nm FinFET process technology manufactured by TSMC for its CPU cores. This higher node ensures high efficiency by allowing CPU cores to work at 4.0 GHz base & up to 5.2 GHz boost CLK in a 35 to 54W TDP. Therefore, the 4nm process technology plays a major role by enabling high transistor density, superior performance per watt & high energy efficiency for mobile devices. This process technology allows the processor to attain a balance of sustained, high-end performance & long battery life within a portable form factor.

Cache

The cache functions as a high-speed data buffer in the architecture to speed up CPU performance with 8 MB of L2 & 16 MB of L3 cache. Therefore, it reduces latency by frequently storing utilized data close to the 8 cores by facilitating efficient processing for generative AI, multi-core & gaming tasks.

Integrated Graphics

The integrated graphics, like the AMD Radeon 780M in the AMD Ryzen 9 8945HS, are a high-performance RDNA 3-based iGPU with 12 compute units, which runs up to 2.8 GHz. Therefore, it works as an energy-efficient, powerful solution for content creation, AI & gaming. It frequently replaces the need for a discrete GPU within thin laptops by supporting advanced technologies like DisplayPort 2.1 & AV1 decoding.

AI Engine

The AI Engine in the AMD Ryzen 9 8945HS processor works as a dedicated Neural Processing Unit. It is designed to speed up generative AI workloads & improve efficiency. This processor offloads different tasks like noise reduction, generative AI, & AI background blur features within apps from the GPU/ CPU to provide ~16 TOPS for AI. This AI Engine ensures the processor can handle modern, complex AI tasks while remaining energy-efficient on thin & light mobile devices. The 8945HS offers a 40% increase in generative AI performance over earlier generations to make this integrated graphics solution very efficient for portable & AI-powered workstations. This improvement comes primarily from: Improved Ryzen AI NPU & Software optimizations.

Memory

The memory in the AMD Ryzen 9 8945HS architecture acts as a high-speed & dual-channel data conduit by supporting modern DDR5-5600 RAM/LPDDR5x-7500. Therefore, it optimizes gaming & AI performance by feeding the Radeon 780M iGPU & Zen 4 cores. It supports up to 256GB by delivering high bandwidth for severe workloads.

TDP

The AMD Ryzen 9 8945HS features 45W of default TDP, designed for high-performance laptops. It provides a configurable TDP range from 35 to 54W by allowing laptop manufacturers to balance the highest performance from battery/ thermal constraints. This processor uses Curve Optimizer & Precision Boost Overdrive to handle power efficiently across its CPU cores.

Connectivity

The connectivity in the AMD Ryzen 9 8945HS architecture is designed for high-performance, modern laptops by featuring PCIe 4.0, fast memory & native USB4 support standards. This processor works as a central hub for high-bandwidth memory & quick peripheral communication by supporting 20 PCIe 4.0 lanes for discrete GPU & SSDs. The connectivity role in this architecture is centered on delivering high-bandwidth, native peripheral support for the best mini-PCs & thin-and-light laptops.

Software System

The AMD Ryzen 9 8945HS laptop processor supports Windows 11/10 (64-bit), RHEL x86 64-Bit & Ubuntu x86 64-Bit. It needs OEM-customized drivers for best performance, next to AMD Software: Adrenalin Edition.

• It is integrated with Radeon Graphics (RDNA 3), driven by AMD Software: Adrenalin Edition.
• It features Ryzen AI (NPU) designed for Windows Studio Effects & other AI-accelerated applications.
• This processor supports AMD Ryzen Master for tweaking & monitoring, although overclocking is normally locked on these mobile chips.
• AMD strongly advises using the particular drivers offered by the laptop manufacturer for best compatibility.

Ryzen 9 8945HS Performance in AI Workloads

The AMD Ryzen 9 8945HS is specifically optimized for AI-powered computing through its dedicated Ryzen AI engine. Unlike conventional processors that rely solely on CPU and GPU resources, the integrated XDNA-based NPU accelerates AI inference tasks while reducing power consumption. The NPU delivers up to 16 TOPS of dedicated AI performance, while the combined CPU, GPU, and NPU can achieve up to 39 TOPS of total system AI performance.

For content creators, the processor significantly improves performance in AI-enhanced applications such as Adobe Photoshop, Adobe Premiere Pro, and DaVinci Resolve. Tasks including object selection, image generation, background replacement, facial enhancement, and AI-assisted video editing can be processed more efficiently. The dedicated NPU also accelerates Windows Studio Effects, enabling features such as automatic framing, eye-contact correction, background blur, and noise cancellation during video conferencing.

The Ryzen 9 8945HS is also suitable for generative AI applications such as Stable Diffusion, local large language models (LLMs), and AI-powered productivity tools. By offloading AI computations to the NPU, the processor maintains lower power consumption and improved battery life compared to systems that rely entirely on CPU or GPU processing. These capabilities make the Ryzen 9 8945HS one of the most capable AI-focused laptop processors in the Ryzen 8040 series.

Ryzen 9 8945HS vs Ryzen 9 7940HS

The AMD Ryzen 9 8945HS and Ryzen 9 7940HS share the same Zen 4 CPU architecture, core configuration, cache sizes, and Radeon 780M integrated graphics. However, the Ryzen 9 8945HS belongs to AMD’s Hawk Point family and introduces an upgraded Ryzen AI engine with improved AI processing capabilities.

Feature	Ryzen 9 8945HS	Ryzen 9 7940HS
Architecture	Zen 4 (Hawk Point)	Zen 4 (Phoenix)
Process Node	TSMC 4nm	TSMC 4nm
Cores / Threads	8 / 16	8 / 16
Base Clock	4.0 GHz	4.0 GHz
Boost Clock	Up to 5.2 GHz	Up to 5.2 GHz
L2 Cache	8 MB	8 MB
L3 Cache	16 MB	16 MB
Integrated Graphics	Radeon 780M	Radeon 780M
Ryzen AI NPU	Enhanced XDNA NPU	First-Generation XDNA NPU
Dedicated AI Performance	Up to 16 TOPS	Lower AI Throughput
Memory Support	DDR5-5600, LPDDR5x-7500	DDR5-5600, LPDDR5x-7500
TDP Range	35W – 54W	35W – 54W

In real-world CPU workloads such as gaming, rendering, software development, and productivity applications, both processors perform very similarly because they share the same CPU architecture and clock speeds. However, the Ryzen 9 8945HS provides superior AI acceleration and better support for modern AI-powered applications due to its enhanced Ryzen AI engine.

Users primarily focused on gaming and traditional productivity workloads may notice little difference between the two processors. However, creators, professionals, and users interested in AI-enhanced software can benefit from the improved AI capabilities offered by the Ryzen 9 8945HS.

Ryzen 9 8945HS Benchmark Performance

The AMD Ryzen 9 8945HS delivers excellent performance for a mobile processor, thanks to its 8 Zen 4 cores, 16 threads, and boost clock speeds of up to 5.2 GHz. It is designed to handle demanding workloads such as content creation, software development, 3D rendering, AI-assisted applications, and multitasking. The processor performs similarly to the Ryzen 9 7940HS in traditional CPU workloads while offering improved AI acceleration through its enhanced Ryzen AI engine.

The processor achieves strong single-core performance, which benefits gaming, web browsing, office productivity, and lightly threaded applications. Its multi-core capabilities make it suitable for professional workloads such as video editing, virtualization, CAD design, and software compilation.

Typical Benchmark Scores

Benchmark	Ryzen 9 8945HS Score
Cinebench R23 Single-Core	~1,800 – 1,900
Cinebench R23 Multi-Core	~17,000 – 18,000
Geekbench 6 Single-Core	~2,600 – 2,800
Geekbench 6 Multi-Core	~13,000 – 15,000
PCMark 10	~8,000 – 9,000
3DMark CPU Profile (Max Threads)	~7,500 – 8,500

Actual benchmark scores may vary depending on the laptop’s cooling solution, power limits, memory configuration, and manufacturer tuning. Systems configured closer to the maximum 54W TDP generally achieve higher sustained performance than devices operating near the 35W power limit.

Performance in Professional Workloads

The Ryzen 9 8945HS performs exceptionally well in professional applications such as Blender, Adobe Premiere Pro, DaVinci Resolve, Autodesk AutoCAD, and MATLAB. Its Zen 4 architecture provides high IPC performance, while the large cache and fast DDR5 memory support help reduce processing delays in compute-intensive tasks.

For software developers, the processor significantly reduces code compilation times and can efficiently run multiple virtual machines simultaneously. Engineering applications involving simulations, finite element analysis, and AI model inference also benefit from the processor’s high thread count and AI acceleration capabilities.

Overall, the Ryzen 9 8945HS offers workstation-class performance in a thin-and-light laptop form factor, making it an excellent choice for professionals, students, content creators, and power users.

Ryzen 9 8945HS Gaming Performance

The AMD Ryzen 9 8945HS is a highly capable gaming processor that combines powerful Zen 4 CPU cores with the Radeon 780M integrated graphics processor. The Radeon 780M is based on AMD’s RDNA 3 architecture and features 12 Compute Units operating at frequencies up to 2.8 GHz. It is widely regarded as one of the fastest integrated graphics solutions available in modern laptops.

For casual and esports gaming, the integrated Radeon 780M can deliver smooth frame rates at 1080p resolution without requiring a dedicated graphics card. Popular competitive titles such as Valorant, Counter-Strike 2, Rocket League, Dota 2, and League of Legends can run comfortably at medium-to-high graphics settings while maintaining playable frame rates.

AMD Ryzen 9 8945HS vs Intel Core Ultra 9 185H vs Intel Core Ultra 7 165H

The difference between AMD Ryzen 9 8945HS vs Intel Core Ultra 9 185H vs Intel Core Ultra 7 165H includes the following.

AMD Ryzen 9 8945HS	Intel Core Ultra 9 185H	Intel Core Ultra 7 165H
It features 8 Cores & 16 Threads	It features 16 Cores & 22 Threads	It features 16 Cores & 22 Threads
L3 Cache is 16 MB	L3 Cache is 24 MB	L3 Cache is 24 MB
Maximum Turbo Clock is 5.2 GHz	5.1 GHz	5.0 GHz
PCIe Version is PCIe 4.0	PCIe Version is PCIe 5.0	PCIe Version is PCIe 5.0
Base TDP is 35W – 54W	Base TDP is 45W	Base TDP is 28W
Maximum Turbo Clock is 5.2 GHz	Maximum Turbo Clock is 5.1 GHz	Maximum Turbo Clock is 5.0 GHz
Process Node is TSMC 4nm	Process Node is Intel 4 (7nm equivalent)	Process Node is Intel 4 (7nm equivalent)

Advantages

The advantages of the AMD Ryzen 9 8945HS processor include the following.

• The 8945HS processor features an advanced NPU (Neural Processing Unit) within the Ryzen AI framework. Therefore, it specifically boosts performance for Adobe Photoshop & DaVinci Resolve applications.
• It is built on the 4nm process to deliver cores and threads, with up to 5.2 GHz maximum boost clocks. So it provides the best processing power for heavy multitasking, content creation, and gaming.
• It features superior 780M graphics, which allows for efficient creative work & smooth 1080p gaming without requiring a dedicated GPU.
• It provides an excellent balance between power efficiency and performance.
• This processor can support superior technologies like PCIe 4.0, fast LPDDR5x-7500 or DDR5-5600 memory, & 40Gbps USB4 for quick peripheral connectivity.
• The Zen 4 cores deliver strong AVX-512 support, enhancing performance within specific, calculation-heavy applications.

Disadvantages

The disadvantages of the AMD Ryzen 9 8945HS processor include the following.

• The 45W+ TDP in this processor needs active cooling, which leads to significant heat & noisy fans within mini PCs or slim laptops.
• This chip is directly soldered to the motherboard, so you cannot improve the CPU later.
• It supports only PCI-Express Gen 4, while some newer desktop standards or competitors have shifted to PCIe 5.0.
• The CPU cannot be overclocked.
• This processor lacks a dedicated VRAM (video RAM), depending instead on system memory, which can block gaming performance.
• It features 16 threads, compared to Intel Core i7/i9 processors that deliver 24+ threads, which potentially lag within heavily multithreaded tasks.
• This processor utilizes PCIe Gen 4, which could be an issue for GPU bandwidth or upcoming storage.
• Its performance depends on the TDP settings & cooling capability of the laptop manufacturer.

Applications

The applications of the AMD Ryzen 9 8945HS processor include the following.

• This processor is perfect for different tasks that need high computing power, like content creation, professional-grade video editing & 3D rendering (Blender).
• The graphics card allows smooth 1080p gaming within several titles, making it appropriate for solid gaming laptops.
• It is efficient at multitasking due to its high thread count to handle various demanding tasks concurrently, like spreadsheets, data processing & video calls simultaneously.
• Light-thin yet powerful workstations primarily utilize it in the PRO version, which offers enhanced safety features for businesses.
• This processor is widely used in compact mini-PCs such as the GEEKOM A8.
• Optimized for generative AI workloads with an upgraded Ryzen AI engine, it accelerates performance in Photoshop and other AI-enabled applications.
• This processor can support higher technologies like DDR5 memory, AVX512 & USB 4 by ensuring higher performance for current software applications.

FAQs

What is the main difference between 8945HS & 7940HS?

The 8945HS processor, a rebranded version of the 7940HS, boasts improved Ryzen AI performance, commonly known as the “Hawk Point” refresh, and is specifically designed to support AI-enabled applications better.

Is the Ryzen 9 8945HS processor good for gaming?

Yes, this processor is highly capable for gaming. Therefore, it features an integrated graphics card, making it outstanding for lightweight, thin laptops. It is usually connected with a dedicated GPU for top-tier gaming performance.

Does this processor support AI features?

Yes, it is a part of the Ryzen AI lineup, which provides faster NPU performance than earlier generations. It is designed to speed up Windows Studio Effects & other AI apps.

How does it compare to Intel processors?

It directly competes with Intel Core Ultra 9 185H processors, providing strong single-core & multi-core performance within a similar power envelope.

Is this processor unlocked for overclocking?

The processor cannot be unlocked for overclocking, while it does support Precision Boost Overdrive.

What is the difference between 8945HS and 8945HX processors?

The 8945HS processor is designed for thinner, power-efficient laptops, while HX models normally have better sustained multi-core performance & higher TDPs at the price of battery life.

In summary, the AMD Ryzen 9 8945HS is the best high-efficiency processor, designed for superior, thin-and-light laptops & small PCs. Therefore, it provides outstanding CPU/GPU performance with better Ryzen AI capability, working as an optimized rebadge of the 7940HS processor with better AI TOPS. Here is a question for you: What is Intel Core i9-14900K?
