Ryzen AI Technology : Architecture, Working, Features, and Applications

Artificial Intelligence (AI) is rapidly becoming a core part of modern computing systems. From image recognition and speech processing to generative AI and real-time video enhancement, AI workloads demand specialized hardware for efficient execution. Traditional CPUs and GPUs can handle AI tasks, but they often consume more power and system resources.

To address this challenge, AMD introduced Ryzen AI Technology, a dedicated AI acceleration platform integrated into modern Ryzen processors. Ryzen AI combines Zen CPU cores, Radeon graphics, and a specialized Neural Processing Unit (NPU) based on AMD’s XDNA architecture. This combination enables faster AI processing, lower power consumption, and improved performance for AI-powered applications. This article explains the architecture, working principle, features, advantages, and applications of Ryzen AI Technology in a detailed and easy-to-understand manner.

What is Ryzen AI Technology?

Ryzen AI Technology is AMD’s integrated AI acceleration framework designed for modern AI PCs and laptops. It uses a dedicated NPU to execute neural network operations efficiently while offloading AI tasks from the CPU and GPU.

The main goals of Ryzen AI are:

• Accelerate AI workloads locally on the device.
• Reduce latency for real-time AI applications.
• Improve battery life by lowering power consumption.
• Enable advanced AI features such as background blur, noise suppression, image enhancement, and generative AI.

Ryzen AI first appeared in AMD Ryzen 7040 Series processors and has since evolved in Ryzen 8040 and Ryzen AI 300 series processors.

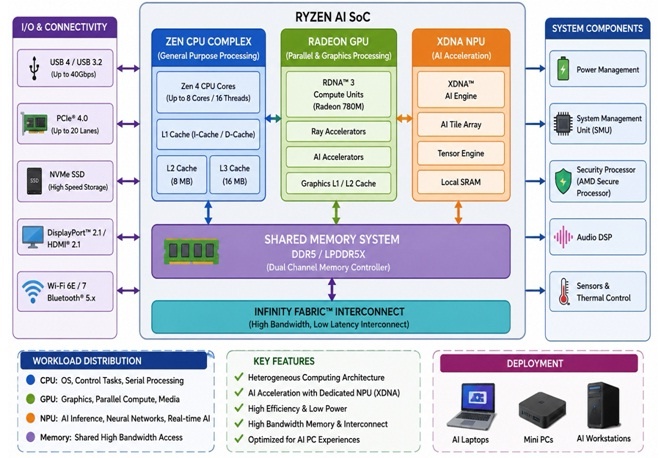

Ryzen AI System Architecture

This system follows a heterogeneous computing architecture, where different processing engines handle workloads based on their strengths.

Major Components

1. Zen CPU Cores

The Zen CPU cores handle:

• Operating system tasks
• Application control logic
• Sequential processing
• Task scheduling
• Data preprocessing

The CPU acts as the control center of the system and coordinates communication between the GPU, NPU, memory, and peripherals.

2. Radeon GPU

The integrated Radeon graphics processor is optimized for:

• Parallel computing
• Matrix operations
• Graphics rendering
• Video processing
• AI workloads requiring high throughput

GPUs are highly efficient at executing thousands of parallel operations simultaneously, making them suitable for graphics and certain AI computations.

3. XDNA Neural Processing Unit (NPU)

The NPU is the core AI accelerator in Ryzen AI. It is specifically designed for:

• Neural network inference
• Tensor processing
• Real-time AI effects
• Low-power AI computation
• Edge AI applications

Unlike CPUs, which are general-purpose processors, the NPU contains hardware optimized for AI operations such as matrix multiplication and convolution.

4. Shared Memory System

Ryzen AI uses a shared DDR5/LPDDR5 memory architecture, allowing the CPU, GPU, and NPU to access system memory efficiently without excessive data copying.

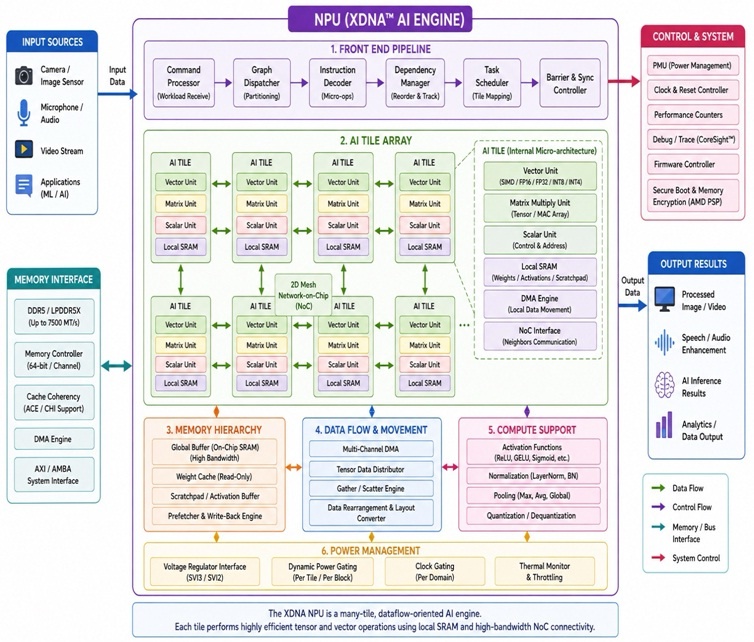

XDNA NPU Architecture

The XDNA architecture is AMD’s dedicated AI accelerator design used inside Ryzen AI processors. The internal NPU block diagram is shown below.

Key Internal Blocks

1. Command Processor

The command processor receives AI workloads from the software stack and schedules them across multiple AI tiles.

2. AI Tile Array

The AI tile array consists of multiple programmable AI tiles. Each tile is a specialized processing unit optimized for neural-network inference.

3. Tensor Arithmetic Engine

This engine performs matrix and tensor operations such as:

• Multiply-accumulate (MAC)
• Convolution
• Activation functions
• Vector operations

These operations are fundamental to machine learning and deep neural networks.

4. Local SRAM

Each AI tile contains local SRAM to store frequently used data and weights. This reduces memory-access latency and lowers power consumption.

5. Network-on-Chip (NoC)

A high-speed interconnect connects all AI tiles, enabling efficient communication and data sharing between tiles.

What is an AI Tile?

An AI Tile is the fundamental building block of the XDNA architecture. It is designed specifically for neural-network inference and contains:

• Scalar processing unit
• Vector processing unit
• Tensor arithmetic engine
• Local SRAM
• DMA controller
• Interconnect logic

AI tiles are optimized for repetitive tensor operations and can process data in parallel, making them far more efficient for AI tasks than traditional CPU cores.

How Does Ryzen AI Work?

Ryzen AI intelligently distributes workloads between the CPU, GPU, and NPU.

Step-by-Step Working

Step 1: Application Request

An AI-enabled application such as Microsoft Copilot, Adobe Photoshop, or Zoom requests AI processing resources.

Step 2: Runtime Analysis

The AI runtime software (ONNX Runtime, Windows ML, DirectML, etc.) analyzes the workload and determines which hardware engine should execute it.

Step 3: Workload Scheduling

The AMD scheduler allocates tasks as follows:

• CPU: control logic, sequential tasks, and data management.
• GPU: large parallel computations and graphics-related AI tasks.
• NPU: neural-network inference and real-time AI effects.

Step 4: AI Processing

The XDNA NPU processes tensors and neural-network layers using its AI tiles and tensor arithmetic engines.

Step 5: Output Generation

The processed results are returned to the application with minimal latency and lower power consumption.

Example: Background Blur in Video Conferencing

• User enables background blur in Microsoft Teams.
• Camera captures the video frame
• CPU preprocesses the image data.
• NPU performs person segmentation and background detection.
• GPU renders the blurred background effect.
• The final processed frame is displayed in real time.

This division of labor allows AI effects to run smoothly without heavily loading the CPU.

Why NPU is More Efficient than CPU or GPU?

The NPU consumes less power because it is designed specifically for AI inference.

Reasons for Higher Efficiency

• Specialized tensor hardware.
• Reduced instruction overhead.
• Local SRAM minimizes memory traffic.
• Optimized data paths for matrix operations.
• Lower clock frequencies with high parallelism.

As a result, AI inference can be executed using a fraction of the power required by CPUs or GPUs.

Ryzen AI vs Traditional AI Processing

Feature	Ryzen AI	Traditional CPU/GPU AI
Dedicated AI Hardware	Yes (NPU)	No
Power Efficiency	High	Moderate to Low
Latency	Low	Higher
Battery Life	Better	Lower
Real-Time AI Effects	Excellent	Limited
Local AI Processing	Efficient	More resource-intensive

Features of Ryzen AI Technology

The important features of Ryzen AI include:

• Dedicated XDNA Neural Processing Unit.
• Low-power AI inference acceleration.
• Real-time image and video enhancement.
• AI-powered noise cancellation and background blur.
• Support for Microsoft Copilot and Windows Studio Effects.
• ONNX Runtime and DirectML optimization.
• Shared CPU-GPU-NPU architecture.
• Improved battery life during AI workloads.
• Support for local generative AI applications.

Advantages of Ryzen AI

• Faster execution of AI workloads.
• Reduced CPU utilization.
• Lower power consumption and better battery life.
• Real-time AI effects with minimal latency.
• Efficient local AI processing without cloud dependence.
• Improved responsiveness in AI-enabled applications.
• Scalable architecture for future AI workloads.

Disadvantages of Ryzen AI

• AI software support is still evolving.
• Not all applications can utilize the NPU effectively.
• Advanced AI model training still requires powerful GPUs.
• Performance depends on software optimization and driver support.

Applications of Ryzen AI Technology

1. AI Content Creation

• Adobe Photoshop AI tools
• Adobe Premiere Pro
• DaVinci Resolve
• Image generation and enhancement

2. Video Conferencing

• Microsoft Teams
• Zoom
• Google Meet
• Windows Studio Effects

3. Productivity and AI Assistants

• Microsoft Copilot
• Document summarization
• Voice transcription
• Smart search and automation

4. Edge AI and Embedded Systems

• AI PCs
• Smart laptops
• Portable AI workstations
• Industrial edge computing devices

5. Healthcare and Security

• Medical image analysis
• Facial recognition
• Biometric authentication
• Intelligent surveillance systems

Future of Ryzen AI

AMD is continuously improving Ryzen AI with newer processors offering:

• Higher TOPS performance.
• More advanced XDNA architectures.
• Support for larger AI models.
• Better integration with operating systems and AI software.
• Enhanced edge AI capabilities.

As AI PCs become mainstream, Ryzen AI is expected to play a major role in enabling efficient on-device AI processing.

Frequently Asked Questions (FAQs)

1. What is Ryzen AI?

Ryzen AI is AMD’s AI acceleration technology that combines CPU, GPU, and a dedicated XDNA-based Neural Processing Unit (NPU) for efficient AI processing.

2. What is an NPU in Ryzen AI?

An NPU (Neural Processing Unit) is specialized hardware designed to accelerate neural-network inference tasks with lower power consumption.

3. What is XDNA architecture?

XDNA is AMD’s dedicated AI accelerator architecture used inside Ryzen AI processors to execute tensor and neural-network operations efficiently.

4. Which processors support Ryzen AI?

Ryzen AI is available in Ryzen 7040 Series, Ryzen 8040 Series, Ryzen AI 300 Series, and newer AMD AI-enabled processors.

5. How does Ryzen AI improve battery life?

Ryzen AI offloads AI tasks to the low-power NPU, reducing the workload on the CPU and GPU and improving overall energy efficiency.

6. Can Ryzen AI run generative AI models locally?

Yes. Ryzen AI processors can execute certain generative AI models locally, reducing cloud dependency and improving privacy.

7. Is Ryzen AI useful for gaming?

Ryzen AI primarily accelerates AI workloads, but it can also support AI-assisted gaming features and future intelligent gaming technologies.

8. What is TOPS in Ryzen AI?

TOPS stands for Trillions of Operations Per Second and is used to measure AI processing performance.

Conclusion

Ryzen AI Technology represents AMD’s move toward dedicated AI computing by integrating an XDNA Neural Processing Unit alongside Zen CPU cores and Radeon graphics. Its heterogeneous architecture allows intelligent workload distribution, enabling faster AI processing, lower power consumption, and improved responsiveness for modern AI applications. Ryzen AI provides an excellent example of how specialized hardware accelerators, tensor processing, memory hierarchy, and heterogeneous computing are shaping the future of AI-enabled computing systems.
