HBM3e Memory in NVIDIA Blackwell Architecture

Modern AI workloads such as Large Language Models (LLMs), generative AI, recommendation systems, and scientific simulations require enormous amounts of memory bandwidth and capacity. While GPU compute power has grown rapidly, memory systems have historically become the primary bottleneck in AI acceleration. To solve this challenge, NVIDIA integrated HBM3e (High Bandwidth Memory 3 Extended) into the Blackwell architecture. The Blackwell B200 GPU combines ultra-fast HBM3e memory with advanced memory controllers, cache hierarchy improvements, and intelligent data movement mechanisms to dramatically improve AI performance.

What is HBM3e Memory?

HBM3e is the latest evolution of High Bandwidth Memory technology designed specifically for:

• AI accelerators
• HPC processors
• Data-center GPUs

Unlike traditional GDDR memory placed around the GPU package, HBM3e stacks memory dies vertically using 3D TSVs (Through-Silicon Vias) and places them extremely close to the GPU die using an advanced silicon interposer.

This architecture provides:

• Massive bandwidth
• Lower latency
• Better power efficiency
• Higher memory density

Blackwell HBM3e Memory Specifications

The Blackwell B200 GPU significantly expands memory capability compared to previous generations.

Feature	Blackwell B200
Memory Type	HBM3e
Memory Capacity	Up to 192 GB
Memory Bandwidth	Up to 8 TB/s
Memory Architecture	Multi-stack HBM
Interconnect	Ultra-wide memory bus

The bandwidth increase is enormous compared to older architectures.

How Does HBM3e Memory Work?

HBM3e memory operates using a vertically stacked memory architecture combined with an ultra-wide parallel interface to deliver extremely high bandwidth with lower power consumption. Unlike traditional memory systems where DRAM chips are placed around the processor, HBM3e places multiple DRAM dies directly beside the GPU using a silicon interposer.

When the GPU processes AI workloads such as matrix multiplication or transformer inference, tensor cores continuously request large amounts of data. The memory controller inside the GPU sends requests through the ultra-wide memory bus to the HBM3e stack. The base die manages communication with the vertically stacked DRAM dies using TSVs (Through-Silicon Vias).

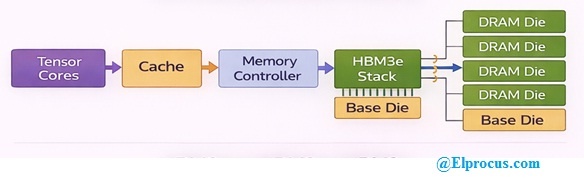

The data flow in HBM3e memory can be summarized as follows:

Tensor Cores → Cache → Memory Controller → HBM3e Stack → TSVs → DRAM Dies

The vertically stacked architecture allows thousands of parallel connections between the GPU and memory subsystem, dramatically increasing bandwidth compared to conventional memory architectures.

Since the memory chips are located very close to the GPU die, the electrical signal travel distance is significantly reduced. This improves:

• Signal integrity
• Latency
• Energy efficiency
• Data transfer speed

HBM3e also uses multiple independent memory channels that can operate simultaneously. This parallelism ensures that AI accelerators receive continuous data streams without bottlenecks.

Why AI Workloads Need Massive Memory Bandwidth?

AI models process extremely large tensors and matrices continuously.

Examples:

• Transformer models
• Attention mechanisms
• Matrix multiplication
• Embedding tables
• Sequence processing

These operations require:

• Huge data movement
• Continuous tensor streaming
• Fast access to parameters

In modern AI systems, billions or trillions of parameters must be transferred rapidly between memory and tensor cores.

The AI Memory Bottleneck Problem

Traditional GPU architectures faced several memory limitations:

Problem	Impact
Limited bandwidth	Tensor cores remain idle
High memory latency	Reduced throughput
Frequent DRAM access	Increased power consumption
Insufficient memory capacity	Large models cannot fit
Data movement overhead	Performance inefficiency

Memory Wall

Even extremely powerful tensor cores cannot operate efficiently if data cannot reach them fast enough.

How HBM3e Solves AI Memory Constraints?

1. Massive Memory Bandwidth

The biggest advantage of HBM3e is bandwidth.

Blackwell delivers:~8 TB/s memory bandwidth

This enables:

• Continuous tensor feeding
• Faster matrix operations
• Reduced compute starvation

Why this Matters?

Tensor cores process massive parallel computations simultaneously. Without enough bandwidth:

• Tensor cores stall
• Compute utilization drops

HBM3e ensures that AI engines remain fully utilized.

2. Larger Memory Capacity

Blackwell supports: Up to 192 GB HBM3e

This is crucial for:

• Trillion-parameter models
• Large context windows
• Multi-modal AI

Benefit

Larger models can remain:

• Entirely in GPU memory
• Without frequent CPU offloading

This dramatically improves:

• Training speed
• Inference latency

3. Reduced Data Movement

Traditional architectures waste energy moving data between:

• DRAM
• Cache
• Compute units

HBM3e reduces this overhead by:

• Placing memory physically close to GPU dies
• Using ultra-wide interfaces
• Increasing parallel memory channels

Result

• Lower latency
• Better efficiency
• Reduced power consumption

4. Better Energy Efficiency

AI data centers consume enormous power.

HBM3e improves:  Performance per watt

Because:

• Shorter electrical paths reduce energy loss
• Lower voltage operations.
• Efficient parallel memory access

This is critical for:

• Hyperscale AI clusters
• Cloud AI infrastructure

5. Higher Parallelism

HBM3e supports:

• Multiple memory stacks
• Extremely wide buses
• Simultaneous parallel accesses

This allows:

• Multiple tensor operations to access memory concurrently
• Better utilization of tensor cores

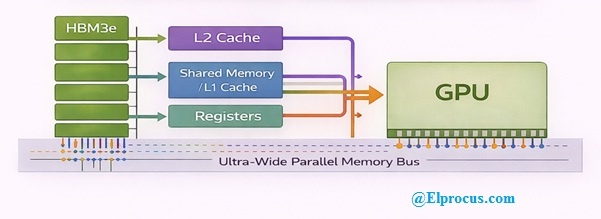

Blackwell Memory Architecture

The Blackwell memory subsystem combines several layers:

HBM3e → L2 Cache → Shared Memory → Registers → Tensor Cores

Each layer reduces latency progressively.

1. HBM3e Global Memory

Stores:

• Model weights
• Training datasets
• Activations
• Attention tensors

Characteristics:

• Highest capacity
• Highest bandwidth
• Larger latency than cache

2. Large L2 Cache

Blackwell includes a very large shared L2 cache.

Purpose:

• Reduce HBM access frequency
• Improve data locality
• Cache frequently reused tensors

Benefit:

• Lower memory traffic
• Reduced latency

3. Shared Memory / L1 Cache

Located inside the Streaming Multiprocessor (SM).

Purpose:

• Fast local data reuse
• Thread cooperation

Used heavily during:

• Matrix tiling
• Transformer execution

4. Register File

Fastest memory in the GPU.

Stores:

• Intermediate computation values
• Temporary tensor fragments

5. Tensor Memory (TMEM)

Blackwell Tensor Memory optimization.

Purpose:

• Efficient tensor staging
• Lower tensor movement overhead

This helps:

• Transformer workloads
• Matrix multiplication pipelines

HBM3e vs HBM3 vs HBM2e

HBM memory technology has evolved rapidly to support increasing AI and HPC demands. Each generation improves bandwidth, density, and efficiency.

Feature	HBM2e	HBM3	HBM3e
Memory Bandwidth	Up to ~3.2 TB/s	Up to ~5 TB/s	Up to ~8 TB/s
Memory Speed	Lower	Higher	Highest
Power Efficiency	Good	Better	Best
AI Optimization	Moderate	High	Extremely High
Stack Density	Moderate	High	Very High
Transformer Workloads	Limited	Good	Excellent
Large Language Models	Moderate	Strong	Optimized
Data Center Scalability	Moderate	High	Very High

HBM3e is specifically optimized for next-generation AI systems requiring extremely high throughput and larger memory capacity.

Role of HBM3e in Transformer Models

Transformer models are memory-intensive because of:

• Attention matrices
• KV cache
• Embedding vectors
• Large parameter sets

HBM3e enables:

• Faster attention computation
• Efficient sequence processing
• Larger context windows

Example: Large Language Models (LLMs)

A trillion-parameter model may require:

• Hundreds of GBs of memory
• Massive memory bandwidth

HBM3e helps by:

• Holding larger portions of the model in GPU memory
• Reducing CPU-GPU transfers
• Feeding tensor cores continuously

This improves:

• Token generation speed
• Training throughput
• Inference efficiency

Why Traditional GDDR Memory is Not Enough for AI?

Traditional GPUs relied heavily on GDDR memory technologies such as GDDR5 and GDDR6. While these memory systems worked well for gaming and graphics rendering, they face serious limitations in AI and HPC environments.

The primary challenge is bandwidth scaling. Modern AI accelerators execute billions of tensor operations simultaneously, requiring enormous amounts of data movement between memory and compute units.

Traditional GDDR memory suffers from several limitations:

GDDR Limitation	Impact on AI
Narrower memory bus	Reduced bandwidth
Longer PCB traces	Higher latency
Increased power consumption	Reduced efficiency
Lower density	Smaller model support
External placement around GPU	Signal integrity issues

As AI models became larger, GPUs started facing the “memory wall,” where compute performance increased faster than memory bandwidth. This caused tensor cores to remain underutilized because data could not arrive fast enough.

HBM3e solves this problem through:

• Ultra-wide memory interfaces
• Vertical memory stacking
• Reduced signal distance
• Massive parallelism
• Lower power operation

This makes HBM3e significantly more suitable for transformer models, LLMs, recommendation engines, and generative AI systems.

HBM3e vs Traditional GDDR Memory

Feature	HBM3e	GDDR
Bandwidth	Extremely high	Moderate
Power Efficiency	Better	Lower
Memory Bus Width	Very wide	Narrower
Physical Distance	Very close to GPU	External
AI Optimization	Excellent	Limited

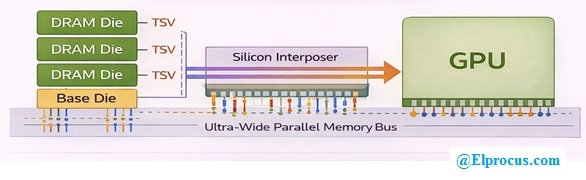

Role of TSVs in HBM3e Memory

TSVs (Through-Silicon Vias) are one of the most important technologies enabling HBM3e memory architecture. A TSV is a tiny vertical electrical connection that passes directly through silicon dies. These vertical interconnects allow multiple DRAM dies to communicate efficiently inside a stacked memory package. Without TSVs, vertically stacked memory would not be practical because signals would have to travel externally between chips.

Base Die

TSVs provide several advantages:

1. Shorter Signal Paths

Data travels vertically through stacked dies instead of across long PCB traces.

2. Higher Bandwidth

Thousands of TSV connections operate in parallel, enabling extremely wide memory interfaces.

3. Reduced Latency

The shorter communication distance lowers access latency.

4. Improved Power Efficiency

Less signal travel distance reduces power loss and heat generation.

5. Compact Packaging

• TSVs enable dense memory integration without increasing board size.
• TSVs are critical for supporting modern AI workloads because they allow massive data movement between memory and tensor cores.

Silicon Interposer

The silicon interposer is another essential component of the HBM3e architecture.

An interposer is a thin silicon layer placed between the GPU die and HBM memory stacks. It contains ultra-fine wiring that connects the GPU to memory using thousands of high-density signal paths.

Traditional PCB routing cannot support the enormous number of parallel connections required by HBM memory. The silicon interposer solves this limitation by enabling:

• Ultra-wide memory buses
• Short signal routing
• High-density interconnects

The interposer acts as a communication bridge between:

• GPU compute dies
• Memory stacks
• Memory controllers

The structure can be visualized as:

HBM Stack ⇄ Silicon Interposer ⇄ GPU

Advantages of Silicon Interposer

1. Massive Bandwidth

Supports thousands of parallel memory connections.

2. Reduced Latency

Signals travel shorter distances.

3. Improved Signal Integrity

Lower noise and interference.

4. Better Power Efficiency

Lower voltage signaling reduces energy consumption.

Enables compact AI accelerator designs.

Silicon interposers are widely used in advanced AI GPUs because conventional packaging methods cannot handle the bandwidth demands of modern tensor processing systems.

HBM3e Packaging Technology

HBM3e memory relies heavily on advanced semiconductor packaging technologies.

Modern AI accelerators use:

• 2.5D packaging
• Chiplet integration
• CoWoS packaging

Unlike traditional chips mounted independently on a PCB, HBM3e integrates memory and GPU dies within a unified package.

2.5D Packaging

HBM3e typically uses 2.5D packaging, where:

• GPU dies
• HBM memory stacks
• Silicon interposer

are all integrated inside one package.

This provides:

• Shorter communication paths
• Higher bandwidth
• Reduced latency

CoWoS Packaging

Advanced AI GPUs commonly use CoWoS (Chip-on-Wafer-on-Substrate) packaging.

This technology:

• Integrates large interposers
• Supports multiple HBM stacks
• Enables very high transistor density

CoWoS is essential for large-scale AI accelerators like Blackwell because conventional packaging technologies cannot support the required bandwidth and power density.

Thermal Challenges in HBM3e Memory

Although HBM3e provides massive performance benefits, vertically stacked memory creates significant thermal challenges.

Since multiple DRAM dies are stacked closely together:

• Heat density increases
• Cooling becomes more difficult
• Thermal hotspots can form

AI workloads worsen this issue because tensor cores continuously access memory at very high bandwidth.

Major Thermal Challenges

1. Heat Accumulation

Stacked dies trap heat internally.

2. Increased Power Density

Higher bandwidth requires more active circuitry.

3. Cooling Complexity

Air cooling alone may not be sufficient.

Thermal Solutions

To overcome these issues, AI accelerators use:

• Advanced heat spreaders
• Vapor chamber cooling
• Liquid cooling systems
• Thermal TSVs
• Optimized package materials

Thermal management is now one of the most important design considerations in AI hardware engineering.

HBM3e Integration in Blackwell Architecture

The Blackwell architecture integrates HBM3e memory deeply into its AI acceleration pipeline.

The memory hierarchy in Blackwell can be summarized as:

HBM3e → L2 Cache → Shared Memory → Registers → Tensor Cores

HBM3e Global Memory

Stores:

• Model weights
• Attention tensors
• Activations
• KV cache

Large L2 Cache

Blackwell includes a large shared L2 cache to reduce frequent HBM access.

Benefits:

• Lower latency
• Improved tensor reuse
• Reduced bandwidth pressure

Shared Memory / L1 Cache

Located inside Streaming Multiprocessors (SMs).

Used for:

• Matrix tiling
• Thread collaboration
• Tensor staging

Register File

Stores temporary intermediate computation values.

Tensor Memory Optimization

Blackwell improves tensor data movement efficiency using optimized tensor memory pathways.

Together, these memory layers ensure that tensor cores remain continuously supplied with data during AI processing.

Blackwell + HBM3e + NVLink

Memory scaling extends beyond a single GPU.

Blackwell combines:

• HBM3e
• NVLink 5.0
• NVSwitch

This enables:

• Multi-GPU shared workloads
• Distributed AI memory scaling
• Faster inter-GPU tensor transfers

Why HBM3e is Critical for the Future of AI?

Future AI models will require:

• Larger context windows
• Higher parameter counts
• Real-time inference
• Multi-modal processing

Without advanced memory systems:

• Compute units would be underutilized
• Power efficiency would collapse

HBM3e provides the memory foundation needed for:

• Exascale AI
• AGI-scale systems
• Data-center AI acceleration

AI Workloads that Benefit from HBM3e

HBM3e is particularly important for modern AI workloads requiring enormous memory throughput.

1. Large Language Models (LLMs)

LLMs require:

• Huge parameter storage
• Massive tensor streaming
• Large KV cache memory

HBM3e enables:

• Faster training
• Faster inference
• Larger context windows

2. Transformer Networks

Attention mechanisms continuously move large matrices between memory and tensor cores.

HBM3e reduces:

• Memory bottlenecks
• Attention latency

3. Recommendation Systems

Large embedding tables require enormous memory bandwidth.

4. Scientific Simulations

HPC workloads involve:

• Large datasets
• Massive floating-point operations

5. Autonomous Vehicles

Real-time AI processing requires:

• Low latency
• High throughput
• Fast sensor fusion

HBM3e provides the bandwidth needed for these data-intensive workloads.

Future of HBM Memory Technology

As AI models continue growing in size and complexity, memory technology will evolve further beyond HBM3e.

Future trends include:

• HBM4 memory
• Higher stack counts
• Faster memory interfaces
• Optical interconnects
• Advanced chiplet architectures

Future AI systems may require:

• Tens of terabytes per second bandwidth
• Multi-package memory pooling
• Shared AI memory fabrics

HBM technology will remain a foundational component of next-generation AI supercomputers and exascale computing platforms.

Key Advantages of HBM3e in Blackwell

• Massive bandwidth (~8 TB/s)
• Large memory capacity (192 GB)
• Reduced latency
• Better power efficiency
• Faster tensor streaming
• Reduced memory bottlenecks
• Improved transformer performance
• Efficient multi-GPU scaling

HBM3e memory is one of the most important technologies enabling the success of the Blackwell architecture. While tensor cores provide immense compute capability, HBM3e ensures those compute engines receive data fast enough to maintain maximum utilization.

By delivering:

• enormous bandwidth,
• higher capacity,
• lower latency,
• and superior energy efficiency,

In summary, the HBM3e effectively overcomes the memory bottlenecks that have historically limited AI acceleration. In the Blackwell architecture, HBM3e is not merely a memory upgrade—it is a foundational technology that enables next-generation AI systems, trillion-parameter models, and hyperscale GPU computing.
