Arm Neoverse V2 Processor : Specifications, Architecture, Working, Differences & Its Applications

ARM Neoverse V-series processors are a group of high-performance cores. These processors are designed for high-performance computing (HPC), cloud infrastructure, and machine learning workloads. This series of processors is available in different types, including V1, V2, & V3, which deliver significant performance enhancements over earlier generations with a wide microarchitecture & advanced features for improved vector performance. In addition, this series can also integrate the newest Armv9 architecture to improve performance, security, and power efficiency. This article elaborates on one of the V series Arm processors, like the Arm Neoverse V2 processor, working & its applications.

What is the Arm Neoverse V2 Processor?

The Arm Neoverse V2 processor is a high-performance CPU core. It is built on the Armv9-A architecture, which provides enhanced power, security features, and performance. This processor is designed for data center, high-performance computing & machine learning workloads. Its key features mainly include improved integer & floating-point performance, an enhanced pipeline, L2 cache up to 2MB for each core, and Armv9 safety enhancements.

How does the Arm Neoverse V2 Processor Work?

The Arm Neoverse V2 processor combines a high-performance microarchitecture including the Armv9-A instruction set. Thus, it delivers strong single-threaded & parallel performance for HPC, machine learning, and cloud workloads. This processor features a wide and large microarchitecture with ASIMD (Advanced SIMD) engine capable of performing both the Advanced SIMD and NEON & the Scalable Vector Extension 2 or SVE2 instructions.

It can process four 128-bit vector operations concurrently by enhancing its performance for data-intensive tasks. In addition, this design can also highlight power efficiency within a robust system-on-chip (SoC) through uses high-speed memory & I/O interfaces to connect accelerators & other components. TIt uses an out-of-order execution model supported by a dispatch unit, issue queues, and a 320-entry reorder buffer (ROB) to manage dependencies and efficiently execute complex workloads. The Arm Neoverse V2 processor can scale up to 72 cores for high-density deployments.

Specifications

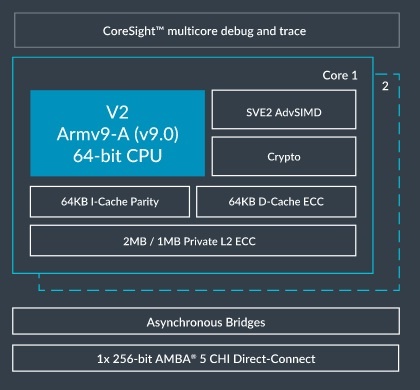

Arm Neoverse V2 Architecture

This is a high-performance CPU core designed for high-performance computing, machine learning, and cloud workloads. It delivers up to double the performance of its predecessor, like the Neoverse V1 processor. This processor is based on the Armv9-A instruction set with a widely enhanced pipeline, a larger L2 cache, and is built for high scalability with up to 256 cores support. It provides better power, security, and performance features like the MTE (Memory Tagging Extension).

Architecture Components

The Arm Neoverse V2 architecture features core components and system-level components, which include execution units, branch prediction, memory subsystem, instruction support, Interconnect, memory management, I/O, interrupts, and Security.

Execution Units

The Arm Neoverse V2 processor features various execution units, used for different operations like a load/store unit with address generation, six integer pipes for single-cycle integer operations, two vector & floating-point (FP) execution schedulers & a dedicated branch execution unit. In addition, it can also handle SVE/SVE2 already cover vector operations. NEON could be mentioned separately, with the possible Cryptographic Extension accelerating AES & SHA functions.

Branch Prediction

The Arm Neoverse V2 processor features a sophisticated branch predictor that comprises an 8-table TAGE predictor & a large 12K-entry BTB (Branch Target Buffer) to improve instruction fetch performance. Thus, it helps hide instruction latency and decrease pipeline flushes by precisely predicting the control flow lane within server, HPC, and cloud workloads. This design improves the flexibility and capacity of the predictor, which allows it to manage longer branch histories & complex patterns more efficiently.

Memory Subsystem

The Arm Neoverse V2 features a private L1 and L2 cache hierarchy for each core, where the L2 cache is configurable in size & the L1 cache is private to the core. In addition, it connects through an AMBA 5 CHI interface to the main memory, which supports DDR5 & LPDDR5 high-bandwidth external memory. This subsystem provides a coherent memory model for handling efficient data between the CPU & other system components, like GPUs, CXL, and PCIe high-speed I/O.

Instruction Support

The Arm Neoverse V2 processor implements the Armv9.0-A instruction set with support for A32/T32, A64, and extensions like SVE2 (Scalable Vector Extensions), the MTE (Memory Tagging Extension), and Scalable Vector AES. In addition, it supports core architectural features like different cryptographic instructions, like SHA1, AES, SM4, and SHA2, and out-of-order execution.

Interconnect

The Arm Neoverse V2 processor features the low-latency, high-bandwidth network-on-chip (NoC) like CMN-700 Coherent Mesh Network. It connects Neoverse V2 cores with other memory & accelerator system components. The CMN-700 mesh network provides a customizable and scalable mesh architecture that allows high performance & density within data center solutions. In addition, it can also include other interconnect elements like the SMMU (System-level Memory Management Unit) to provide a network mainly for accelerators.

Memory Management

The memory management unit or MMU in this processor has a multi-level structure with TLBs (Translation Lookaside Buffers), an MMUTC (MMU Translation Cache), and a prefetcher to speed up translation of virtual-to-physical address. This memory system contains a private and unified L2 cache, which connects to the external memory and L3 cache through the CPU Bridge as well as other interfaces. Thus, this design allows high-performance memory access by supporting several memory operations for each cycle with a store/ load unit capable of three operations for each cycle for certain integer code.

I/O and Interrupts

Arm Neoverse V2 manages I/O through high-speed PCIe Gen5/CXL interfaces by using a sophisticated interrupt system, based on the GICv3 (Arm Generic Interrupt Controller). This controller gets interrupt signals from different sources, like watchdog timers, other peripherals, and the PCIe controller, which directs them to the suitable CPU core. Once an interrupt happens, then the Neoverse V2 processor saves its present state, switches to the latest context, and starts executing an ISR (Interrupt Service Routine) to handle the request of the device before going back to the main program.

Arm Neoverse V2 Processor Software System

The Arm Neoverse V2 processor software system can be built on the Armv9.0-A instruction set architecture. Thus, it features a high-performance and 8-wide out-of-order microarchitecture, which is derived from the Cortex-X3 core. Its key software-relevant components mainly include a huge 12K entry BTB (Branch Target Buffer) for better performance with complex instruction footprints, a 1536-entry micro-op cache, and an 8-table TAGE predictor. In addition, it supports a 128-bit SVE2 (Scalable Vector Extension 2) engine, which allows simultaneous implementation of four SVE2 instructions. It is essential for ML and HPC workloads. It implements Armv9 features like MTE (Memory Tagging Extension) for better safety.

Working

Thus, the Arm Neoverse V2 processor uses an advanced and out-of-order execution pipeline to process instructions very efficiently. Its operation can be divided into numerous key stages like instruction fetching, decoding, Out-of-order preparation, instruction execution, memory operations, and results handling.

• The process in the Instruction fetching starts with the Neoverse V2 fetching instructions from its L1 instruction cache.
• After that, the fetched instructions can be sent to the decode unit.
• The micro-ops are set for out-of-order implementation, a method that allows the processor to perform instructions in the most efficient order instead of the new program order.
• The execution unit can perform the actual operations dictated by the instructions. This processor can process a large number of micro-ops at once to its several execution ports.
• A dedicated memory subsystem manages all data movement.
• Once an instruction is executed, then the results can be handled & committed to the system within the right order.

Arm Neoverse V1 Vs Arm Neoverse V2 Processors

The difference between Arm Neoverse V1 Vs Arm Neoverse V2 Processors includes the following.

Advantages

The advantages of the Arm Neoverse V2 processor include the following.

• It provides high performance for cloud, ML, and HPC workloads, better power efficiency, and higher safety features.
• This processor provides double the performance of the earlier V1 core, with the Armv9 architecture’s safety and performance improvements like the MTE (Memory Tagging Extension).
• The V2 processor features a better pipeline & up to 2MB of L2 cache for each core, which makes a new benchmark for higher-performance computing.
• It is designed to provide leadership-level performance in cloud computing, machine learning, and HPC.
• It has a low operating cost, which reduces the carbon footprint of data centers.
• This processor improves safety against memory-safety problems.
• It provides a scalable design appropriate for a wide range of infrastructure and cloud applications.

Disadvantages

The disadvantages of the Arm Neoverse V2 processor include the following.

• Its clock speed is lower compared to some competing server cores in AMD’s Zen 4 & Zen 4c, which can affect performance within certain applications.
• This processor needs more memory access from the DRAM, which improves processing delay & reduces throughput.
• Memory accessing is slower in a multi-socket system.
• Its performance heavily depends on the programmer’s ability to optimize code properly for the Arm architecture.
• The high-performance V2 core with its simpler instruction set and ARM processors’ characteristics may be less effective for some heavy workloads.

Applications

The applications of the Arm Neoverse V2 processor include the following.

• Arm Neoverse V2 processor provides the required flexible and scalable computing resources for cloud services.
• It is applicable in Kubernetes Engine, Google Cloud’s Compute Engine, Dataflow, Dataproc & Cloud Batch.
• Used in the NVIDIA Grace CPU systems to speed up large-scale HPC problems frequently connected with GPUs for HPU tasks.
• It handles ML workloads with enhancements in performance that can speed up tasks significantly, like inference for the DLRMv2 model.
• This processor is used in next-generation networking and telco infrastructure, including 5G and SmartNICs applications.
• It is used in a data center to provide energy efficiency and significant performance improvements.
• This processor powers applications like web hosting, AI, and database through large-scale infrastructure.
• It is used in servers for web servers, databases, cloud services, microservices, general-purpose workloads, and many more.

Thus, this is an overview of the Arm Neoverse V2 Processor, working and its applications.

The Arm Neoverse V2 is a powerful Armv9-based CPU architecture designed for modern cloud computing, AI workloads, HPC tasks, and 5G infrastructure. Its strengths lie in its advanced SVE2 vector engine, scalable multi-die design, improved branch prediction, and excellent power efficiency. It delivers a significant performance uplift over Neoverse V1 and positions Arm as a strong competitor in the data-center CPU market traditionally dominated by x86 processors.

As cloud providers, telecom vendors, and AI platforms continue shifting toward energy-efficient and scalable architectures, the Neoverse V2 remains a highly relevant and competitive CPU platform in 2025 and beyond.
