How Does EUV Lithography Vs DUV Lithography?

The semiconductor industry continuously works toward manufacturing smaller, fa ster, and more energy-efficient integrated circuits. One of the technologies at the center of this progress is semiconductor lithography, a process used to transfer extremely precise circuit patterns onto silicon wafers. Two of the most important lithography technologies used in advanced semiconductor manufacturing are Deep Ultraviolet (DUV) lithography and Extreme Ultraviolet (EUV) lithography. Although both technologies use electromagnetic radiation to pattern semiconductor wafers, they differ significantly in wavelength, optical systems, light sources, resolution, process complexity, patterning strategy, and applications.

DUV lithography typically uses wavelengths such as 248 nm and 193 nm, while EUV lithography operates at approximately 13.5 nm. The much shorter wavelength of EUV enables semiconductor manufacturers to print very small features with fewer patterning steps in suitable process layers. However, EUV is not simply a more powerful version of DUV. It requires an entirely different optical architecture, vacuum environment, specialized light generation, reflective masks, and highly sensitive process control. This article explains how EUV lithography differs from DUV lithography (EUV vs DUV), how both technologies work, their advantages and limitations, and why they are important to modern semiconductor manufacturing.

What is Semiconductor Lithography?

Semiconductor lithography is a pattern-transfer process used during integrated circuit fabrication. A typical lithography process involves coating a silicon wafer with a light-sensitive material called photoresist. A circuit pattern contained on a mask or reticle, is then transferred to the photoresist using radiation. After exposure, the photoresist is developed to create a patterned layer. This pattern can subsequently be used during processes such as etching, deposition, or ion implantation.
A simplified process is:

Silicon Wafer → Photoresist Coating → Mask/Reticle → Exposure → Development → Pattern Transfer → Etching

Lithography is repeated many times to create the different layers of an integrated circuit.  The smaller the features that must be fabricated, the more demanding the lithography process becomes. Please refer to our in-depth article on Semiconductor Lithography.

What is DUV Lithography?

Deep Ultraviolet (DUV) lithography is a form of optical lithography that uses relatively short-wavelength ultraviolet radiation to pattern semiconductor wafers.

Modern semiconductor manufacturing has used several DUV wavelengths, including:

• 248 nm
• 193 nm

The 193 nm wavelength is particularly important for advanced DUV lithography. DUV lithography uses sophisticated optical systems to project the pattern from a reticle onto the wafer. Depending on the system, the projection optics can reduce the reticle pattern before printing it onto the wafer.

A simplified DUV lithography system consists of:

DUV Light Source → Illumination Optics → Reticle → Projection Optics → Wafer

The wafer is coated with photoresist, and the optical system projects the desired pattern onto it.

How Does DUV Lithography Work?

Step 1: Wafer Preparation

A silicon wafer is cleaned and prepared before photoresist coating.

The surface must be extremely clean because particles or contamination can produce defects.

Step 2: Photoresist Coating

A thin layer of photoresist is deposited onto the wafer, commonly using spin coating.

The photoresist is sensitive to the DUV radiation used by the lithography system.

Step 3: Reticle Alignment

The wafer is positioned relative to the reticle.

Accurate alignment is essential because semiconductor devices consist of many layers that must be precisely registered with one another.

Step 4: DUV Exposure

The DUV light source illuminates the reticle.

The pattern is transferred through the optical projection system onto the photoresist-coated wafer.

Step 5: Development

The exposed photoresist undergoes a chemical development process.

Depending on the type of resist, the exposed or unexposed regions are selectively removed.

Step 6: Pattern Transfer

The remaining photoresist pattern acts as a mask for subsequent semiconductor processes such as etching.

After pattern transfer, the photoresist is removed, and the wafer proceeds to the next fabrication stage.

What is EUV Lithography?

Extreme Ultraviolet (EUV) lithography is an advanced semiconductor patterning technology that uses radiation with a wavelength of approximately 13.5 nm. This wavelength is dramatically shorter than the 193 nm radiation used in advanced DUV lithography. The shorter wavelength provides a major advantage for printing very small semiconductor features.

However, EUV lithography requires a fundamentally different system architecture because EUV radiation behaves very differently from conventional ultraviolet light. Instead of transmitting EUV light through conventional lenses, EUV systems use reflective optics. The EUV exposure process is also performed under vacuum because EUV radiation is strongly absorbed by air.

How Does EUV Lithography Work?

1. Generating EUV Radiation

• One of the most distinctive parts of an EUV lithography system is its light source.
• In commercial EUV systems, high-power laser pulses are directed at tiny droplets of tin.
• The laser interaction creates a hot plasma that emits EUV radiation around the desired 13.5 nm wavelength.
• The generated radiation is collected and directed toward the optical system.

2. EUV Collection

• Specialized reflective optics collect the EUV radiation and guide it through the exposure system.
• The optics must have extremely precise surfaces because even very small imperfections can affect the printed pattern.

3. Reflective Reticle

• Unlike many conventional optical lithography systems, EUV lithography uses a reflective reticle.
• The circuit pattern is represented on the reticle by structures that reflect EUV radiation differently.
• The EUV light reflects from the reticle and continues through the projection optics.

4. Reflective Projection Optics

• EUV systems use a series of highly precise multilayer mirrors rather than conventional transmissive lenses.
• These mirrors guide and focus the EUV radiation onto the wafer.

5. Wafer Exposure

• The EUV pattern is projected onto the photoresist-coated wafer.
• The photoresist responds to the EUV radiation, and subsequent development creates the desired pattern.

6. Pattern Transfer

As with DUV lithography, the patterned resist can be used to transfer the pattern into underlying layers through etching and other processes.

EUV vs DUV: The Fundamental Difference

The most obvious difference between EUV and DUV lithography is wavelength.

Parameter	DUV Lithography	EUV Lithography
Full form	Deep Ultraviolet	Extreme Ultraviolet
Common advanced wavelength	193 nm	13.5 nm
Radiation type	Ultraviolet	Extreme ultraviolet
Optical system	Primarily refractive projection optics, with system-specific designs	Reflective optics
Reticle	Transmissive in conventional optical systems	Reflective
Exposure environment	Air or controlled gas environment depending on system	High vacuum
Light source	Excimer laser-based systems are widely used	Laser-produced plasma using tin droplets
Patterning strategy	Often uses multiple patterning for very small features	Can reduce multiple-patterning requirements for suitable layers
System complexity	Very high	Extremely high
Typical role	Mature and advanced semiconductor nodes	Advanced leading-edge process layers

The shorter EUV wavelength is a major reason why EUV can print smaller features more efficiently than 193 nm DUV for appropriate layers.

Why Does Wavelength Matter?

The ability of an optical lithography system to resolve small features is related to the wavelength of the radiation and the numerical aperture of the optical system.

A commonly used relationship is the Rayleigh resolution equation:

R = k₁ × λ / NA

where:

R = minimum resolvable feature size
k₁ = process-dependent factor
λ = exposure wavelength
NA = numerical aperture

This relationship shows that reducing the wavelength can improve resolution.

For example:

193 nm DUV → 13.5 nm EUV

The wavelength of EUV is therefore much shorter than that of 193 nm DUV.

However, semiconductor patterning does not depend on wavelength alone. Resolution is also influenced by numerical aperture, photoresist behavior, illumination conditions, mask effects, process control, computational lithography, and other factors.

Why Can DUV Still Manufacture Very Small Features?

If EUV has such a significant wavelength advantage, why is DUV still widely used?

• The answer is advanced patterning techniques.
• One important technique is multiple patterning.

Instead of attempting to print the complete dense pattern in one exposure, the pattern can be divided into multiple exposures and process steps.

For example, a dense pattern may be separated into different groups, with each group patterned independently.

Techniques such as:

• Double patterning
• Self-aligned double patterning
• Multiple patterning

have allowed DUV lithography to extend far beyond what a simple single-exposure resolution calculation might suggest.

The disadvantage is increased process complexity.

Multiple patterning can require:

• Additional masks
• Additional lithography exposures
• More etching steps
• More deposition steps
• More process control
• Additional manufacturing time

EUV can reduce the number of patterning steps required for suitable advanced layers.

EUV Does Not Simply Replace DUV

It is incorrect to think of EUV as a technology that completely replaces DUV. In modern semiconductor manufacturing, DUV and EUV work together.

• EUV is particularly valuable for certain critical layers where very small and dense patterns are required.
• DUV remains useful for many other layers because it can provide excellent productivity and cost-effectiveness.

Advanced semiconductor fabs may therefore use a combination of:

EUV + DUV + multiple-patterning techniques + computational lithography

The exact combination depends on the process technology and the specific layer being fabricated.

Optical Systems: DUV vs EUV

One of the most significant engineering differences between the two technologies is their optical system.

DUV Optics

• DUV lithography can use sophisticated lenses made from materials that transmit the selected ultraviolet wavelengths.
• The optical system focuses and reduces the reticle image before projecting it onto the wafer.
• The design and manufacturing tolerances of these lenses are extremely demanding.

EUV Optics

• EUV radiation is absorbed strongly by many conventional optical materials.
• As a result, EUV systems cannot use ordinary transmissive lenses to guide the radiation.
• Instead, they use multilayer reflective mirrors.
• These mirrors are engineered with extremely precise multilayer coatings that provide high reflectivity at the EUV wavelength.
• Because EUV light encounters multiple reflective surfaces, maintaining sufficient optical throughput is a major engineering challenge.

Why Does EUV Require a Vacuum?

A major difference between EUV and DUV lithography is the exposure environment. At 13.5 nm, EUV radiation is strongly absorbed by gases, including air. If EUV radiation traveled through a normal atmospheric path, much of the energy would be absorbed before reaching the wafer.

Therefore, the EUV optical path is maintained under high-vacuum conditions.

This creates additional engineering requirements for:

• Vacuum chambers
• Pumps
• Contamination control
• Materials selection
• Thermal management
• Precision mechanical systems

The vacuum environment is one reason EUV lithography systems are significantly more complex than conventional optical lithography systems.

EUV Light Source vs DUV Light Source

The light source is another major difference.

DUV Light Sources

• Advanced DUV lithography systems commonly use excimer lasers.
• Different laser technologies are associated with different wavelengths. For example, 193 nm lithography uses argon fluoride excimer laser technology.

EUV Light Sources

• Commercial EUV systems use a laser-produced plasma (LPP) source.
• Tiny tin droplets are introduced into the source chamber. High-power laser pulses interact with the droplets and generate plasma.
• The plasma emits EUV radiation.
• The process must operate at very high repetition rates and power levels to provide sufficient EUV photons for high-volume semiconductor manufacturing.
• This is one of the most technically demanding parts of an EUV system.

EUV and DUV Mask Technology

The masks used by EUV and DUV systems are also fundamentally different.

DUV Mask

• Conventional optical lithography can use a transmissive mask or reticle.
• Light passes through selected regions of the reticle and is projected onto the wafer.

EUV Reticle

• EUV lithography uses a reflective reticle.
• The reticle contains a multilayer reflective structure and patterned absorber regions.
• EUV radiation reflects from the appropriate areas and is then projected toward the wafer.
• Because EUV masks operate using reflection, defects in the multilayer structure can be particularly challenging.

Photoresist Challenges

EUV lithography also creates demanding requirements for photoresists.</p>

A photoresist must simultaneously p

rovide:

• High sensitivity
• High resolution
• Low line-edge roughness
• Adequate pattern fidelity
• Good etch resistance

There is an important trade-off among these properties.

Increasing sensitivity can help reduce the exposure dose required, potentially improving throughput. However, the resist must still produce accurate and sufficiently smooth nanoscale features.

This has led to extensive research into chemically amplified resists, metal-containing resists, and other advanced resist technologies.

What is High-NA EUV?

EUV lithography continues to evolve.

One important development is High Numerical Aperture (High-NA) EUV lithography.

Increasing numerical aperture improves the optical resolution according to the Rayleigh relationship.

Conventional EUV systems use a numerical aperture around 0.33, while High-NA EUV systems increase the numerical aperture to approximately 0.55.

Higher numerical aperture can enable smaller printed features and improved patterning capability.

However, High-NA EUV also introduces new challenges involving:

• Optics
• Depth of focus
• Mask technology
• Pattern distortion
• Process control
• Computational lithography
• System complexity

Therefore, the evolution from conventional EUV to High-NA EUV is not simply a matter of increasing optical power.

Advantages of DUV Lithography

DUV remains an essential semiconductor manufacturing technology because of several advantages:

Mature Technology

DUV has been developed and optimized over decades and has a large manufacturing ecosystem.

High Throughput

Modern DUV systems can process wafers at high production rates.

Wide Application Range

DUV is used for many semiconductor layers and process technologies.

Established Materials and Processes

Photoresists, masks, optics, metrology, and process-control technologies for DUV are highly developed.

Cost Efficiency for Many Layers

Using EUV for every layer would not be economically or technically necessary. DUV can efficiently handle many less-critical layers.

Advantages of EUV Lithography

Shorter Wavelength

The 13.5 nm wavelength provides a major advantage for printing very small patterns.

Reduced Multiple Patterning

For suitable critical layers, EUV can reduce the number of patterning steps compared with advanced DUV approaches.

Simplified Process Flow

Fewer patterning steps can reduce the number of process operations required for certain layers.

Advanced Semiconductor Manufacturing

EUV enables patterning strategies required for leading-edge semiconductor process technologies.

Future Scalability

EUV and High-NA EUV provide a pathway for continued scaling of semiconductor features.

Limitations of DUV Lithography

The major limitations include:

• Longer wavelength compared with EUV
• Increasing dependence on multiple patterning for very small features
• Additional process steps
• Increased mask requirements
• More complex overlay control
• Higher cumulative process cost for extremely dense patterns
• These limitations become increasingly significant as semiconductor dimensions shrink.

Limitations of EUV Lithography

EUV also has significant challenges.

Extremely High Equipment Cost

EUV systems require highly specialized components and infrastructure.

Complex Light Source

Generating sufficient EUV radiation at high power and with high reliability is technically difficult.

Vacuum Requirement

The optical path must operate under vacuum.

Reflective Optics

The system requires extremely precise multilayer mirrors.

Mask Defects

EUV reticle defects can be difficult to detect, characterize, and manage.

Photoresist Challenges

Maintaining sensitivity, resolution, and low roughness remains a major research area.

Contamination

Particles and contamination can significantly affect system performance and wafer yield.

Where Are DUV and EUV Used?

These are used across semiconductor manufacturing, but their roles differ.

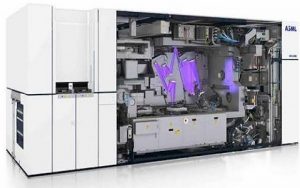

DUV Lithography

DUV is widely used for:

• Mature semiconductor nodes
• Analog ICs
• Power electronics
• Microcontrollers
• Memory
• Communication chips
• Many non-critical layers of advanced processors
• Automotive semiconductor devices

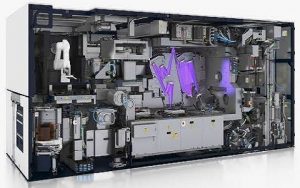

EUV Lithography

EUV is primarily associated with advanced semiconductor manufacturing where extremely small critical dimensions and dense patterns are required.

Applications include manufacturing advanced:

• CPUs
• GPUs
• AI accelerators
• Mobile processors
• High-performance computing chips
• Advanced memory-related structures
• The specific use of EUV depends on the semiconductor process and the layers being patterned.

What Role Does ASML Play in EUV and DUV Lithography?

ASML, headquartered in the Netherlands, is a major supplier of semiconductor lithography equipment.

The company produces both DUV and EUV lithography systems.

Its EUV technology combines multiple highly specialized engineering disciplines, including:

• High-power laser systems
• Tin-droplet plasma generation
• Precision optics
• Vacuum technology
• Wafer positioning
• Reticle handling
• Metrology
• Computational control systems

The importance of this technology is also reflected in the semiconductor cooperation between Tata Electronics and ASML. The partnership announced in 2026 is intended to support Tata Electronics’ planned semiconductor fabrication facility in Dholera, Gujarat, including lithography equipment and related semiconductor manufacturing capabilities.

This illustrates how lithography equipment is becoming an important part of India’s effort to establish a domestic semiconductor manufacturing ecosystem.

EUV vs DUV Lithography: Which is Better?

There is no simple answer that EUV is always “better” than DUV. The two technologies serve different manufacturing requirements.

• EUV is advantageous when extremely small and dense patterns must be produced efficiently.
• DUV remains highly effective for many semiconductor layers and manufacturing processes.

In practice, an advanced semiconductor fab may use both technologies.

The choice depends on:

• Required feature size
• Layer criticality
• Process technology
• Throughput
• Cost
• Overlay requirements
• Pattern density
• Mask complexity
• Process integration

Therefore, EUV should be viewed as an advanced addition to semiconductor lithography rather than a complete replacement for DUV.

Future of EUV and DUV Lithography

Semiconductor scaling continues to create new challenges for lithography. Future developments are expected in areas such as:

• High-NA EUV
• Advanced EUV photoresists
• Computational lithography
• Improved overlay control
• Better mask inspection
• Advanced metrology
• More efficient light sources
• Improved wafer-stage accuracy
• New patterning techniques

At the same time, DUV will remain important because semiconductor manufacturing involves many different layers, not all of which require EUV.

The future of chip fabrication is therefore likely to involve a combination of DUV, EUV, High-NA EUV, multiple patterning, computational lithography, and advanced process control.

Conclusion

The key difference between EUV and DUV lithography is the radiation wavelength and the resulting architecture of the lithography system.

DUV lithography commonly uses wavelengths such as 193 nm, while EUV lithography operates at approximately 13.5 nm. The much shorter wavelength of EUV enables advanced patterning with fewer multiple-patterning steps for suitable critical layers.

However, EUV requires a fundamentally different engineering approach. It uses a laser-produced plasma light source, reflective multilayer optics, reflective reticles, and a vacuum environment. DUV, in contrast, uses established ultraviolet laser sources and sophisticated optical projection systems.

Both technologies remain essential. DUV provides mature, flexible, and highly productive patterning for a wide range of semiconductor applications, while EUV enables the industry to continue scaling the most demanding layers of advanced integrated circuits.

As semiconductor devices become increasingly dense and complex, the evolution of DUV, EUV, and High-NA EUV lithography will remain central to the development of next-generation processors, AI accelerators, memory devices, communication chips, and other advanced electronic systems.
