AMD Ryzen 5 7500X3D : Specifications, Architecture, Working, Differences & Its Applications

AMD launched the Ryzen 5 7500X3D on November 12, 2025. This processor brings 3D V-Cache technology to the gaming market at a lower price. It expands AMD’s Ryzen X3D lineup by offering 3D V-Cache technology in a six-core desktop processor aimed at budget-conscious gamers. It is a budget-friendly option for normal gamers which provide high cache capacity while maintaining a 65W TDP. AMD launched the Ryzen 5 7500X3D on November 12, 2025. Availability and purchasing options vary by region and retailer as an economical AM5 gaming choice, with tray units and boxed alternatives appearing across regional and international tech markets. In this article, we provide an overview of the AMD Ryzen 5 7500X3D, working and its applications.

What is the AMD Ryzen 5 7500X3D Processor?

The AMD Ryzen 5 7500X3D is a desktop processor part of the Ryzen 5 lineup. It is based on the Zen 4 (Raphael) architecture through Socket AM5 on a 5 nm production node. This processor features integred AMD radeon graphics, 96 MB of L3 cache, operates at a 4 GHz base clock by default, and boosts up to 4.5 GHz based on the workload. The processor has limited conventional multiplier-overclocking flexibility, but supports features such as Precision Boost Overdrive and Curve Optimizer.

The Ryzen 5 7500X3D processor consumes 65 Watts of typical power for a current PC. This processor can support DDR5 memory through a dual-channel interface. AMD lists DDR5-5200 for supported two-DIMM configurations and DDR5-3600 for four-DIMM configurations. Higher speeds may be achievable through memory tuning.

In addition, ECC memory is supported when the motherboard provides the necessary ECC functionality. It uses a PCI Express Gen 5 connection for communication in the system with other components. Hardware virtualization is available on this processor that greatly enhances virtual machine performance. Programs can run on this processor with Advanced Vector Extensions, enhancing performance for calculation-heavy applications.

Specifications

The specifications of the AMD Ryzen 5 7500X3D processor include the following.

• This processor is built on Zen 4 microarchitecture.
• It features 6 CPU Cores and 12 Threads.
• Its base clock is 4.0 GHz.
• The maximum boost clock is up to 4.5 GHz.
• Its default TDP (Thermal Design Power) is 65W
• It uses the AM5 socket.
• It uses the TSMC 5nm FinFET process node.
• Its total cache is 102.384 MB (L1 Cache is 384 KB, L2 Cache is 6 MB, and L3 Cache is 96 MB).
• Supported chipsets include A620, B650E, B650, B840, B850, X670E, X670, X870E, and X870.
• It supports DDR5 system memory.
• It is integrated with AMD Radeon Graphics.
• The graphics frequency is 2200 MHz.
• It supports PCIe 5.0 connectivity.
• It supports Precision Boost Overdrive, AMD EXPO memory tuning, and Curve Optimizer.

How does the AMD Ryzen 5 7500X3D Processor Work?

AMD Ryzen 5 7500X3D processor works with a vertically stacked, massive 96 MB of L3 cache that decreases data waiting time and improves gaming frame rates. The processor has a maximum boost clock of 4.5 GHz and a default TDP of 65 W, balancing clock speed and thermal design requirements.

AMD Ryzen 5 7500X3D Architecture

The AMD Ryzen 5 7500X3D processor is built on the Zen 4 microarchitecture using a 6nm process for the I/O die and TSMC’s 5nm process for the CPU compute die. This architecture integrates AMD’s 3D V-Cache technology for affordable gaming.

Architecture Components

The main components of the Ryzen 5 7500X3D include its CPU cores, I/O die, cache, memory controller, socket interface, PCIe connectivity, and integrated graphics.

Cores & Threads

The AMD Ryzen 5 7500X3D processor features 6 physical cores & 12 threads powered by the Zen 4 architecture. It works alongside a massive 96MB of 3D V-Cache to provide very efficient and high-value gaming performance.

Its six physical Zen 4 architecture cores are designed for the AM5 socket. In addition, it supports AMD Simultaneous Multithreading by allowing every physical core to process two instruction streams simultaneously for 12 threads total.

I/O Die

The Input/Output die (I/O die) in the AMD Ryzen 5 7500X3D processor is built on a TSMC 6nm FinFET process. This processor uses a multi-die package including two total dies: one 5nm CPU compute die and one 6nm I/O die. This separate physical chip handles communication between the CPU cores and the rest of the computer system of the processor.

3D V-Cache Technology

The AMD Ryzen 5 7500X3D processor uses AMD 3D V-Cache Technology, which is an advanced packaging innovation. It vertically stacks 64MB of an additional Level 3 cache layer directly beneath or onto the compute die of the processor. This massively expands local memory capacity without enhancing the physical footprint. It delivers a massive 96MB L3 cache pool for high-efficiency gaming.

Clock

The AMD Ryzen 5 7500X3D processor features a 4.0 GHz base clock speed, and the boost clock speed is up to 4.5 GHz. It balances lower clock frequencies with 96 MB of massive L3 cache stack to enhance gaming performance.

Memory & Cache

The processor supports dual-channel DDR5 memory, with official speeds depending on the DIMM configuration.

The AMD Ryzen 5 7500X3D processor features 102.388 MB of total cache (384 KB L1, 6 MB L2, & 96 MB L3 cache). The L3 cache is stacked vertically through AMD 3D V-Cache technology to significantly decrease memory latency and enhance gaming frame rates. The large L3 cache can reduce the need to access system memory, improving performance in cache-sensitive workloads.

TDP

The default TDP (Thermal Design Power) of the AMD Ryzen 5 7500X3D processor is 65W. It indicates the maximum heat a cooling system should dissipate in regular operation. The 65W Thermal Design Power ensures the processor runs efficiently and cool. So it does not need an oversized, heavy dual-tower or liquid cooler, handled simply with basic stock cooling.

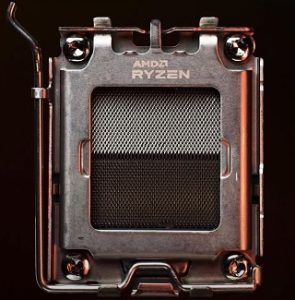

Socket AM5

The AMD Ryzen 5 7500X3D uses the Socket AM5 (LGA 1718) that works as the physical and electrical foundation for the latest Ryzen processors. Land Grid Array design moves the pins to the motherboard socket from the processor. This design places the socket pins on the motherboard, although care is still required during installation.

PCI Express

The AMD Ryzen 5 7500X3D processor supports PCI Express 5.0 through its Zen 4 architecture & AM5 platform. It is a high-speed serial computer expansion bus standard, used to connect internal hardware components to a computer motherboard.

Integrated Graphics

The AMD Ryzen 5 7500X3D processor features basic integrated AMD Radeon Graphics, including 2 graphics cores and 2200 MHz of maximum frequency. It is designed mainly for basic display outputs, office tasks, light media playback, and system troubleshooting instead of dedicated modern gaming. Thus, it provides a standard video output for your monitor and allows you to turn on the PC, set up the BIOS, and install an OS (operating system) without requiring a dedicated graphics card.

Software System

• This processor needs modern 64-bit operating systems & specific driver packages to handle its Zen 4 architecture & 3D V-Cache technology.
• It completely supports 64-bit editions of Windows 10 and Windows 11.
• It is supported through enterprise and community distributions like RHEL x86 64-Bit & Ubuntu x86-64.
• It needs platform drivers for AM5 motherboards to properly handle power management & core scheduling.

Ryzen 5 7500X3D vs Ryzen 5 7600X3D vs Ryzen 7 7800X3D

Specification	Ryzen 5 7500X3D	Ryzen 5 7600X3D	Ryzen 7 7800X3D
Architecture	Zen 4	Zen 4	Zen 4
CPU cores	6	6	8
Threads	12	12	16
Base clock	4.0 GHz	4.1 GHz	4.2 GHz
Maximum boost clock	Up to 4.5 GHz	Up to 4.7 GHz	Up to 5.0 GHz
Total L3 cache	96 MB	96 MB	96 MB
Default TDP	65 W	65 W	120
Socket	AM5	AM5	AM5
Best for	Value-focused gaming	Gaming with a higher boost clock	Gaming with eight CPU cores

AMD Ryzen 5 7500X3D gaming performance

The AMD Ryzen 5 7500X3D is a six-core, 12-thread desktop processor built on AMD’s Zen 4 architecture. Its 96 MB of L3 cache, including 64 MB of additional 3D V-Cache, is designed to improve performance in games that benefit from keeping frequently accessed data close to the CPU cores.

The processor can be a suitable choice for gaming systems that prioritize high frame rates, especially at 1080p, where CPU performance can have a greater influence on frame rates when paired with a sufficiently powerful graphics card. Performance at 1440p and higher resolutions depends more heavily on the graphics card in many games, although the exact balance varies by title and settings.

The Ryzen 5 7500X3D is not guaranteed to outperform every conventional Ryzen processor. Games that depend more on clock speed, additional cores, or GPU performance may show different results.

For a meaningful performance assessment, compare the Ryzen 5 7500X3D with the Ryzen 5 7600X3D, Ryzen 5 7600, Ryzen 5 9600X, and Ryzen 7 7800X3D under the same test conditions.

Recommended benchmark metrics include:

Independent testing of the Ryzen 5 7500X3D and competing processors provides a useful starting point, but your article should cite the original benchmark source and explain its test configuration.

Is the AMD Ryzen 5 7500X3D good for a budget gaming PC?

The Ryzen 5 7500X3D may be a good option for a budget-conscious gaming PC, particularly for buyers who want to use the AM5 platform and benefit from AMD’s 3D V-Cache technology.

Its six cores and 12 threads are suitable for many modern games, everyday applications, and typicalmultitasking workloads. The processor also supports DDR5 memory and PCIe 5.0 connectivity, giving compatible systems access to modern platform features.

However, the processor’s value depends on the complete cost of the system. Buyers should account for the motherboard, DDR5 memory, CPU cooler, graphics card, storage, and power supply rather than comparing CPU prices alone.

Before choosing the Ryzen 5 7500X3D, compare its total platform cost with alternatives such as the Ryzen 5 7600, Ryzen 5 7600X3D, and Ryzen 5 9600X. A less expensive non-X3D processor may offer better value in some games and productivity applications.

AMD Ryzen 5 7500X3D Motherboard Compatibility

The Ryzen 5 7500X3D uses AMD’s Socket AM5 and supports compatible motherboards based on chipsets including A620, B650, B650E, B840, B850, X670, X670E, X870, and X870E.

However, chipset compatibility alone does not guarantee that a particular motherboard will support the processor out of the box. BIOS versions and manufacturer support lists should be checked before installation.

Before purchasing a motherboard, confirm the following:

AMD specifies that the processor’s thermal solution is not included. The manufacturer recommends liquid cooling for optimal performance, so the cost of an appropriate cooler should be included in the system budget.

Cooling, Power Consumption, and Temperature

The AMD Ryzen 5 7500X3D has a default TDP of 65 W and a maximum operating temperature (Tjmax) of 89°C. These figures describe different aspects of the processor: TDP is a thermal design rating, whereas Tjmax is the specified maximum operating temperature.

Actual power consumption and temperatures depend on workload, cooler design, case airflow, ambient temperature, and motherboard settings. A 65 W TDP should not be interpreted as a guarantee that the processor will never exceed 65 W of package power.

AMD lists no included thermal solution and recommends liquid cooling for optimal performance. Buyers should therefore select a compatible cooler rather than assuming that a stock cooler will be supplied.

For a useful thermal review, report the cooler model, ambient temperature, workload, and measured CPU temperature. These details make comparisons more meaningful and help readers understand the conditions under which the results were obtained.

Who should buy the AMD Ryzen 5 7500X3D?

The Ryzen 5 7500X3D is worth considering if its price makes it a competitive entry point into AMD’s AM5 gaming platform. Its six cores, 12 threads, and 96 MB of L3 cache make it relevant to gamers who want a processor optimized for games that benefit from a large cache.

It is less compelling when a conventional Ryzen 5 processor offers comparable gaming performance at a substantially lower price, or when a higher-core-count CPU provides better value for professional applications.

Before buying, compare total system cost, independent gaming benchmarks, productivity results, and the availability of competing processors in your region. This provides a more reliable basis for choosing the right CPU than specifications alone.

Advantages

The advantages of the AMD Ryzen 5 7500X3D Processor include the following.

• Its massive L3 cache with AMD’s 3D V-Cache technology greatly cuts down data latency and improves frame rates in cache-sensitive games.
• It works as the most inexpensive gateway to AMD’s X3D gaming architecture on the modern AM5 platform.
• It works at a low 65W TDP (Thermal Design Power) that runs cool and does not need a massive CPU cooler or a huge power supply.
• It is built on the AMD Zen 4 Architecture with PCIe 5.0 and fast DDR5 memory support for storage and next-generation graphics cards.
• It delivers smooth multitasking, general desktop productivity, and esports performance, next to strong gaming output.

Disadvantages

The disadvantages of the AMD Ryzen 5 7500X3D Processor include the following.

• Its maximum boost clock is lower than that of the Ryzen 5 7600, which may affect workloads that benefit more from clock speed than additional cache. This can result in slower performance in tasks that depend on raw clock frequency instead of large cache size.
• It is optimized greatly for gaming through its 3D V-Cache. So, it may trail higher-core-count processors in heavily multithreaded workloads, including demanding video editing and rendering when handling heavy workloads like intense video editing, professional multi-threaded software, and higher-end tasks.
• It needs compatible motherboards and expensive DDR5 memory, which increases the overall system building price even though the processor is situated as a reasonable entry point.
• Heat dissipation is very complex because the 3D V-Cache layer is located on top of the silicon die in the architecture. This limits voltage adjustments and aggressive manual tuning compared to fixed non-X3D variants.

Applications

The applications of the AMD Ryzen 5 7500X3D Processor include the following.

• The AMD Ryzen 5 7500X3D is primarily used for efficient daily desktop computing and high-performance budget gaming.
• This processor handles daily computing, office, and multitasking workflows very efficiently with its 6 Zen 4 cores running at base and boost clocks.
• Its integrated AMD Radeon graphics can boot, run basic display tasks, and troubleshoot a system without requiring a dedicated graphics card.
• The processor handles cache-sensitive games, reducing stutter, and delivering high, stable frame rates at WQHD and 1080p resolutions.
• The processor can handle moderate video editing, multithreaded calculations, and streaming, although demanding professional workloads may benefit from a higher-core-count CPU.

FAQs

Is the AMD Ryzen 5 7500X3D worth buying in 2026?

It depends on its current price relative to the Ryzen 5 7600X3D, Ryzen 5 7600, and Ryzen 5 9600X. Compare gaming benchmarks and total platform cost before deciding.

How much L3 cache does the Ryzen 5 7500X3D have?

It has 96 MB of L3 cache, including 64 MB of additional 3D V-Cache.

Does the Ryzen 5 7500X3D come with a CPU cooler?

No. AMD lists its thermal solution as not included and recommends liquid cooling for optimal performance.

Can the Ryzen 5 7500X3D run games without a dedicated graphics card?

Its integrated Radeon Graphics can provide display output and basic graphics functionality. However, demanding modern games generally benefit from a dedicated graphics card.

Is the Ryzen 5 7500X3D compatible with B650 motherboards?

AMD lists B650 among its supported chipsets. Check the specific motherboard’s CPU support list and BIOS requirements before installation.

Is the Ryzen 5 7500X3D good for streaming?

It can handle gaming and typical streaming workloads, but results depend on the game, streaming software, encoding method, and GPU. More demanding multitasking may benefit from a higher-core-count CPU.

What is the maximum operating temperature of the Ryzen 5 7500X3D?

AMD specifies a maximum operating temperature (Tjmax) of 89°C. Actual operating temperatures depend on the workload and cooling configuration.

Does the Ryzen 5 7500X3D support DDR5 memory?

Yes. It supports dual-channel DDR5 memory, with officially supported speeds dependent on the DIMM configuration.

Is the Ryzen 5 7500X3D better than the Ryzen 7 7800X3D?

Not universally. The 7800X3D has eight cores and 16 threads, compared with six cores and 12 threads on the 7500X3D. Gaming performance and value depend on the game, configuration, and price.

What is the difference between the Ryzen 5 7500X3D and Ryzen 5 7600X3D?

Both are six-core, 12-thread Zen 4 processors with 96 MB of L3 cache. Their clock speeds, pricing, and availability differ, so current benchmarks are useful for deciding between them.

In summary, AMD Ryzen 5 7500X3D is an efficient gaming processor. Its market value frequently depends on regional pricing and alternatives like the 7800X3D or 7600X3D. This is a smart and low-power alternative for budget-conscious AM5 builders who need solid long-term gaming performance without requiring heavy-duty cooling or an oversized power supply. Here is a question for you: What is the AMD Ryzen 7 7800X3D?
